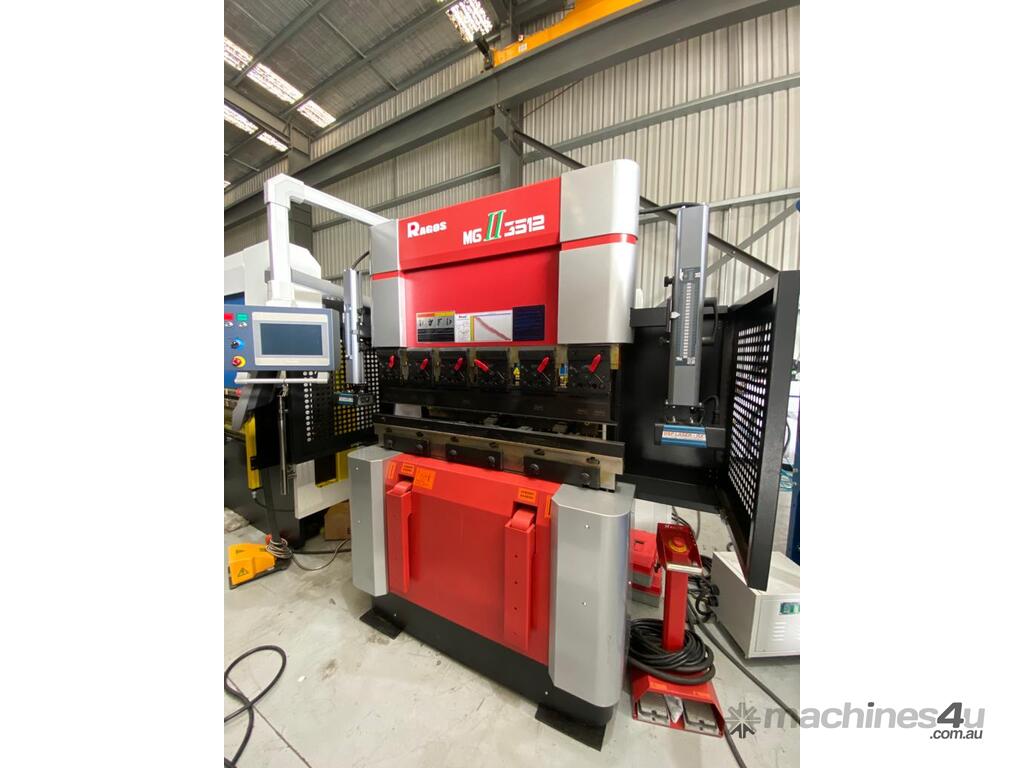

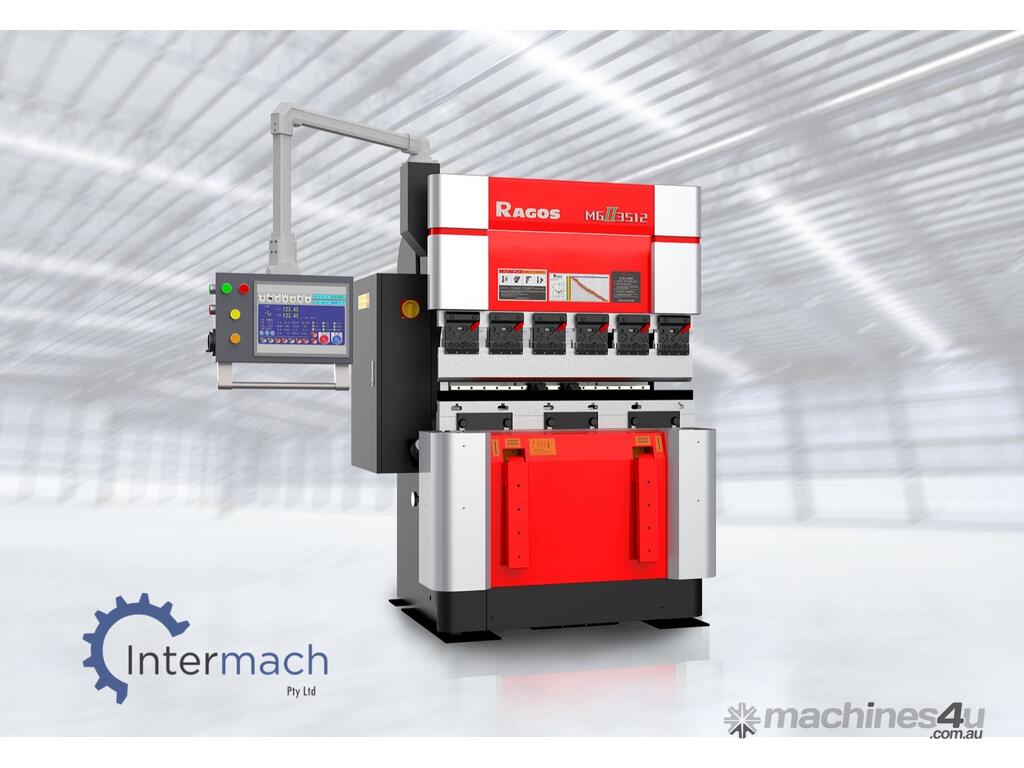

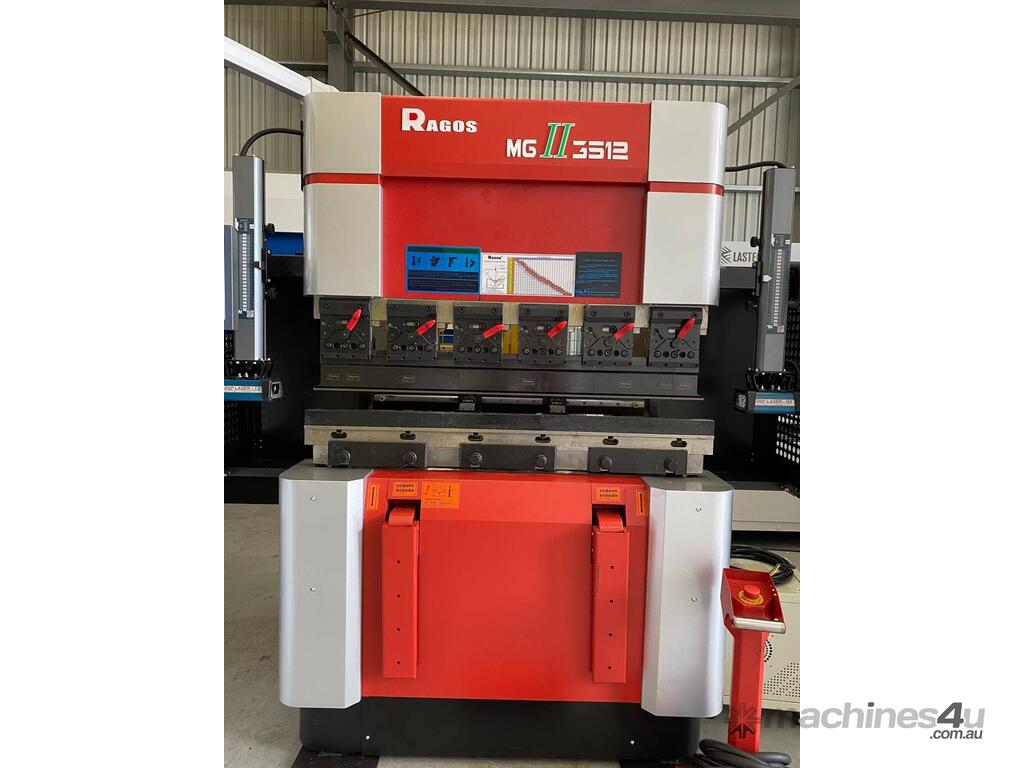

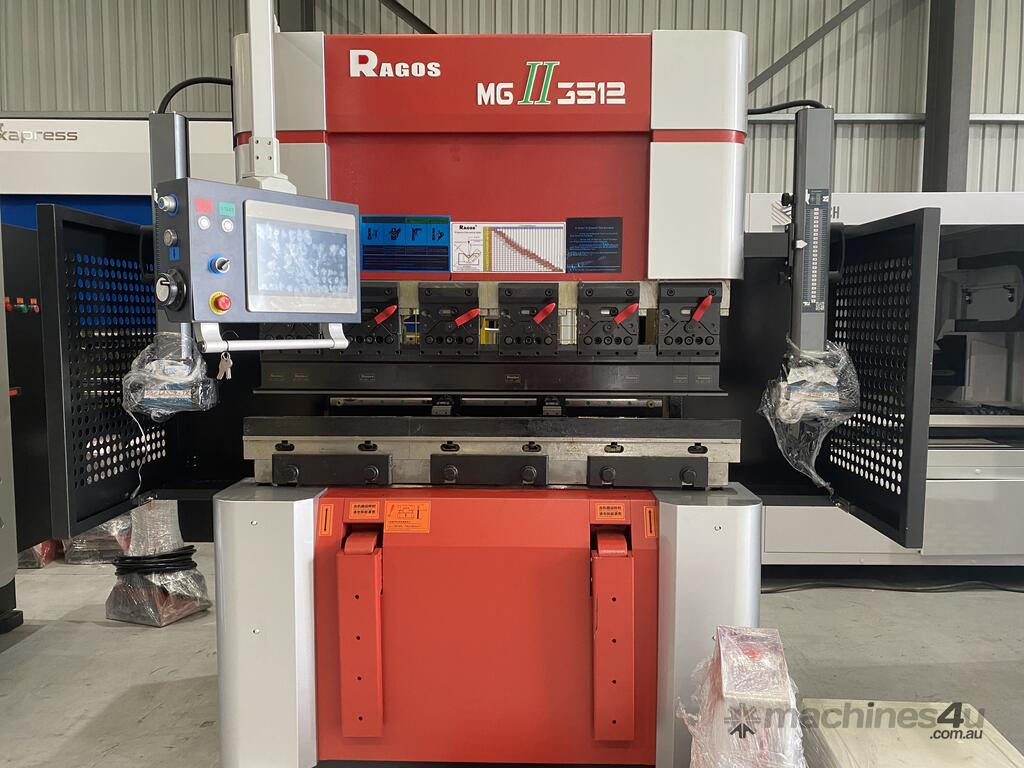

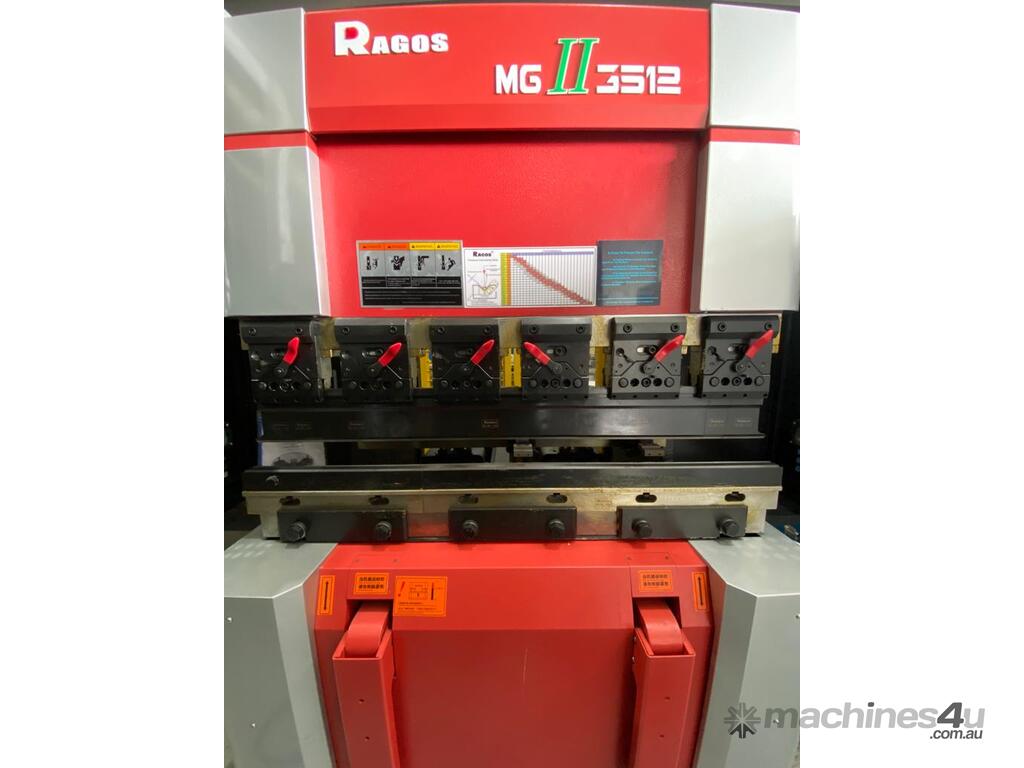

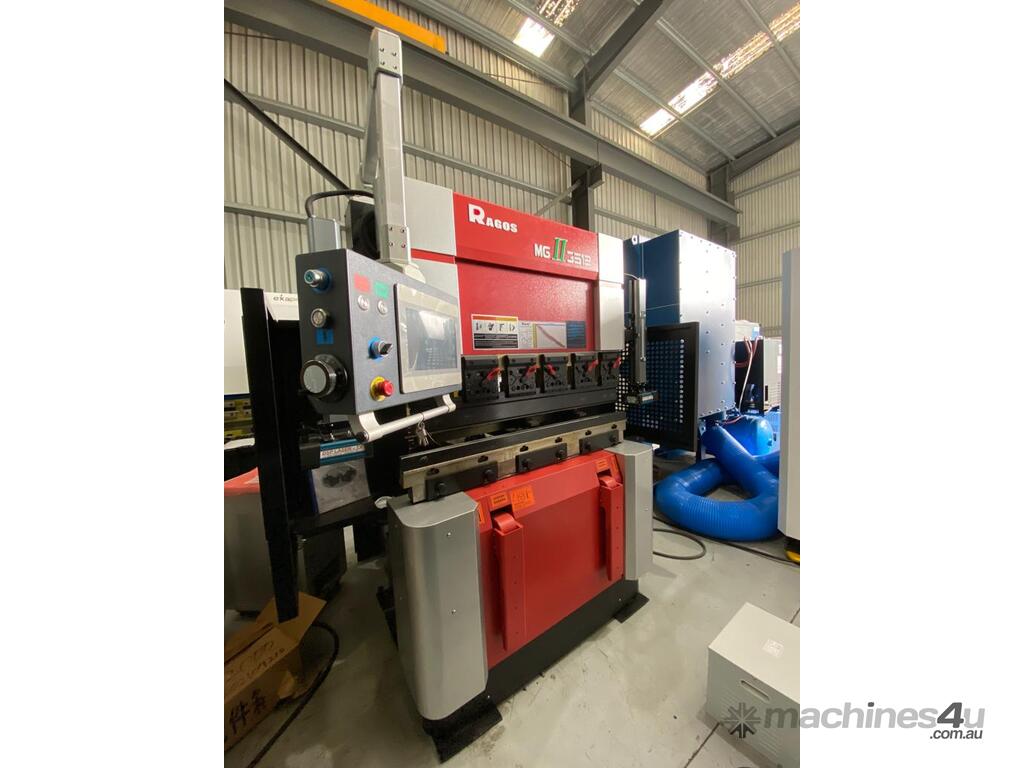

Ragos MG Series | CNC Bending Machine

The latest RAGOS MG SERIES MACHINES come equipped with a highly rigid, annealed machine frame and a modern CNC system for high-speed and high-precision bending.

----------------------------------------------------------------------------------------------------------------------------------

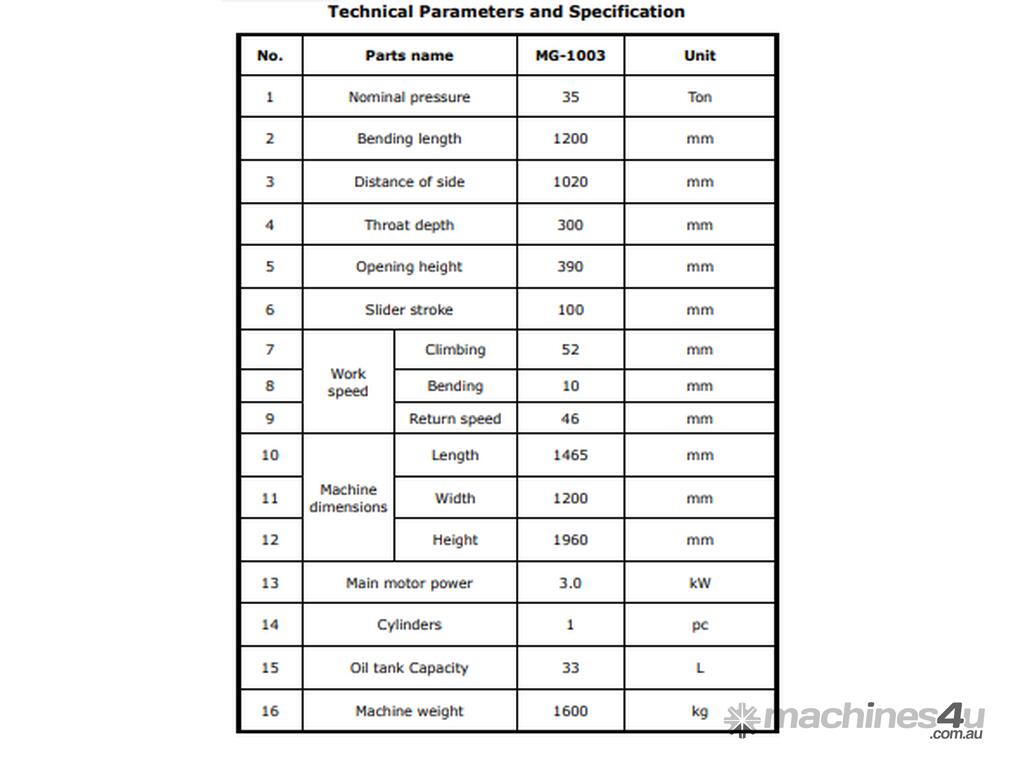

MACHINE SPECIFICATIONS:

- Model: MG 3512

- Nominal pressure: 35 Ton

- Bending length:1200 mm

- Distance of side: 1020 mm

- Main motor power: 3.0 kW

- Cylinders: 1 pc

----------------------------------------------------------------------------------------------------------------------------------

- MACHINE DIMENSIONS:

- Length: 1465 mm

- Width: 1200 mm

- Height: 1960 mm

- MACHINING CAPACITY:

- Mild steel 4 mm

- Stainless steel 2 mm

----------------------------------------------------------------------------------------------------------------------------------

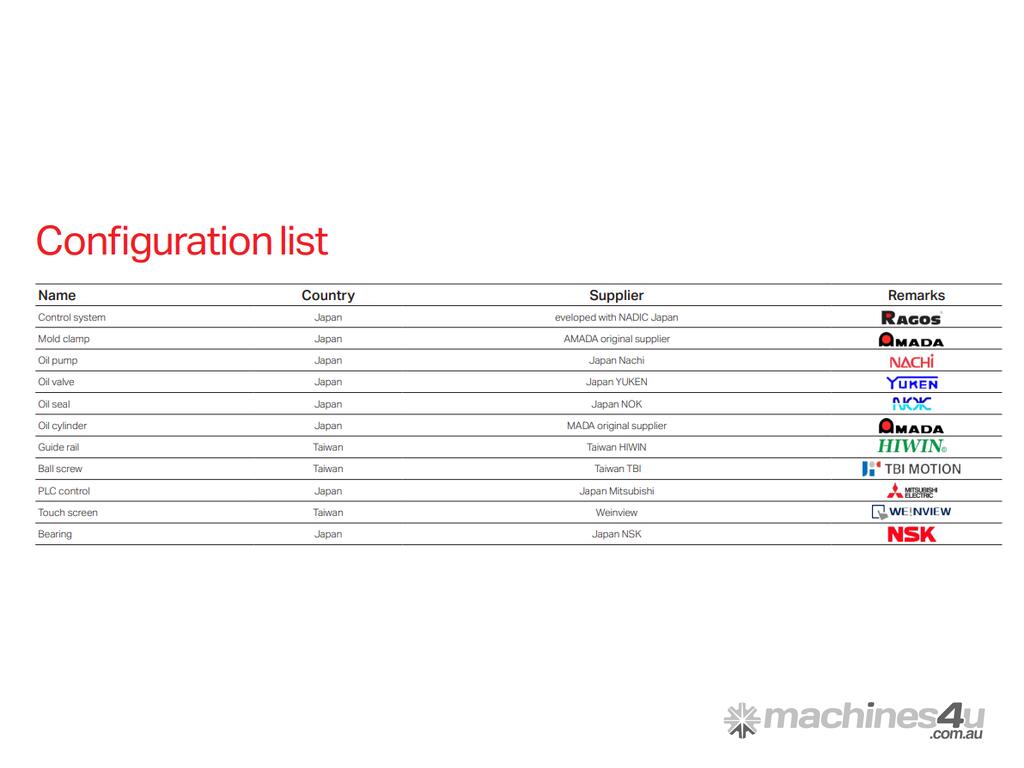

PRODUCT INFORMATION:

- Control system | Japan ( Developed with NADIC )

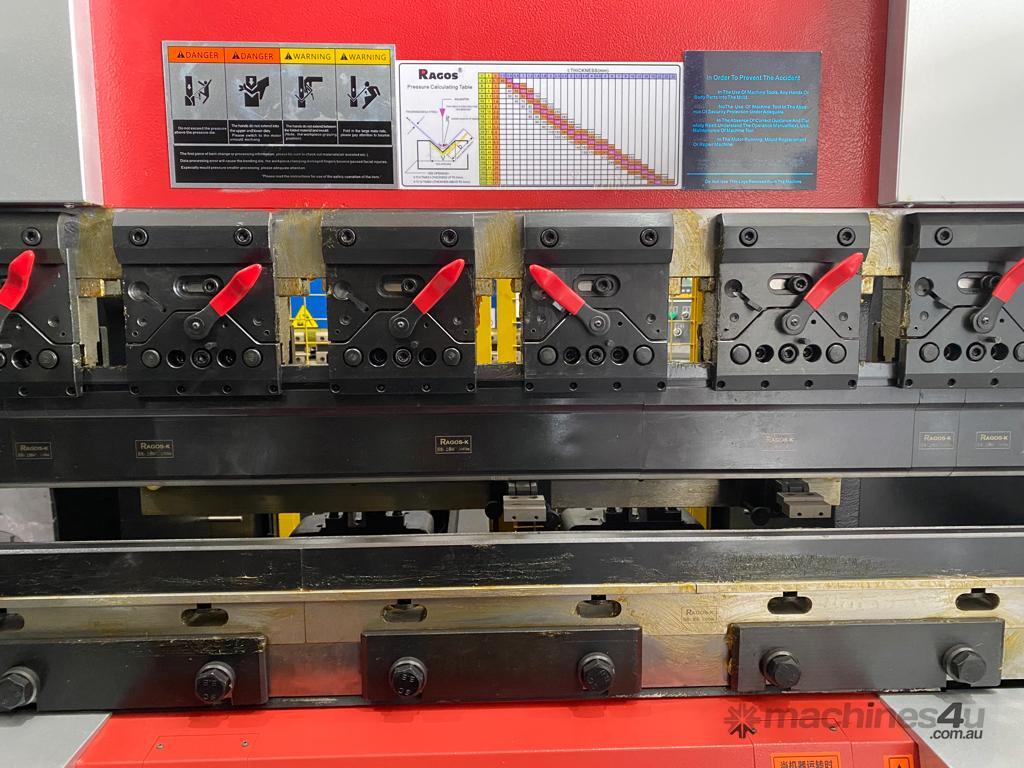

- Mold clamping | Japan (AMADA)

- Oil pump | Japan (NACHI)

- Oil valve | Japan (YUKEN)

- Oil seal | Japan (NOK)

- Cylinder | Japan (AMADA)

- Guide rail | Taiwan (Taiwan HIWIN)

- Ball screw | Taiwan (TBI)

- PLC control | Japan (MITSUBISHI)

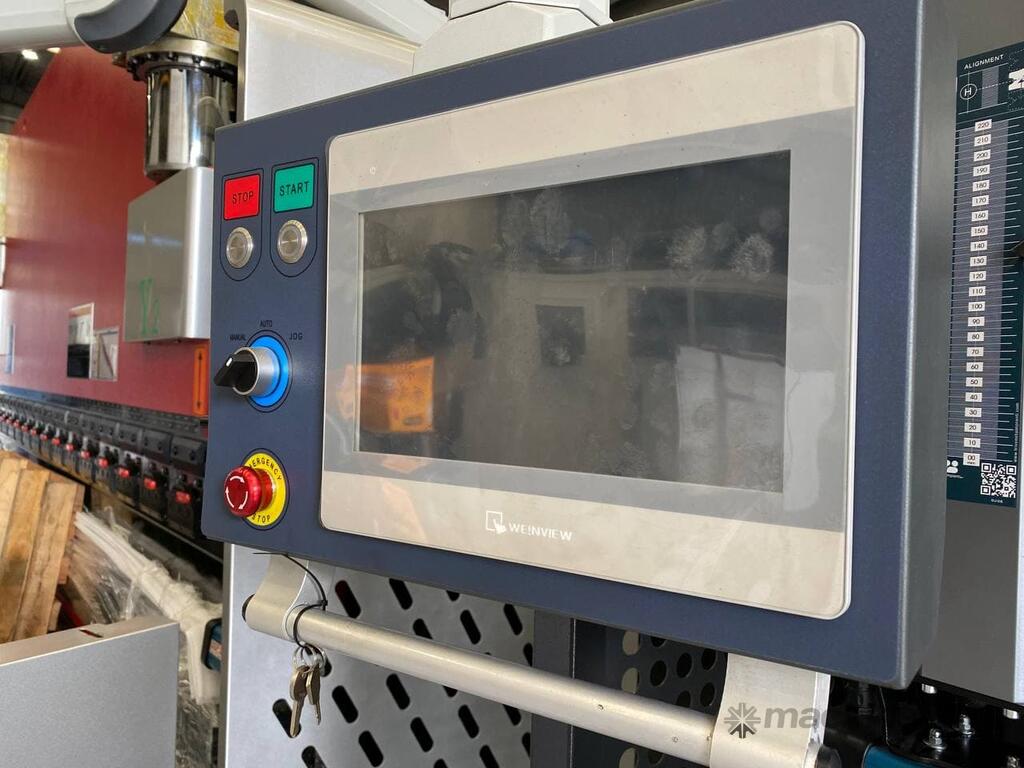

- Touch screen | Taiwan (WEINVIEW)

- Bearing | Japan (NSK)

- Plus much more

* As part of our service, we will offer to load this machine on to a truck free of charge. *

If you require additional product information, please download the attached PDF.

----------------------------------------------------------------------------------------------------------------------------------

Here at Intermach, we offer:

- FREE DEMOS of the machines we have in our showroom.

- FREE EXPERT CONSULTATIONS to help you select a machine that suits your operational and financial requirements.

- CONSISTENT AND COMPETITIVE PRICING for our machines based on their capacity.

- AND A LOCAL SUPPORT TEAM OF HIGHLY EXPERIENCED ENGINEERS who are on call for swift repair of any issues that might arise with a machine.

As part of our mission statement, Intermach prioritises customer satisfaction. To that end, we have a growing wealth of references nation-wide who can attest to the high quality of our machines and service.

Phone our sales team now to book a demonstration or a consultation. We look forward to hearing from you!

----------------------------------------------------------------------------------------------------------------------------------

COMPANY BACKGROUND

Intermach is a family-owned company with over 40 years of experience in the industry. We supply both new and used machinery to a multitude of industries—including engineering, fabrication, plastics, recycling, and material handling.

We also sell a versatile range of quality brands to the discerning Australian customer. As the industry’s leading provider, we specialise in sheet metal cutting equipment, fiber laser cutting machines and press brakes.

Our mission is to supply high-quality solutions for all your machinery needs with a focus on versatility, reliability, and service excellence. Customer satisfaction is our top priority.
