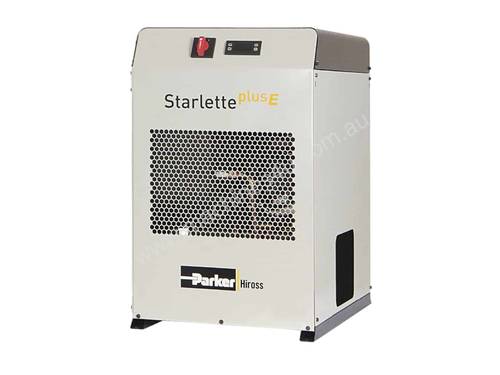

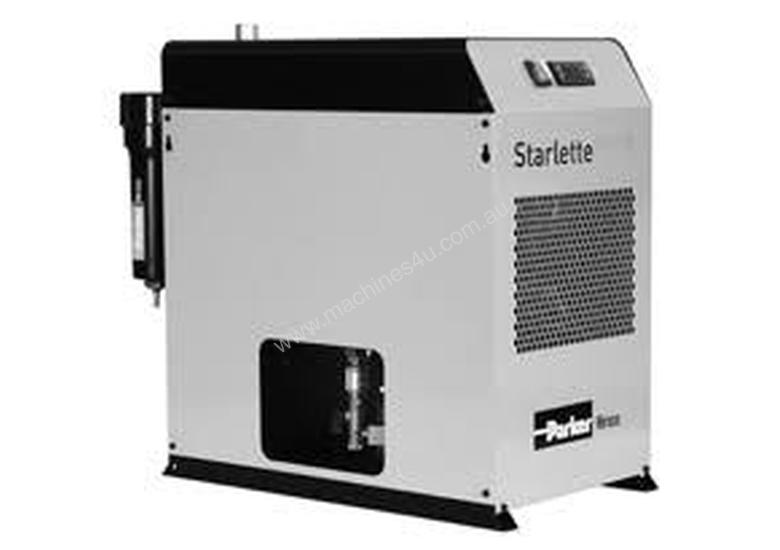

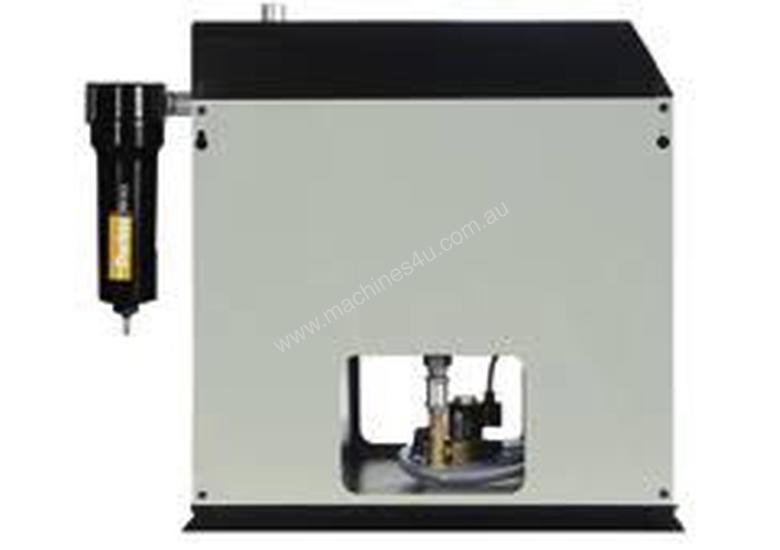

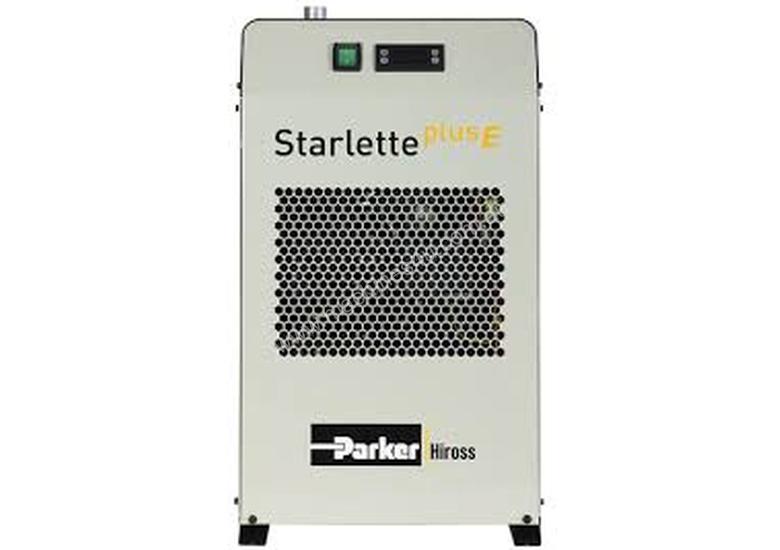

Refrigerant Dryer - 106 cfm

Dryer Model - SPL030
Air Flow - 106 cfm , (180 m 3/min)
Power - 0..78 kW
Air Connection - 3/4" BSP
Dimensions - 520 x 565 x 225 mm (w x d x h)
Weight 35 kg

Performances refer to air at FAD 20 °C / 1 bar A, at working conditions: air suction 25 °C / 60 %RH, 7 barg working pressure, pressure dew point in accordance with ISO8573-1, 25 °C cooling air temperature, 35 °C compressed air inlet temperature. All indicated data is according to DIN ISO 7183. All models supplied with refrigerant R134a and for operation up to 16 barg. Starlette Plus can operate up to ambient temperatures of 50 °C and inlet temperatures of 65 °C.
