DAIKIN N70V1TN-R Refrigeration/Air Conditioning Compressor NIB

DAIKIN N70V1TN compressor specification: the following is the compatibility information Daikin sent me
Model No. PL Code P/L made by
MY56AV1 C-20-1 DIL
MY56BV1 C-23 DIL
MY56CJV1 C-27 DIL
MY56CJV18 C-30 DIL
MY56CV1C C-29 DIL
MY56D7V1 EC09-96 DENV
MY56DA7V1 EC21-01 DENV
MY56DA7V1 ED53-10 DENV
RS56NV1F C-11 DIL
RSY56NV1F C-10 DIL
RY453V1 C-26 DIL
RY453V1C C-26 DIL
RY45CJV1 C-25 DIL
RY45CJV18 C-30 DIL
RY45CV1 C-24 DIL
RY45CV1 C-25 DIL
RY45CV1C C-25 DIL
Parts No. 1978543
Parts Name 1.7KW
Drawing No. RC2N70V1TN-R
Specification 220-1.7KW

It’s a 1.7 KW compressor that’s about 2.21 HP, the cooling capacity if the systems its designed for would probably be more than 3 times that figure. Rated motor power and rated cooling power are not the same thing. Aircon units are generally specified by cooling and heating capacity and these figures will be much higher that the rating of the motor on the compressor.

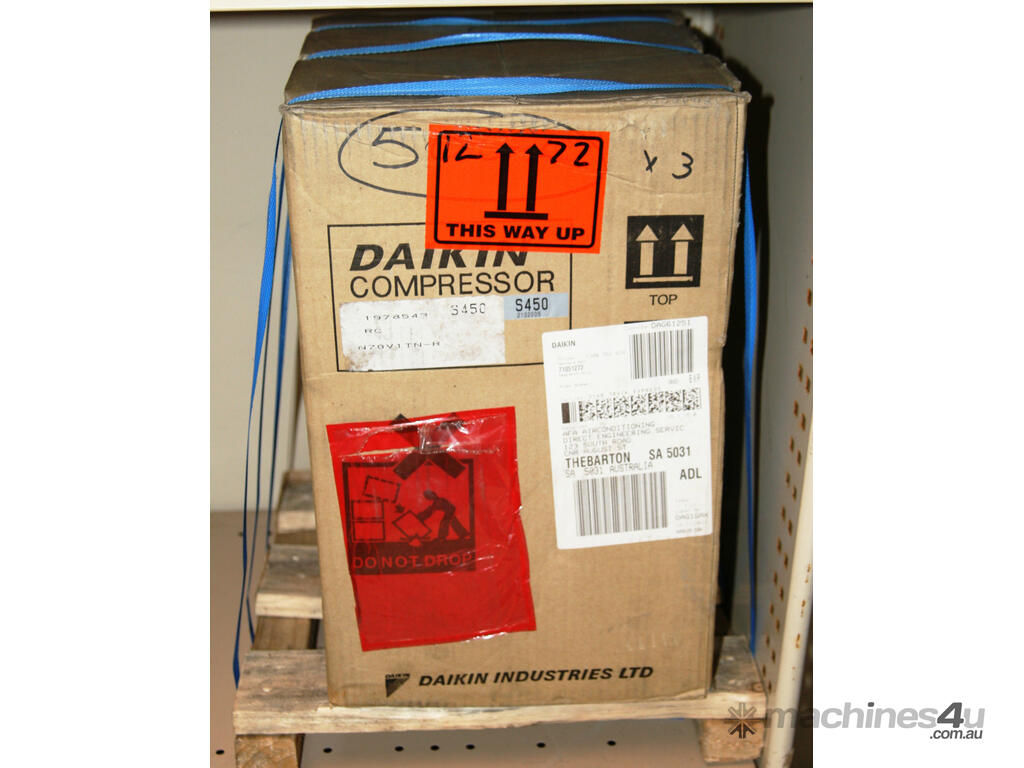

At approximately 32 kg this item is too heavy to post but we are happy to arrange freight within Australia or overseas if local pick-up is not possible. As shown in the photos, this item is strapped to a small pallet for shipping. Box dimensions: approx. 40 x 28 x 25 cm.on pallet. Our stock ID 42
