Refurbished ARC Mate 120iB | Fanuc | Robotic Arm | 25kg Payload | 1.83m Reach

High quality refurbished & functionaly tested Fanuc ARC Mate 120iB Industrial Robot configured ready for install.
Delta Automation offers a range of high qualiy refurbisehd robots designed to be a highly cost effective solution for manufacturing and fabricating business to introduce automation to their processes.

Robots are refurbished in Rutherford New South Wales including a rigorous pre-sale tested regime. Delta Automation offer additionals pre and post sale robotic and electrical engineering services.

Delta Automation are a 100% Austrailan owned business with over 22 years of electrical engineering and robotic experience.

Key Features include:

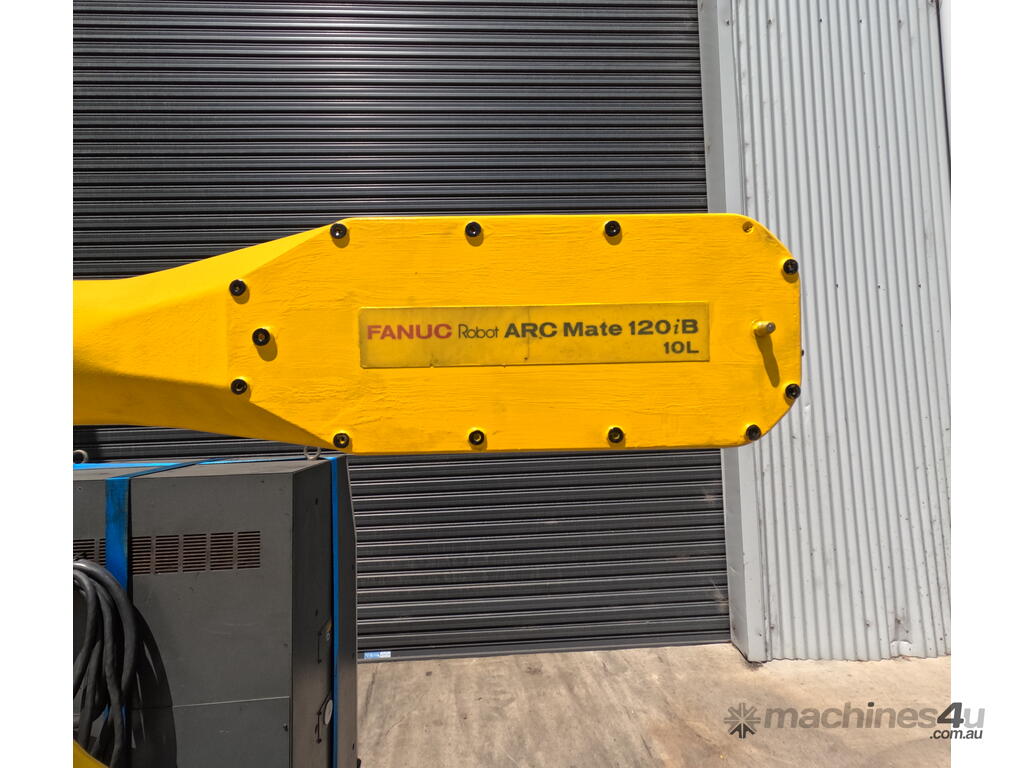

Robot: ARC Mate 120iB Fanuc Robotic Arm

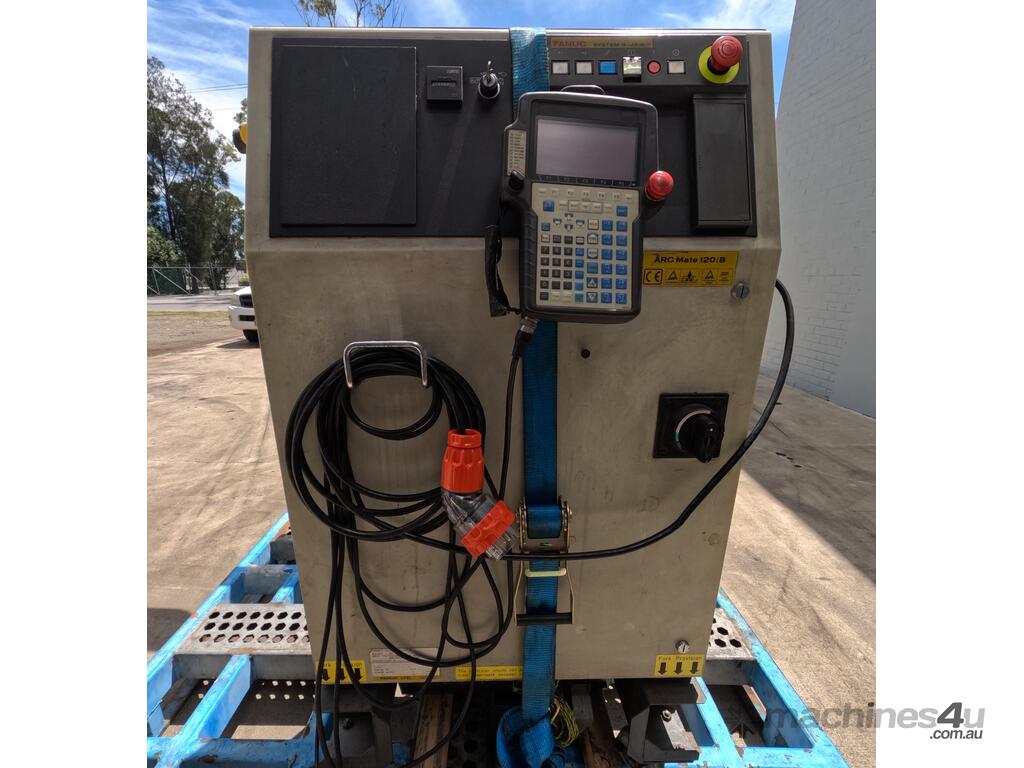

Controller: RJ3iB
Teach Pendant Included
Reach: 1831 mm
Payload:20 kg
Repeatability: 0.08mm +/-
Motion Range: 6 axis
Total Weight: 220 kg
Mounting Options: Floor, ceiling, angle and wall
Axis Drive System AC Servo
Ambient Temperature Range 0-45°C
Communications: DeviceNet
Power Supply: 3 Phase, 50/60Hz
Robot Foot Print : 320 x 320 mm
Average Power Consumption: 2.5kW
Wrist & J3 Arm: IP67
Standard Body: IP54

The ARC Mate 120iB series is a six axis, modular construction, electric servo-driven family of robots designed for precise, high-speed welding and cutting. Based on their simple and reliable construction, the ARC Mate 120iB provides accurate and consistent path performance necessary for welding and cutting. The R-J3iB Controller and ArcTool software, standard
with the ARC Mate series robots, provide reliable performance with high productivity.


The large work envelope of the ARC Mate 120iB allows the robot to reach overhead and behind.

PRE SALE:
All Delta Automation robots are cleaned, functionally tested, fault cleared, defaulted, palletised & ready for install.

OPTIONAL EXTRAS:
Rotating table/s
Automatic Cleaning Stations
DESIGN | BUILD | INSTALL | COMMISSION | FAMILARISATION services

SHIPPING/TRANSPORT:

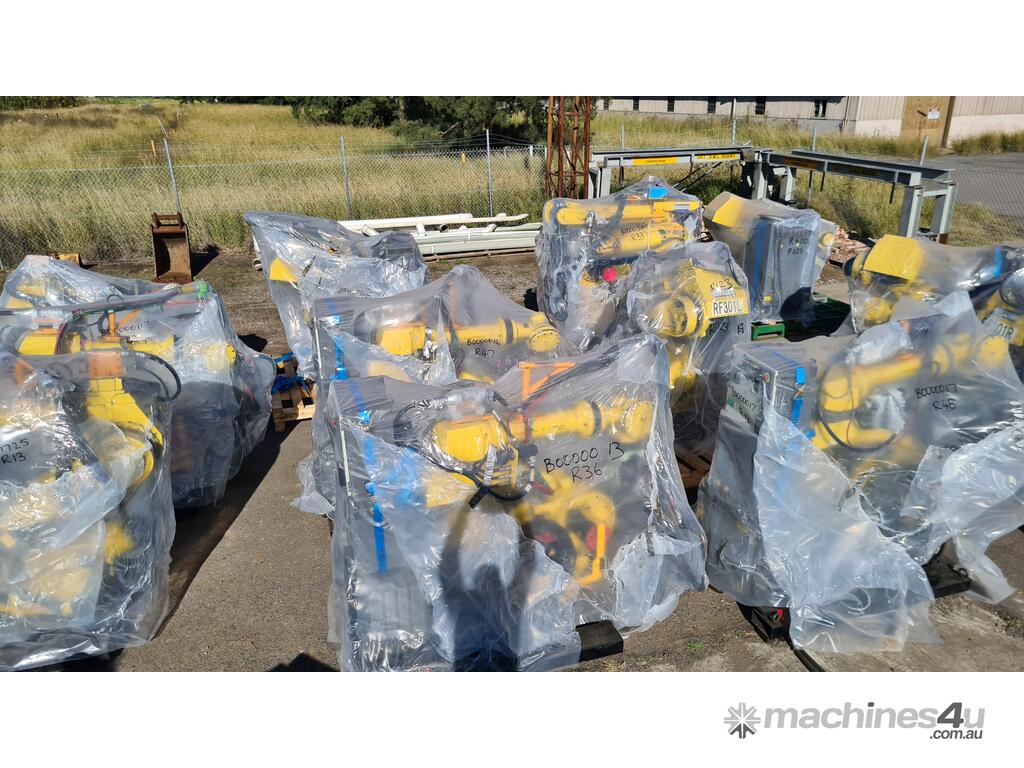

All Delta Automaton Robot Welding Packages are secured on 2 x2 mtr steel or wood pallets ready for transport Ex Rutherford, NSW.
Total package weight is approx 450kg.
Pallet Dimensions: Approx 200cm L x 200cm W x 180cm H

SERVICES/CAPABILITIES:
Not just used robot suppliers - Delta Automation offer a range of robot and electrical engineering services depending on the requirements of our clients: From used robots to repurposing robots to turn-key solutions Delta Automation offer DESIGN | BUILD | INSTALL | COMMISSION | FAMILARISATION services.

LOCATION:
Delta Automation are located in Rutherford, NSW. We ship our repurposed and used robots across Australia.

ADDITIONAL SERVICES:

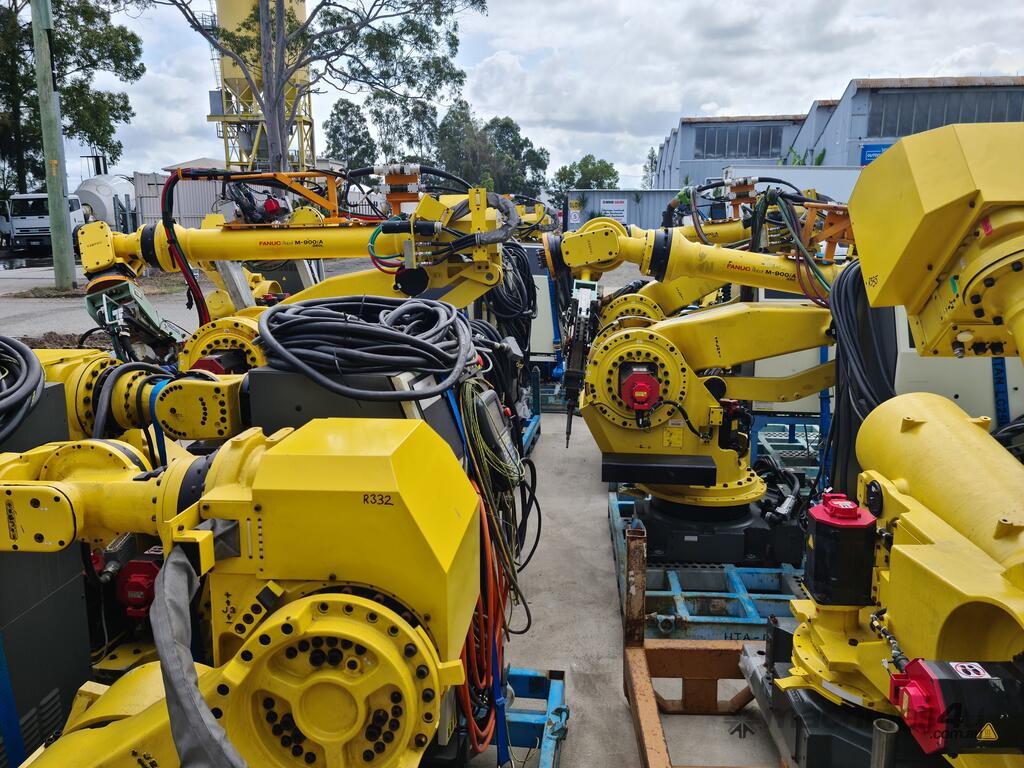

With over 200 used robots in our fleet contact us to explore other robot applications for your business including - Welding | Pick n' Place | Routing | Plasma Cutting | Machine Tending and more.

Robot automation doesn't need to be expensive or complicated. We stock a large range of used FANUC, ABB, Kawasaki, Kuka and Motoman robots in various configurations and controller options.
