SMALL DIAMETERS HIGH PRESSURE BUTT FUSION

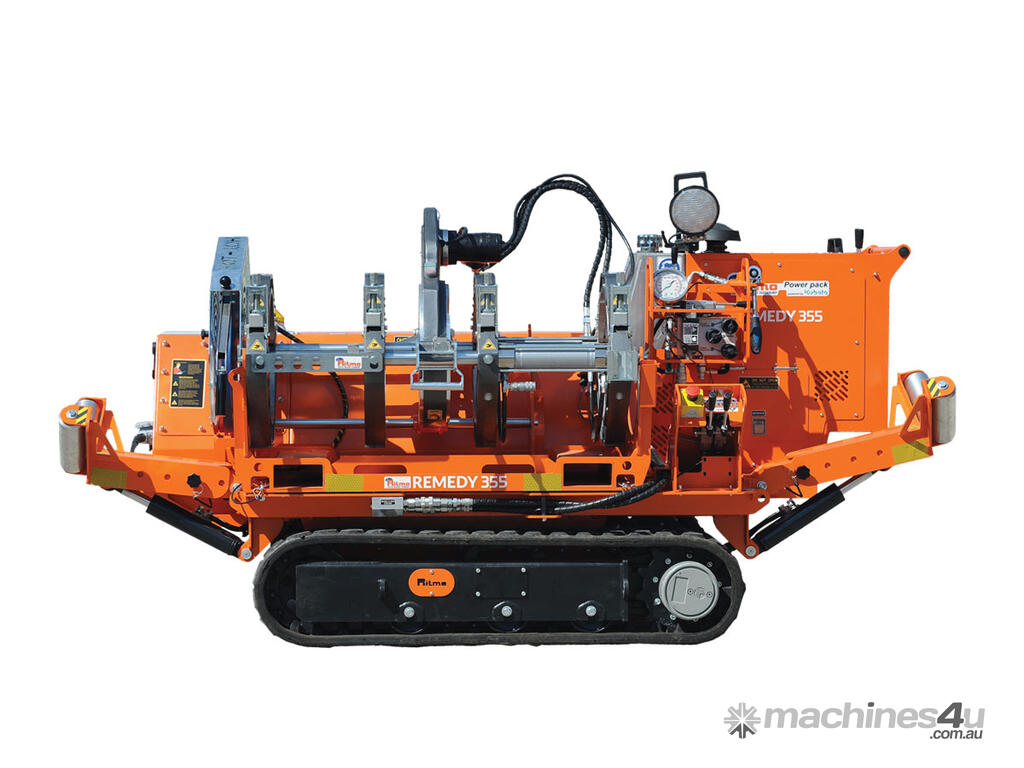

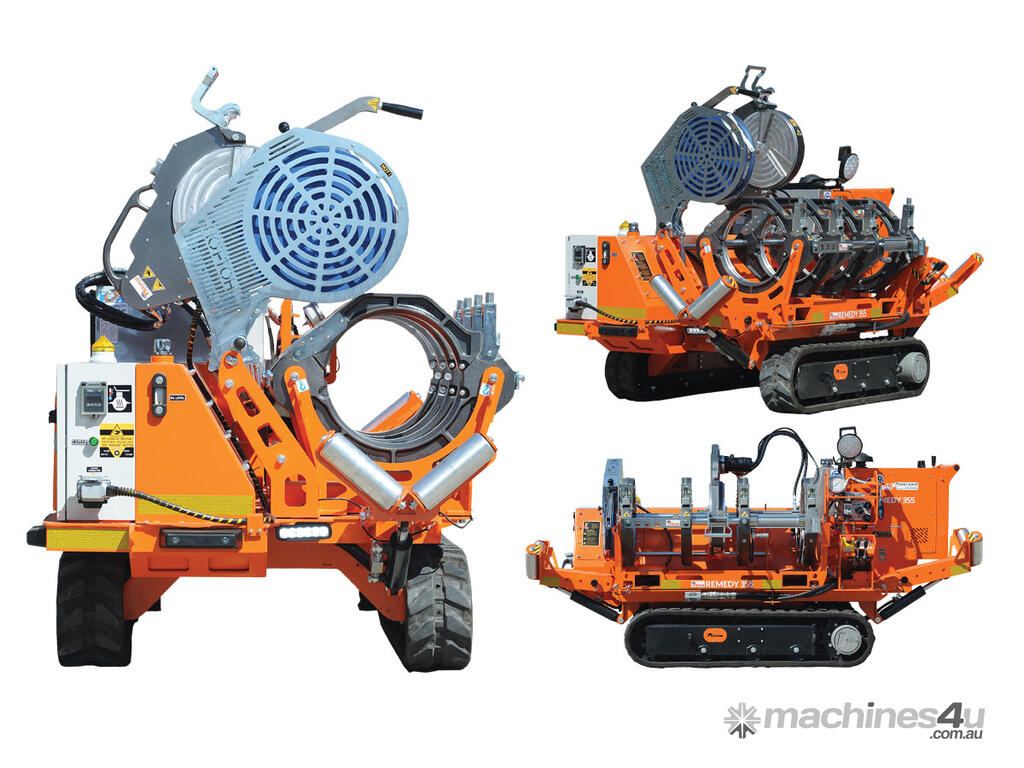

REMEDY 355 is an independent, high-productivity welding machine driven by tracks and powered by a Diesel on-board generator. Designed for butt welding HDPE and PP pipes from Ø 125 to 355 mm (from 4” to 14” IPS; from 4” to 12” DIPS). Suitable for ISO 21307 High Pressure and ASTM F2620 fusion standards.
Versatile
- Working range
from Ø 125 to 355 mm
from Ø 4” to 14”IPS
from Ø 4” to 12” DIPS
- Materials: HDPE, PP
- Manual controls
- Tracked welding machine
- Drives over 35% slopes
- In-ditch/user friendly
- In-ditch hoses/cables range/length 7 m - 23 ft
Materials
HDPE/PP
Working range
Ø 125 ÷ 355 mm
Ø 4” ÷ 14” IPS
Ø 4” ÷ 12” DIPS
On board generator *
719 cc - 14 Kw
Fuel
Diesel
Fuel tank
43 litres (11.3 gal)
Autonomy
21 Hours
Max operating slope
35%
Emmission compliance
EPA US TIER 4 FINAL, UE STAGE V
Total weight
1170 Kg (2579 lb)
Body machine sizes Max dimentions on site
3007 x 1479 x 1690 mm
9.86 x 4.85 x 5.54 ft
