Reverse Pulse Dust Collector

HALCO Engineering / CONAIR CORP - Reverse pulse dust collector.

Conair dust collectors keep your plant free of air-born dust and fines and prevent dust from fouling the vacuum pump.

A central vacuum dust collector allowws dust filtration to take place at the floor level. An air-tight collection container makes the removal of fines quick and easy.

Automatic filter cleaning is standard, lengthening the time between service requirements, the DC-3 has a sophisticated sequential blowback system.

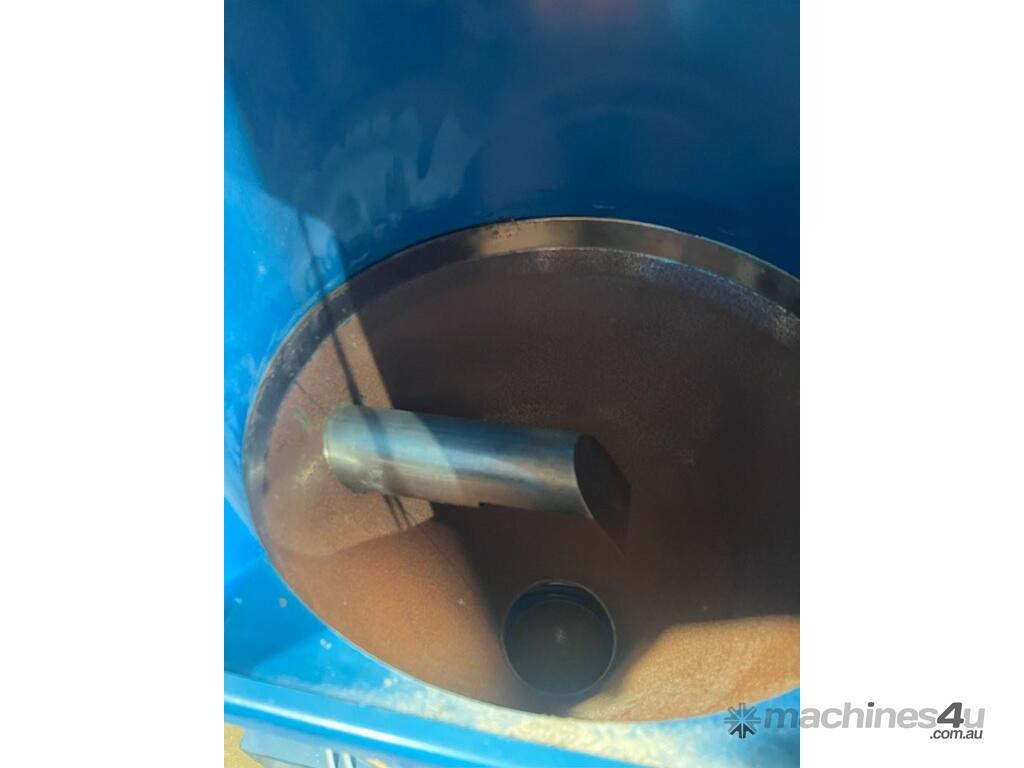

The integrated dust canister has a viewing port to identify when it needs emptying and releases easilt from machine.

The DC-3 provides three replaceable filters with and automatic sequential blowback system for maximum filter life.

How the DC-3 works: Three filter cartridges collect the dust. A purging cycle uses accumulated compressed air to blast each cartridge clean from the inside out. This continuous adjustable sequence drops fines into the collection canister. The DC-3 provides maximum filter life between manual cleanings.

Power: Single Phase, 240V.

Filter Area: 162 ft2 / 15 m2.

Vacuum line size: 3 Inch Inlet / Outlet.

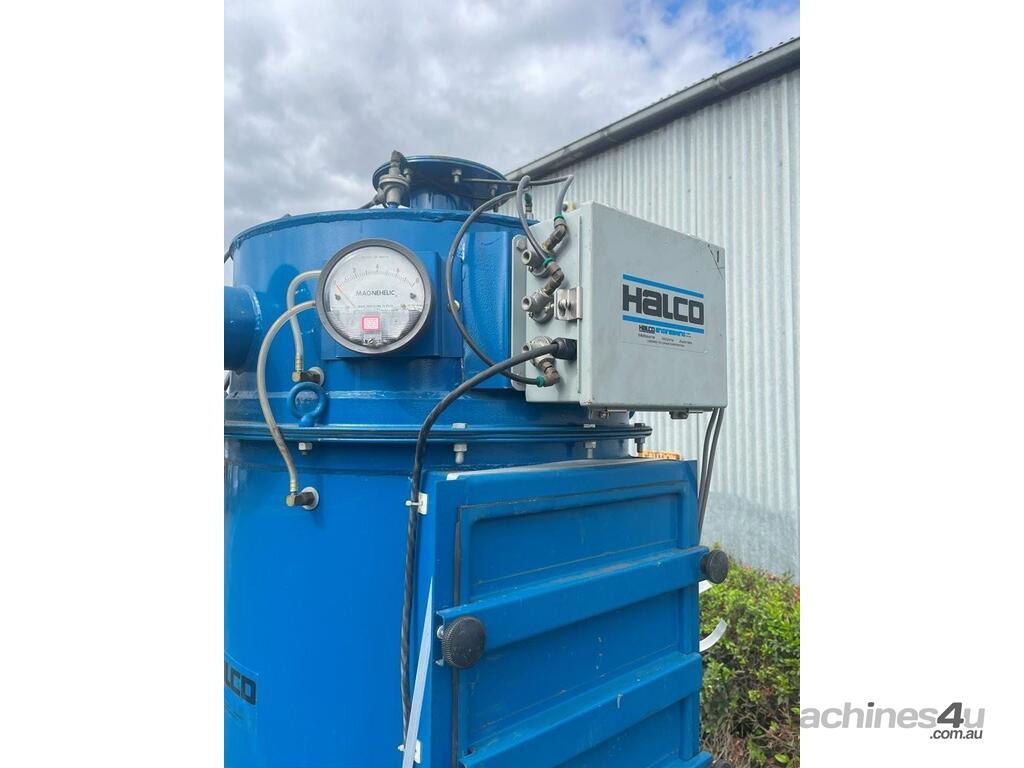

Reverse Pulse with differential pressure gauge.

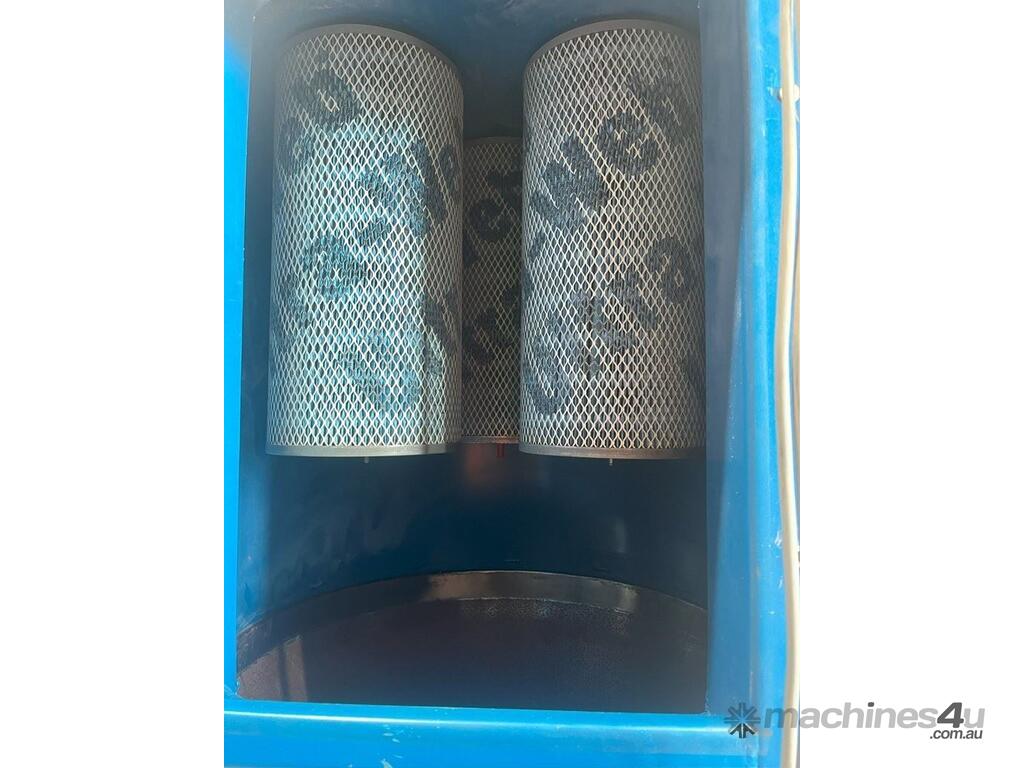

3 Replaceable cartridge filters.

Approx 35 Litre dust collection container.

Unit in excellent condition and reverse pulse and air systems run well.

Unit requires vacuum pump / blower / fan for operation.
