Get the huge benefit of continuous ón-line' filter cleaning while you work - at an affordable price that means there's no need to compromise on Extraction results with an óffline' shaker that only cleans the filters when the extractor shuts down.

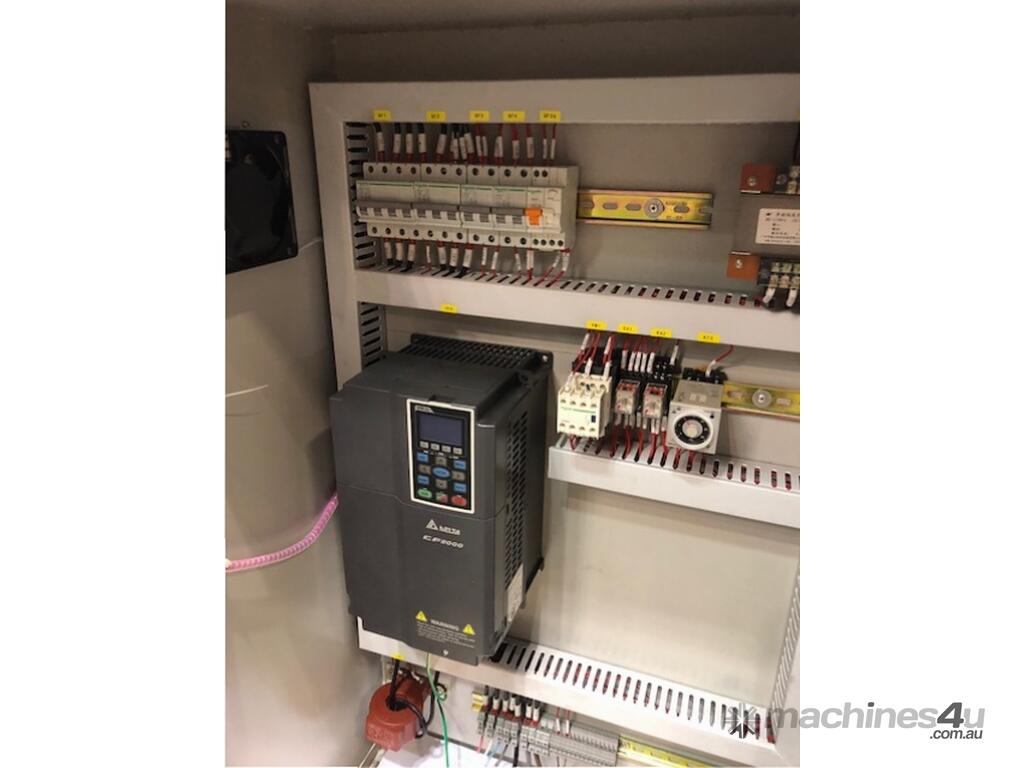

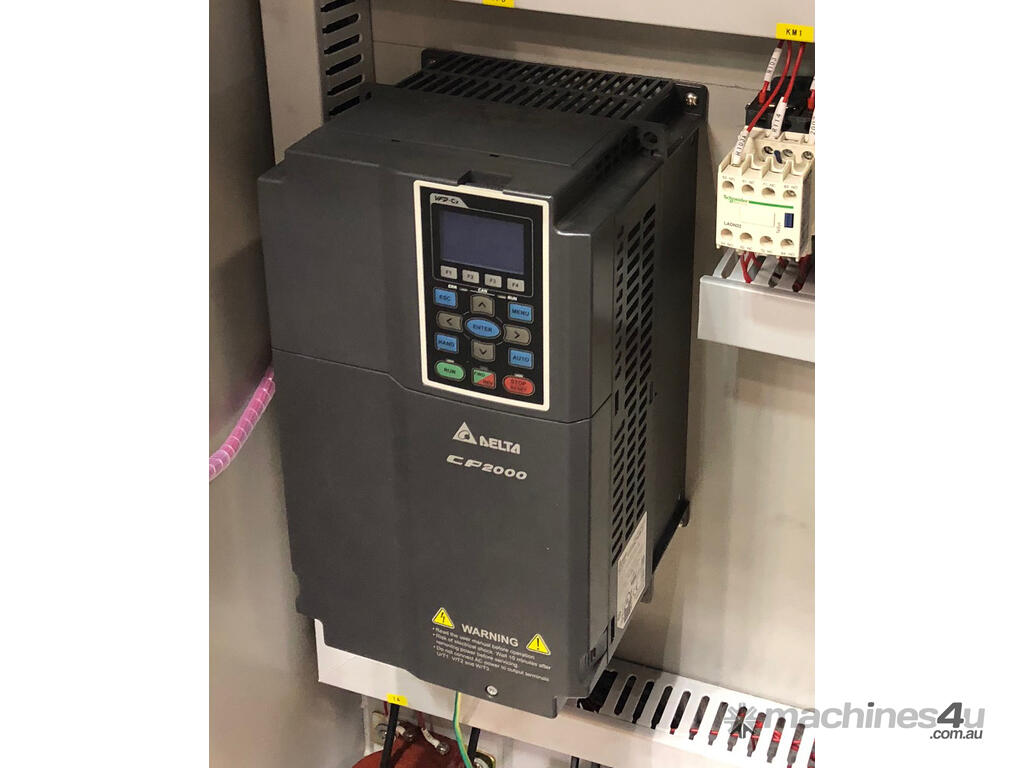

Now including Inverter control of Fan speed with soft start as standard and high energy efficiency IE2 motors. Hot dip galvanised fan housings

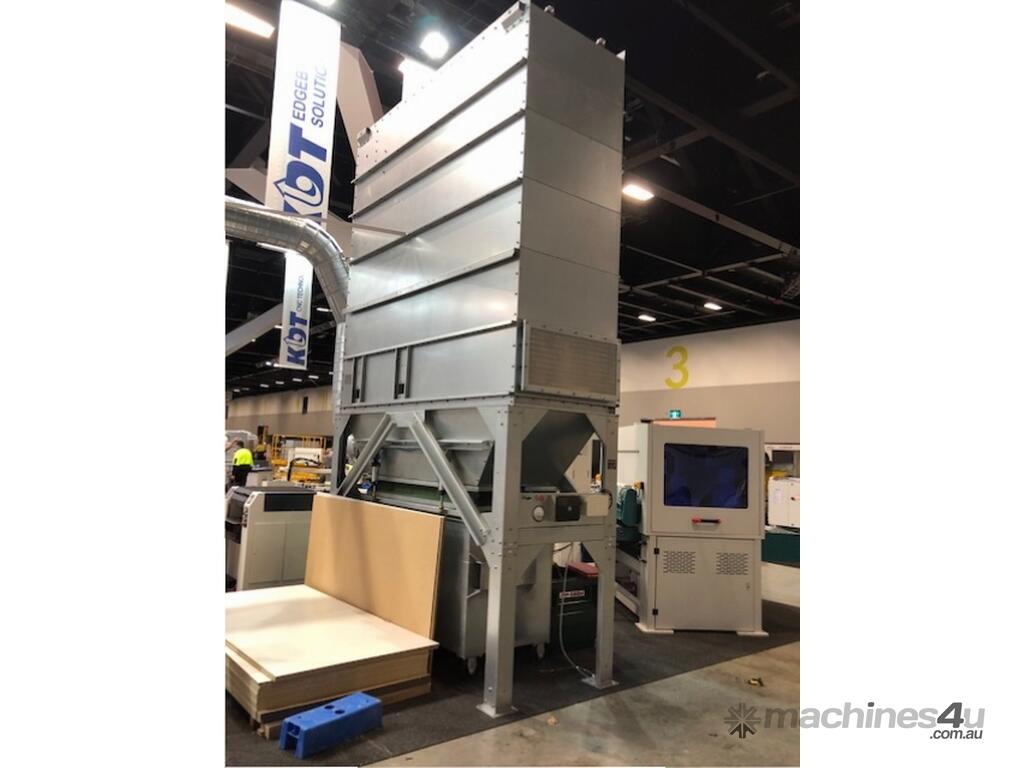

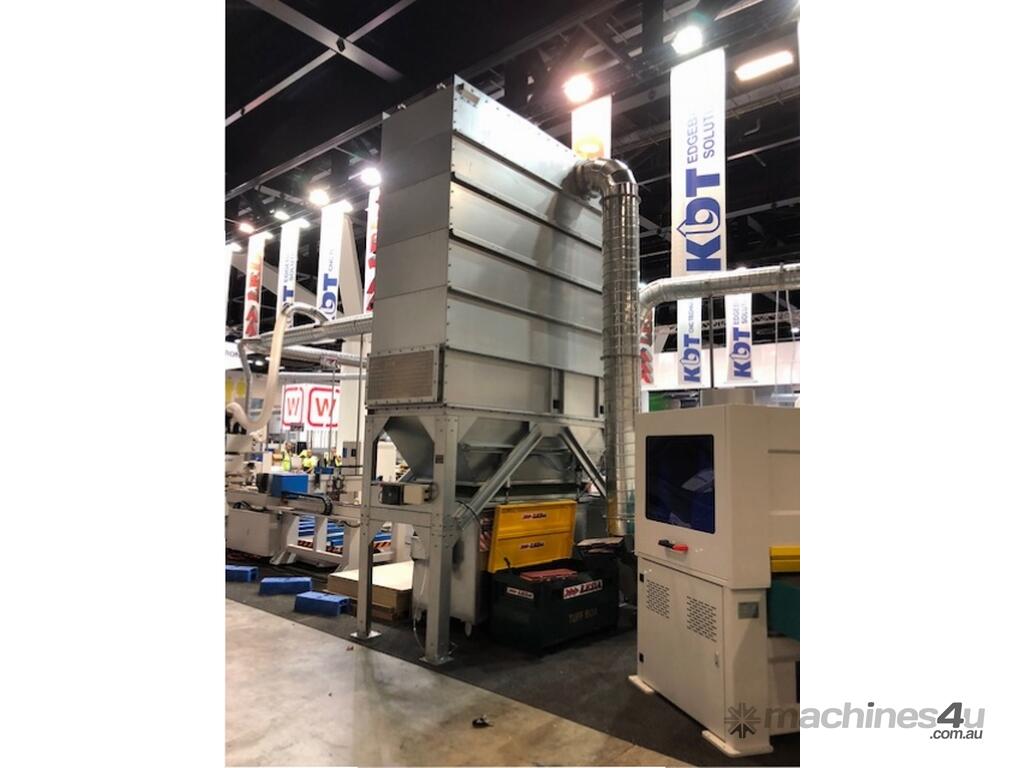

GOVE MODEL LDMY-60 REVERSE PULSE DUST EXTRACTION WITH 400 MM MAIN INLET DIAMETER.
This unit is well suited to a Cabinetshop running a mid size CNC, Premill Edger and panelsaw
Clean air system - no dirty air passes through the fan- eliminates wear and noise

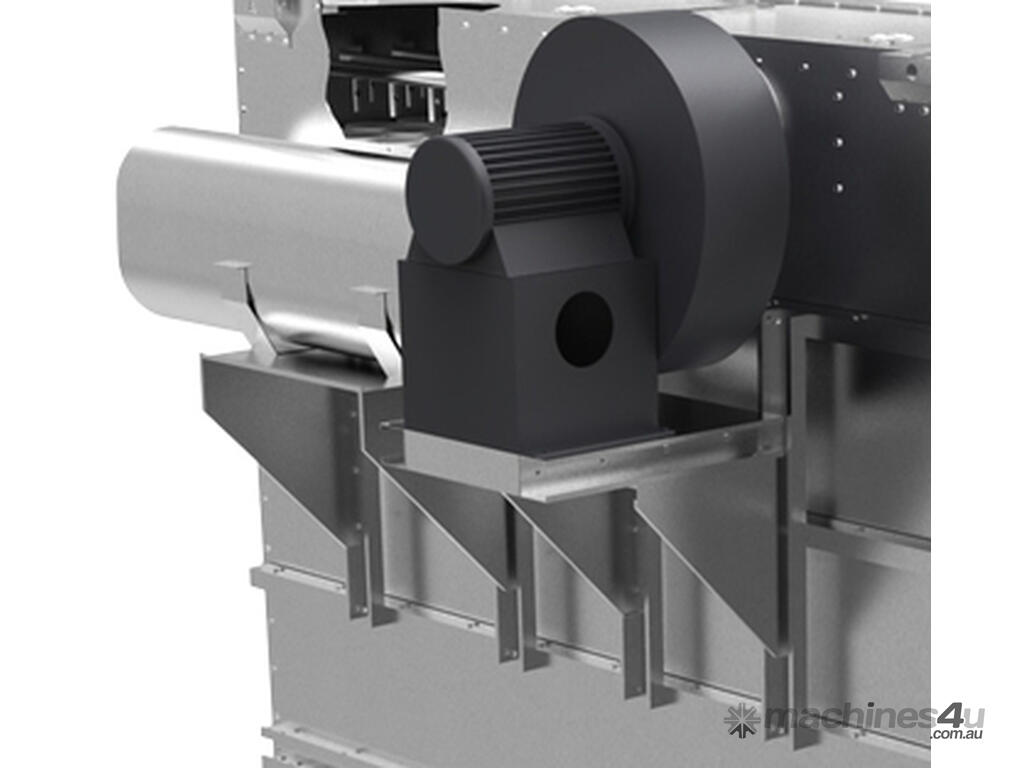

Compact design- fan and silencer mount neatly at rear of machine - keeps footprint small , lowers height and keeps fan out of way from vandals and forklifts!
Specifications and benefits:

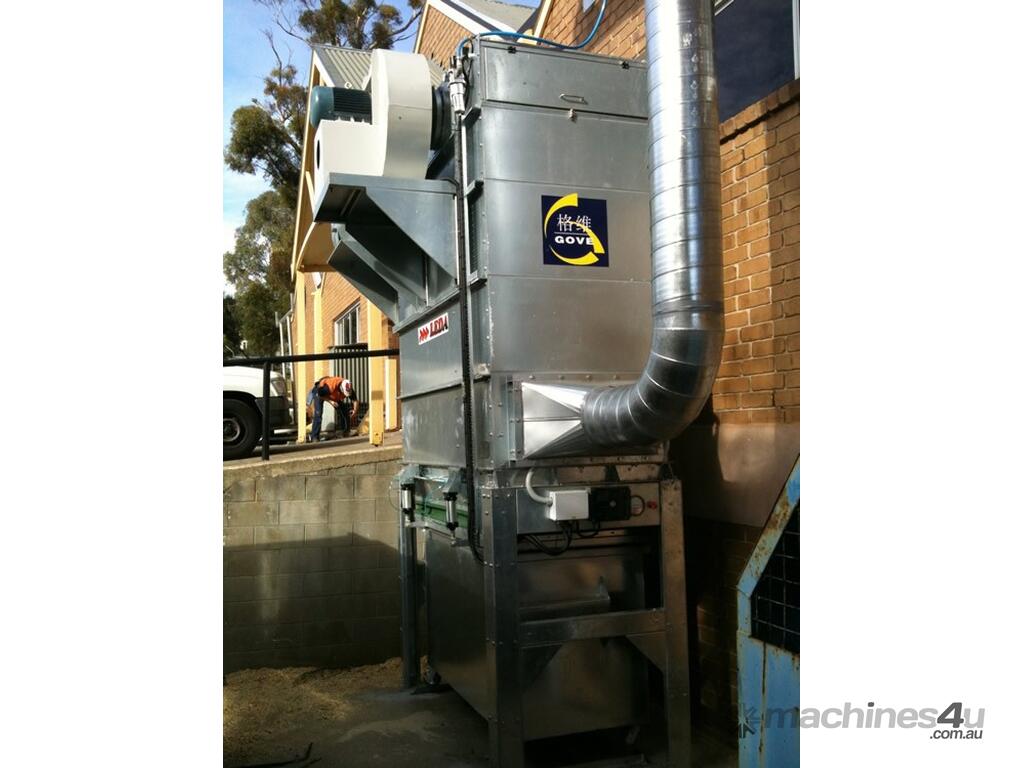

• Free standing unit with sheet steel outer cabinet, galvanized finish with stainless steel fixing bolts - happy out in the weather
• Vertically mounted sock filter medium inside cabinet - the best proven solution for woodworking dust. No Pleats that clog up on cartridge filters
• Timed compressed air blasts to continually clean filter socks maintaining the highest filter performance throughout the working day
• Auto Star/Delta on/off switch controls.

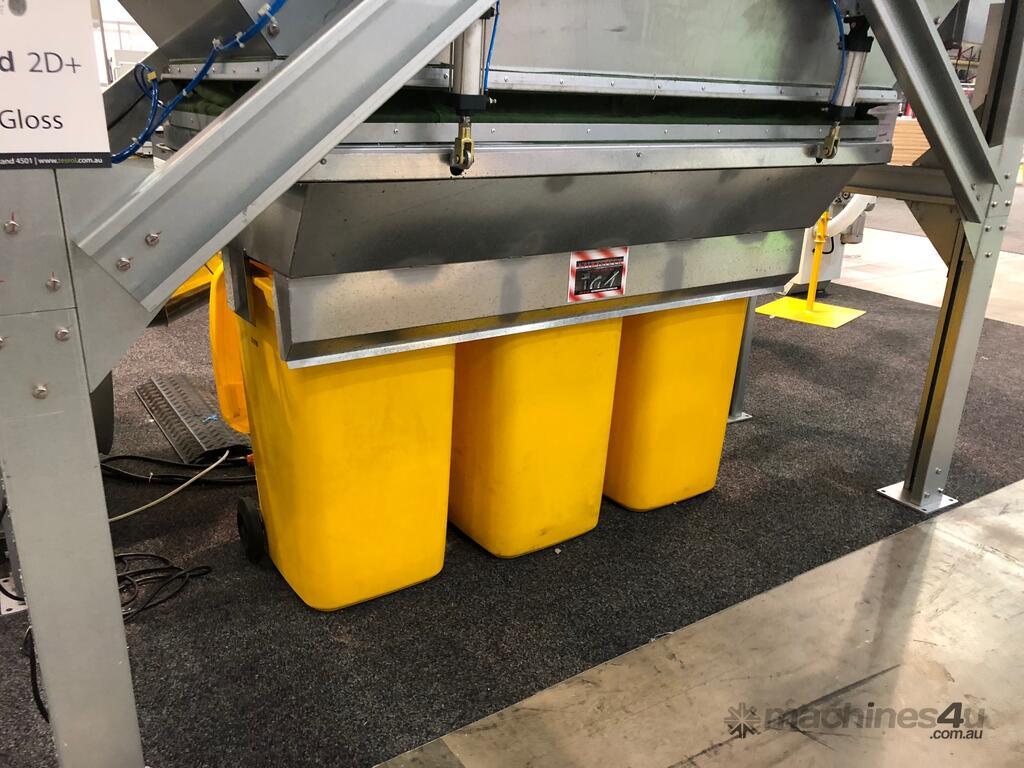

• PVC skirt with four air cylinders to seal onto a standard 1.5cu/m industrial bin. (bin not included - this would be rented from a waste collection company)
• Automatic pulse timer controller.
• Compressed air inlet filter/regulator
• The most maintenance free dust extractor available.
Technical Data
• Capacity of air flow 10,200m³/h 3500 pa of pressure ( 3000 pa is typical pressure required by a CNC)
• Fan motor 15kw (20hp)
• Exhaust silencer Included
• Diameter of inlet to extractor 400 mm
• Filter surface area 60sq/m
• Pulse cleaning valves 5
• Compressed air requirements 10cfm 6-7bar pressure
Pricing is ex the LEDA Warehouse / stock location and excludes delivery from there to your factory, Commissioning costs and GST
TRADE INS WELCOME and COMPETITIVE Finance options available T.A.P.
Contact us for details
