Reversible Vibratory Plates

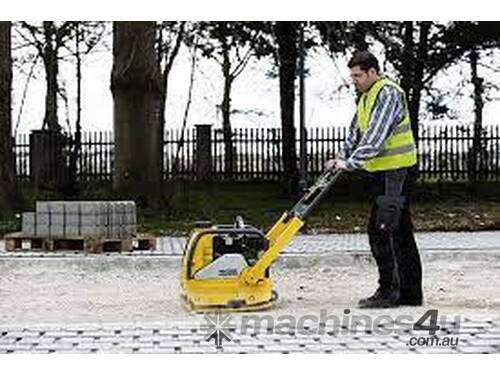

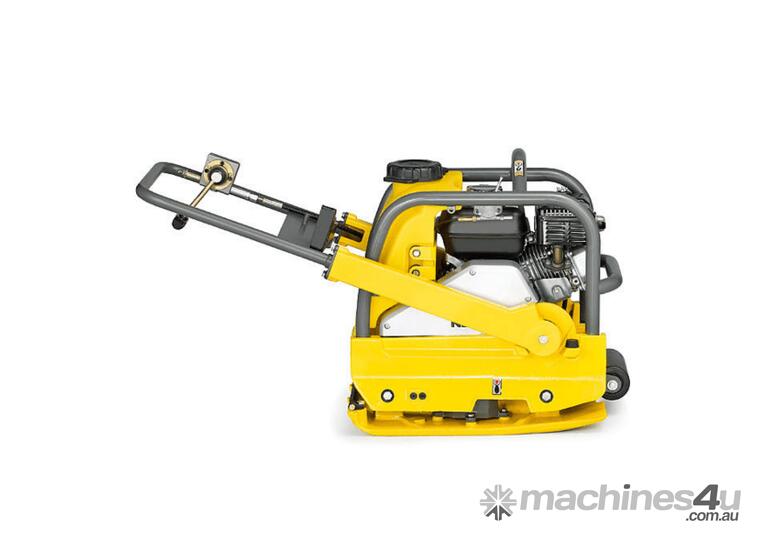

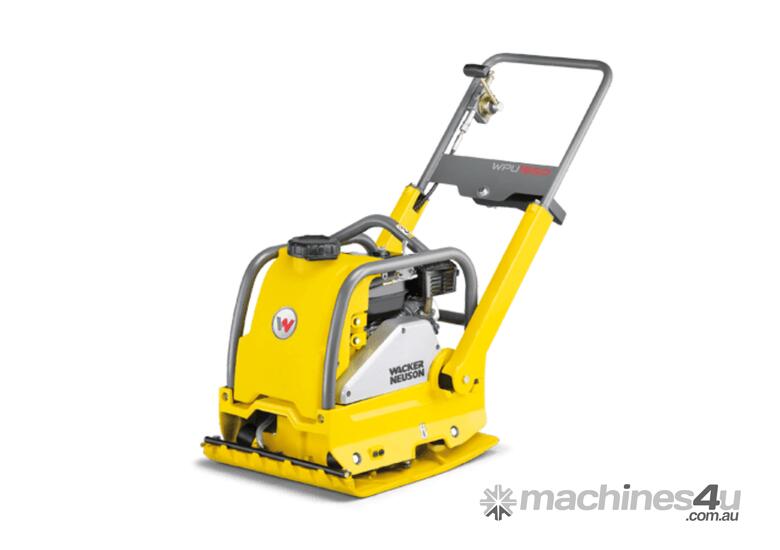

The reversible vibratory plate WPU 1550 is the powerful pro for compacting asphalt and interlocking paving stones, as well as the compaction of mixed soils in very confined spaces. With its robust construction means it is perfectly suited for continuous operation in the construction of paths and by horticultural and landscape design professionals, for instance for the compaction of gravelly sand beds of sidewalks, roads and parking lots. Thanks to the integrated transport roller with its unrivaled stability, the WPU 1550 can be maneuvered easily and effortlessly to the precise location, even on hot asphalt.

The special contoured base plate and varied control points give excellent maneuverability. Unrivaled stability even with side operation.
Easily accessible gas remote control for safe and easy starting and stopping of the device.
Robust, low-maintenance design ensures a long service life: A sturdy frame protects the engine. It has a hard-wearing V-belt, and the ductile graphite iron base plate is highly wear resistant.
Water tank: removable without tools, therefore easy to fill. Equipped with two filters and a large captive tank cap.
Spraying system: Optimum water distribution over the whole width of the base plate; automatic flow control only when vibrating.

OPERATING DATA
Operating weight with water tank : 112.4 kg
Centrifugal force : 15 kN
Base plate size (W x L) : 500 x 586 mm
Operating width : 500 mm
Frequency : 98 Hz
Advance travel max. (depending on soil and environmental factors) : 29 m/min
Surface capacity max. (depending on soil and environmental factors) : 870 m²/h

ENGINE / MOTOR
Engine / Motor type : Air-cooled single-cylinder four-cycle gasoline engine
Engine / Motor manufacturer : Honda
Engine / Motor : GX 160
Displacement : 163 cm³
Engine performance max. (DIN ISO 3046) : 3.6 kW
at rpm : 3,600 rpm
Fuel consumption : 1.8 l/h
Tank capacity (fuel) : 3.7 l
Power transmission : From drive motor via automatic centrifugal belt drive direct to exciter.
Fuel type : Gasoline
