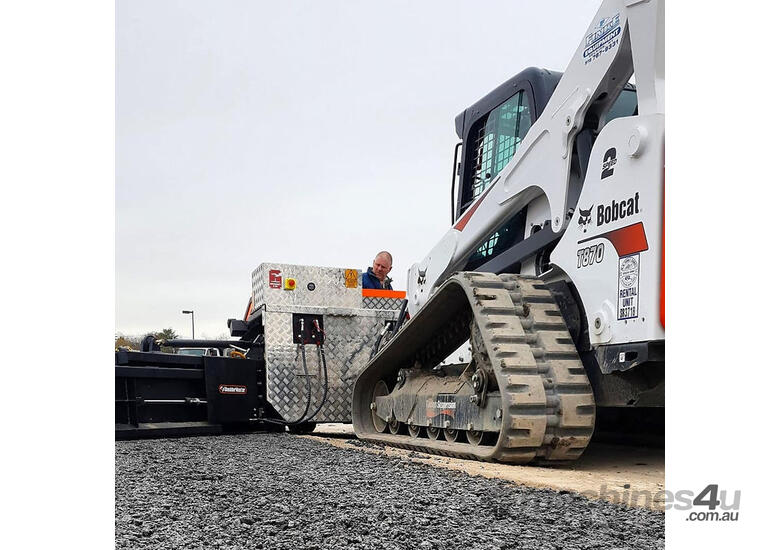

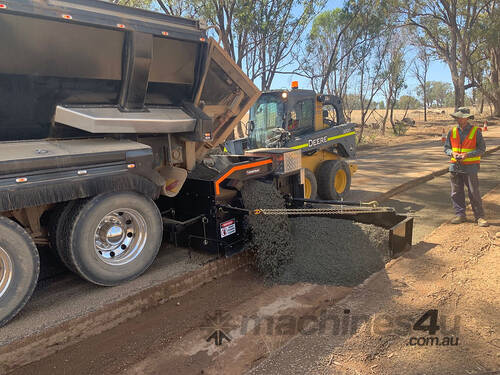

The ShoulderMaster SM2100 is a skidsteer/wheeled loader shoulder paving attachment that can increase the roads shoulder from 500mm to 2.3m wide, laying either gravel or asphalt materials.
The screed has been designed to drop 150mm below and 100mm above existing pavements to allow materials to be placed in multiple layers with gradients up to 5%.
Technical Specifications
Tare Weight: 2,080kg / 4,576lbs
Length: 3,100mm / 10'2"
Width: 1,862mm / 6'11"
Height: 1,190mm / 3'11"
Screed Width Adjustment: 500mm to 2300mm / 20" to 7'6"
Screed Height Adjustment relative to pavement level: -150 to +100mm / -5.9" to +3.9"
Minimum Power Requirement: 53kw / 70hp
Optimal Hydraulic Flow: 80l/minute / 21gal/minute
Screed Slope Adjustment: +/- 5 degree
Drive Mechanism: Reduction gearbox (chain & sprocket)
Conveyor: Chain drive with heat resistant belt
Safety: E-Stop
Electrical Connection:12V
Set-up 1
Base Model Single Side Feed
ShoulderMaster SM2100 Skid Steer Paving Attachment Includes:
- Left hand 1m manual screed
- Screed end plate
- Remote control operations
- Video camera with wireless monitor
Set-up 2
Hydraulic Screed Single Side Feed
ShoulderMaster SM2100 Skid Steer Paving Attachment Includes:
- Left hand hydraulic adjustable screed up to 1800mm
- Left hand 500mm extender box (increases screed width to 2300mm)
- Screed end plate
- Remote control operations
- Video camera with wireless monitor
Set-up 3
Base Model Dual Feed
ShoulderMaster SM2100DE Skid Steer Paving Attachment Includes:
- 2 x 1m manual left and right screeds interchangeable
- 2 x screed end plate
- Interchangeable hopper end guard
- Remote control operations
- 2 x video cameras with wireless monitors
Set-up 4
Dual Feed Left Screed with Hydraulic Upgrade
ShoulderMaster SM2100DE Skid Steer Paving Attachment Includes:
- Left hand hydraulic adjustable screed up to 1800mm
- Left hand 500mm extender box (increases screed width to 2300mm)
- 2 x 1m manual left and right screeds interchangeable
- 2 x screed end plates
- Interchangeable hopper end guard
- Remote control operations
- 2 x video cameras with wireless monitors
