Robotic Welding System - Single Axis Rotator

Robotic Welding System - Full local Australian support with Advanced Robotics Engineering.
ARE has over 35 years of experience in the design, manufacture, installation and service of industrial automation and robotic systems.
Stocking components, spare parts and welding consumables, as well as offering 24/7 support for all of our customers, allowing you to keep your robots working around the clock.

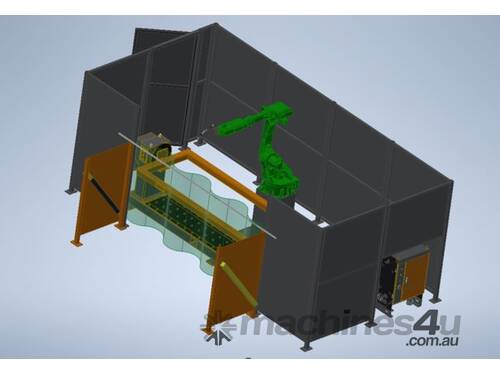

Robotic Welding Package including Single Axis Rotator Includes;

EOFY SPECIAL DEAL - FREE 2 DAYS TRAINING ON ORDERS PLACED BEFORE EOFY, JUNE 2024


- QJAR, QJR6-2000H Industrial Welding Robot
- 6kg Payload, 2001mm Reach
- Megmeet 350Amp Air Cooled Welding Power Source
- Arctec Air Cooled Welding Torch
- Single Axis Head & Tail Stock Welding Positioner with rated load of 500kg
- Safety Fencing (including one integrated access door)
- One set of Light Curtains
- One set of Weld Curtains
- Installation/Commissioning (Melbourne Metro Only, Further cost will apply for Country and Interstate Customers)

Note: The Arctec welding torch is very low profile, providing great clearance and access to welds.

Product Specifications:

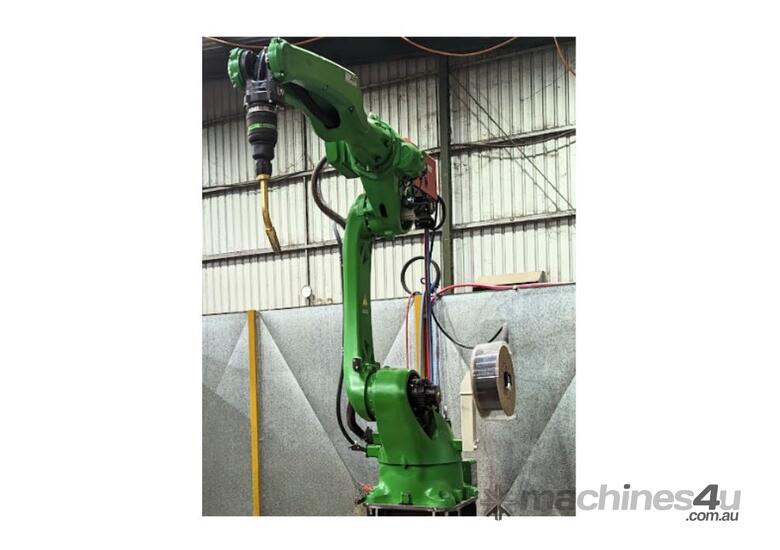

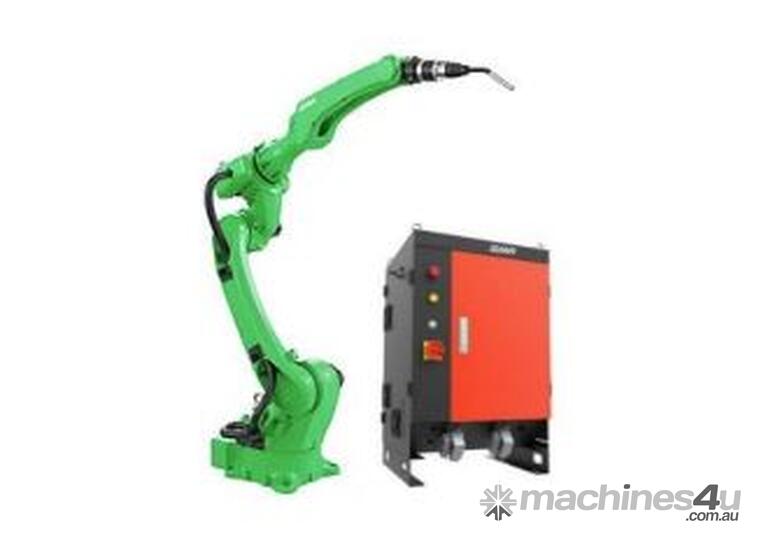

QJAR QJR6-2000H Industrial Robot
Number of Axis: 6 - Axis
Payload: 6kg
Max Armspan: 2001mm
Repeat Positioning: ±0.05mm
Max Speed: J1 172º/s, J2 172º/s, J3 201º/s, J4 430º/s, J5 447º/s, J6 573º/s
Robot Body Weight: 255kg
Installing Form: Wall, Ceiling

Welding System;
Standard Air Cooled welding machine
Megmeet Ehave CM350AR
Megmeet Dual-Roller wire feeder
Arctec - Air cooled anti-collision welding gun
Standard Wire Reel Holder
Standard Wire Feed Conduit

Please note: Water-cooled Welding Packages are available up to 500amps for additional costs - please enquire within.

Advanced Robotics Engineering can supply; Jigs, Fixtures, and Programming at additional costs.


Terms and Conditions
Welding Fixtures and Robot Welding Programming is not included. Installation is Melbourne Metro only, Country and Inter-state costumers will incur additional costs, please enquire within.
