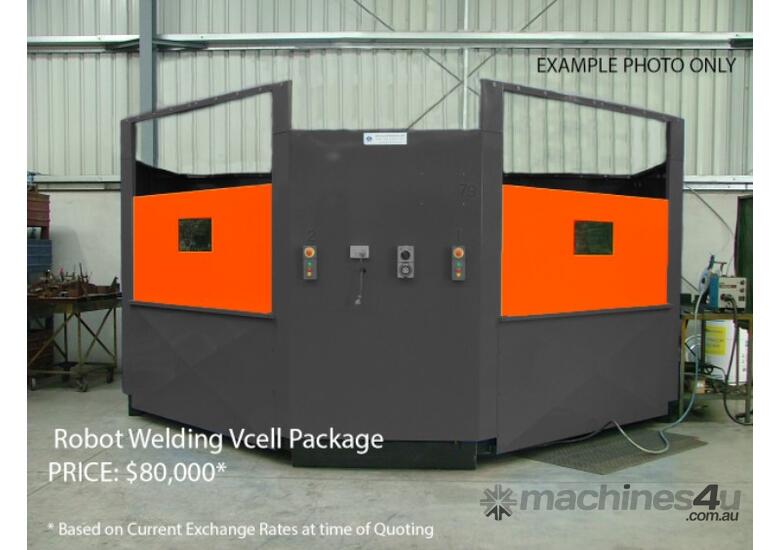

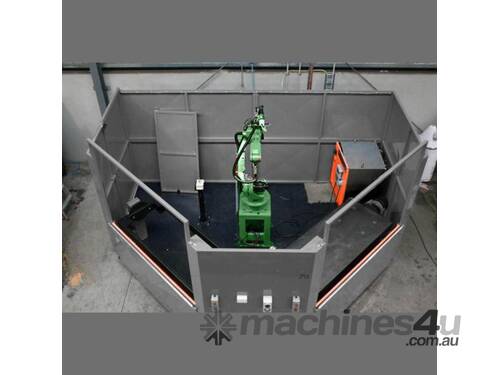

Robotic Welding V Cell - Dual Station

Dual Station V Cell Robotic Welding Package Includes;

EOFY SPECIAL DEAL - FREE 2 DAYS TRAINING ON ORDERS PLACED BEFORE EOFY, JUNE 2024

- QJAR, QJR6-2000H Industrial Welding Robot
- 6kg Payload, 2001mm Reach
- Megmeet 350Amp Air Cooled Welding Power Source
- Arctec Air Cooled Welding Torch
- Two Pneumatic Operated Sliding Guards
- Safety Paneling
- Two (2) Weld Tables for Fixture Location
- Installation/Commissioning (Melbourne Metro Only, Further cost will apply for Country and Interstate Customers)

Note: The Arctec welding torch is very low profile, providing great clearance and access to welds.

Product Specifications:

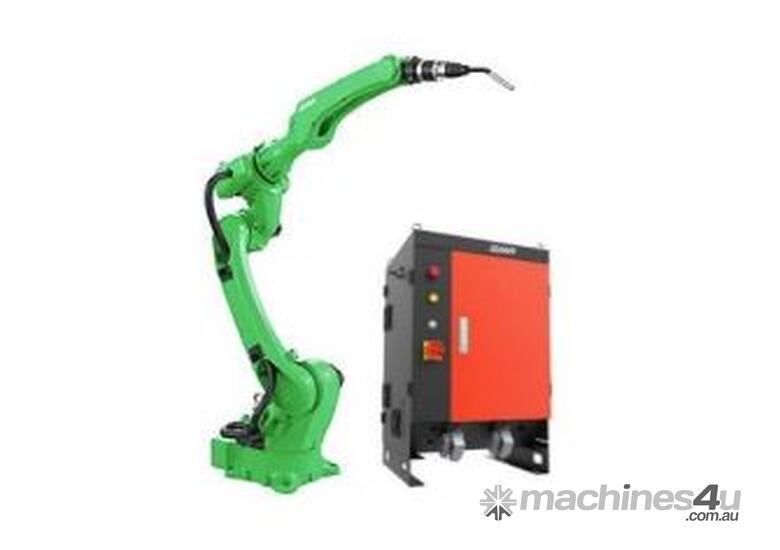

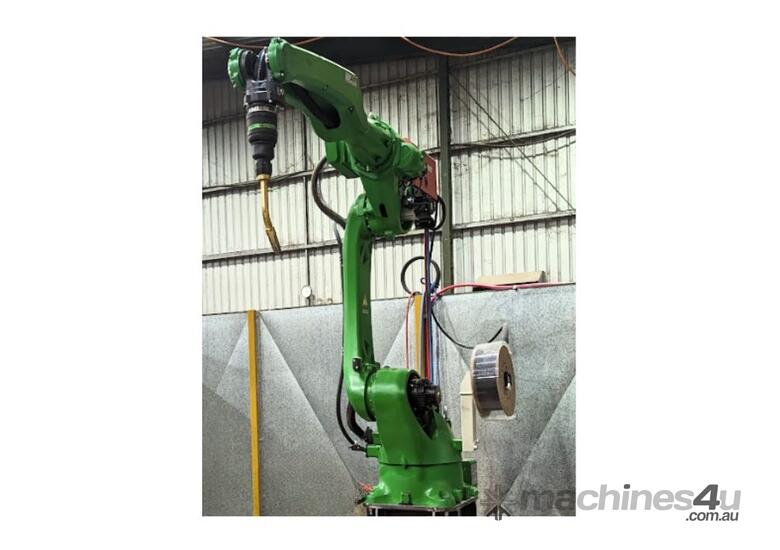

QJAR QJR6-2000H Industrial Robot
Number of Axis: 6 - Axis
Payload: 6kg
Max Armspan: 2001mm
Repeat Positioning: ±0.05mm
Max Speed: J1 172º/s, J2 172º/s, J3 201º/s, J4 430º/s, J5 447º/s, J6 573º/s
Robot Body Weight: 255kg
Installing Form: Wall, Ceiling

Welding System;
Standard Air Cooled welding machine
Megmeet Ehave CM350AR
Megmeet Dual-Roller wire feeder
Arctec - Air cooled anti-collision welding gun
Standard Wire Reel Holder
Standard Wire Feed Conduit

Please note: Water-cooled Welding Packages are available up to 500amps for additional costs - please enquire within.

Advanced Robotics Engineering can supply; Jigs, Fixtures, and Programming at additional costs.


Terms and Conditions
Welding Fixtures and Robot Welding Programming is not included. Installation is Melbourne Metro only, Country and Inter-state costumers will incur additional costs, please enquire within.
