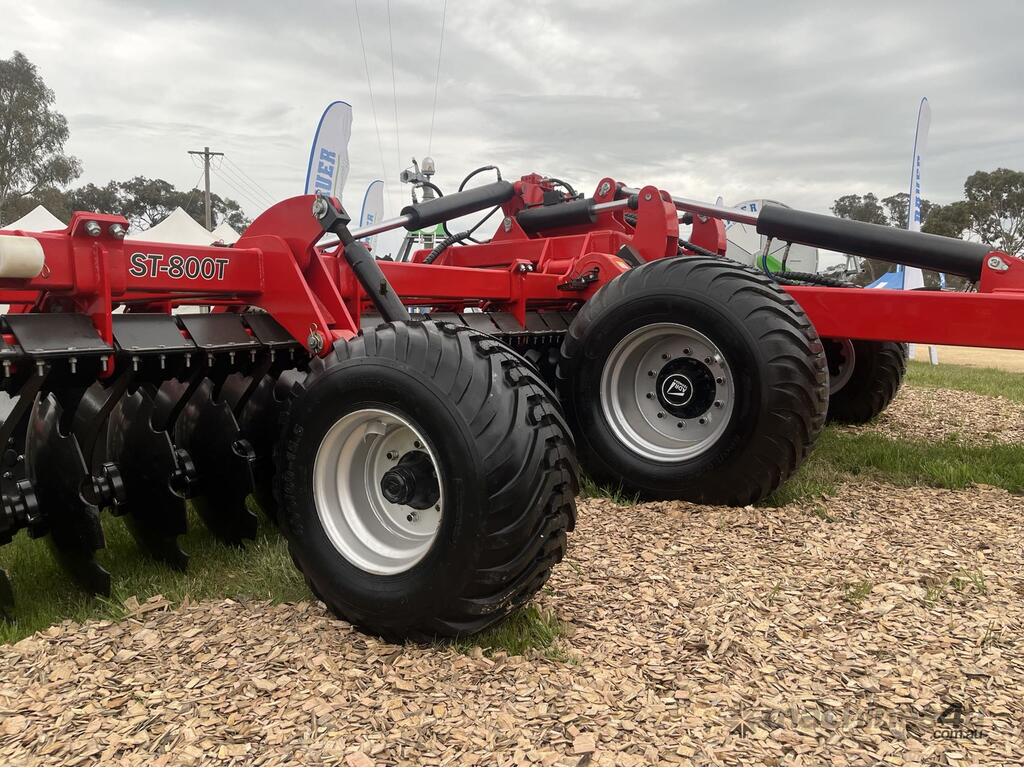

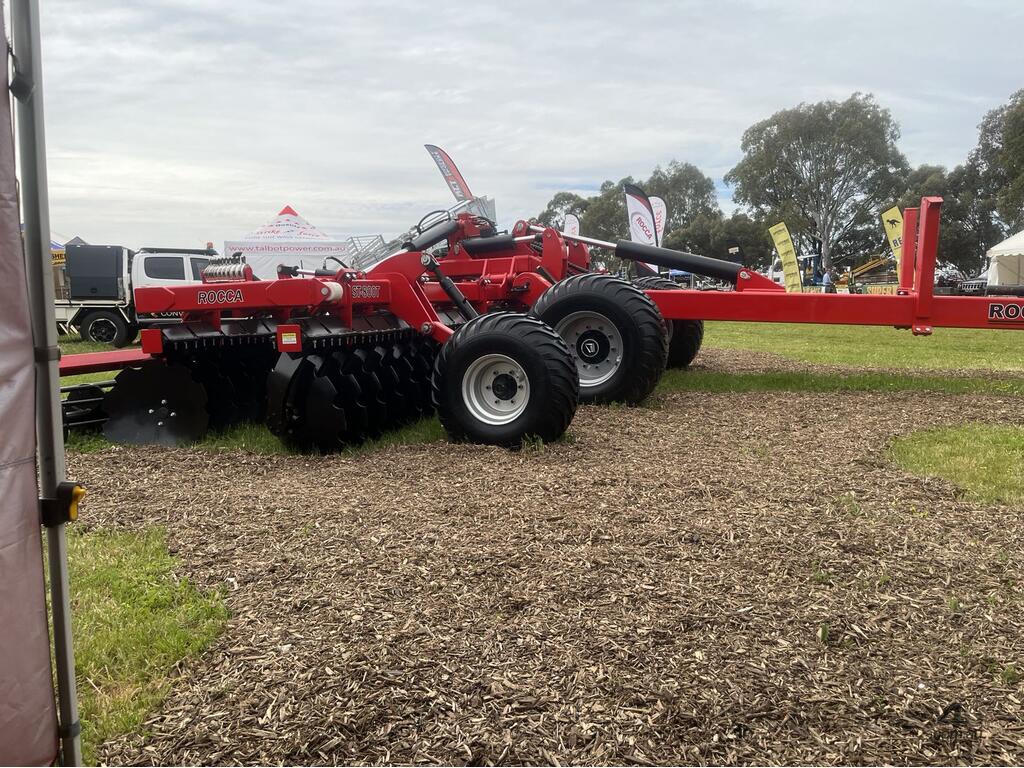

Rocca SupaTill ST-800T Trailing and Folding Speed Discs, Heavy Duty, Tillage.
Operating Width - 8m

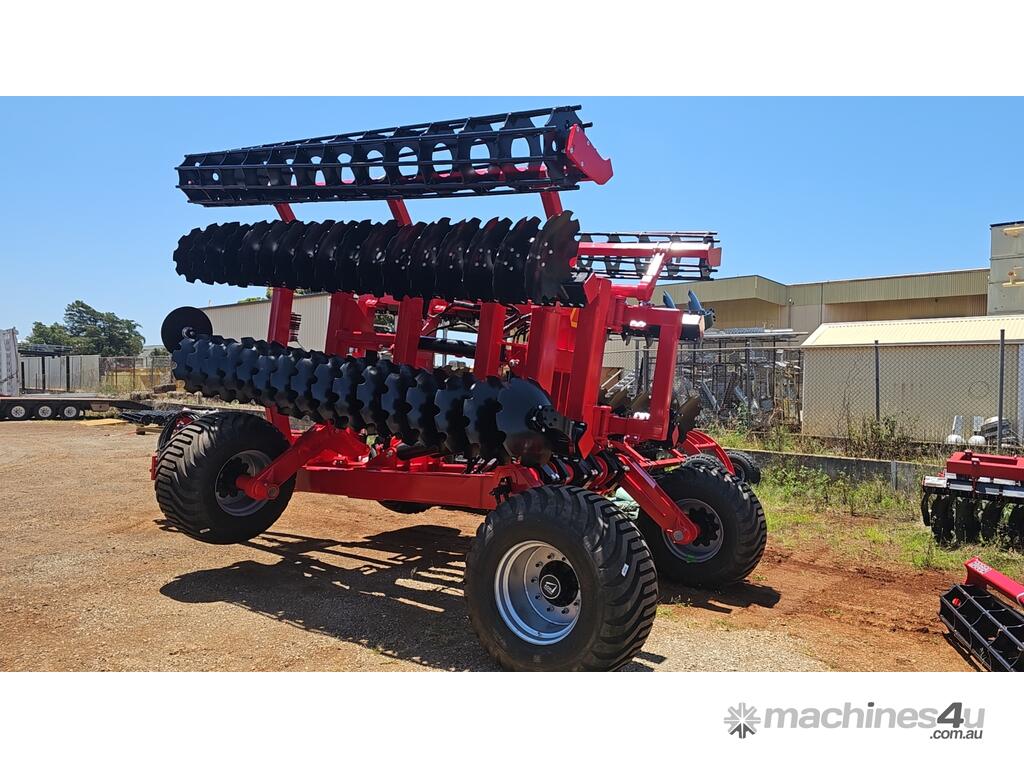

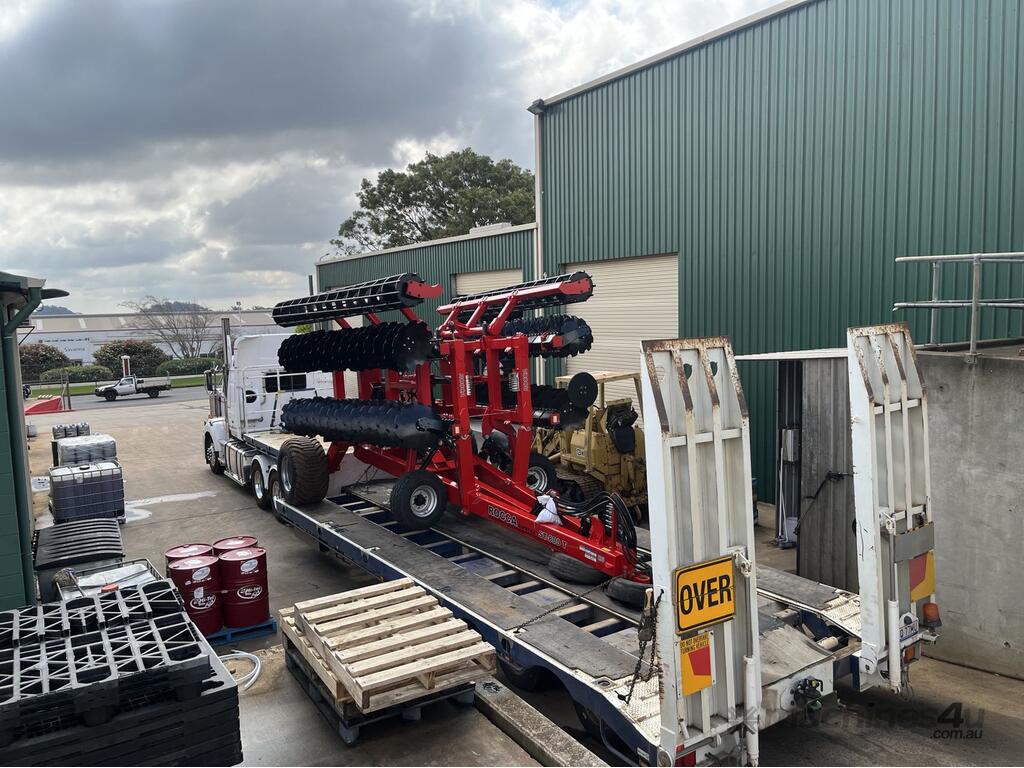

Transport Width - 3.7m
Transport Height - 3.9m
Wheel Centres - 2.9m
Tractor Power - 320hp and above
Number of Discs - 70
Disc Size - 610 mm (24 in) x 6 mm Boron Steel
Weight - 11,200kg

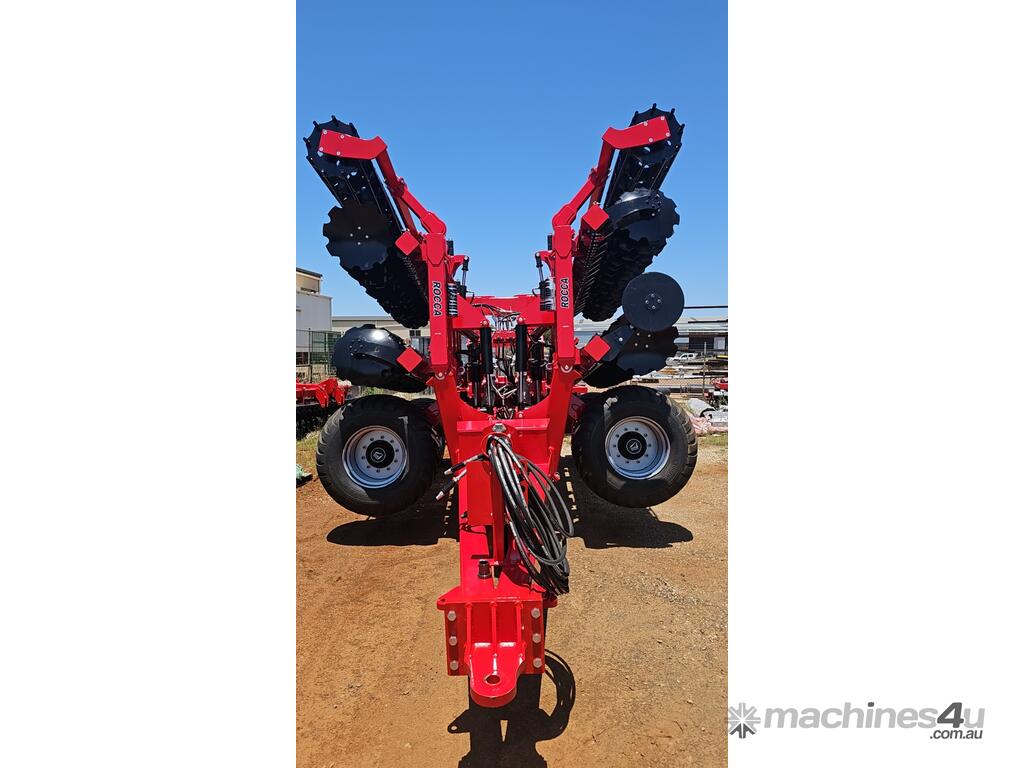

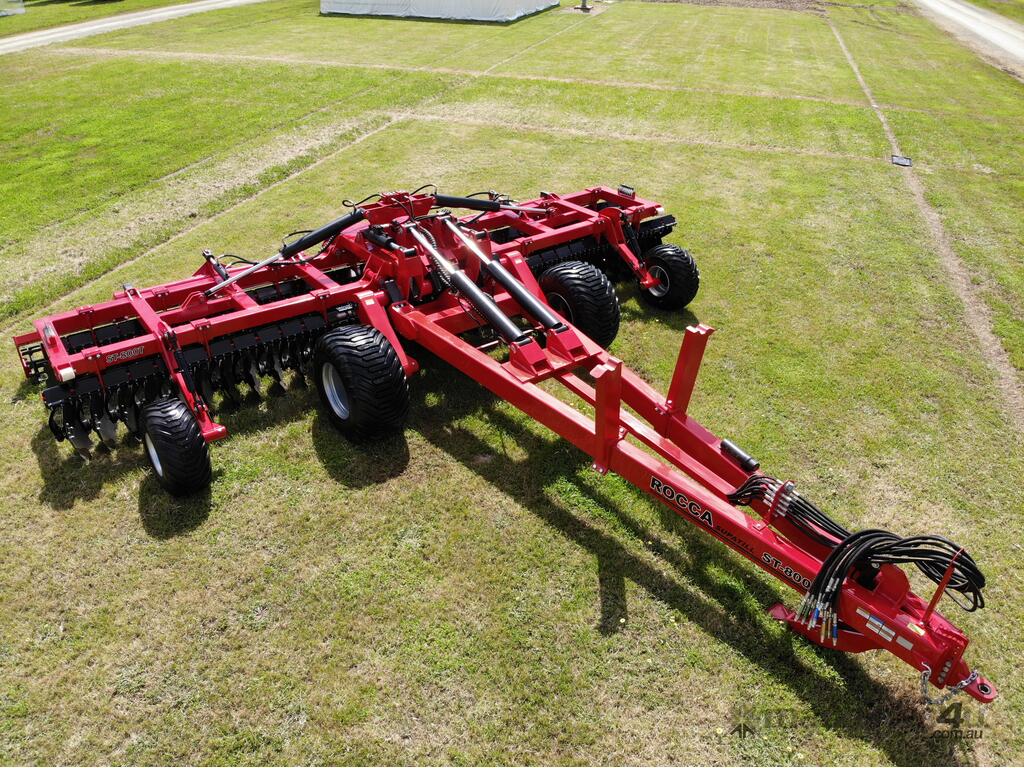

Drawbar - Trailing A-frame
Operating Speed - 8 to 16 kph

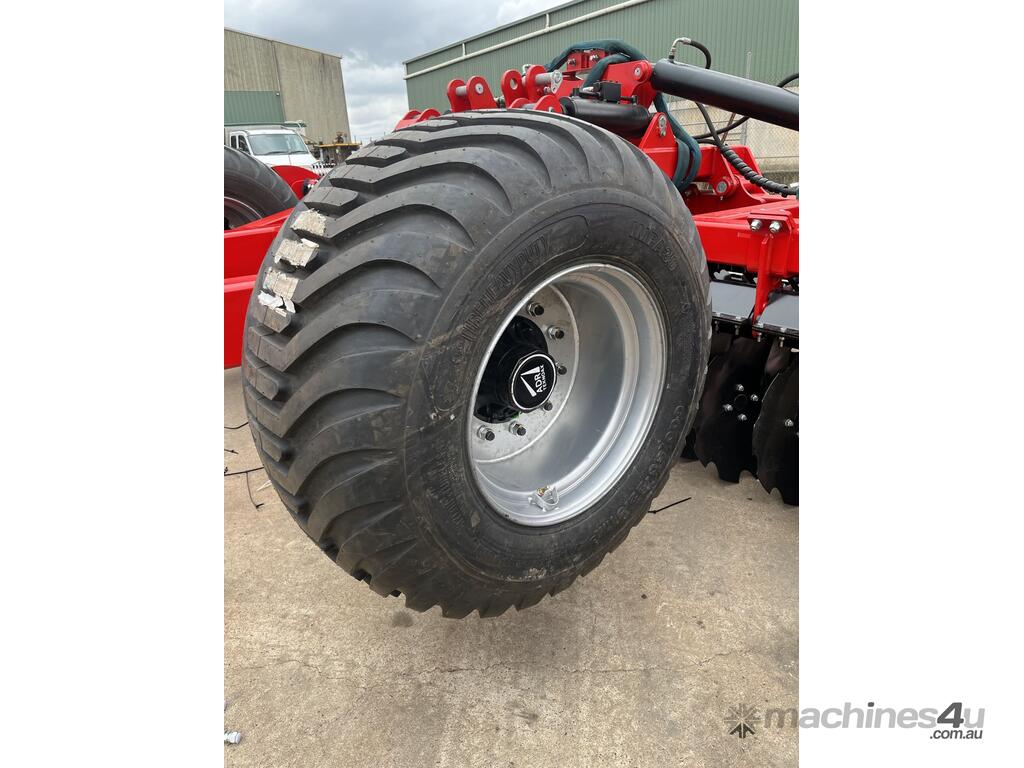

Wheels - 2 x 600/50 R22.5
Australian designed, by Australian farmers, for Australian Conditions.

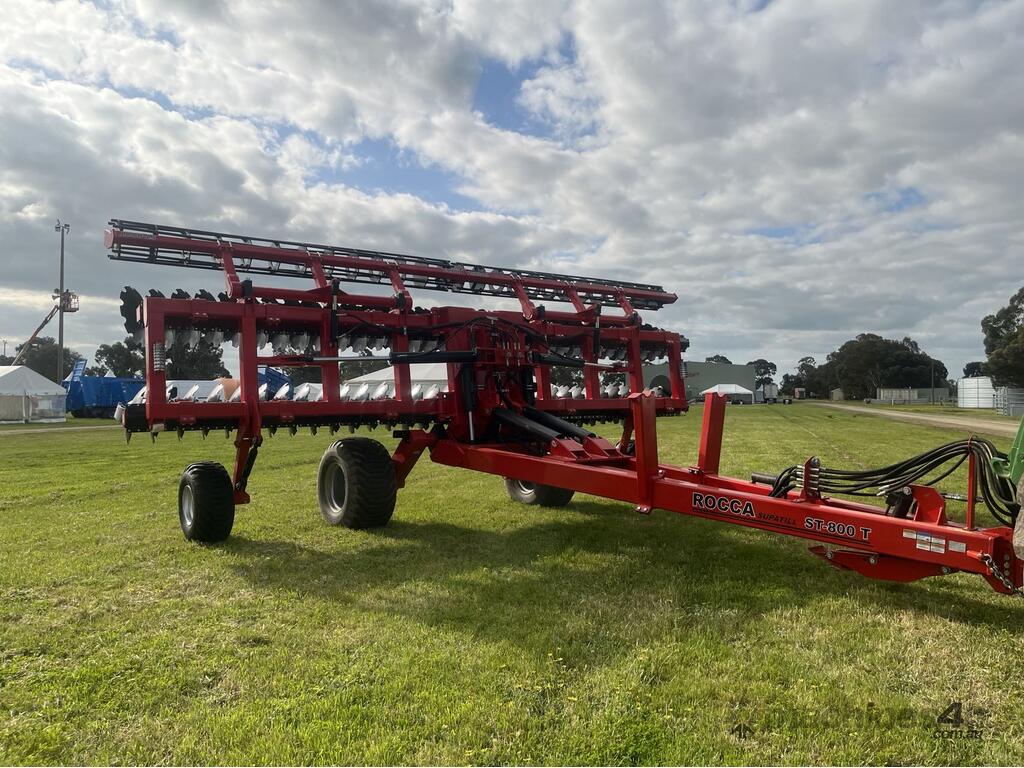

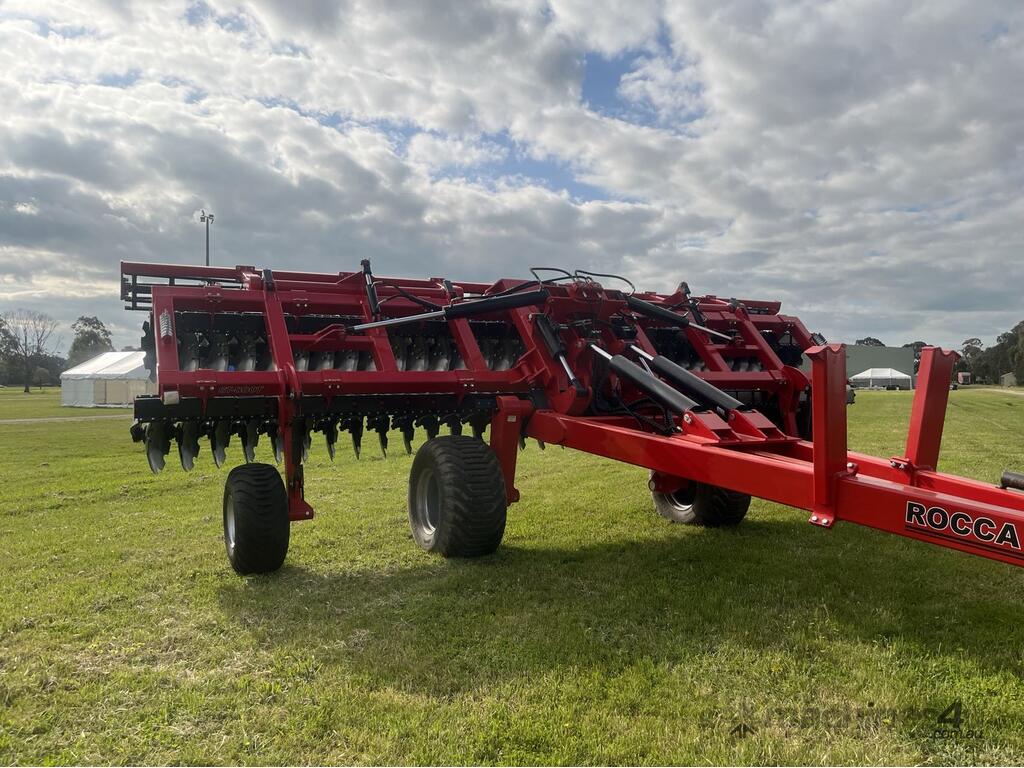

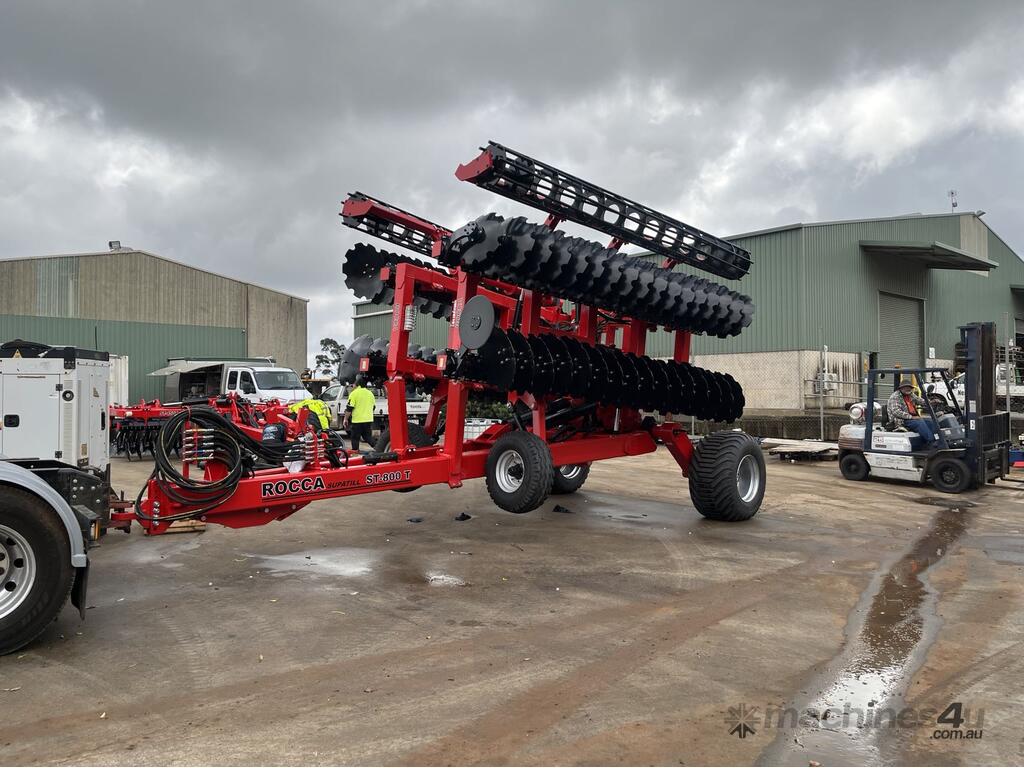

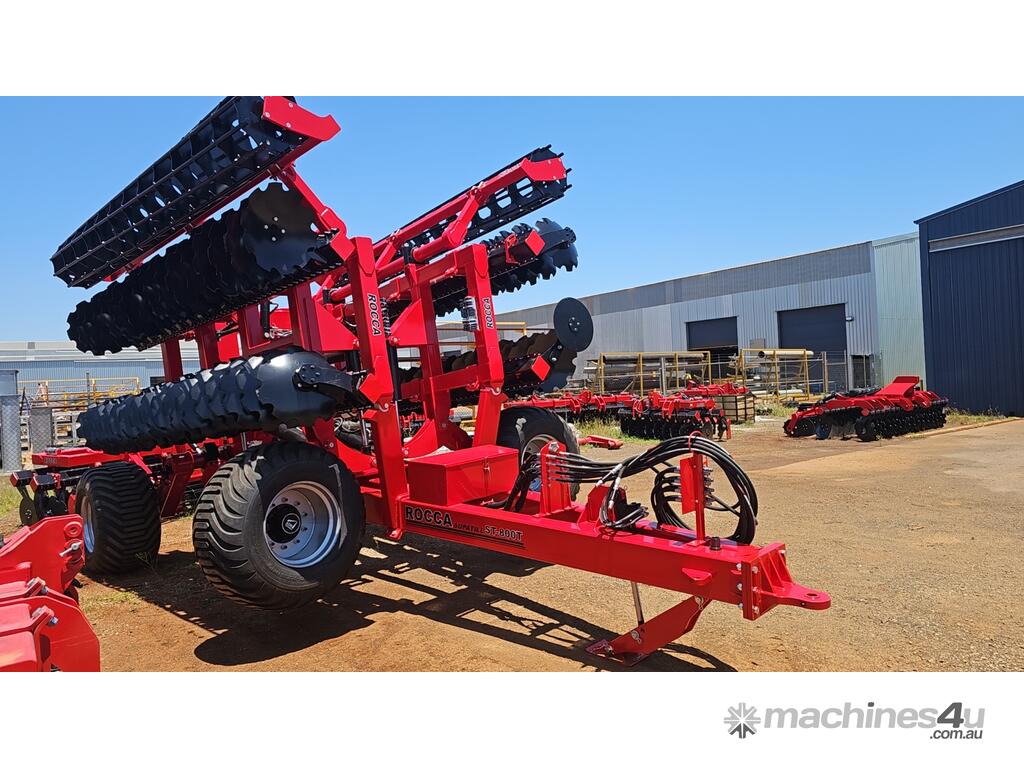

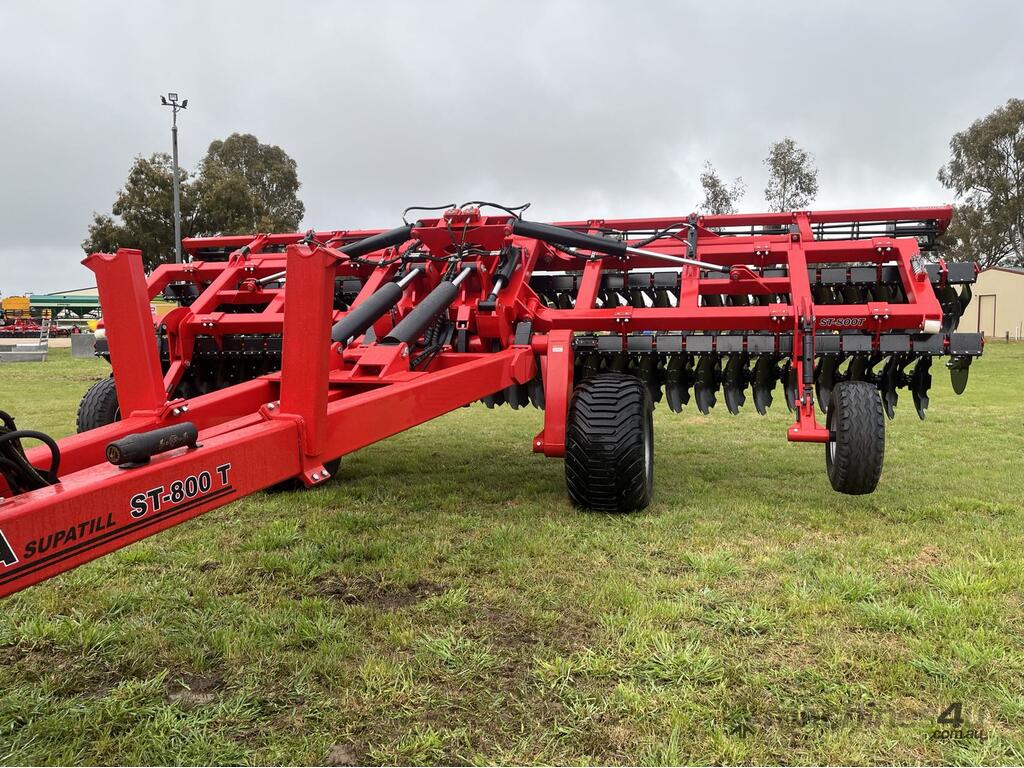

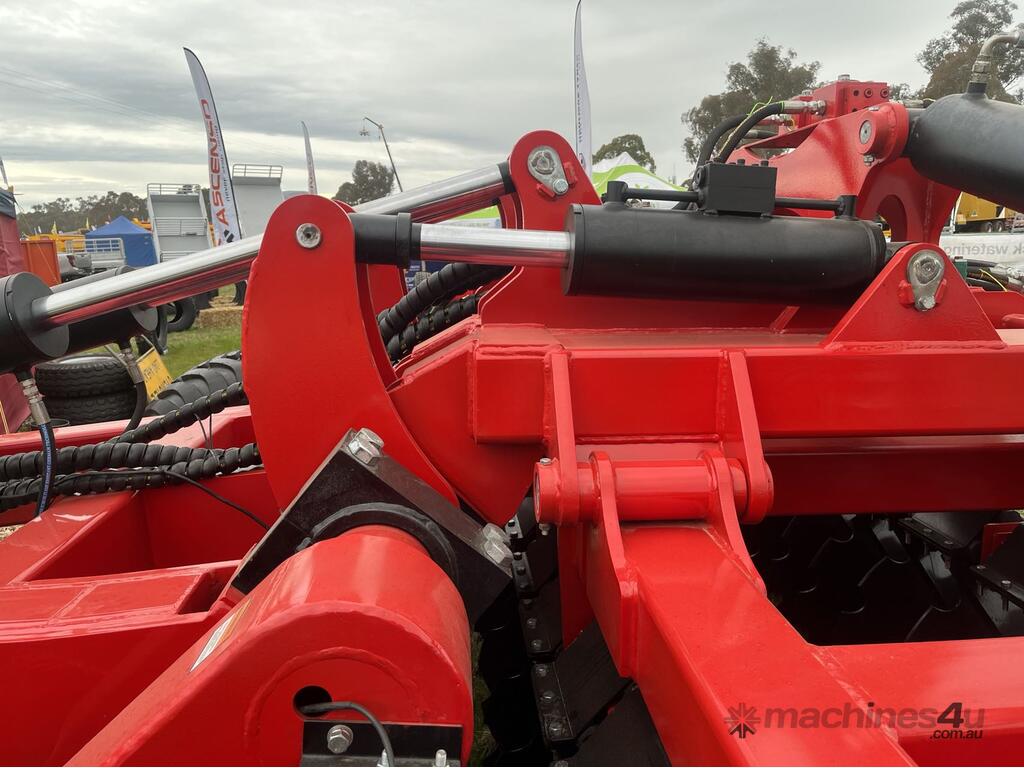

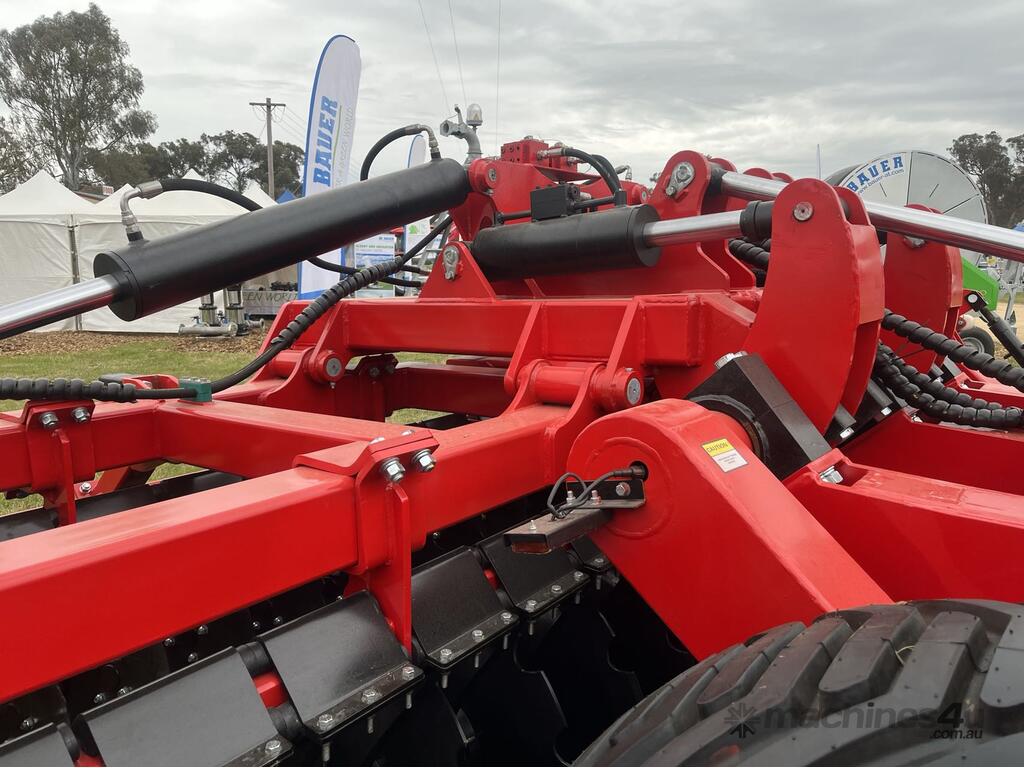

The ROCCA SupaTill ST-800T trailing & folding speed disc feature's heavy duty, square tube steel frame.
Rocca Industries T series of equipment comes in widths from 4.5m up to 9.5m
Large machine suited for broadacre applications where covering large areas in a timely manner are critical.

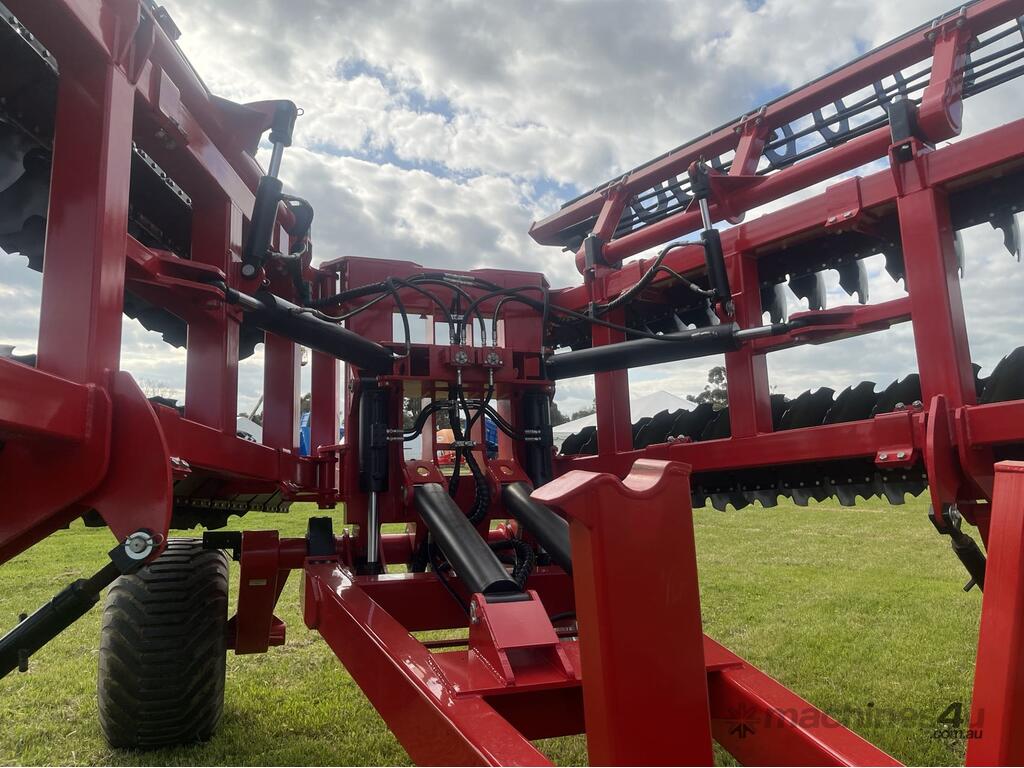

Features hydraulic depth control for easy adjustment and is heavy enough to penetrate hard soils and provide a uniform seed bed and is versatile enough for both primary and secondary cultivation purposes.
Disc gang's have lateral adjustment to vary opposing gang's position.
Discs are Quality abrasion resistant Boron Steel 610 mm (24in) x 6mm.
Individual Disc Arm assemblies at 250mm spacings, feature high quality SKF, maintenance free, double taper roller bearings.
Disc Arm clamps feature rubber dampers for a cushioned movement of the arm to prevent damage to the disc or arm during operation.

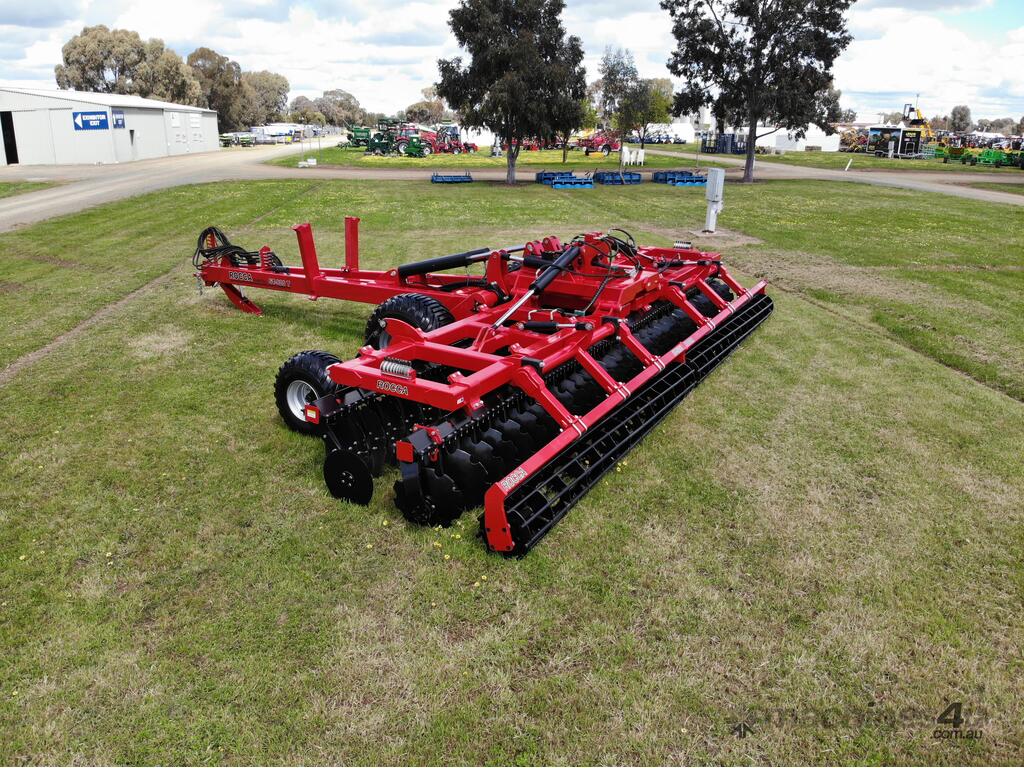

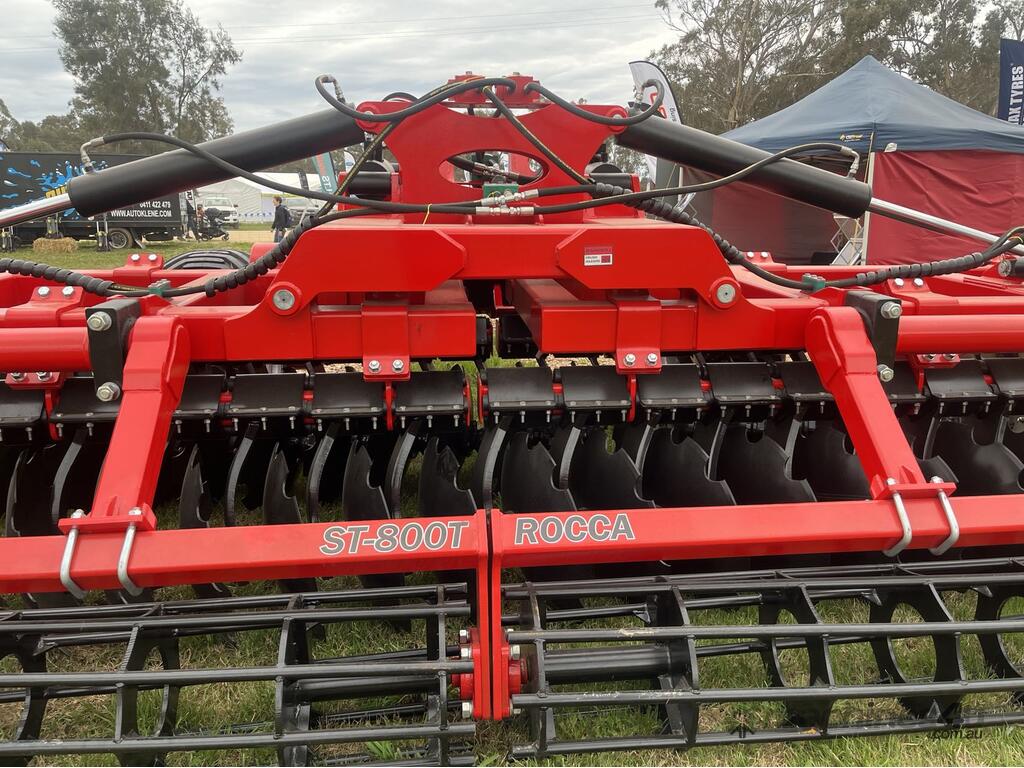

Two sets of crumble rollers are fitted covering full machine width, preventing furrows, leaving a prime bed for optimum seeding and crop germination conditions. There is optional rubber rollers available.

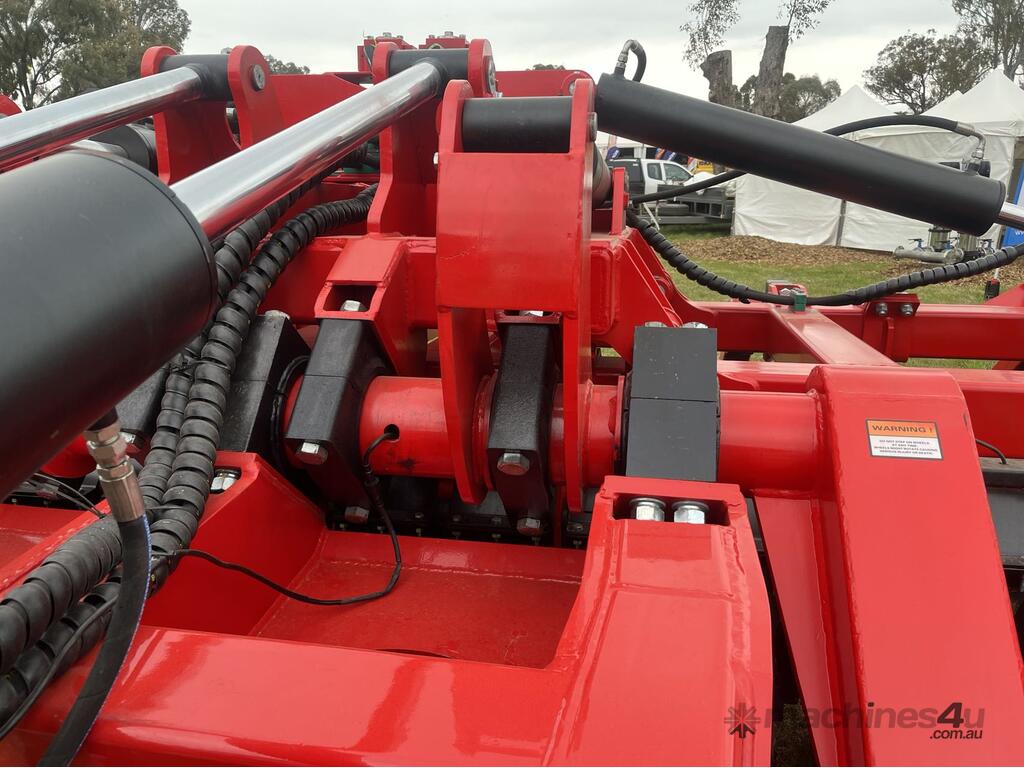

The high friction main Pivot Points for the Wheel Arm and Crumble Roller assemblies are protected via a specially formulated high viscosity thermoplastic nylon bushing for maintenance free, long life and wear resistance.
This range of our trailing folding tillage equipment comes in a range of widths from 1.4m to 6.25m.
You cannot go past the Rocca Supatill range of equipment. These machines offer unbeatable value for money when considering, purchase price point, quality, ground covered per day, fuel savings, operator cost and machine hour savings.
If not held in stock there will be an 8 to 12 week lead time from our factory.
12 months Warranty from date of purchase.
