Romac 1600mm x 5MT Radial Arm drill

Romac Radial Arm drilling machine
Max drilling capacity .50 mm
Max threading capacity .M42
Max distance of spindle centre to column .1600 mm
Min distance of spindle centre to column .350 mm
Spindle head horizontal movement .1250 mm
Max Height of spindle nose above base .1220 mm
Min Height of spindle nose above base .320 mm
Arm rising – falling distance .580 mm
Arm rising – falling speed .0.02 m/s
Arm rotation angle +/- 180 degrees
Spindle Taper MT No.5
Travel of spindle .315 mm
Number of spindle speeds .16
Range of spindle speeds .25 – 2000 rpm
Range of spindle feeds .0.04 – 3.2 mm/rev

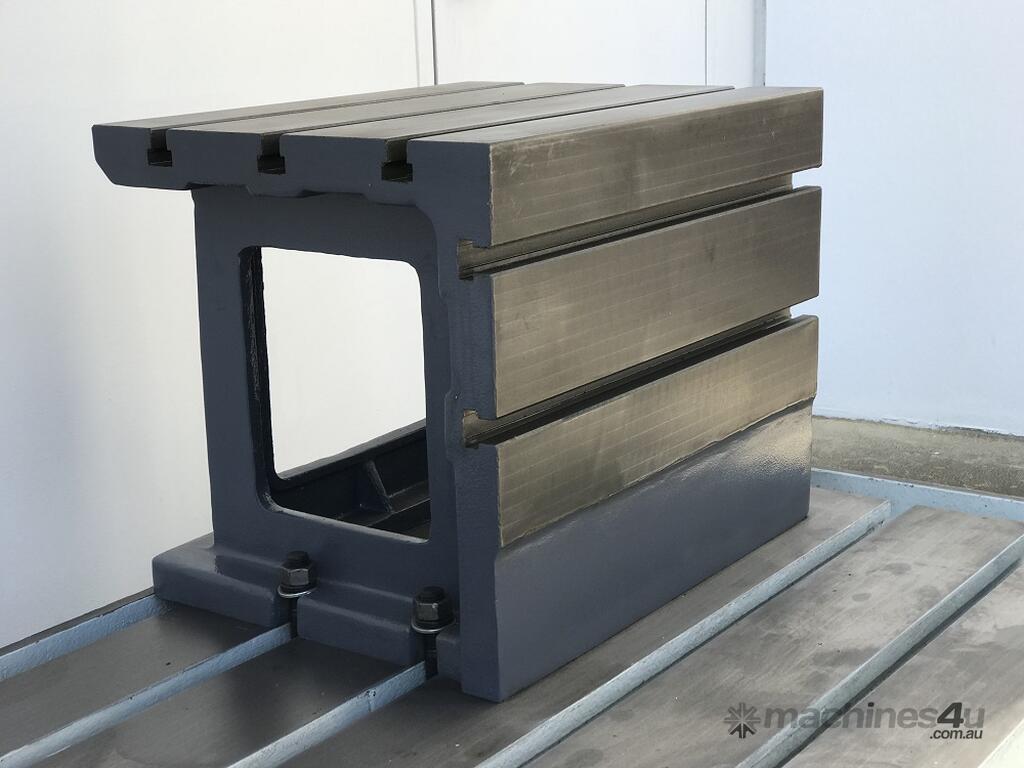

Box Table size .630mm x 500mm X 500mm
T slot size .18mm
Main Motor ( 415V 3 phase ) .4 Kw
Approx. gross weight including box table .aprrox 4300 Kgs
