Rotary Table. 300mm Table Diameter. 4MT, Vertical & Horizontal Set Up. 1:90 Ratio, 360 Degree

Description
This rugged, yet accurate rotary table will provide years of service. The versatility of horizontal and vertical setups offer incredible capability for those sometimes challenging machining operations.
Features include:

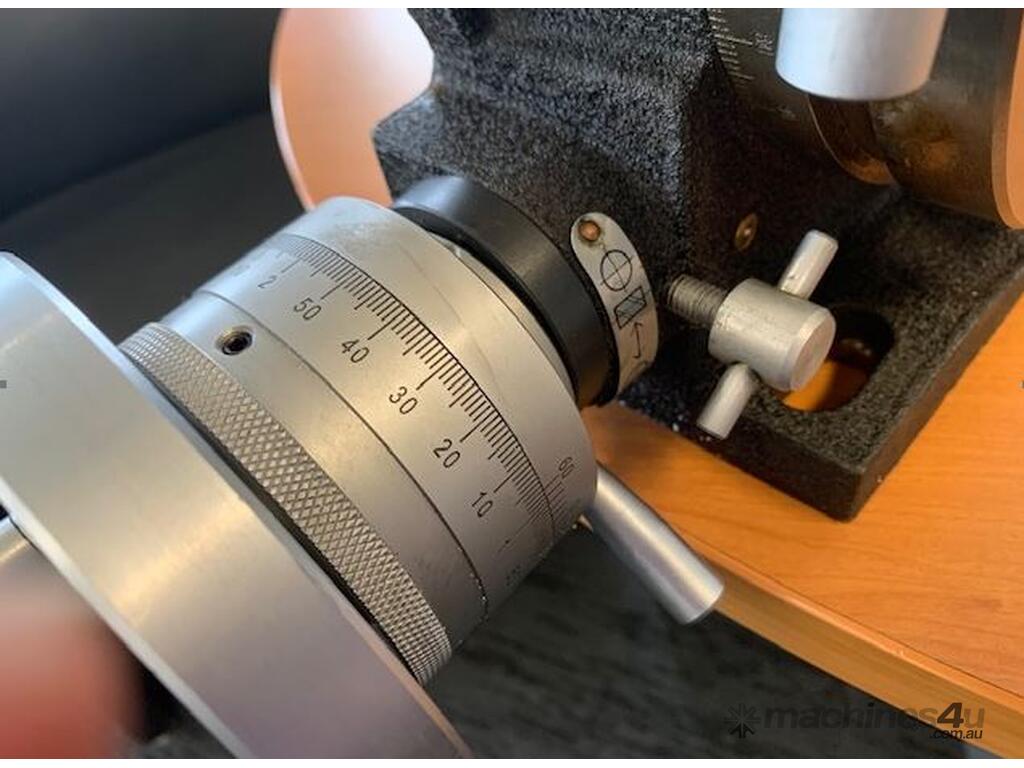

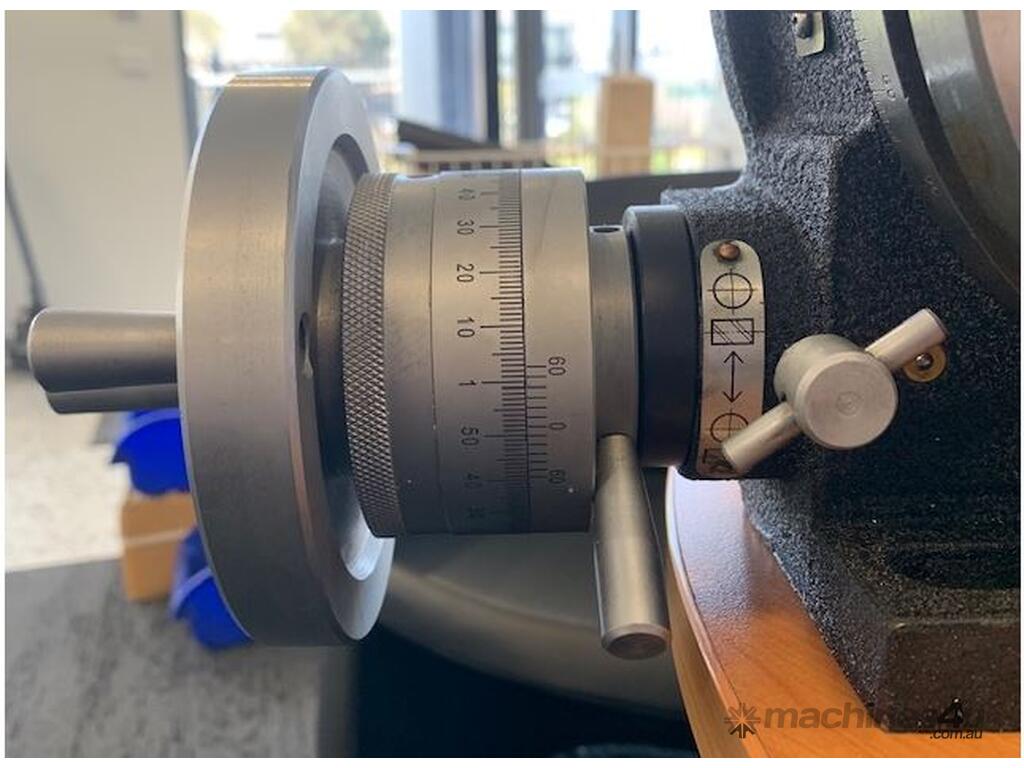

10 second vernier calibration, oil immersed gears and positive dual action table locks. Weighs approx 75kg

Features

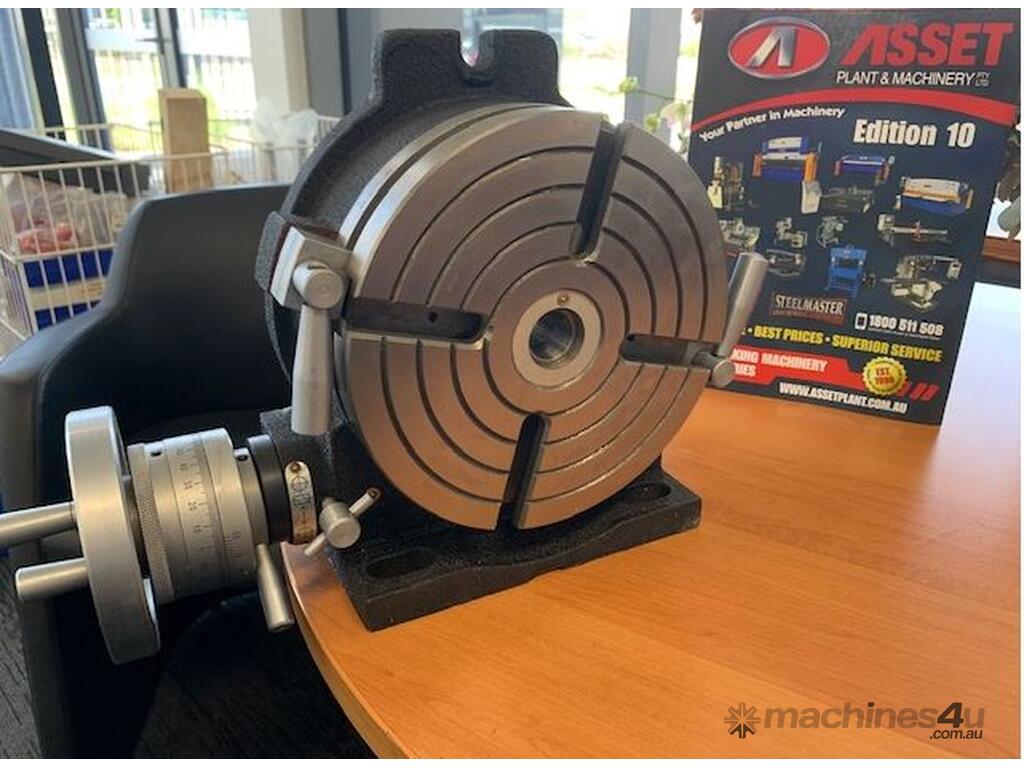

- 300mm Table Diameter, 6 T Slots, MT4 Centre Hole
- full horizontal & vertical set up (except 13/0182)

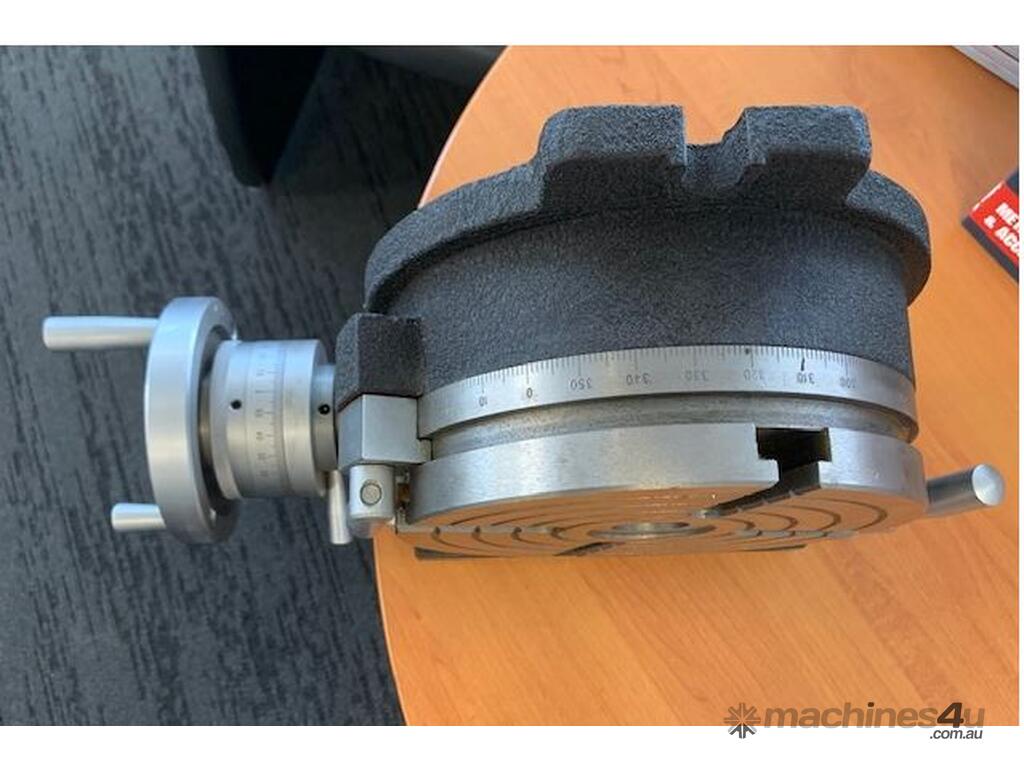

- universal rotary table with full 360 degree rotation
- setup table rotates on a large, ringshaped, oil-bath lubricated, roughened flat guideway
- the robust, very effective fixture pulls the setup table down straight vertical without any change of position or radial pressure and presses it against the guideway
- for quick manual turning, the worm can be disengaged from the worm gear by pushing down the hand-lever
- the zero-back lash of worm and worm gear is adjustable

Technical Data
- table dia: 300mm
- MT: 4
- Ratio: 1:90
- No. tee slots: 6
- tee slot size: 16mm
- degrees per revolution: 4

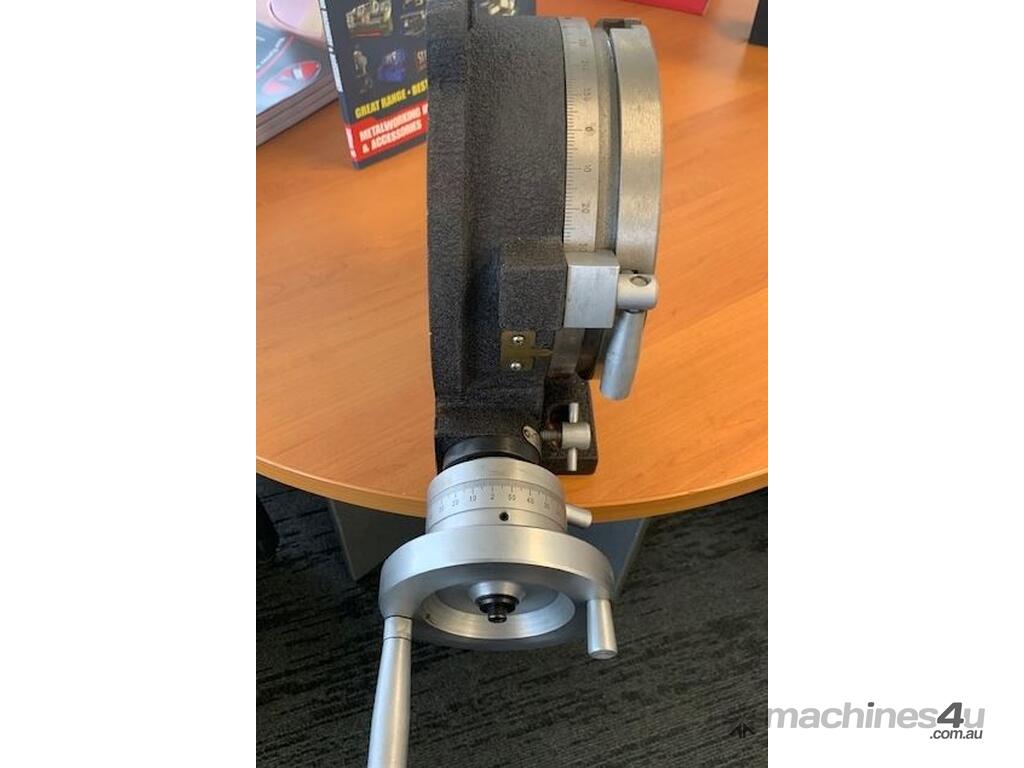

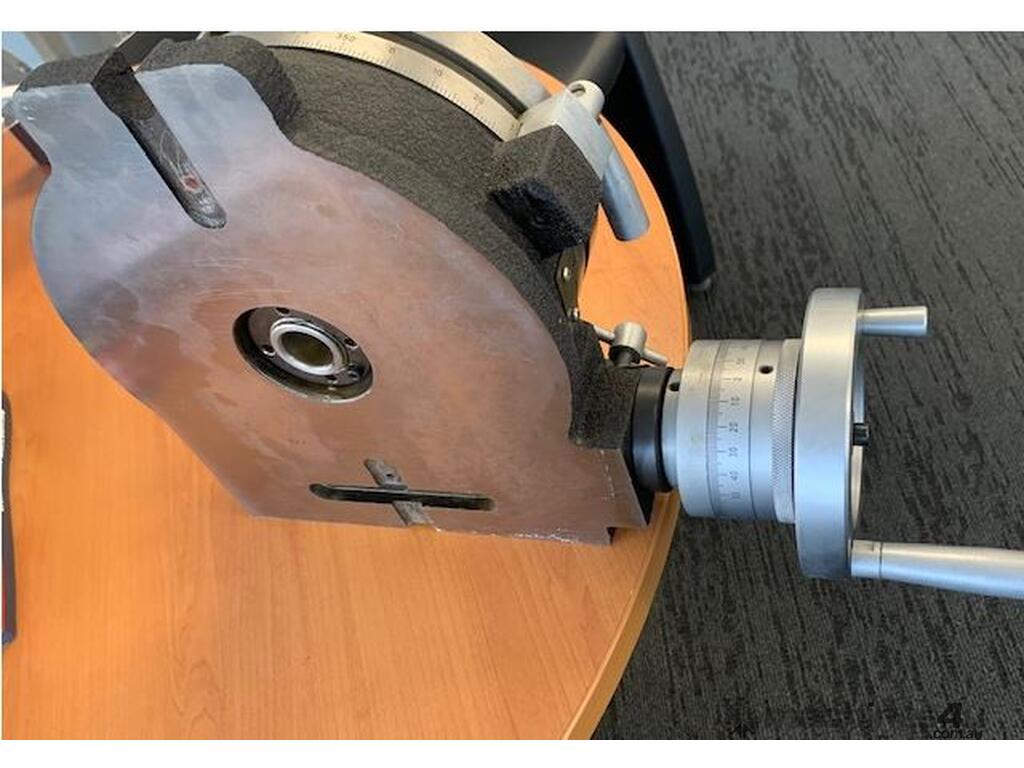

- Vertical & Horizontal
- weight: 75Kg
- product ordering code: 13+0185
