Rotary Vacuum Dryer/mixer

Laverton North, VIC - Delivers Nationally

Contact this seller for accurate pricing

Finance Repayment Calculator

Get a quote from our independent finance provider

View Instant Finance Quote

Transport Quote

120+ million km

Freight posted per year

80,000+

Loads posted per year

Specifications

Condition:

Used

Category:

Powder Mixer

Year:

Not specified

Member Since: Jul 2009

Gold Member

Listings: 580

Sellers stock ID:

I.00021438

Description

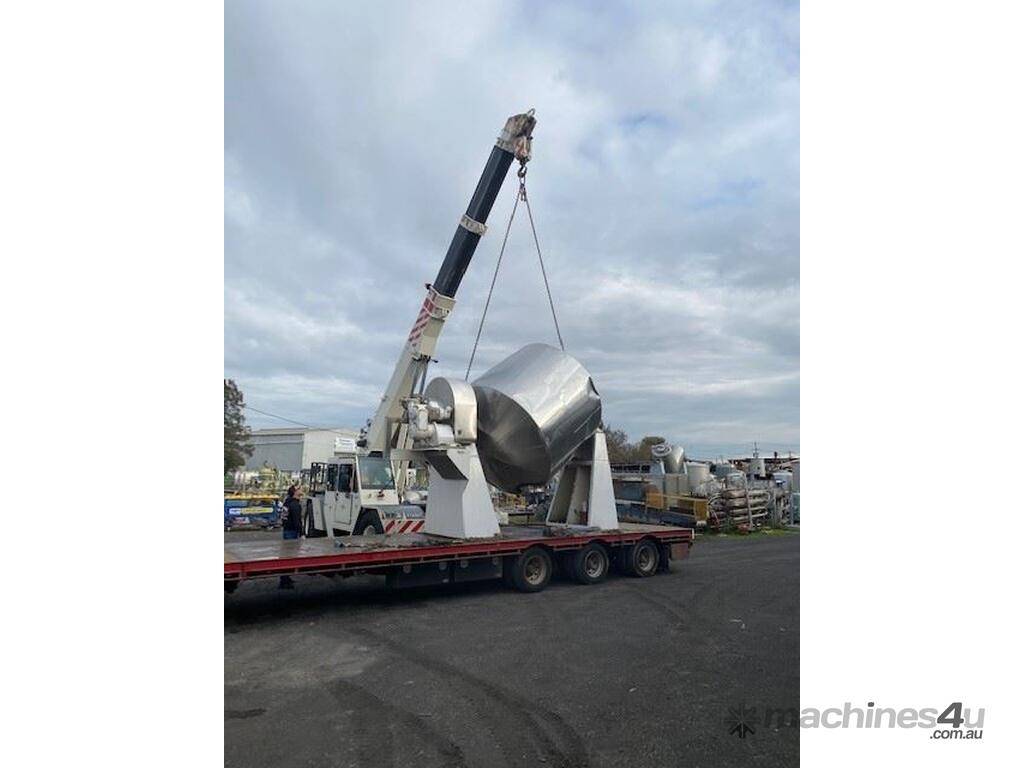

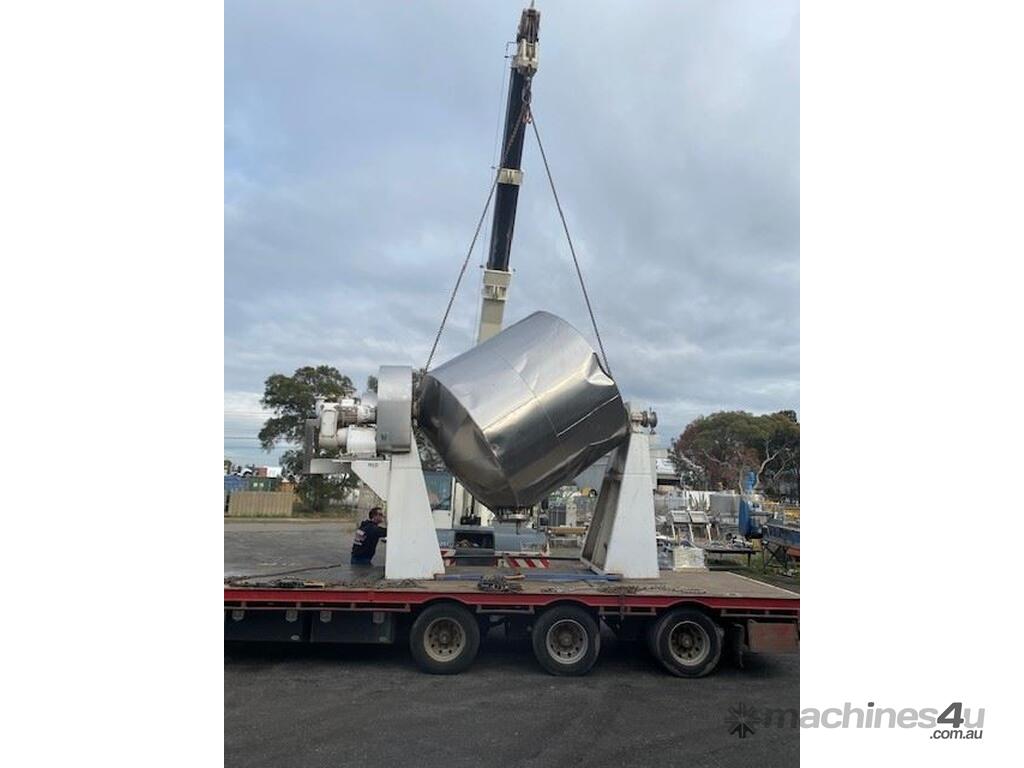

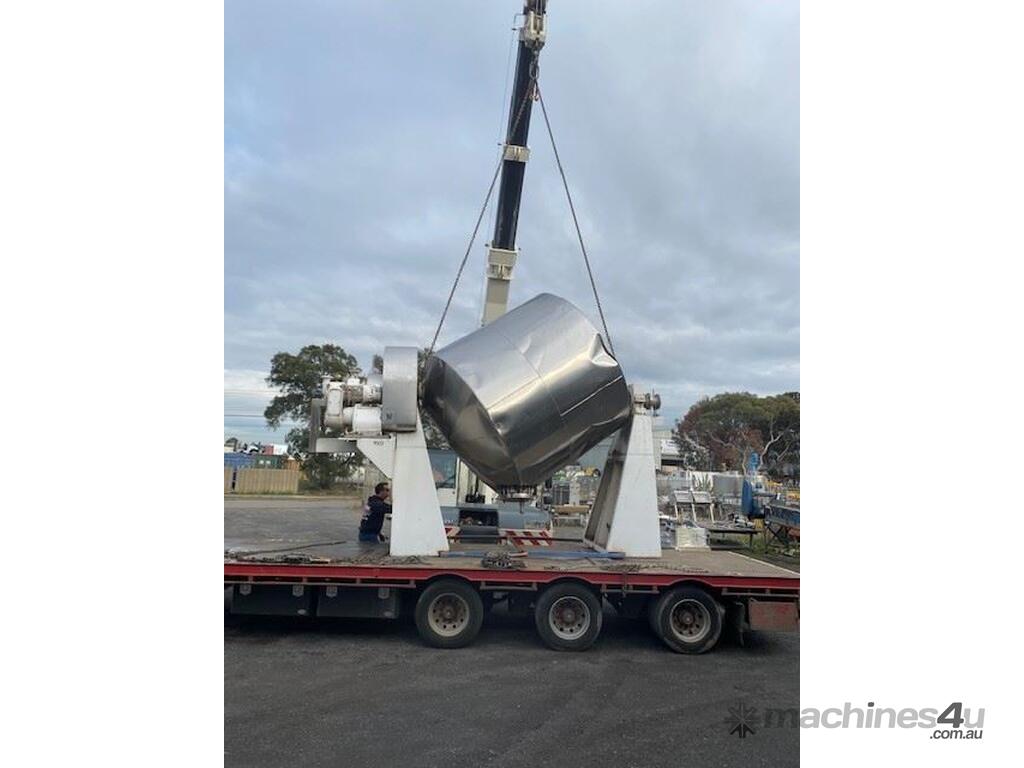

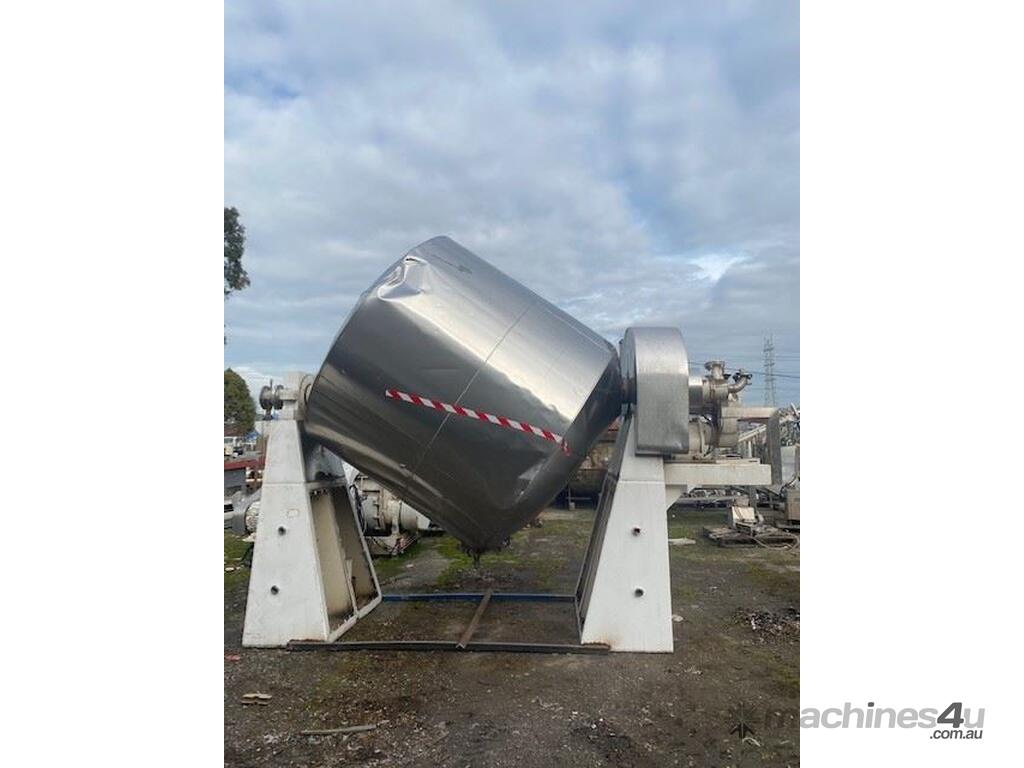

4000L stainless steel rotary cone vacuum dryer.

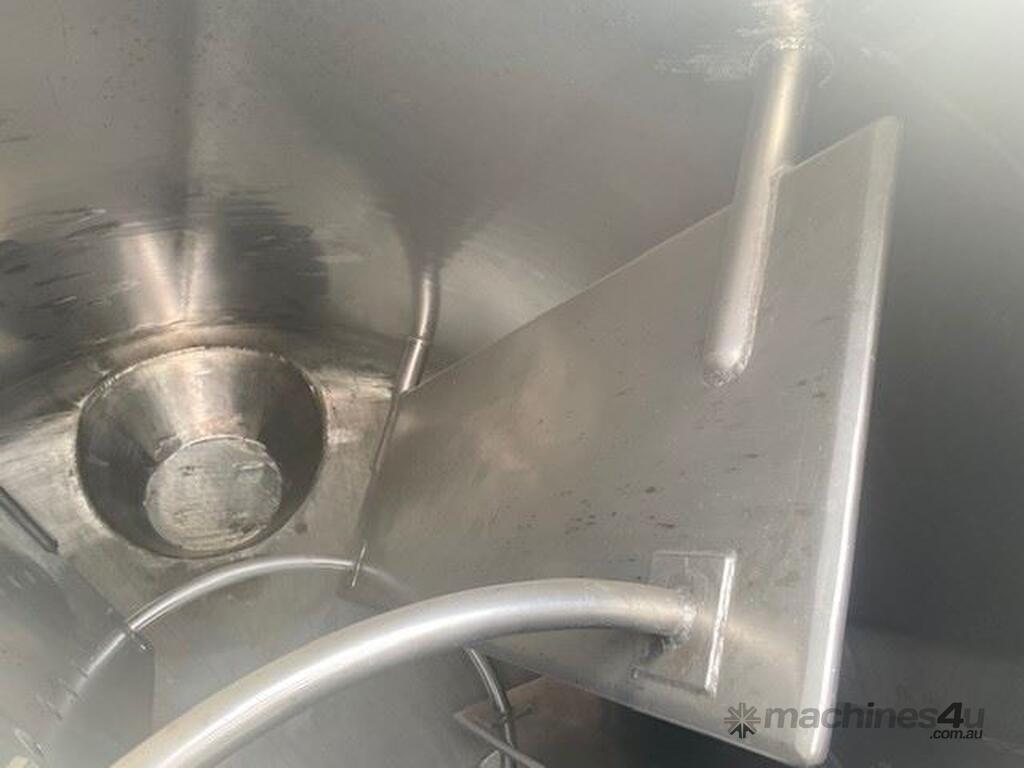

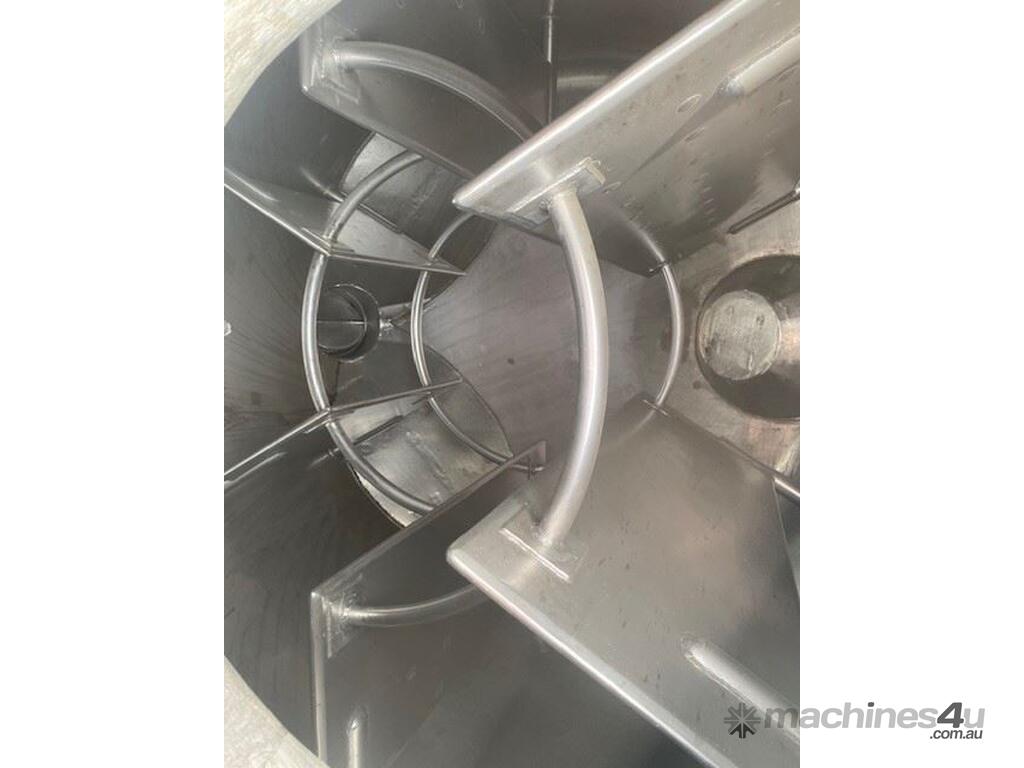

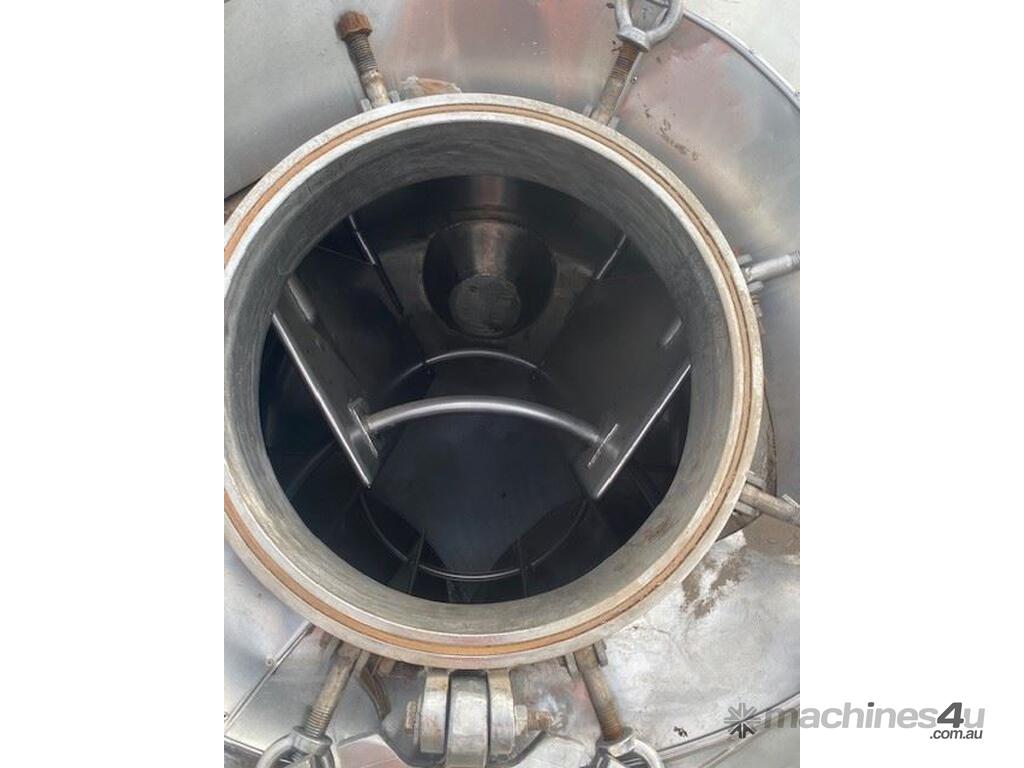

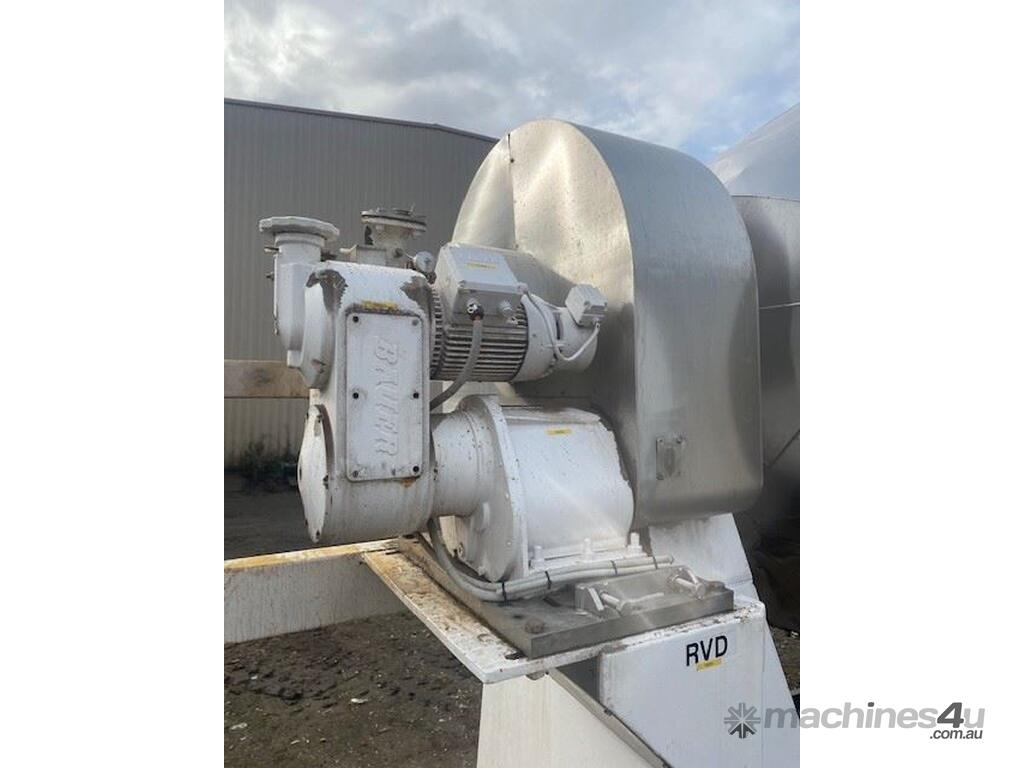

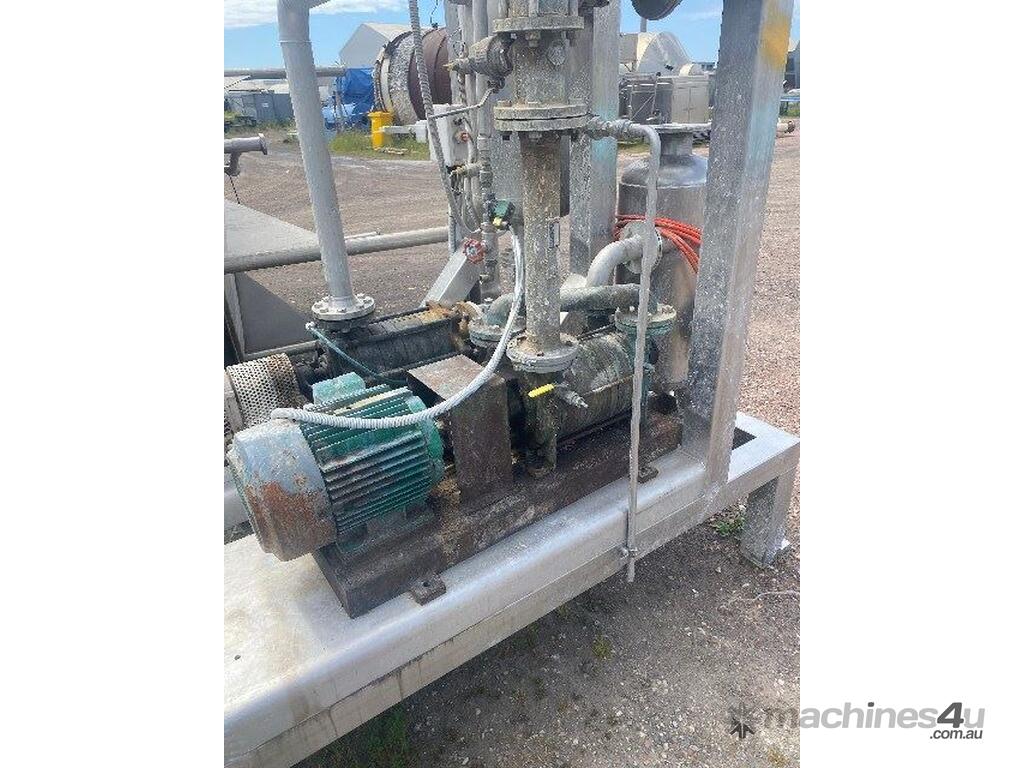

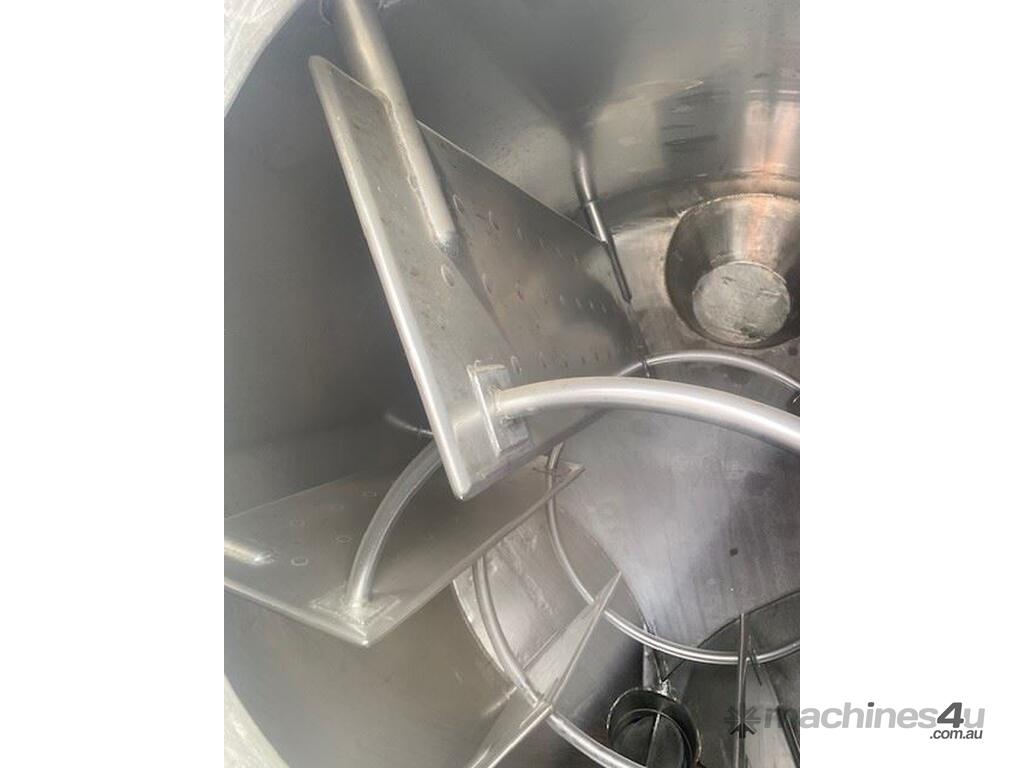

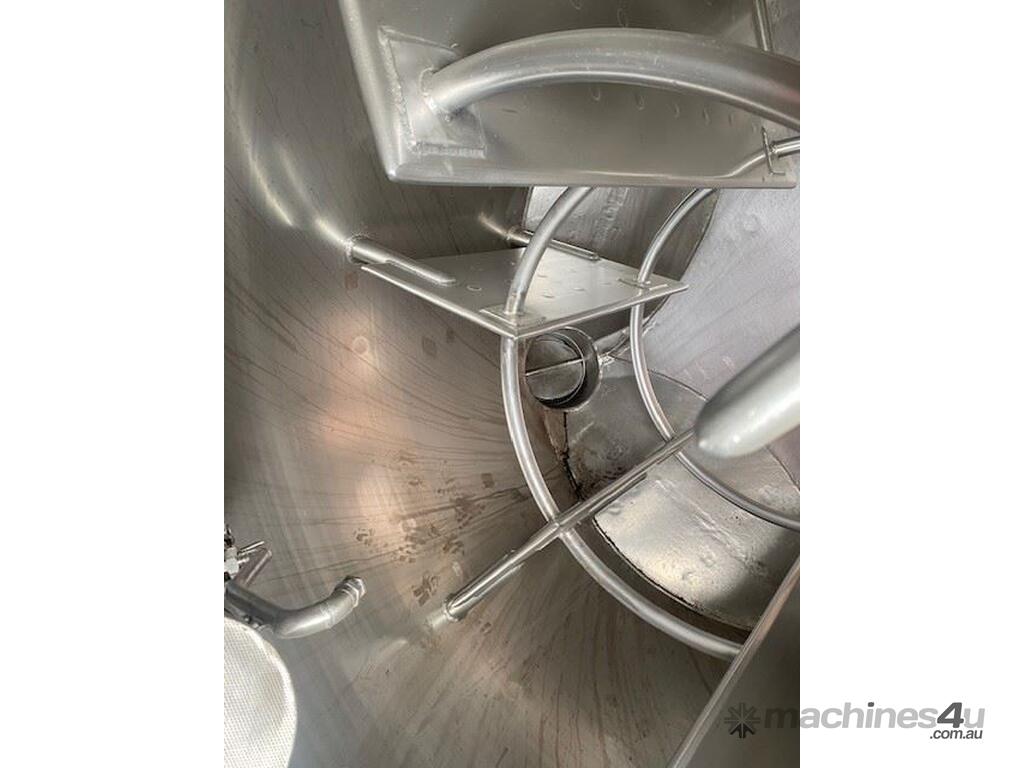

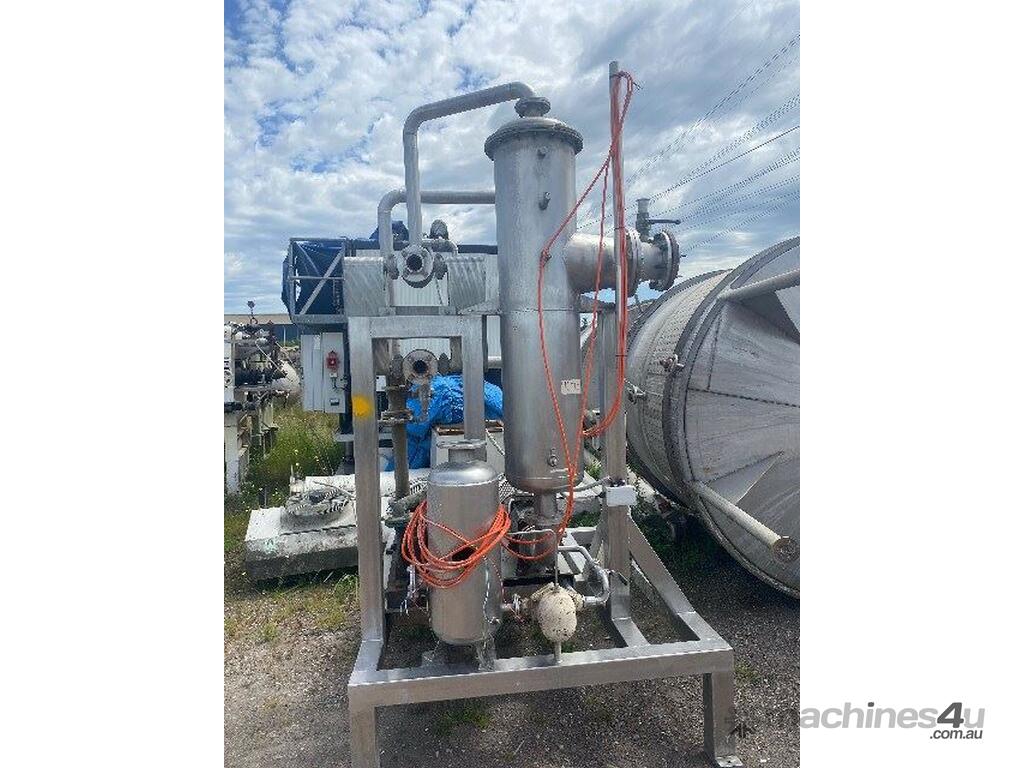

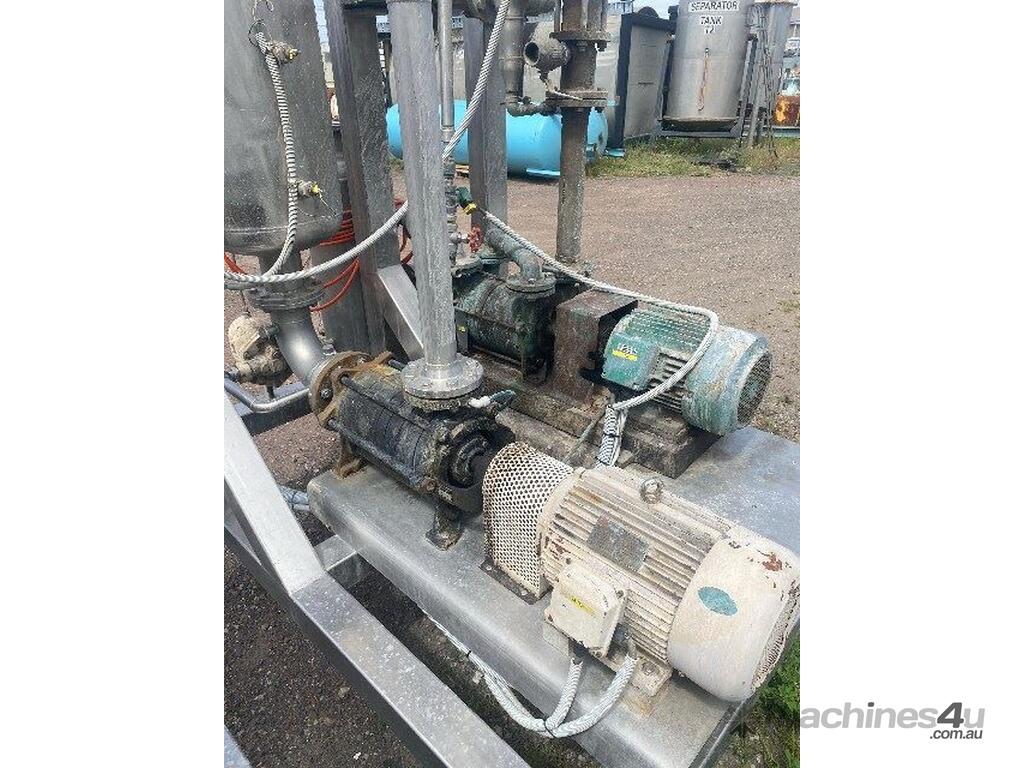

Variable speed drive (415V) with brake , jacketed and insulated. Vacuum pump. 321 stainless steel, internal jacked paddles, full vacuum.
Temp 200c. 2.5bar on JKT. 2bar main Tank.

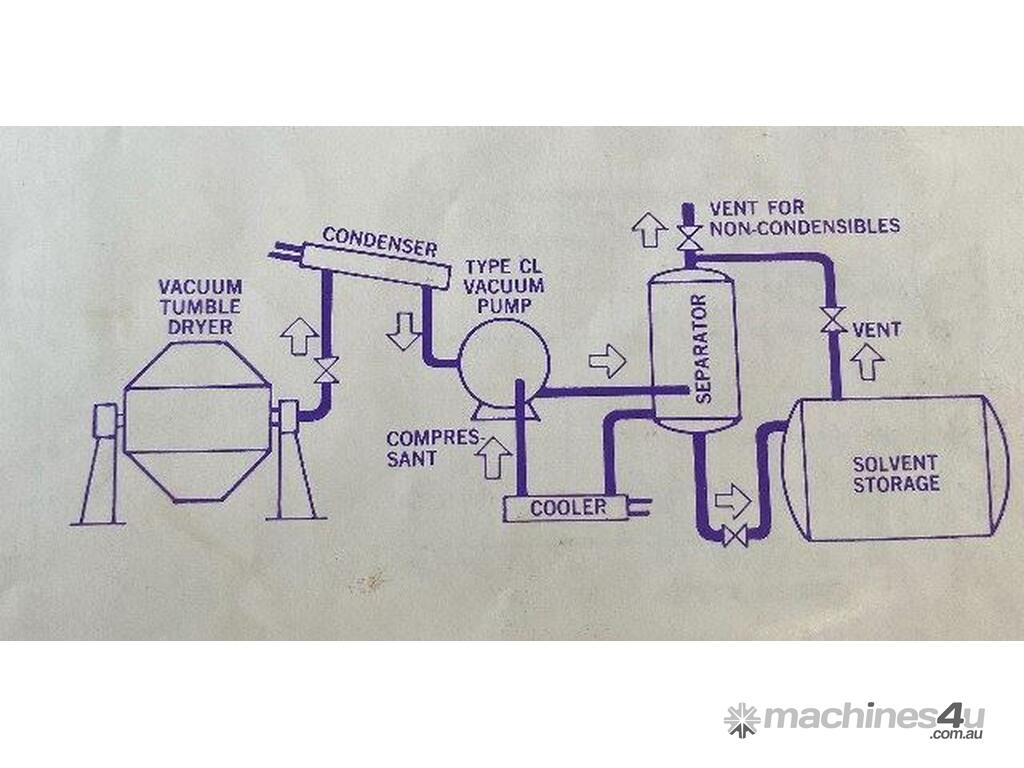

Rotary cylindrical vacuum dryers are designed for drying, mixing and condensing operations.

The manufacturing specifications make these dryers especially suitable for processes where it is necessary to operate at high vacuum levels in combination with high heating temperatures,
The skewed cylindrical form and the constant rotation ensure an efficient product mixing. The result is a uniform final blend in terms of both viscosity and residual humidity, which is greater than that achieved in continuous processes.

In addition, vacuum drying means elimination of oxygen and so avoiding the creation of unwanted secondary compounds or of explosive mixtures with the extracted solvents.
The action on the product is very delicate and light, so that mechanical shocks are avoided, limiting the creation of fine powders, as requested for this kind of production.
