Rotating Telehandler 4000Kg, 15m Lifting Height, Similar to Manitou

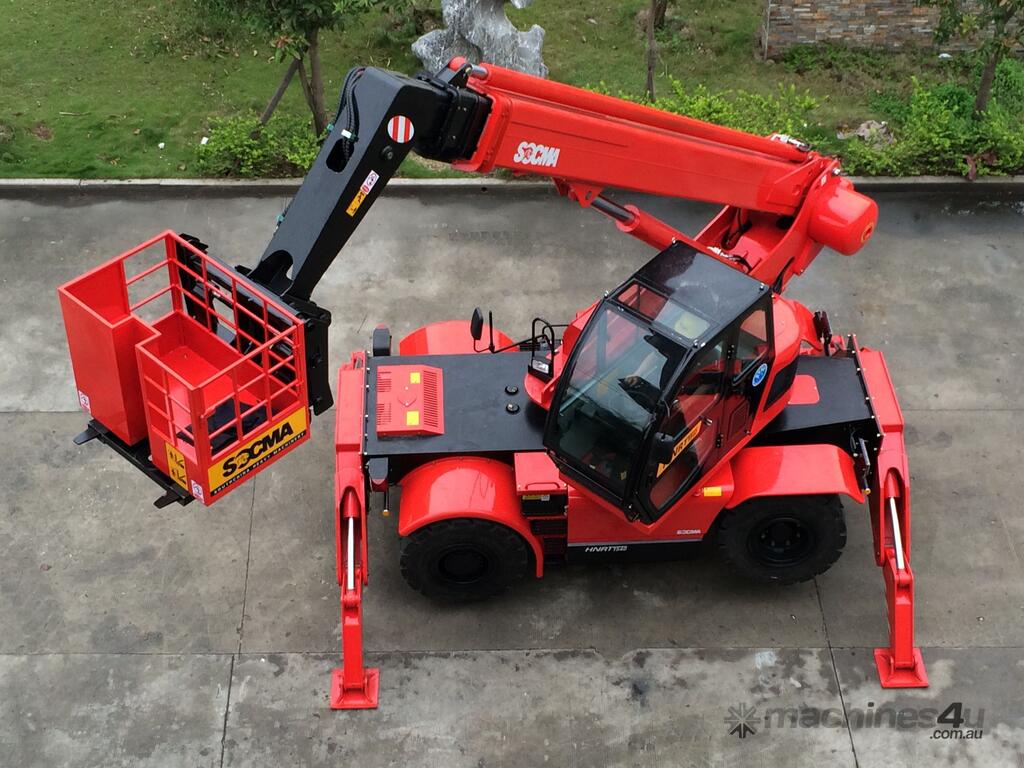

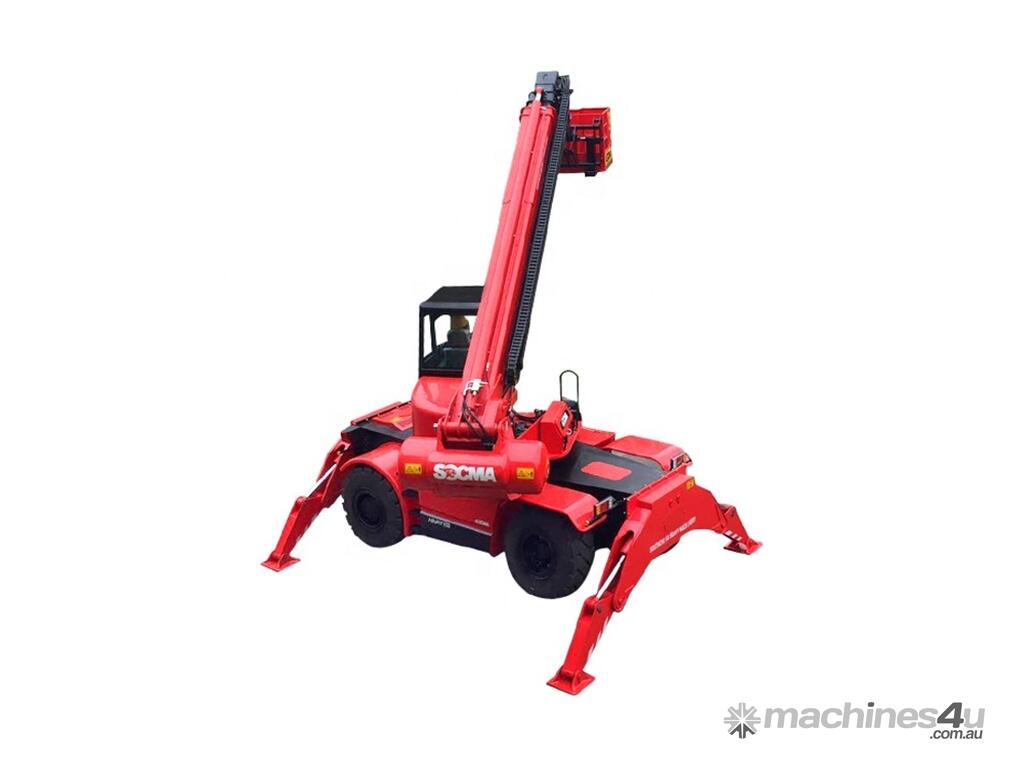

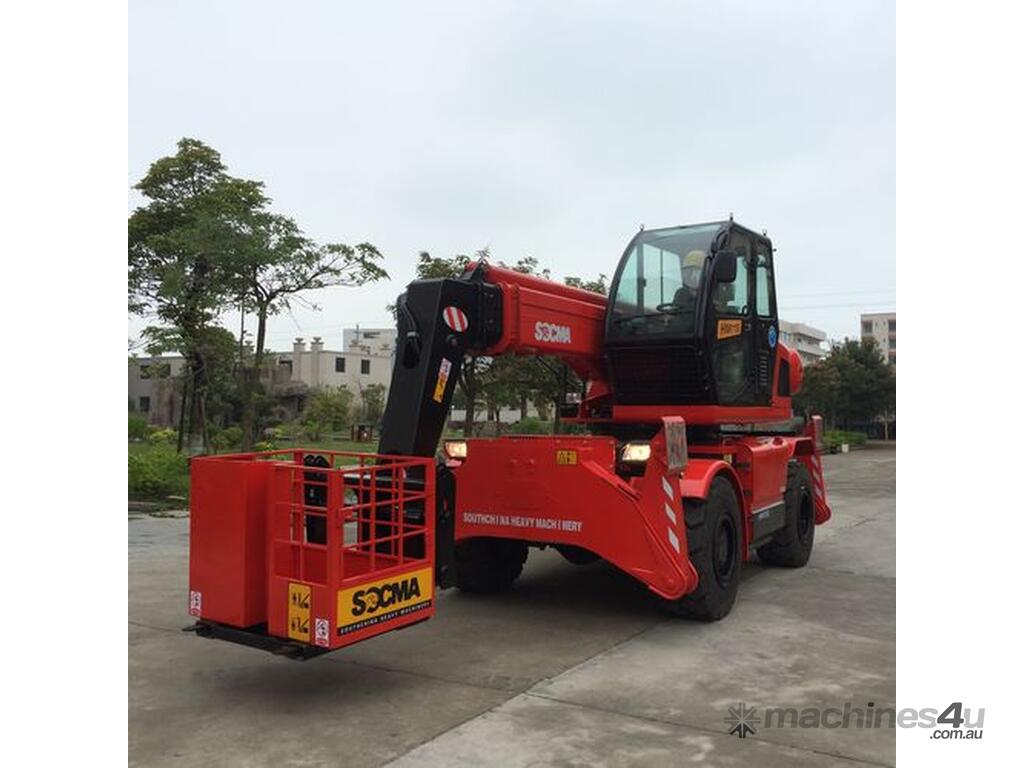

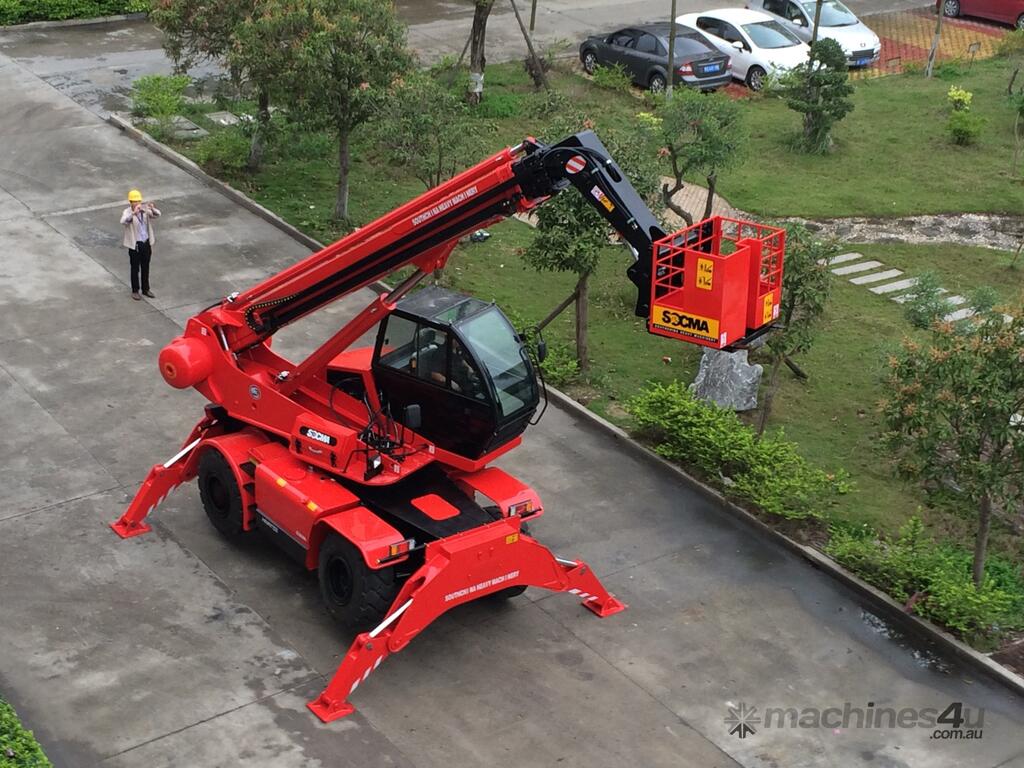

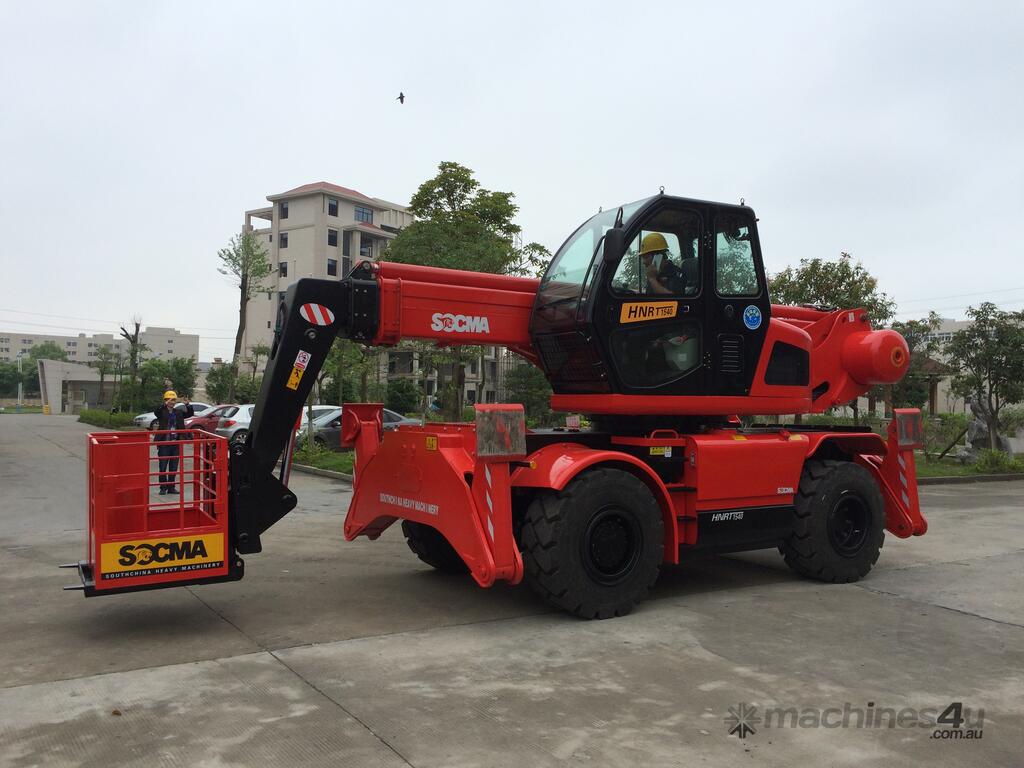

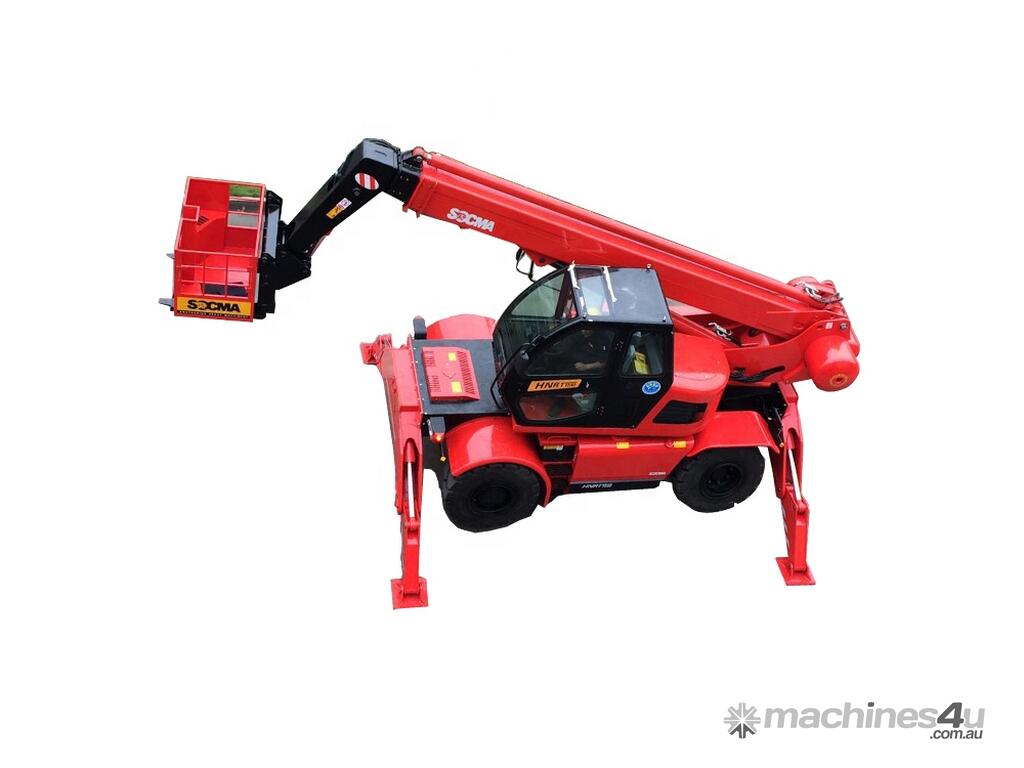

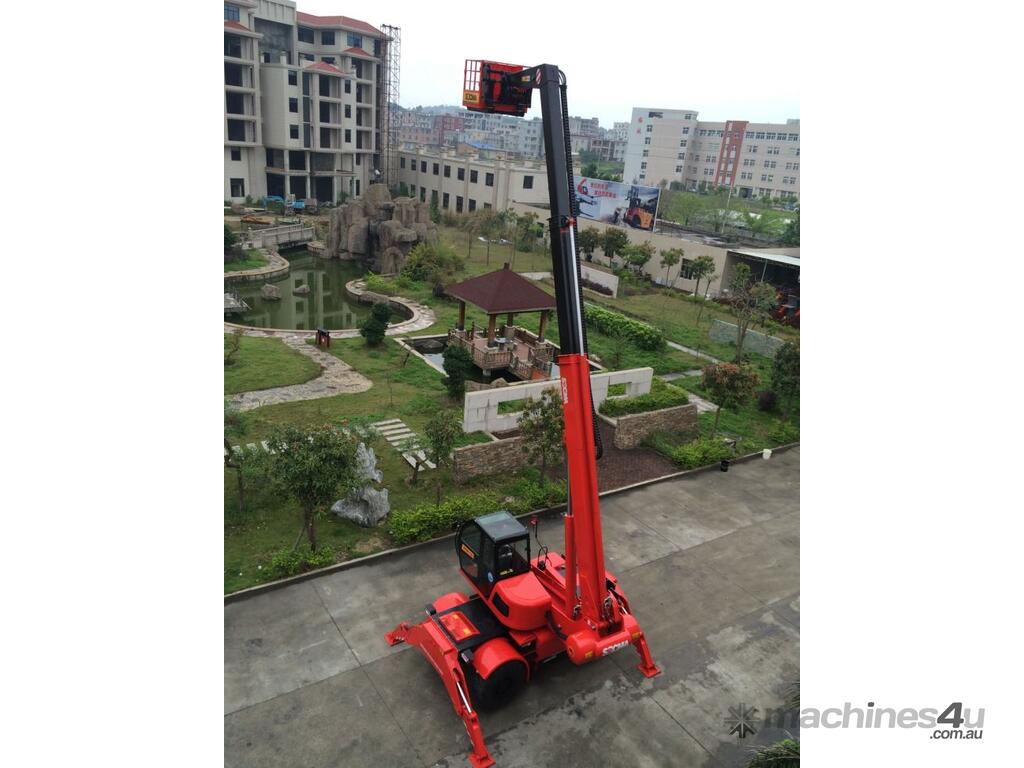

The HNTR40 is a multi-purpose rough terrain rotating telehandler, similar to the Manitou machines. It is suitable for construction site and industrial areas. The HNTR40 is fitted with a diesel engine, hydrostatic transmission, pilot control, 4WD driving, rear wheel steering with out rigger, hydraulic stabilizer for boom placing, stretching and withdrawing. The lifting height is 15m, rated load capacity 4tons, 360 degree rotate chassis. Max horizontal reach 10500mm (front end of front wheel to load centre). It can be used as telescopic forklift loader, crane loader or working platform.

Parameter of 4 Ton Rotated Telehandler

Performance Technical Data
Basic parameter Max. Lifting height (with outrigger) 15m
Rated load capacity (lifting) 4000kg
Max. Horizontal reach 10.5m
Rated load Max. Horizontal reach (with outrigger) 800kg
Load center 500mm
Operating weight (unloaded with fork) 16500 kg
Max. Travailing speed (km/hour) 25 km/h
Swinging speed 3 rpm(1500rpm)
Transmission system Transmission type Hydraulic static transmission
Hydraulic (high speed / low speed) 2 / 2
Transmission gears 2F/2R
Gradeability 30%
Traction force 80kN
System capacity Hydraulic oil tank capacity 300L
Fuel tank capacity 200L
Engine Model DF Cummins QSB3.9-C125-30
Rated power 93kW/ 125Hp / 2200rpm
Torque 480 Nm / 1350r/min
Fuel type Diesel
Emission standard National ?
Air inlet cooling Air-air intercooler
Hydraulic system Pressure 28 MPa
Oil flow 300 L/min
Steering system Steering gear type load sensing full hydraulic steering
Pressure 16 MPa
Rear axle steering type Transverse hydraulic cylinder steering structure
Steering angle 40°
Brake type Service brake Clamp-disc brake
Brake air pressure 0.684-0.785 MPa
Parking brake Air push drum brake
Main dimension Overall height 3300mm
Overall width 2570mm
Overall length(with fork) 7330mm
Wheel base 2800mm
Front wheel tread 2030mm
Rear wheel tread 2030mm
Ground clearance (outrigger) 350mm
Turning radius (out side) 4800mm
Operating position Central
Seating type Car type
Aerial working platform Length*width*height 1200 × 800 × 970mm
Out trigger type Hydraulic outrigger No. 2F/2R
Working boom Telescopic working boom 3-setion
Fork Length*width*thickness 1000 × 122 × 50mm
Max. Distance between two forks 710mm
Front/Rear tilt degree 12°/ 120°
Standard tire(inflatable) (Front/Rear) Wheel Number 2/2
(Front/Rear) driving wheel Number 2/0
(Front/Rear) tire dimension 45 × 16-20 ?36PR
