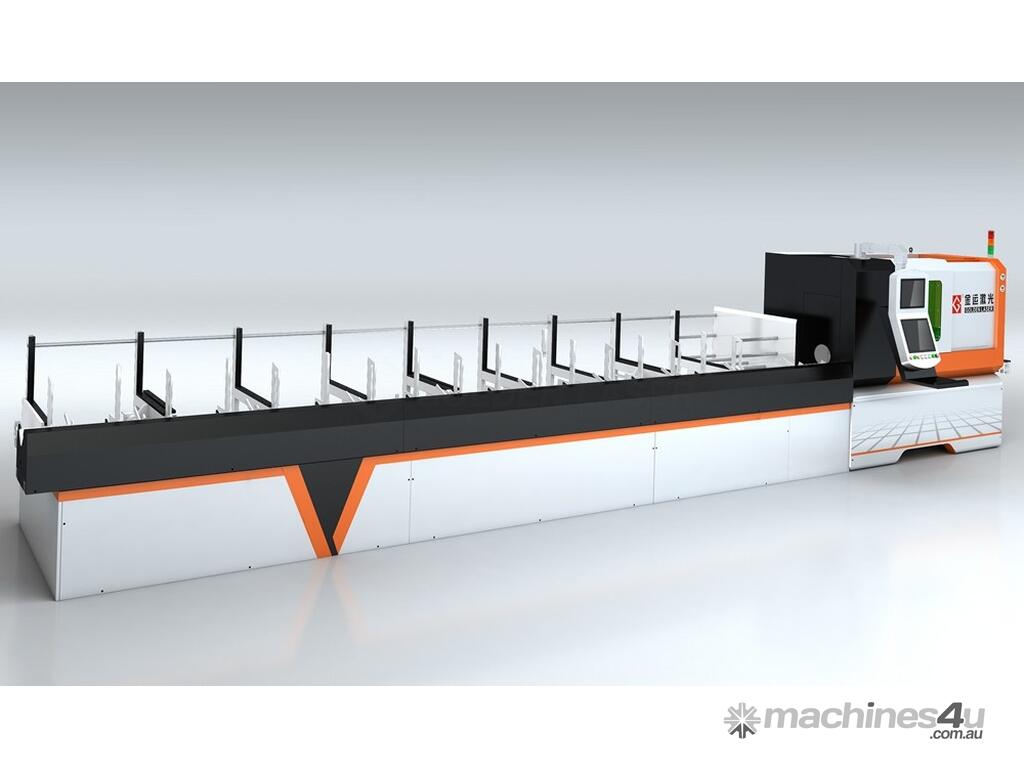

Round Tube Fiber Laser Cutting Machine

P120 is a specialty fiber laser cutting machine for round tube (round pipe). It is specially designed to replace the sawing machine in the motor parts industry, pipe fitting industry, etc.

With multiple cutting processes – cutting off, beveled cutting and punching.
Automatic loading of round pipes, saving labor and time.
With automatic slag removal function, improving the surface quality of the workpieces.
High processing efficiency, 3 times that of the sawing machine.

Tube length 6000mm
Tube diameter 20-120mm
Bundle size 800mm × 400mm × 6000mm
Laser source Fiber laser resonator
Laser source power 700W 1000W 1500W 2000W 2500W 3000W
Maximum rotate speed 90r/min
Repeat position accuracy ±0.03mm
Maximum position speed 60m/min
Acceleration 0.8g
Cutting speed Depend on material, laser source power
Electric power supply AC380V 50/60Hz
