S-6000 Robot Welding Cell - Expansive H-Cell Design

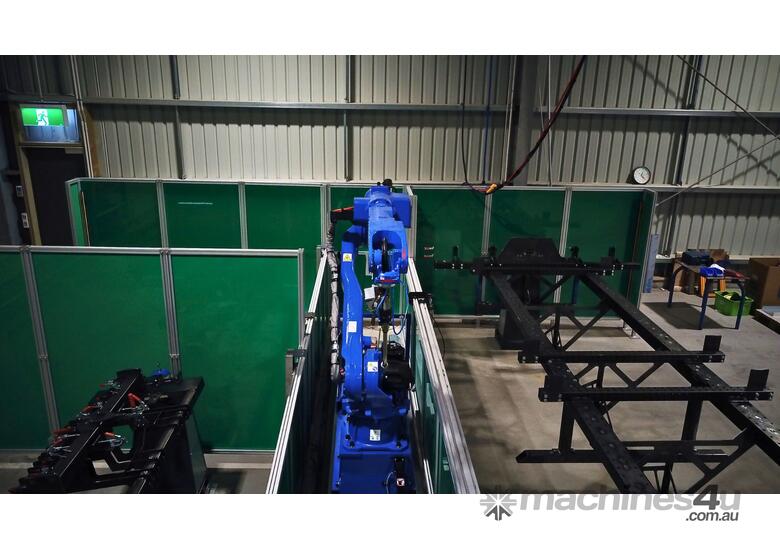

The Autoa S-6000 robot welding cell offers an efficient solution tailored for manufacturers handling medium to larger-sized parts. With a unique robot slider track extending up to 6000mm, it facilitates coordinated motion across eight axes between the robot and the positioned part, significantly enhancing speed and efficiency.

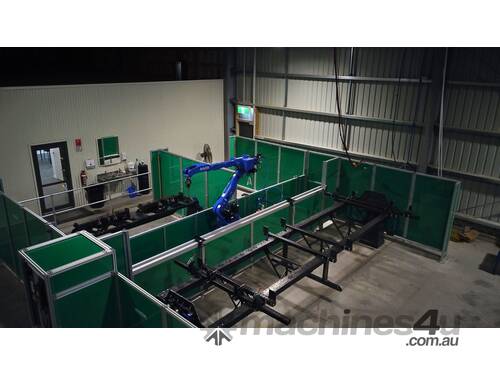

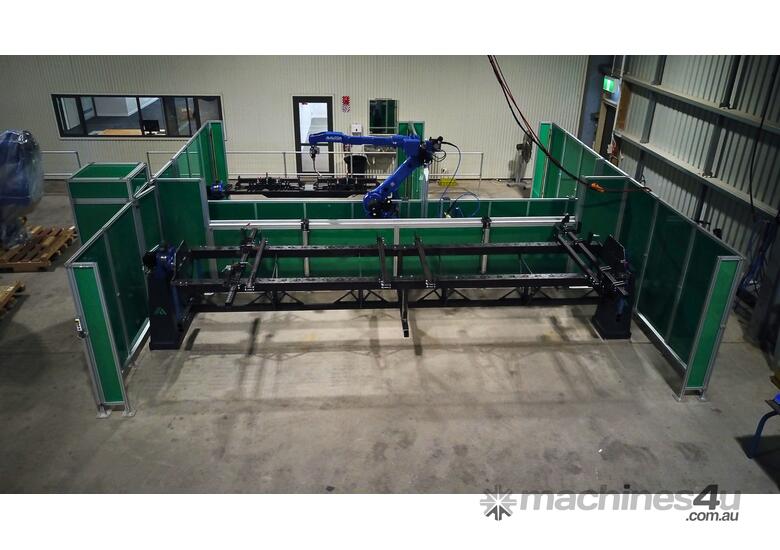

Featuring a spacious H-cell design and dual servo-controlled positioners, the S-6000 excels in welding large assemblies such as truck and trailer sub-assemblies, boat assemblies, and service bodies. Its versatility allows for productivity growth without requiring additional space. The cell is adaptable from a two-workstation setup to four, offering flexibility to meet specific production needs.

Ideal for labor-intensive tasks involving large parts or heavy deposition, the S-6000 ensures precise welding and advanced robotic capabilities, streamlining production processes and maximizing efficiency.

Equipment:
OTC Daihen V25L Welding Robot with 3000mm reach.
OTC Daihen FD19 Robot Controller and Teach Pendant.
OTC Welbee P502L 500amp Welding Power Source.
500amp Water Cooled Welding Torch and Wire Feeder.
1PC1000 Single Axis Positioners x2.
Safety Guarding – standard ISO 10218-1.

Design:
Modular cell design with various dimensions and configurations, including options for rotating longer and larger diameter parts.
Controller and power source in external enclosure.
Clean design with protected cables and floor fixings.
Compact footprint in Autoa cell standard range.

Details:

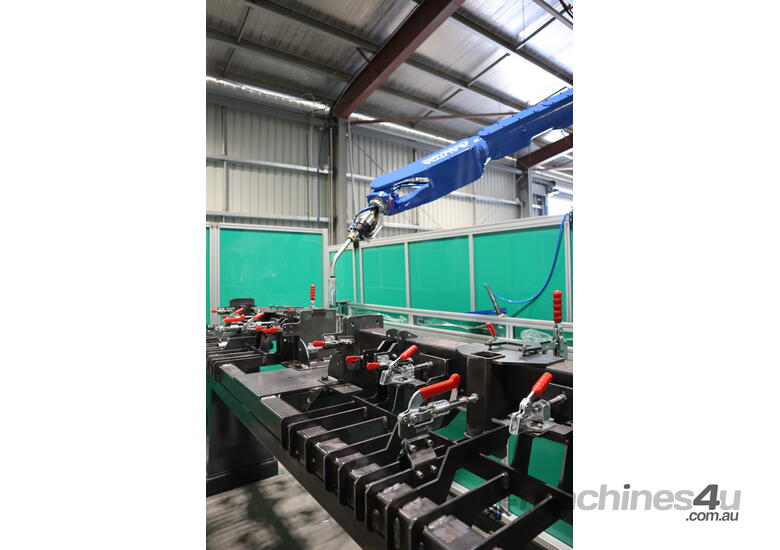

Welding Jig: 1600 x 6000mm (larger options available).
Cell Dimensions: 8498 x 7515 x 2005mm.
Power Supply: 32A 3ph 400V + Neutral.
Positioner Capacity: 1000kg each side (other capacity’s available).

Autoa services include installation, comprehensive training, and ongoing servicing and support for optimal performance, with streamline processes and eliminating the complexity of coordinating multiple providers. Inquire now for a seamless robotic welding experience.
