SALVAMAC Premium up-cut docking saw

CLASSIC 50, Currently ex stock. ON SPECIAL

New premium up-cut docking saw SALVADOR CLASSIC
WHY IS THE SALVAMAC MORE EXPENSIVE THAN COMPARITIVE SEA Machines

The Classic crosscutting saws are designed and manufactured to work also
in hard conditions and with heavy wood. The structure is completely in varnished
hard steel, high thickness and really strong. Solid, compact and stable!

It is so easy to use: just select the stop and press the two buttons to cut. The operator
should not perform any special setting or adjustment. Simple, easy and flexible!

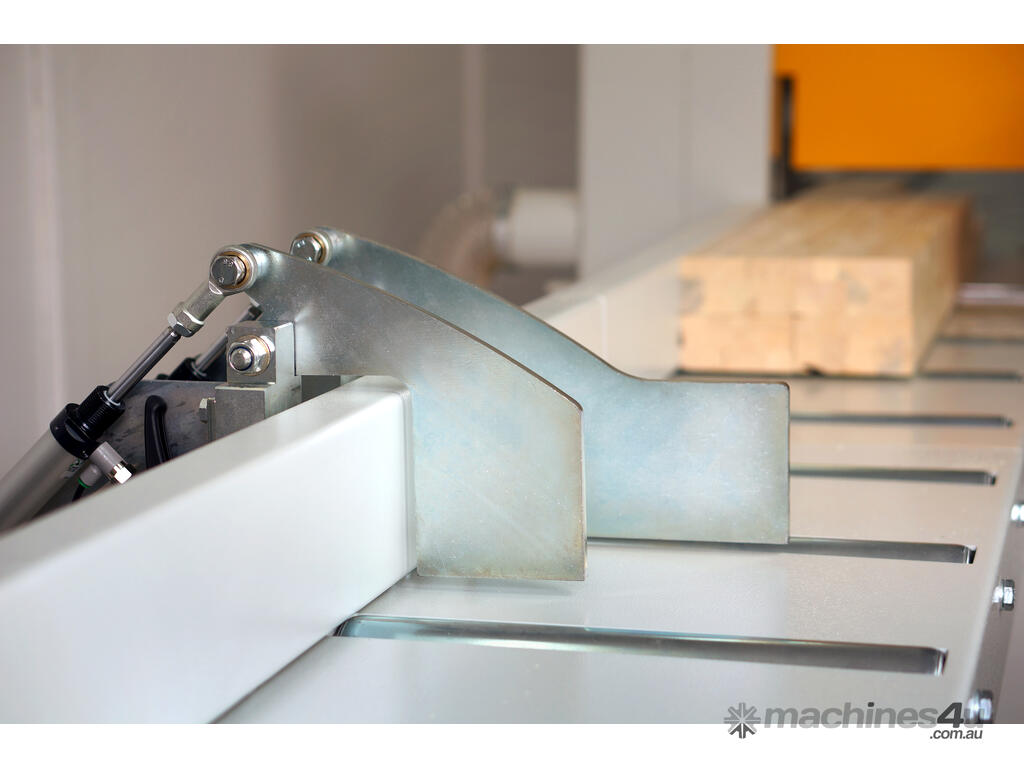

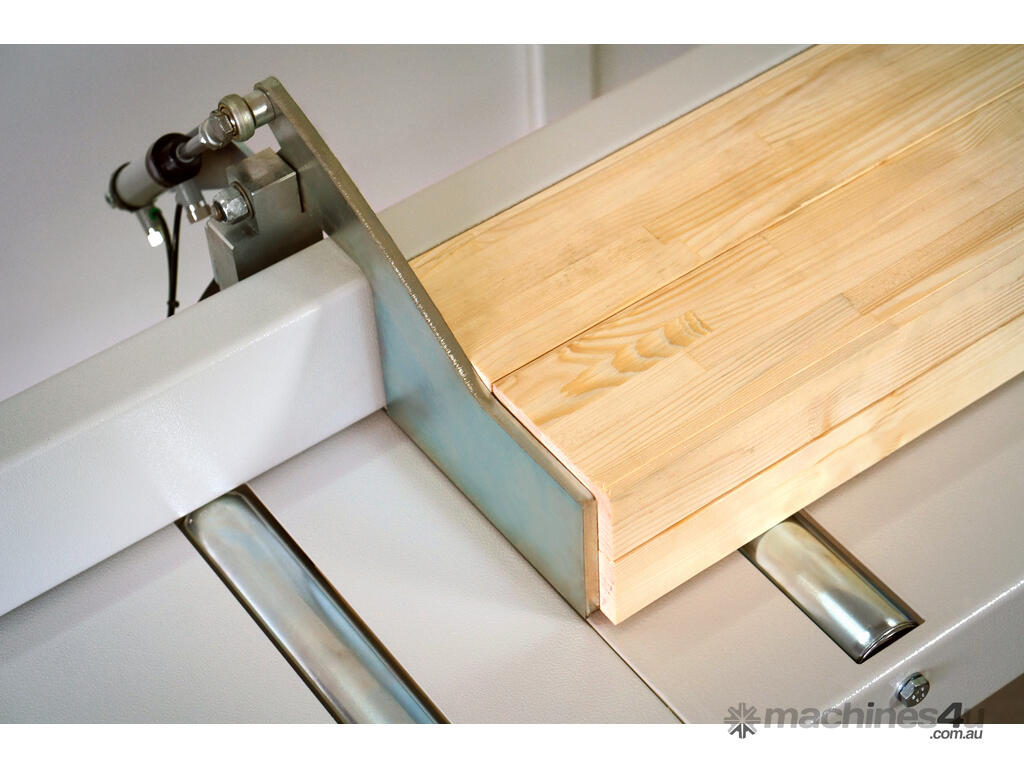

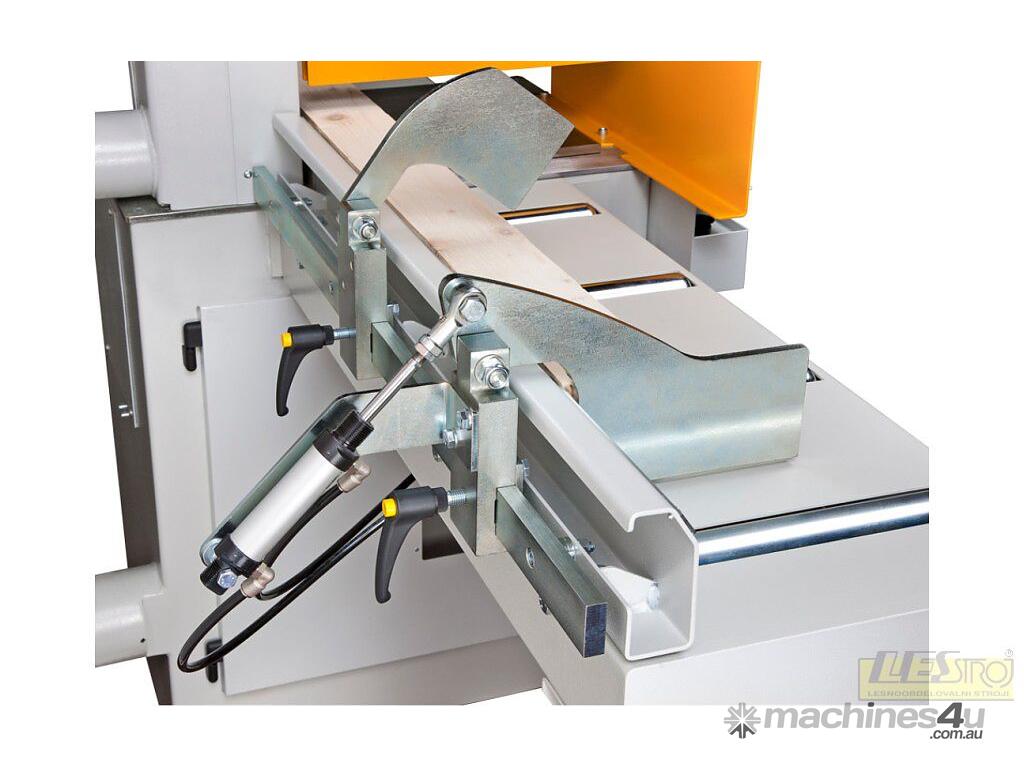

A choice of multiple really strong manual or pneumatic stops; width 100, 200 or 250 mm
1 Pneumatic & 1 manual stop included with this machine

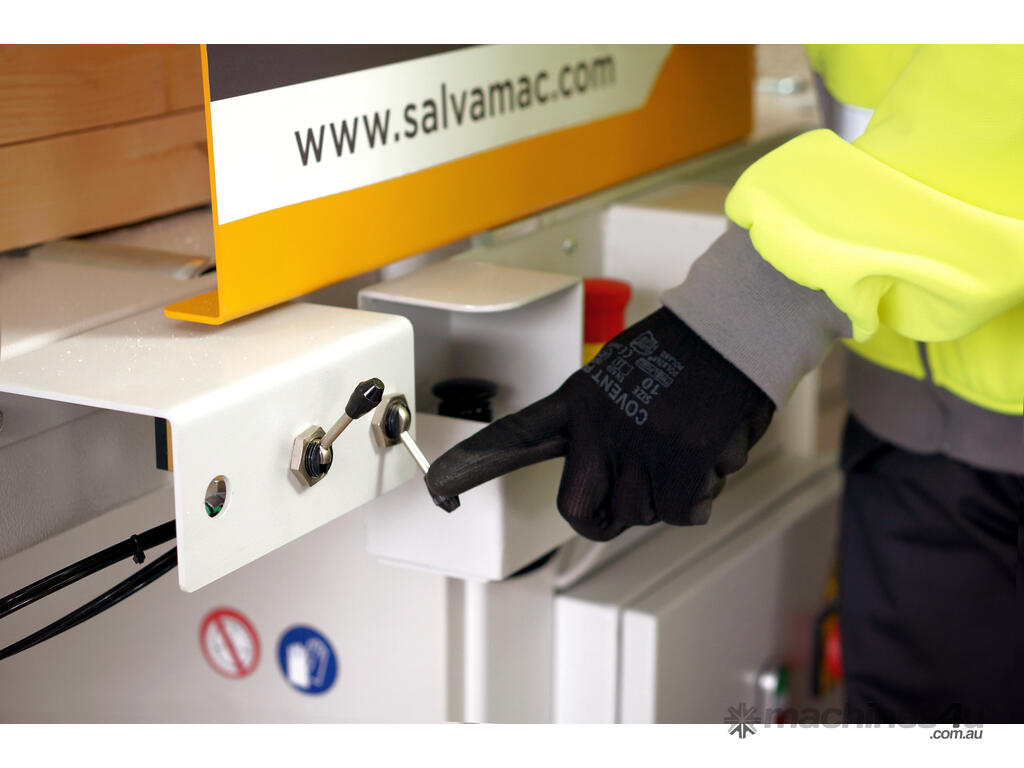

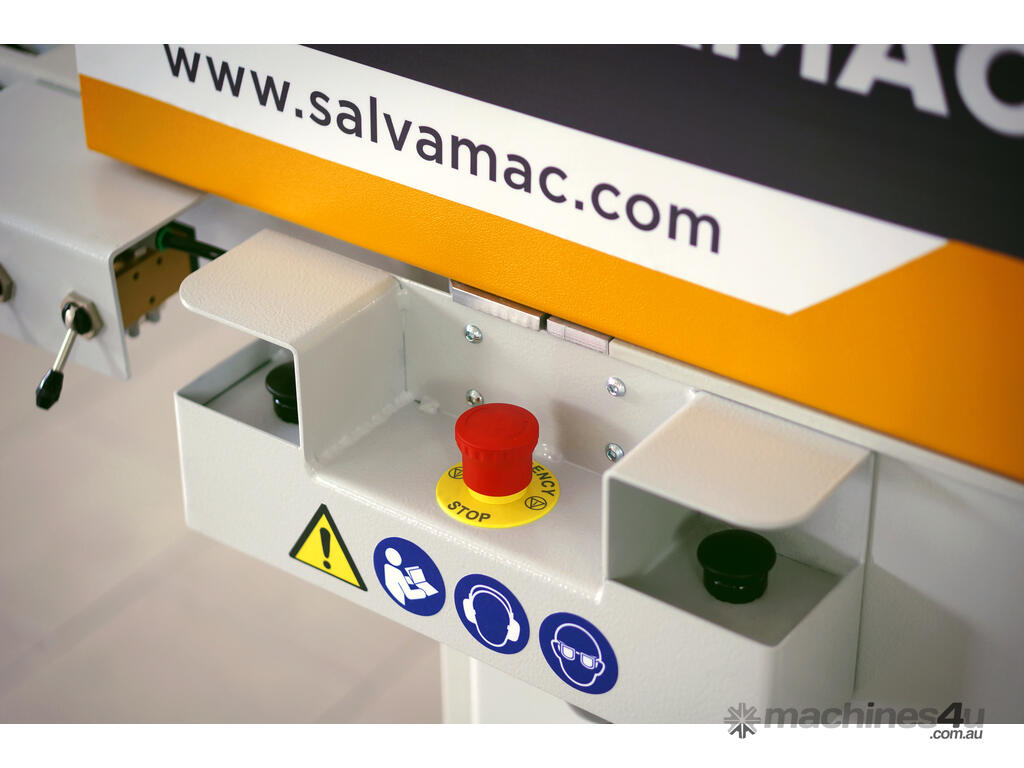

TWO HANDED SAFETY CONTROL with ergonomic position and the blade protection
cover allows to work with absolute safety-Safe, protected and secure!

As standard the machine is proposed with one metre in-feed and out-feed roller or flat tables,
but can be equipped with any length in-feed and out-feed tables.
IN FEED & OUT FEED TABLES
Classic 40 – 50
In-feed or out-feed conveyor:
a) Steel structure flat table width 320 mm
b) Steel structure with idle rollers. Galvanized
rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm; width 320 mm

2 Extraction dust ports included on the machine


Cutting section max. mm. 220x125/ 260x100/285x80/310x50.
In case of packet cutting height max. mm 100.
Structure completely in varnished hard steel, high thickness and really strong.
Solid anchoring to the floor with special flanged steel feet with fixing hole.
Two-handed safety manual control with ergonomic position.
Blade motor power kW 5,5.
Cutting speed adjustable by pneumatic trimmer on the machine.
System to balance the cutting group weight giving long life. Special amortizing system.
Independent pneumatic regulations to adapt to the different types of work.
Aluminium blade soft inserts of long duration and easy to change.
Circular in HM, diameter mm. 500. Z=108. Bore mm. 35.
Upper pneumatic hood to block the pieces with electro-pneumatic management.
Pressure beam movement system through the new “Skf” sliding bearings with double anti-dust

Standard with the following tables & stops
1 m. IN & OUT-FEED STEEL STRUCTURE WITH IDLE ROLLERS
Galvanized rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width
320 mm.
1 pcs. Strong mechanical stop width 100 mm

1 pcs. Strong mechanical-pneumatic stop width 200 mm
Minimum distance between first stop and blade mm. 70, minimum distance between two stops = 60mm
