The SCM Groups Double Tilting Panel Saw is Proudly Made in Italy.
With so many features this is with a doubt the best value panel saw on the Market today!
Dare to Compare!
Advantages

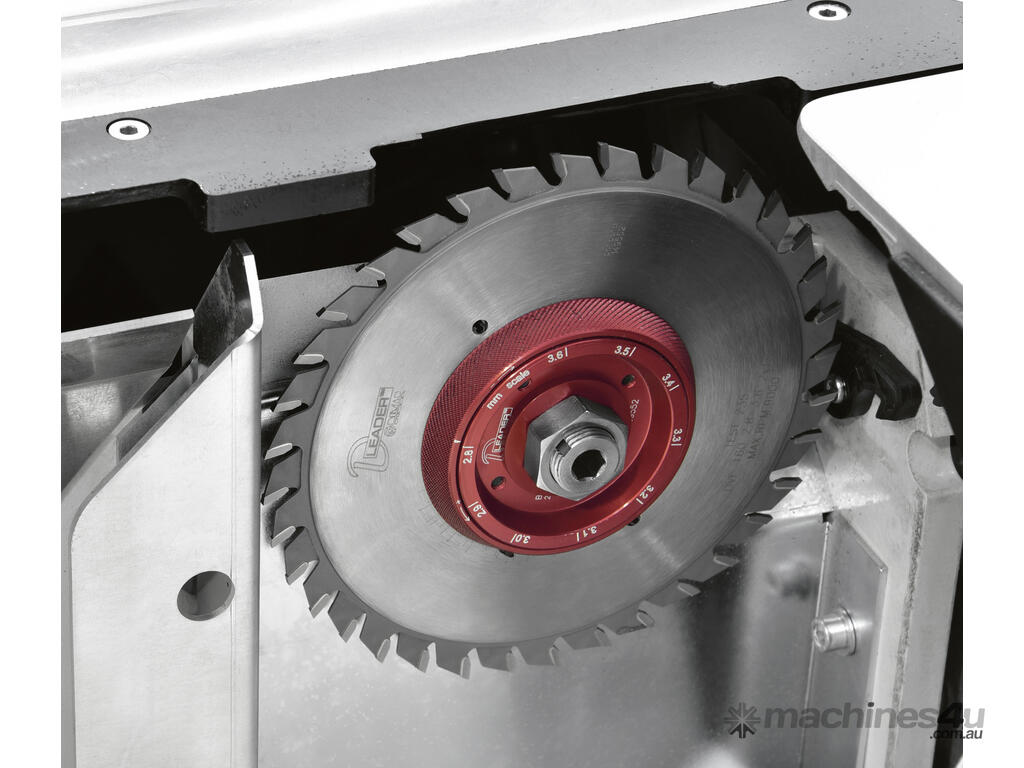

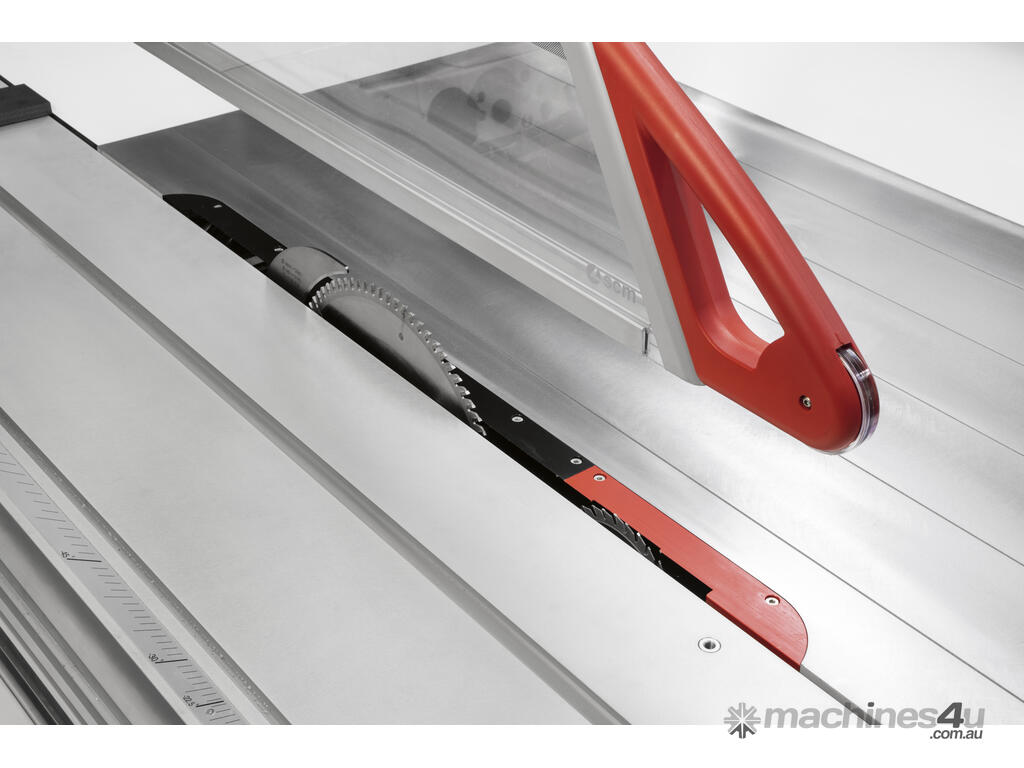

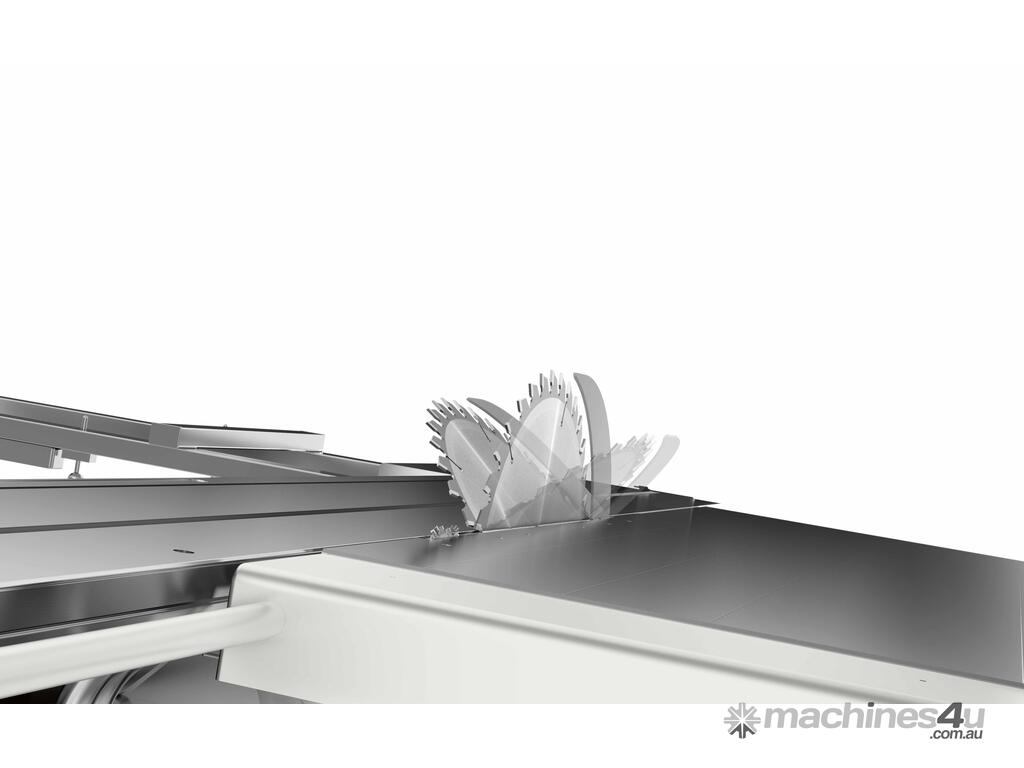

Double blade tilting: maximum height without compromise. The exclusive SCM solution capable of simultaneously use a 550mm saw blade and 160mm scoring blade, for both 90 ° and ± 46 ° inclined cuts, providing the best performance on veneered panels and solid wood components.

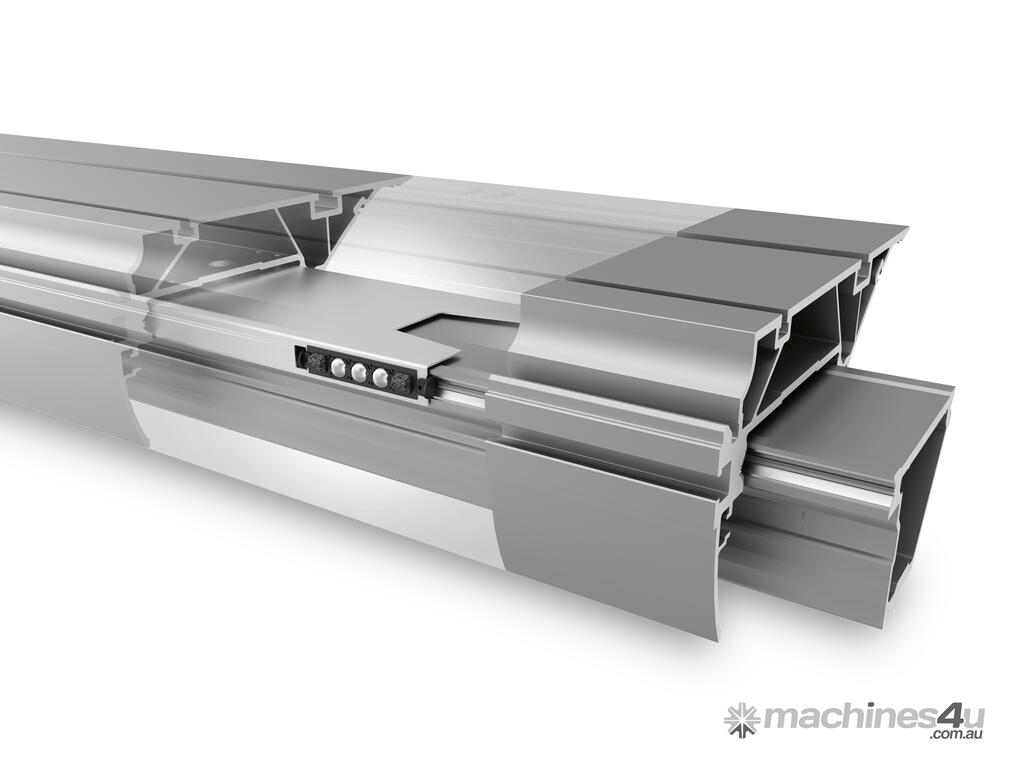

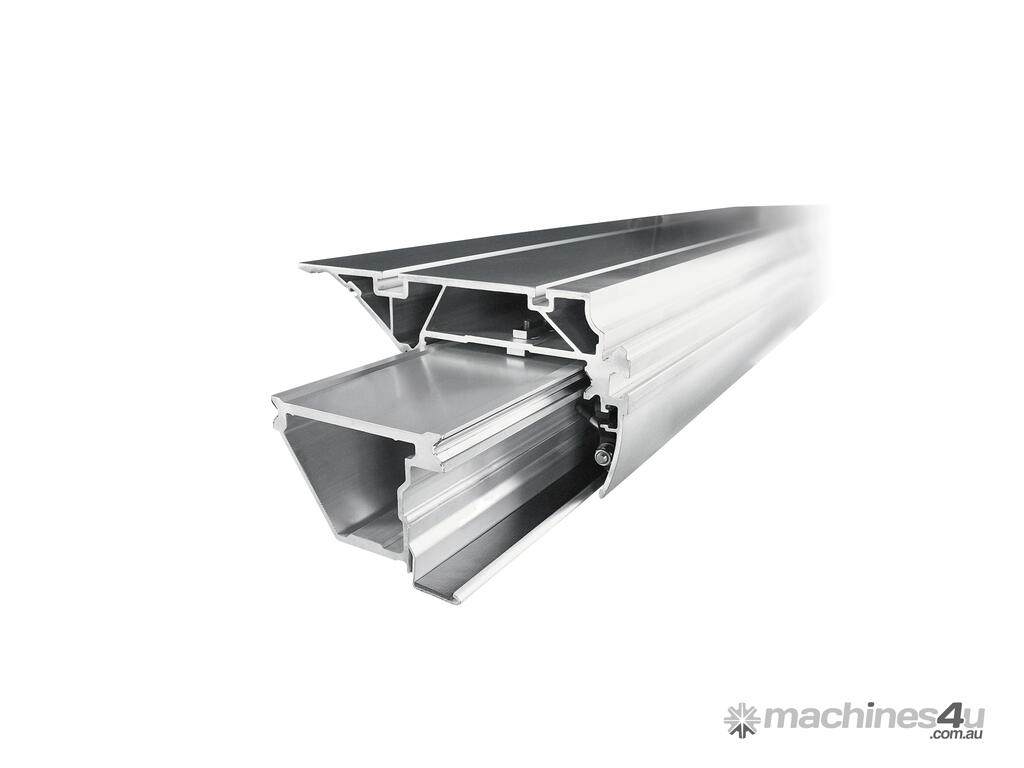

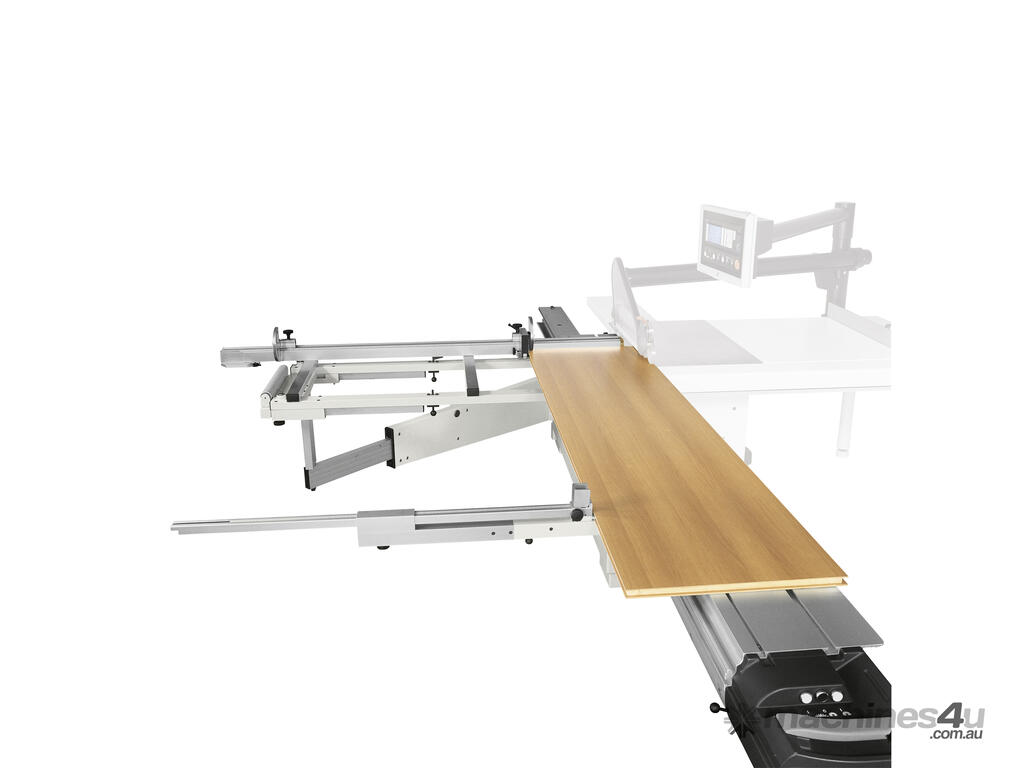

Sliding carriage: maximum cut quality guaranteed over time. The carriage will never require adjustment due to its structure with arch-ground steel slide ways (developed by SCM).

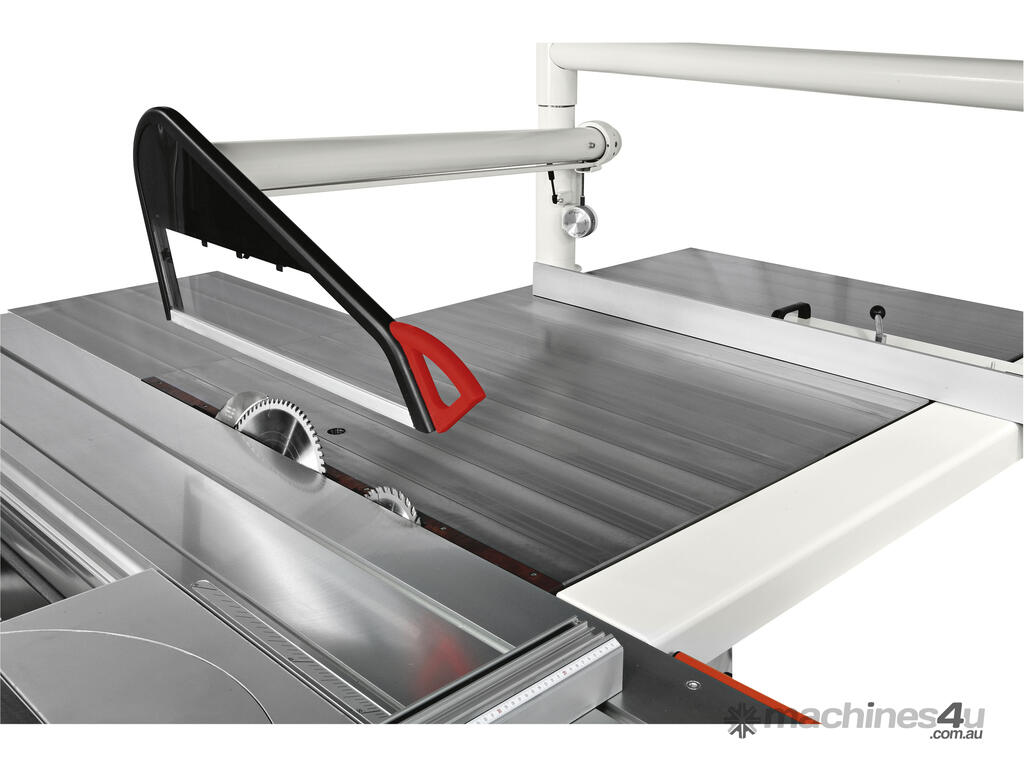

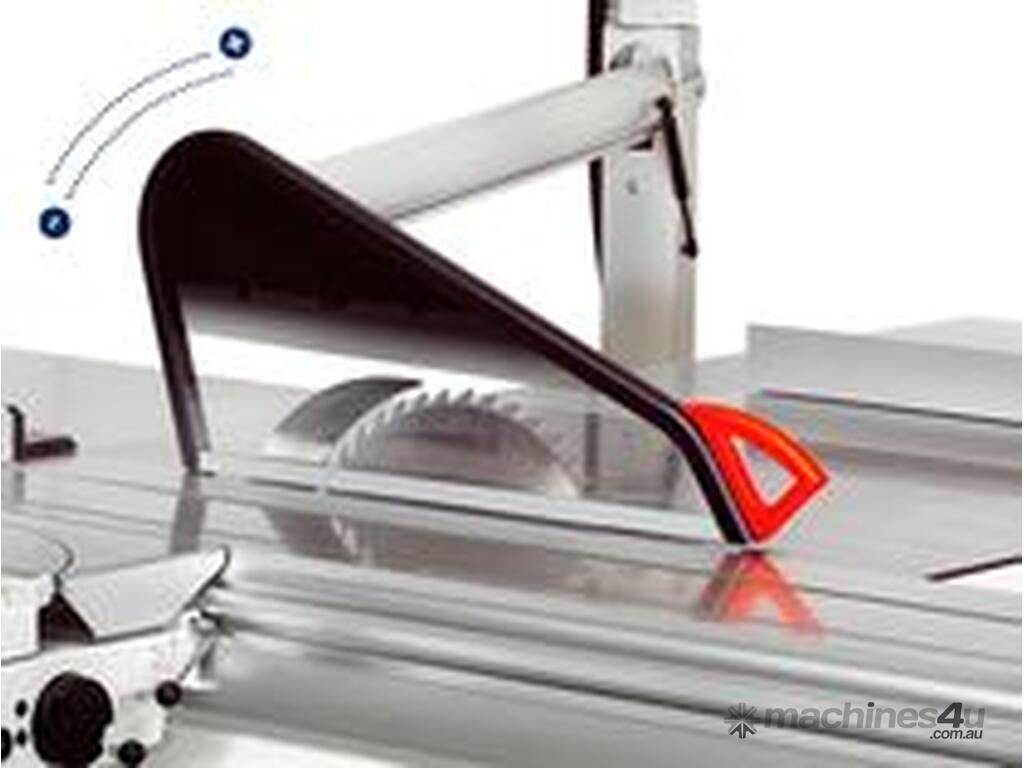

Automatic positioning system of the overhead protection
The overhead protection automatically positions itself as a function of the blade using the exclusive "AP system" (SCM solution). Without a doubt the safest solution on the market today Patented by SCM!
This makes the transition from cuts with different angles even faster and safe, without the operator having to change the settings of the machine.
Technical data

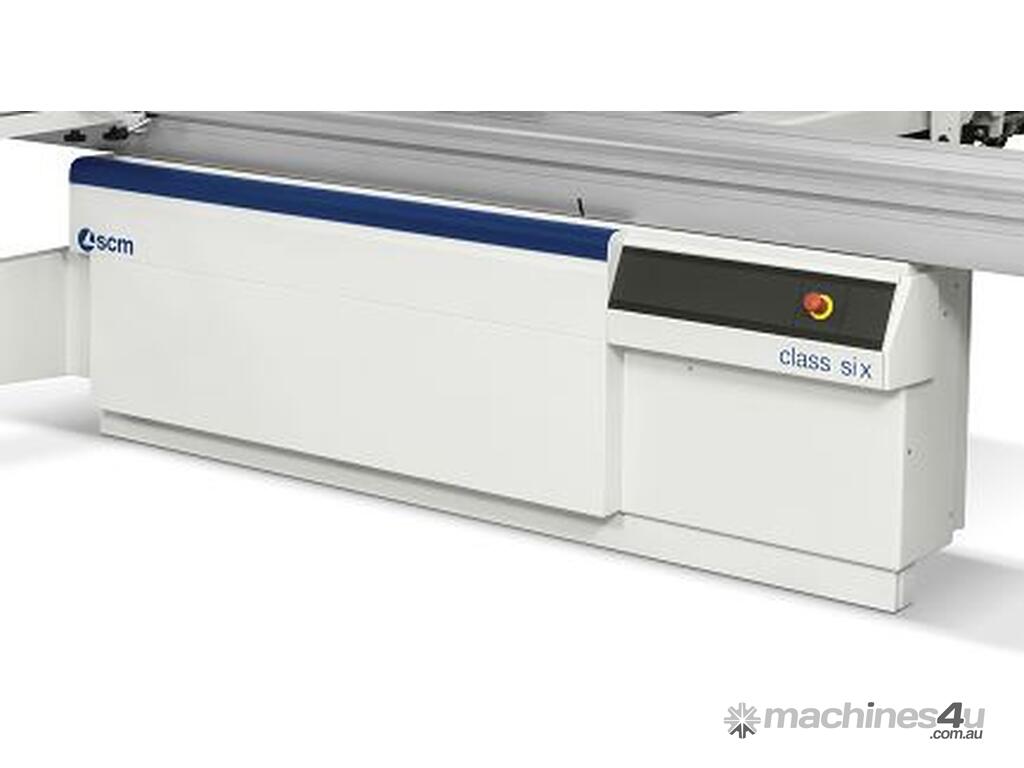

class si x
Max. saw blade diameter mm 550
Maximum saw blade projection from table to 90°/+45°/-45° mm 200/130/105
Cutting width on rip fence mm 1000 ÷ 1500
Squaring capacity mm 2200 ÷ 3800
Three-phase motors power kW/Hz 9 (11) / 50 (60)
