SCM Class TF130PS Sliding Table Spindle

The SCM TF130PS Sliding Table Spindle is proudly made in Italy for those wanting to manage tenoning and moulding operations very easily.

Advantages

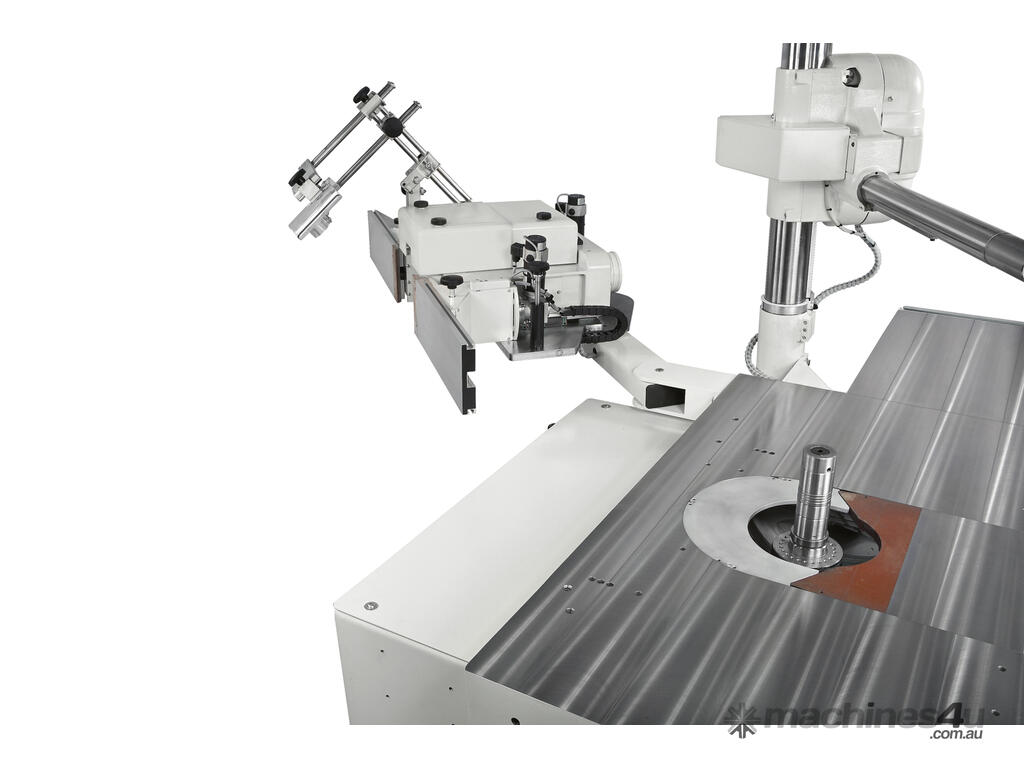

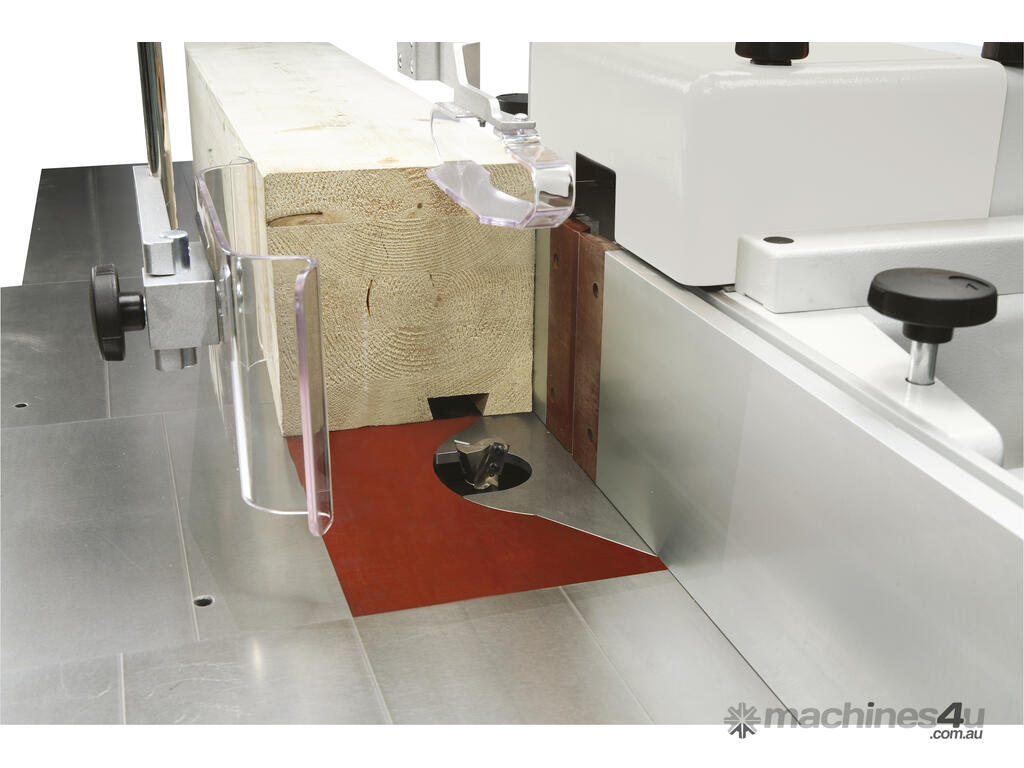

With the front sliding carriage integrated in the table, the table, the tilting telescopic fence and the protection hood with dedicated armguard, the operator can easily and safely carry out tenoning and profiling operations.

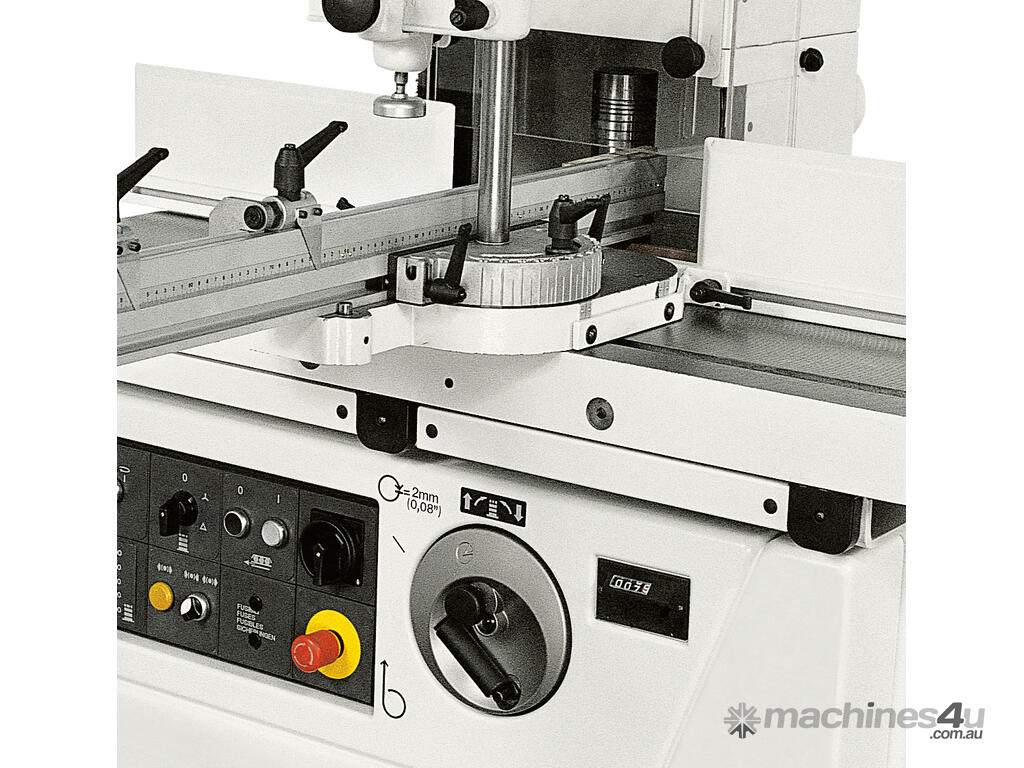

Set up precision and reliability. The operator easily adjusts every movement thanks to the hand wheel with mechanical readout positioned on the machine front.

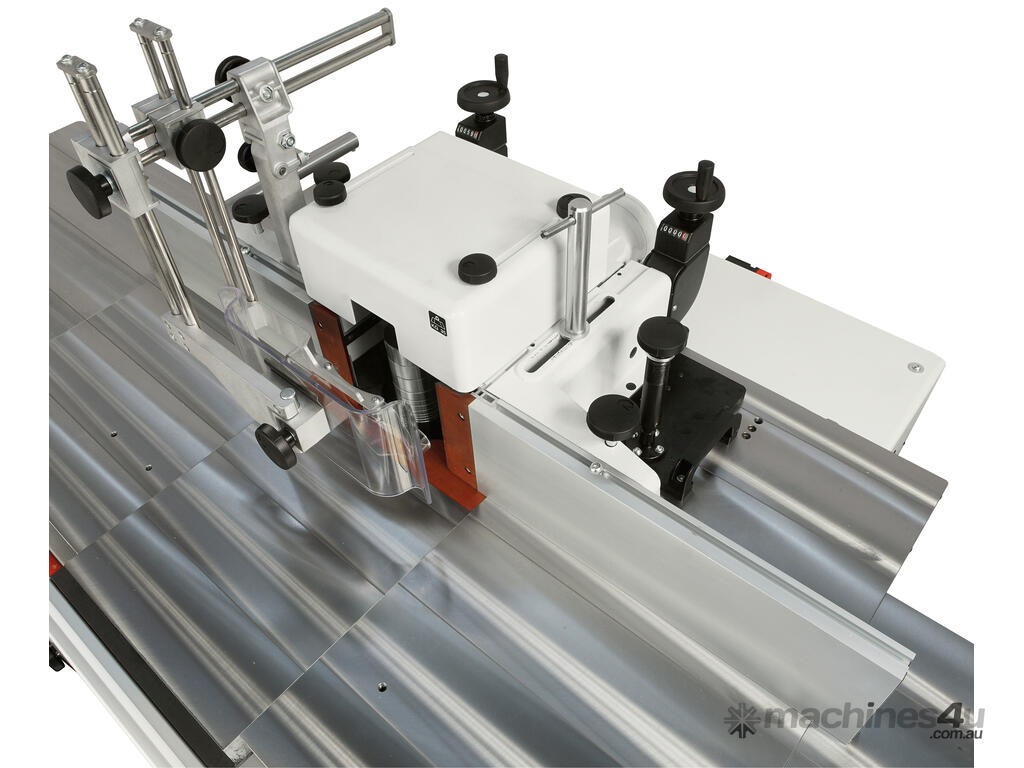

Spindle moulder fence with mechanical programming: maximum set up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

Technical data
Class tf 130ps

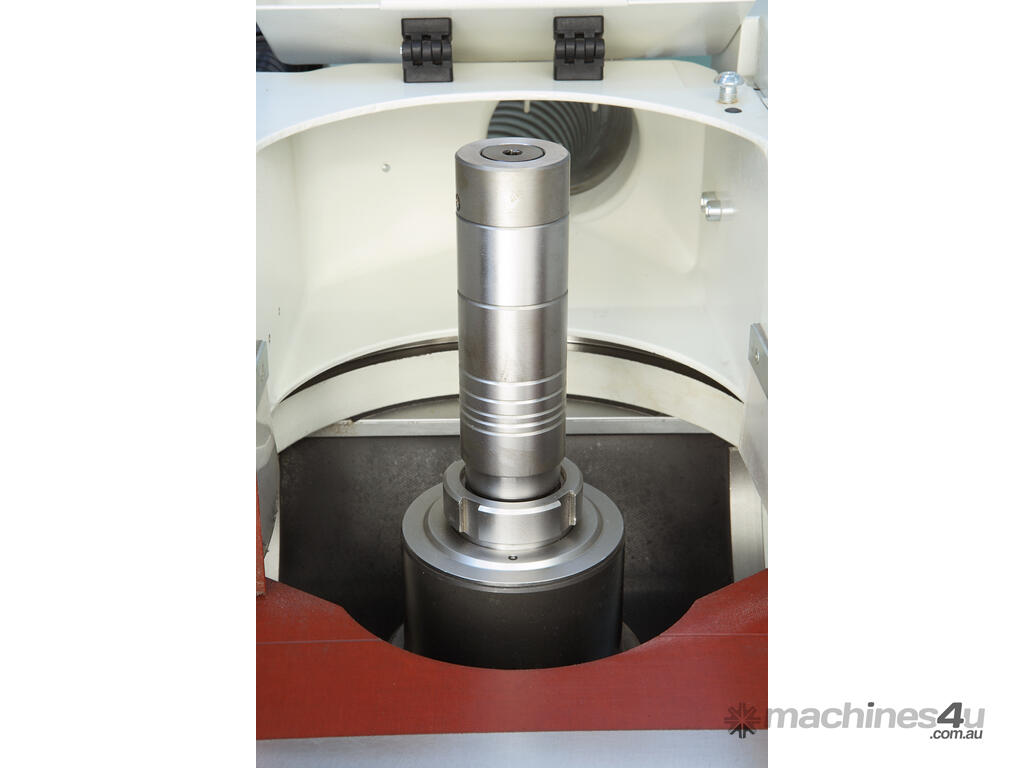

Max. useful spindle length mm / inches 180 / 7

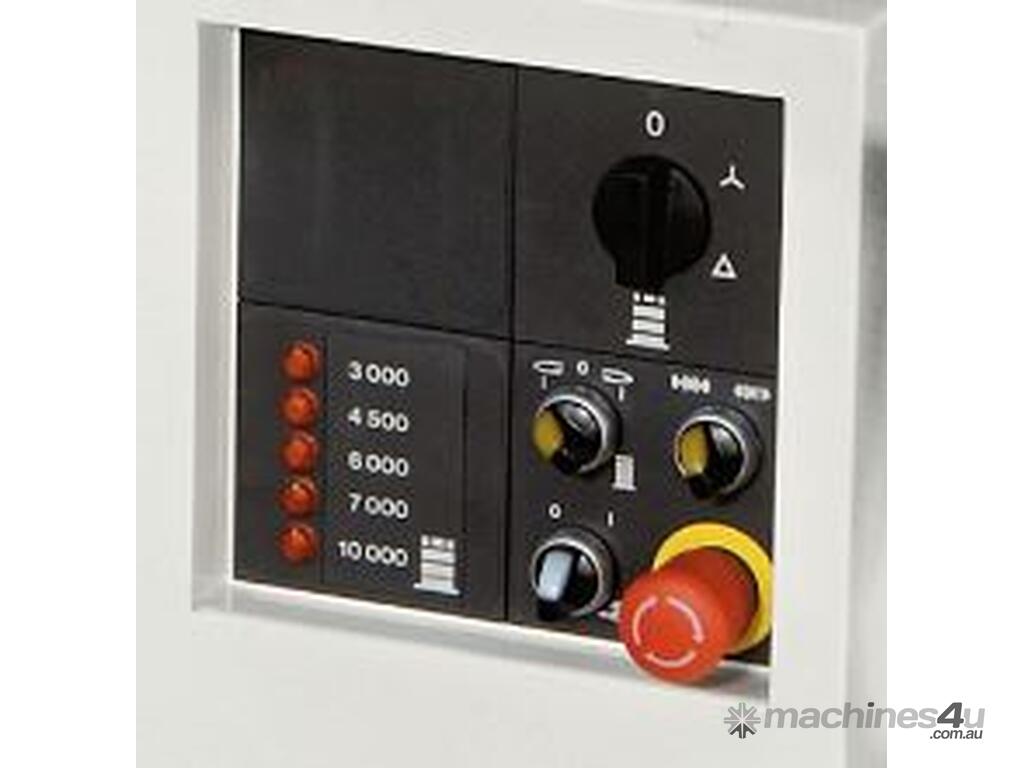

Spindle speed rpm 3000/4500/6000/7000/10000
Max. diameter of the profiling tool mm / inches 250 / 9.8
Max. tool diameter retractable under the table at 90° mm / inches 320 / 12.6
Max. diameter of the tenoning tool mm / inches 300 (350) 11.8/13.78
Three-phase motor power Hp 11
Max. squaring stroke of sliding table saw mm / inches 1000/39.25
