The SCM Groups SD70 is Proudly Made by DMC in Italy.

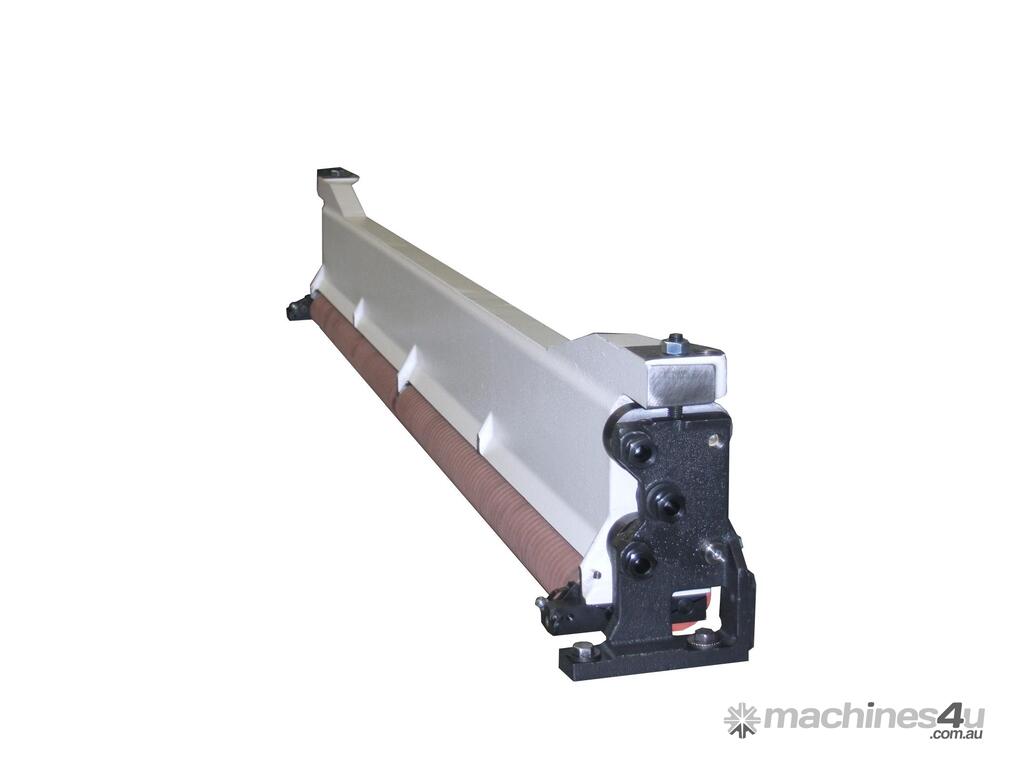

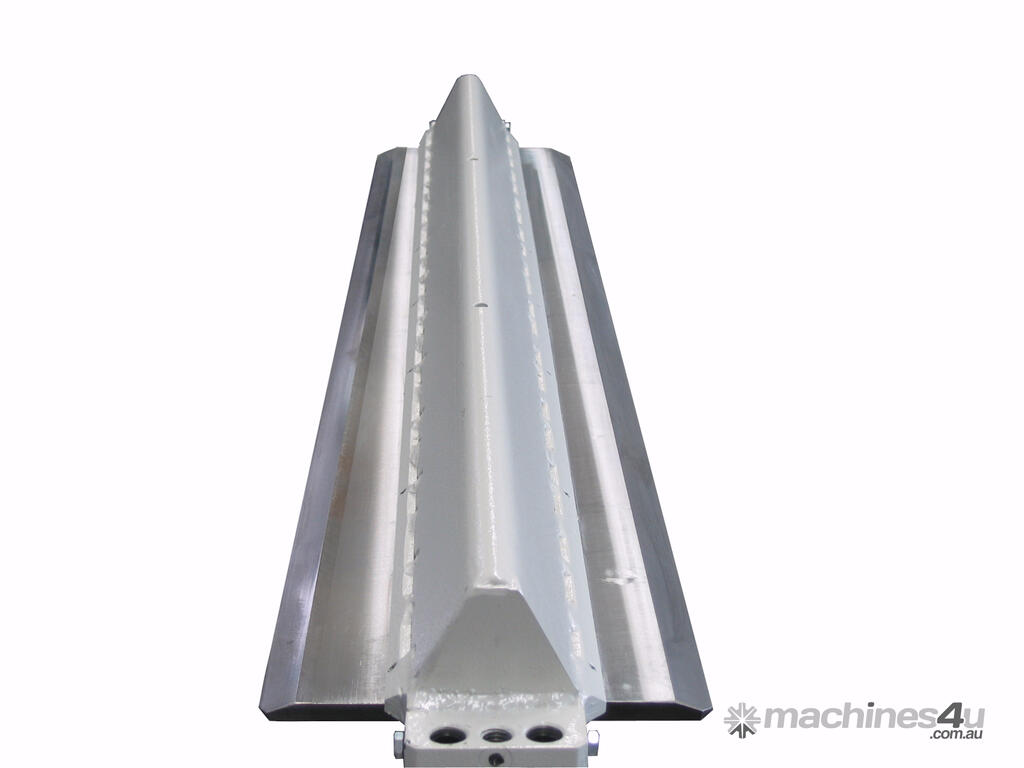

Its high level of versatility makes the DMC 70 perfect for different types of machining. In the furniture sector (with veneered and painted panels) it excels in the provision of optimum level finishing thanks to the 2.620 mm sanding belt length and the electronic sectional pad.

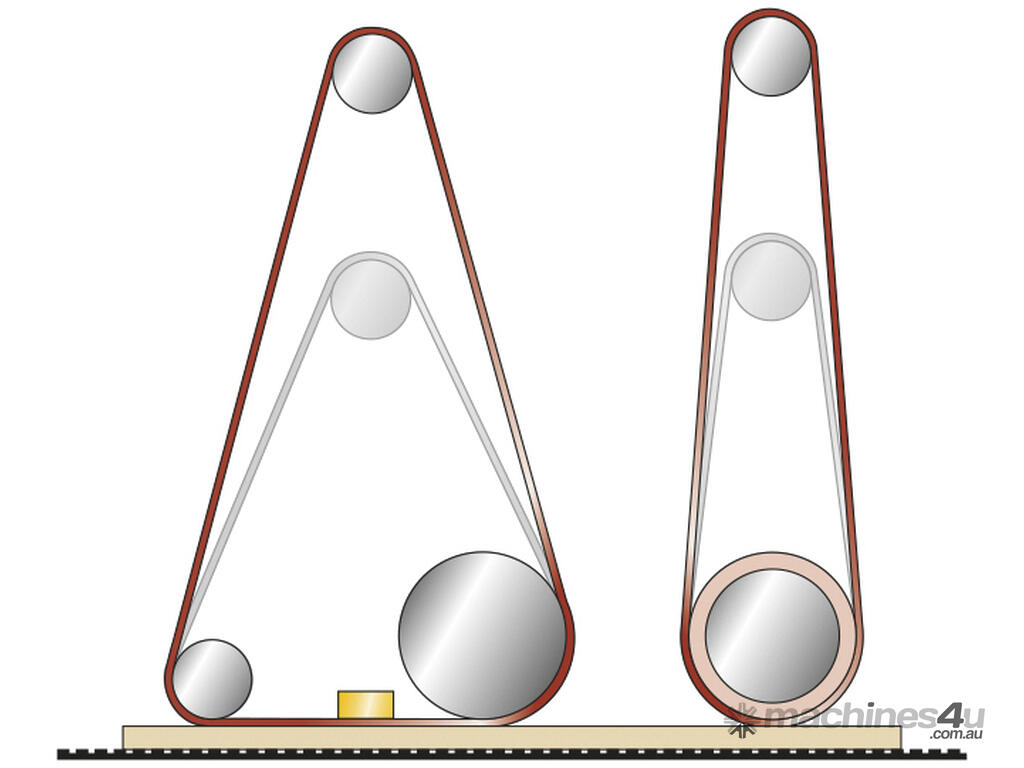

Long belts: 2.620 mm length for greater finishing and productivity
Better cooling of the abrasive grit due to the greater development of the belts that reduces the adherence of processed dust.
An extended belt length lasts longer, requires fewer replacements and consequently less downtime.
Automatic feed belt tensioning and centering: for easier operation.

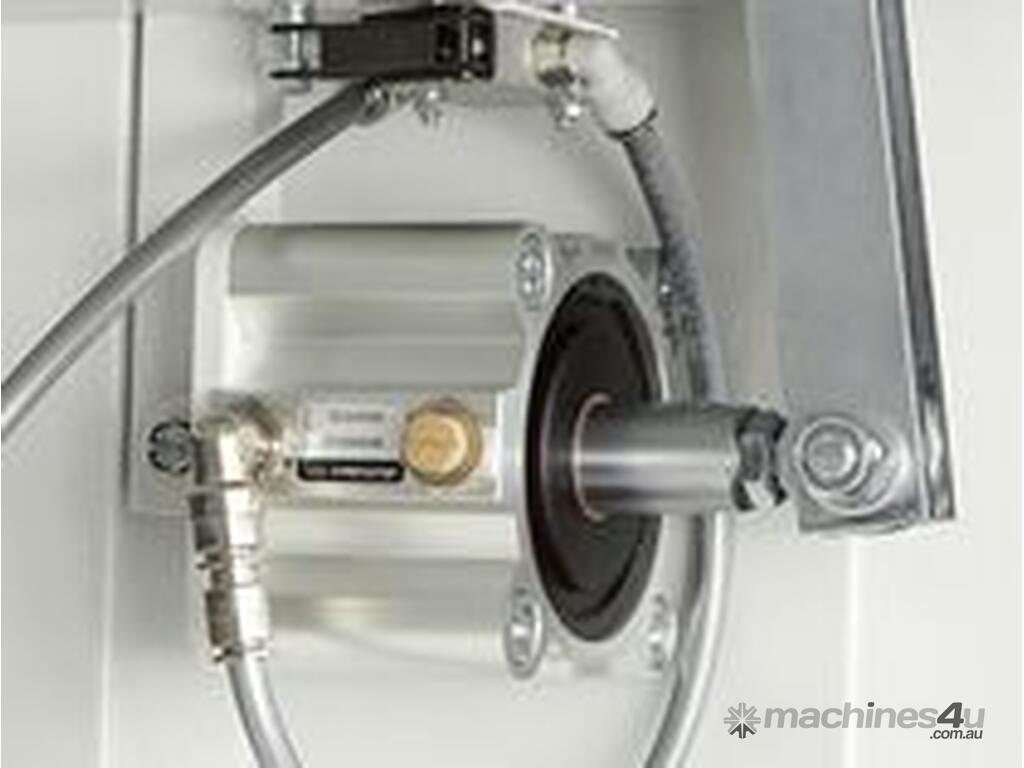

An electro-pneumatic system keeps the feed belt on track, perfectly centred and tensioned at all times. The system is automatic and no operator intervention is required.

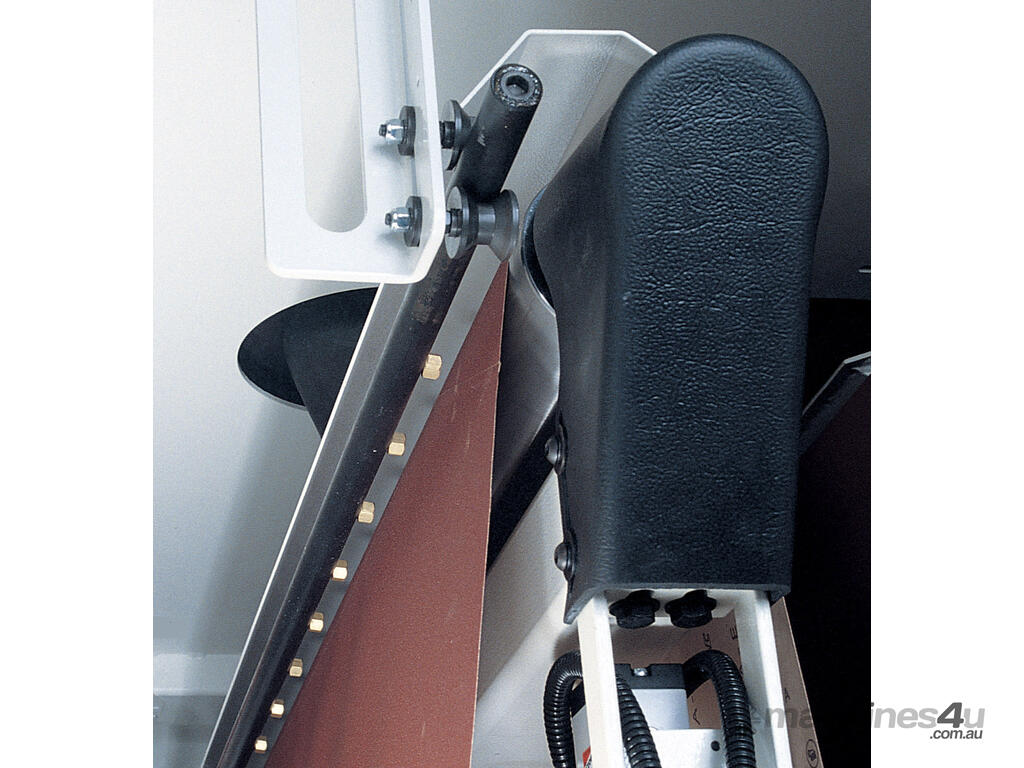

Belt oscillation controlled by an electronic photocell
This precision control system maximum uniformity in belt oscillation: this reduces the risk of belt breakage and improves finishing quality.
Technical data
Working width mm 1.350
Min. - max. working thickness (with mobile table) mm 4 - 170
Min. - max. working thickness (with fixed table) mm 4 - 200
Sanding belts width mm 1.370
Sanding belts length mm 2.620
Standard main motor power kW (Hp) 11 (15)
Motor power 1st group kW (Hp) 11 (15)
Motor power 2nd group kW (Hp) 11 (15)
Feed belt speed m/min 4,5/9
