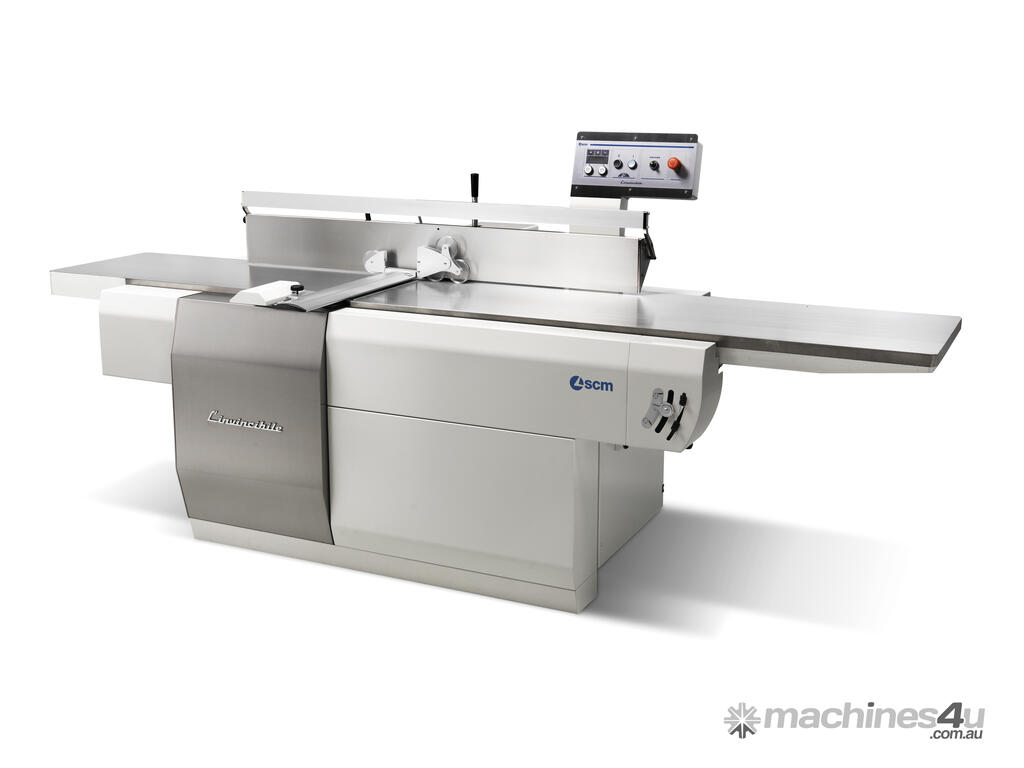

SCM F 7 L'invincibile Surface Planer / Jointer

The SCM Groups Italian Made L'invincible F7X sets new standards for quality and incorporates all the experience and expertise of the manufacturer of the widest range of woodworking machines in the world.

Buying a "L'invincibile" machine means you get a customised solution, thanks to experience, technical research and Italian creativity.

Discover the SCM Patented "Xylent" Spiral cutter head, available for this machine.

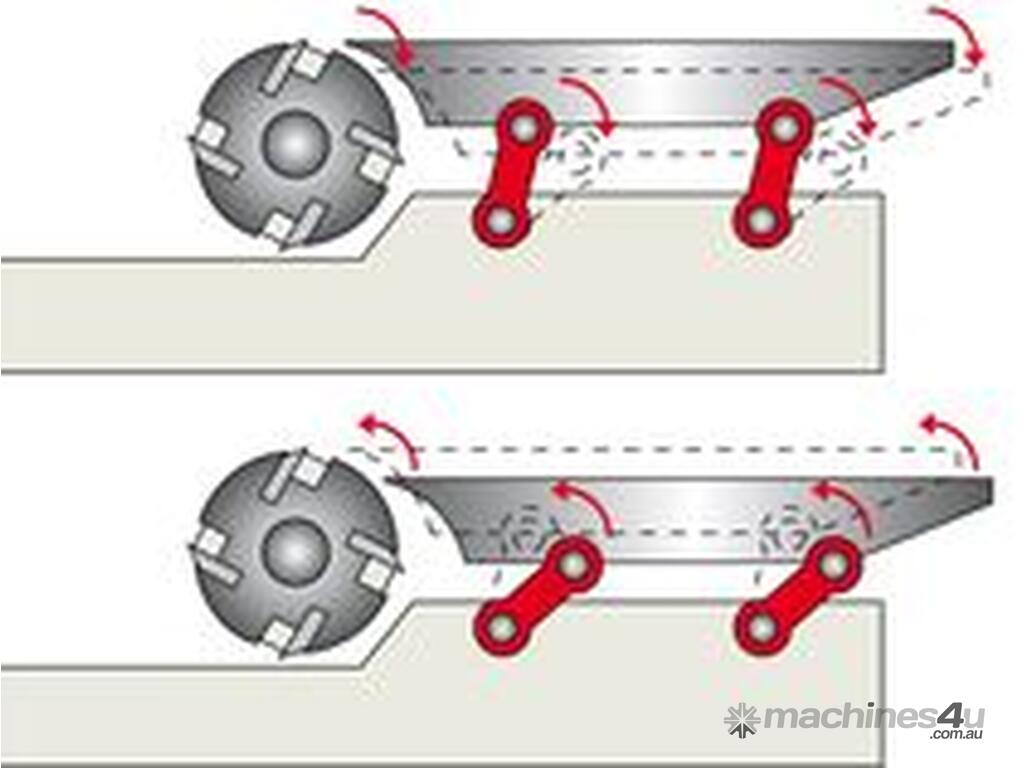

Precision that lasts a lifetime without noise with the system on connecting rods. The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.

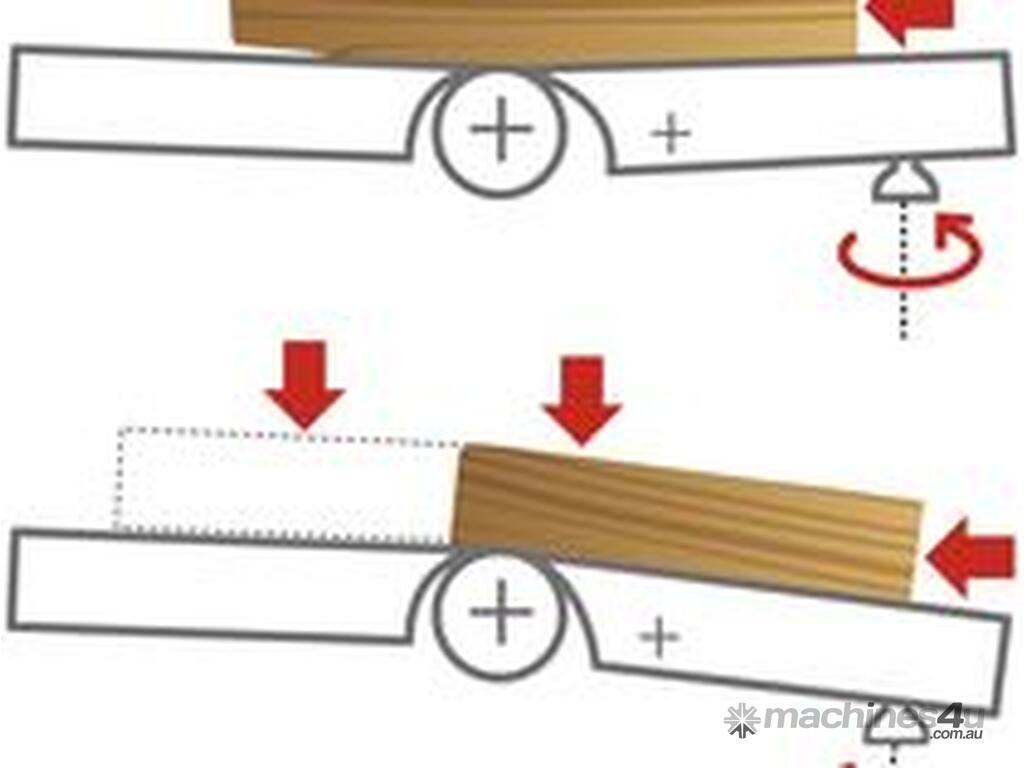

Perfect joints every time with concave/convex device. The available settings allow perfect bonding of the pieces giving excellent coupling and eliminating any joint line.

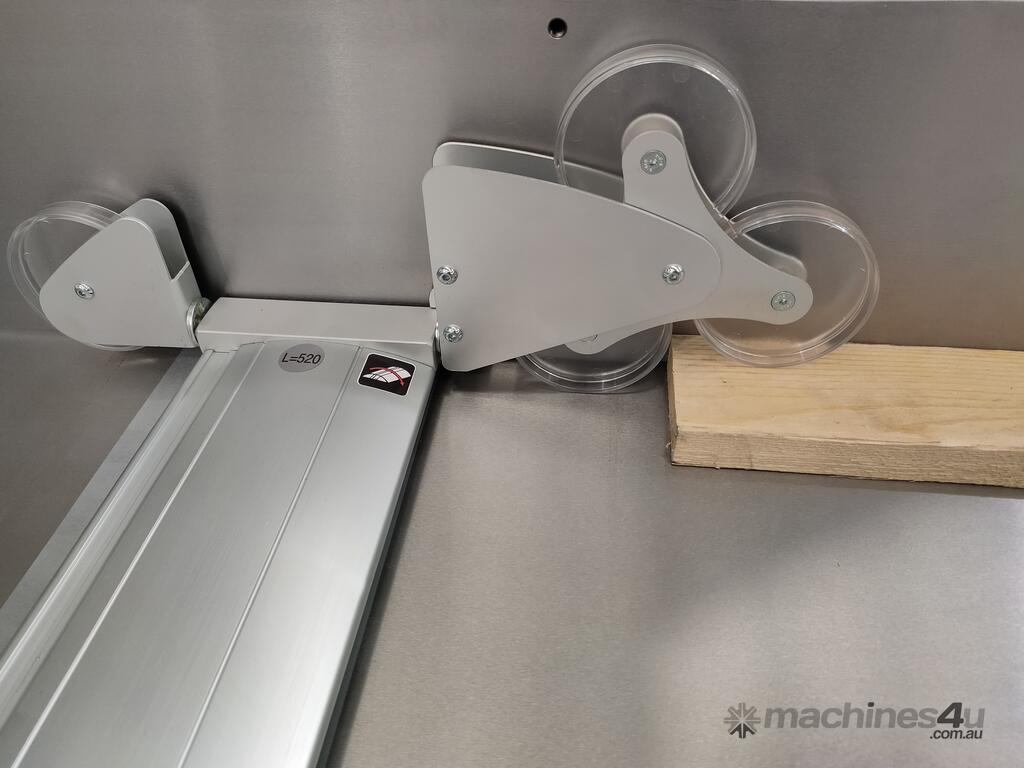

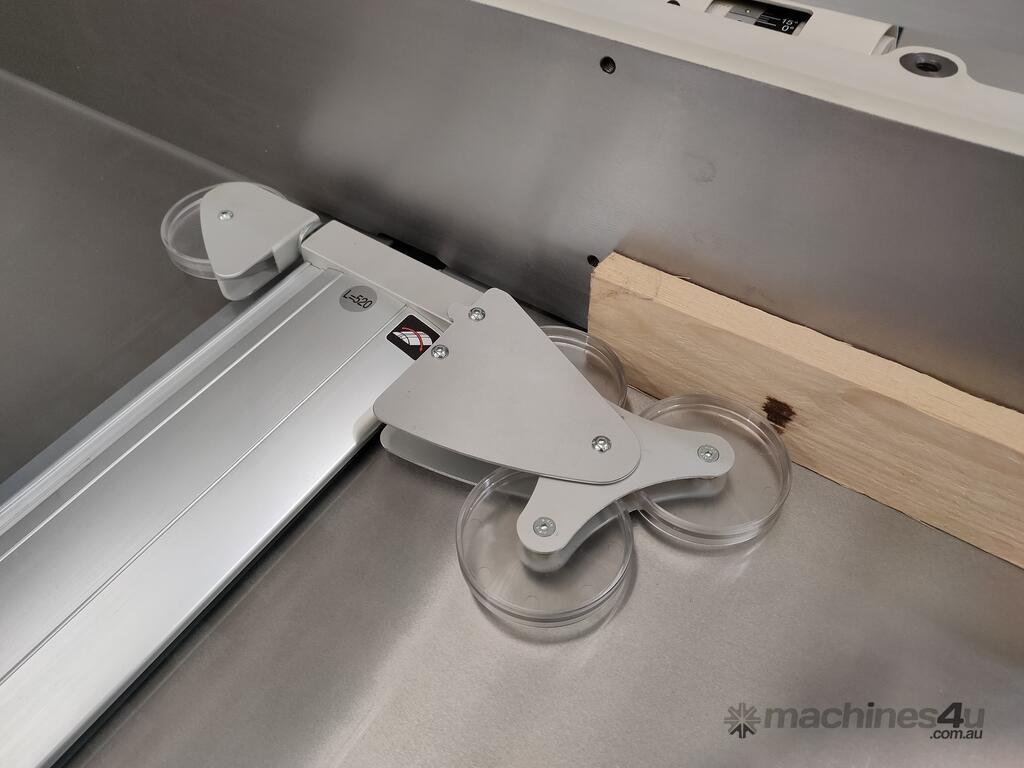

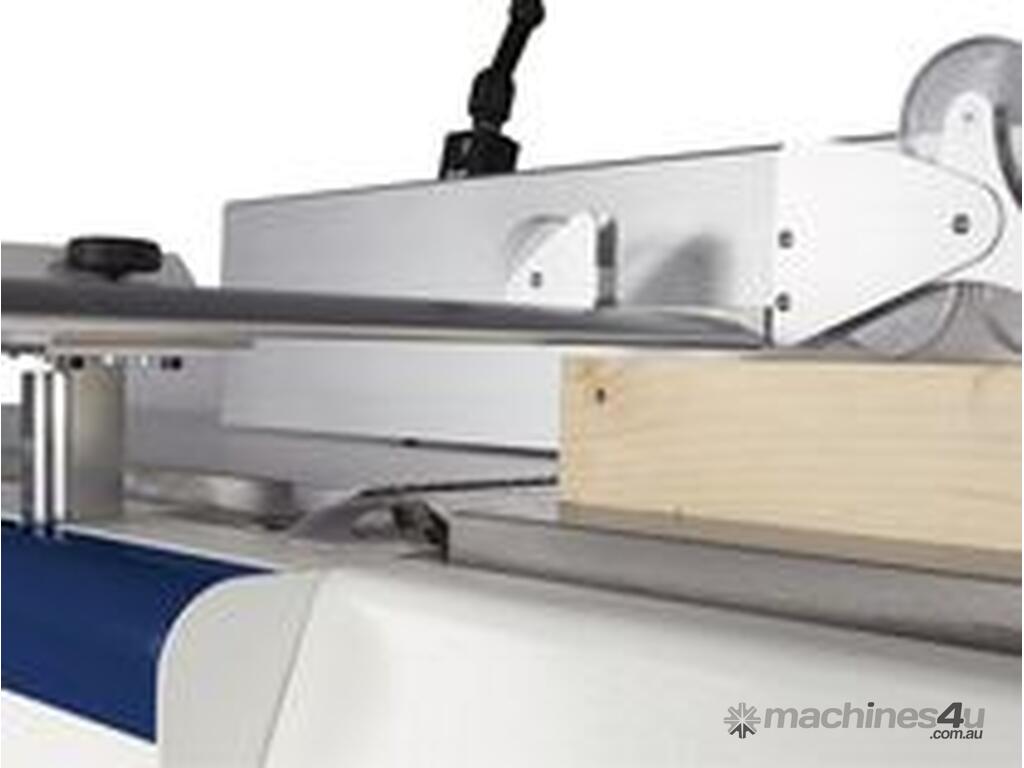

Ergonomics and safety with the "Smart Lifter" protection. The protection system is perfectly integrated into the machine base excluding any hindrance or obstruction in the work, and with automatic vertical, horizontal and tilted movements it provides complete coverage of the tool before, during and after machining.

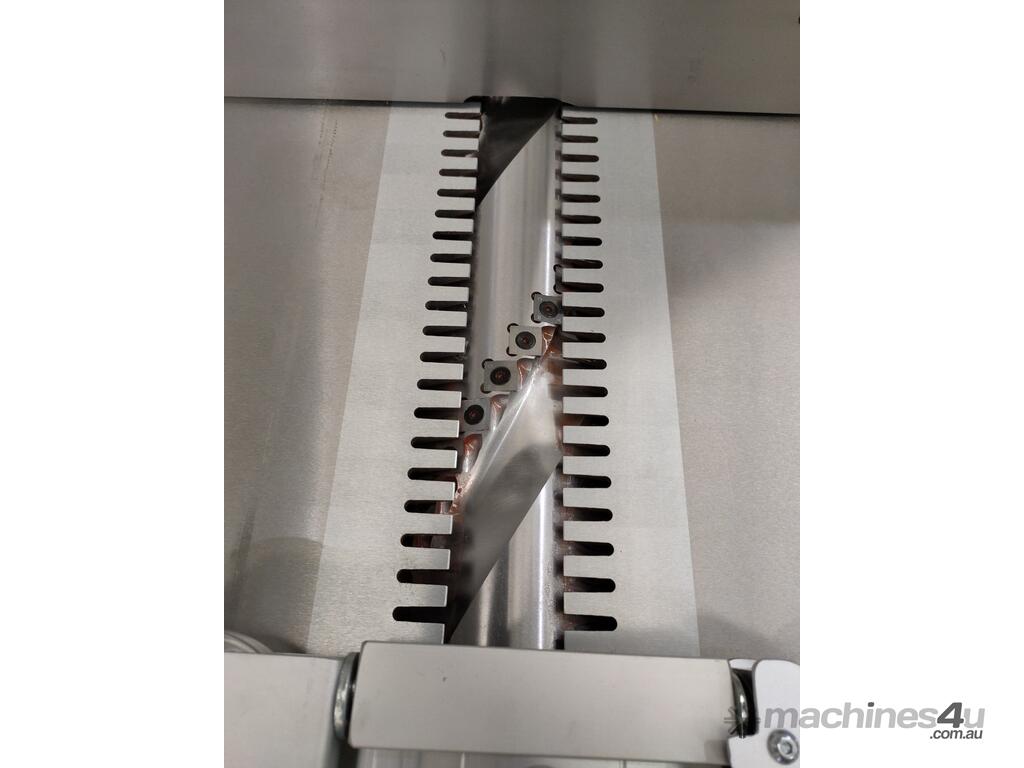

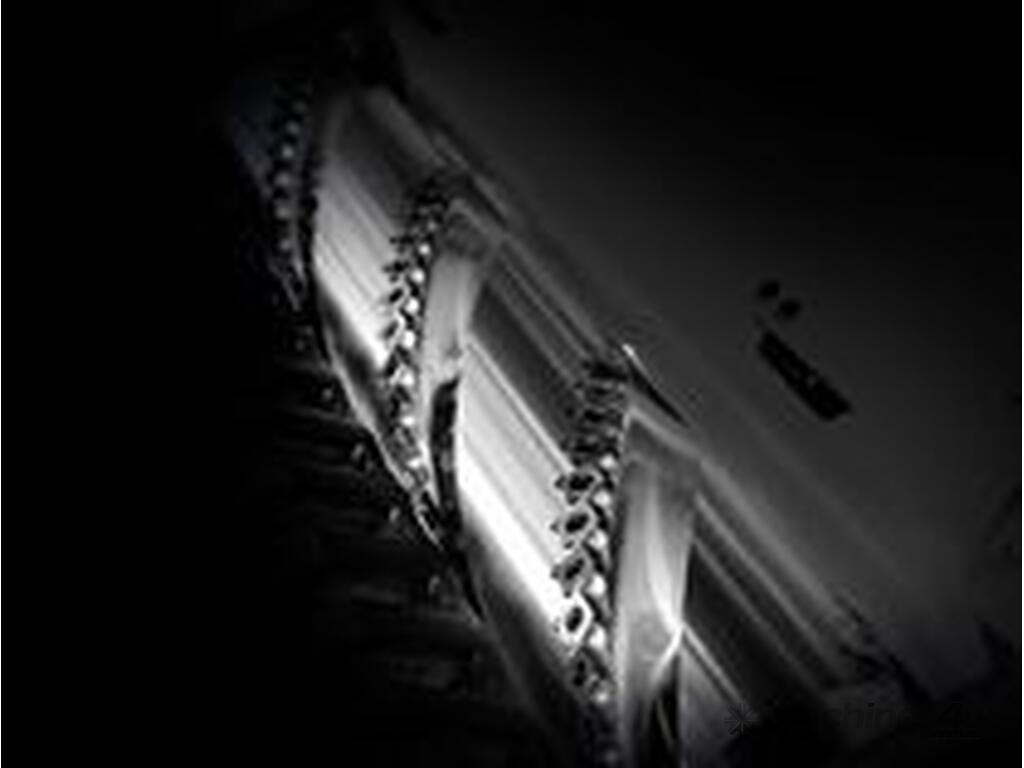

Exceptional finish with the “Xylent” spiral knife (3 spiral knives)
Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Technical data:
L'invincibile f 7
Working width mm 520
Total worktables length mm 3008
Cutterblock diameter (n. of knives) mm 120 (4)
Spindle speed rpm 5000

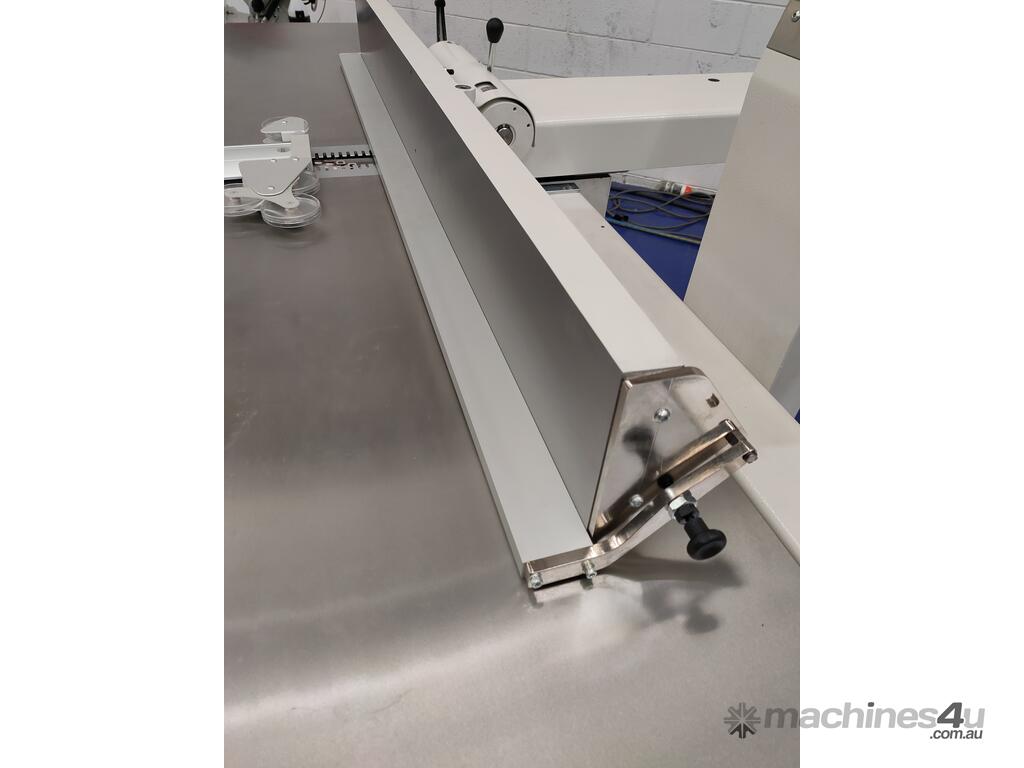

Surface fence tilting from 90° to -45°
Main motor power kW (HP) 7 (9,5)
