SCM F410 Class Surface Planer / Jointer

The SCM F410 Class Surface Planer is Made in Italy for those doing serious Joinery Work!

In the past joiners used to use a large hand plane to smooth the wood and render it perfectly flat. Modern day technology has resulted in electrical surface planers that make this job much easier and allow for excellent results quickly.

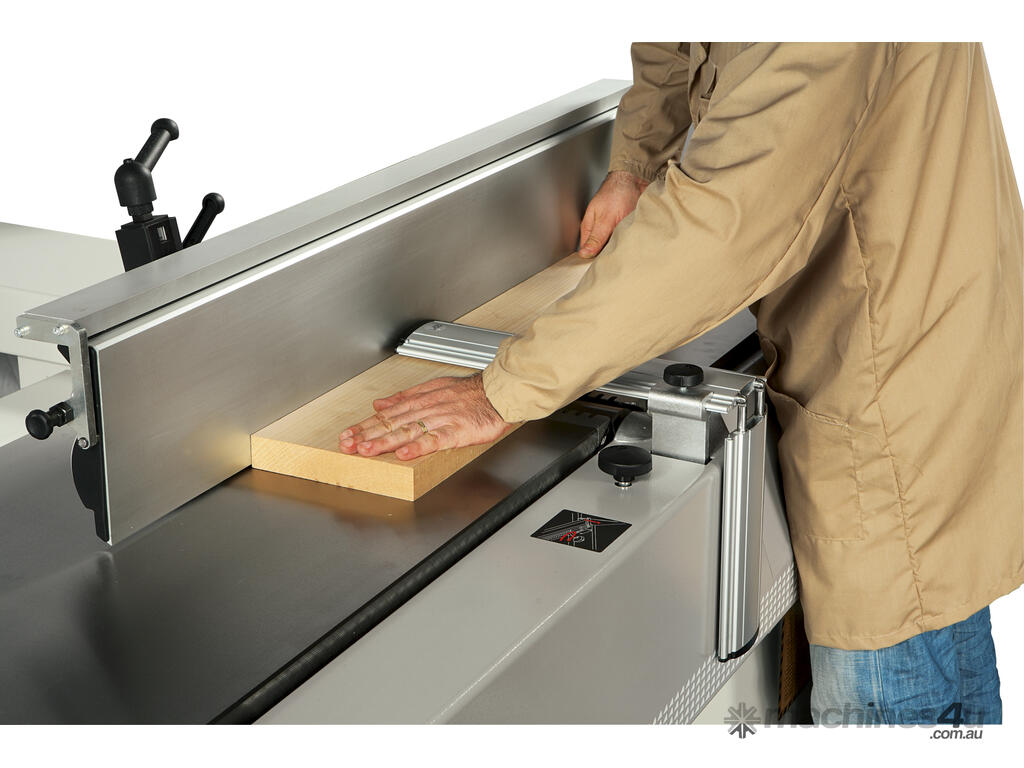

A modern surface planer for wood has an in feed table and an out feed table on the surface to help the planing process;

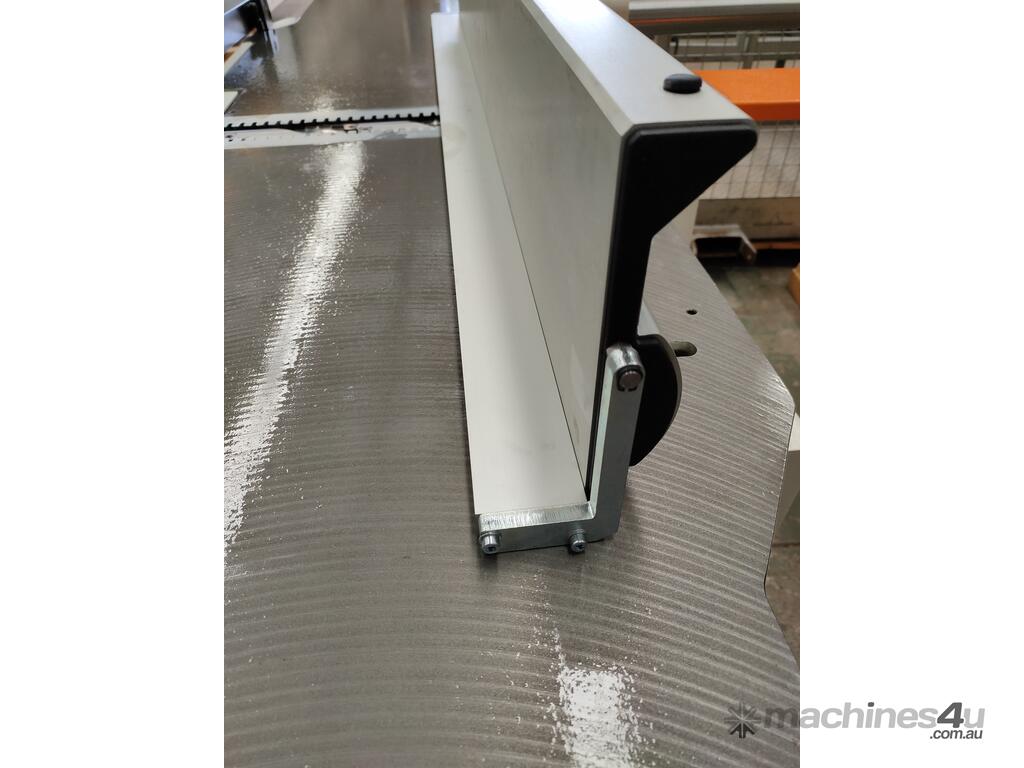

the SCM wood surface planers have ribbed cast iron tables that thanks to the total absence of vibrations achieved with large sized tables, ensure perfect surfaces.

The planing surface can be defined by adjusting the height of the in feed table, that in the SCM surface planers slides on connecting rods, guaranteeing a constant planarity over time.

As for all SCM woodworking machinery also the wood surface planers feature extremely high levels of operator safety: the spindle protection with support system integrated with the base (SCM patented solution) guarantees the maximum safety; safety goggles must, however, always be worn to protect the eyes from sparks generated by the blades against the wood or by eventual splinters.

One of the downsides of surface planers is their noise level, this is why SCM have developed a "Xylent" planer that decreases the noise level by 13dB compared to a standard planer, discover more about this extremely useful device and watch the video of the silence test in an-echoic chamber!
The best solution for every application.

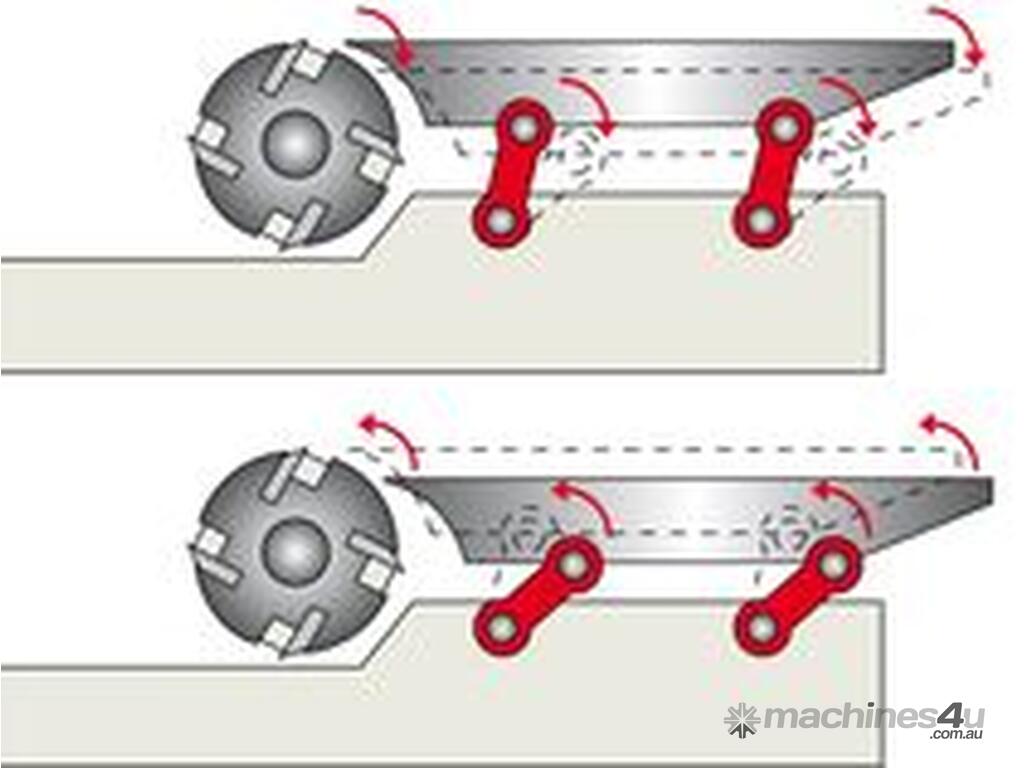

Precision that lasts a lifetime without noise with the system on connecting rods. The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.

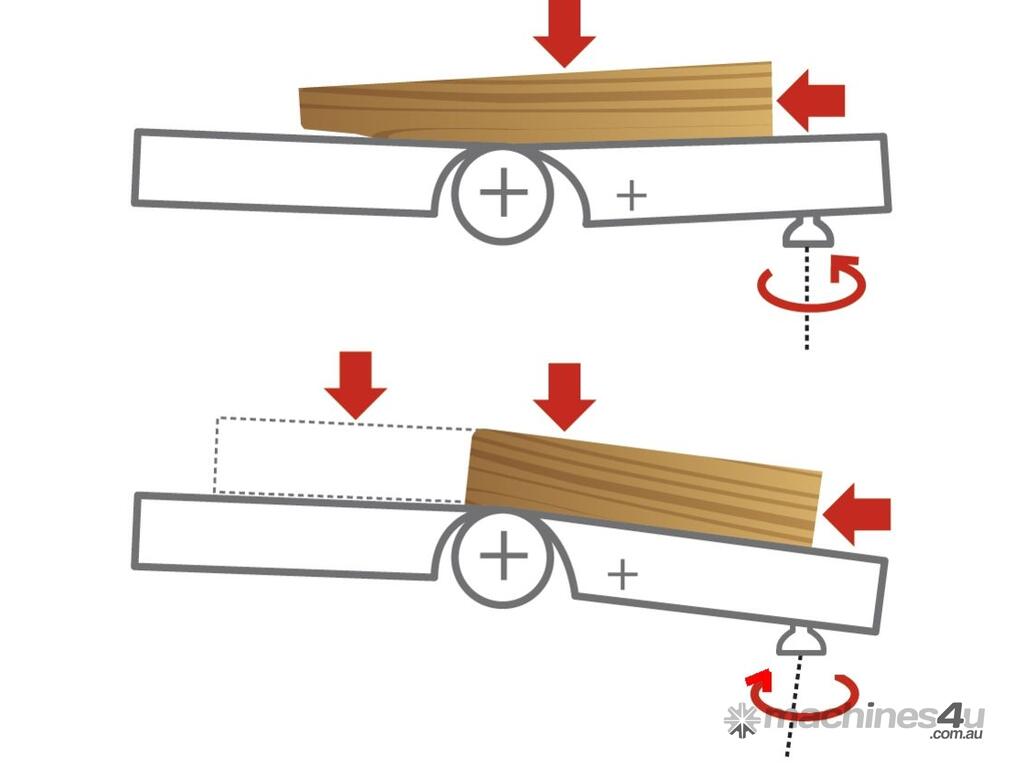

Perfect joints every time with concave/convex device. The available settings allow perfect bonding of the pieces giving excellent coupling and eliminating any joint line.

With the Smart Lift Guard you can be assured you are buying the safest machine on the market. (see video for demonstration of the Smart Lift Device)

Technical data:
class f 410
Working width (mm) 410
Total worktables length (mm) 2610
Cutter block diameter mm (n. of knives) 120 (4)
Spindle speed rpm 5000
Surface fence tilting 90° to -45°
Main motor power kW (HP) 5 (7)
