SCM FS 7 L'invincibile Planer / Thicknesser Combination Machine

The advantages of an exclusive choice.

Buying a "L'invincibile" machine means you get a customized solution, thanks to experience, technical research and Italian creativity.

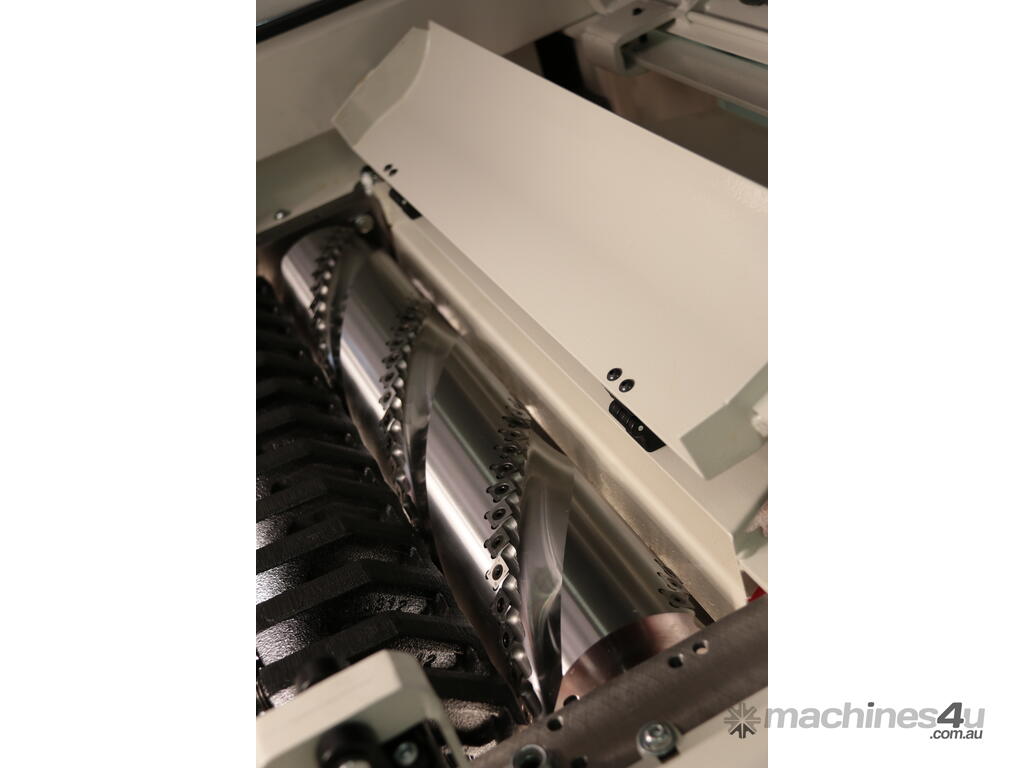

Discover the "Xylent" cutterhead, available for this machine.

Advantages:

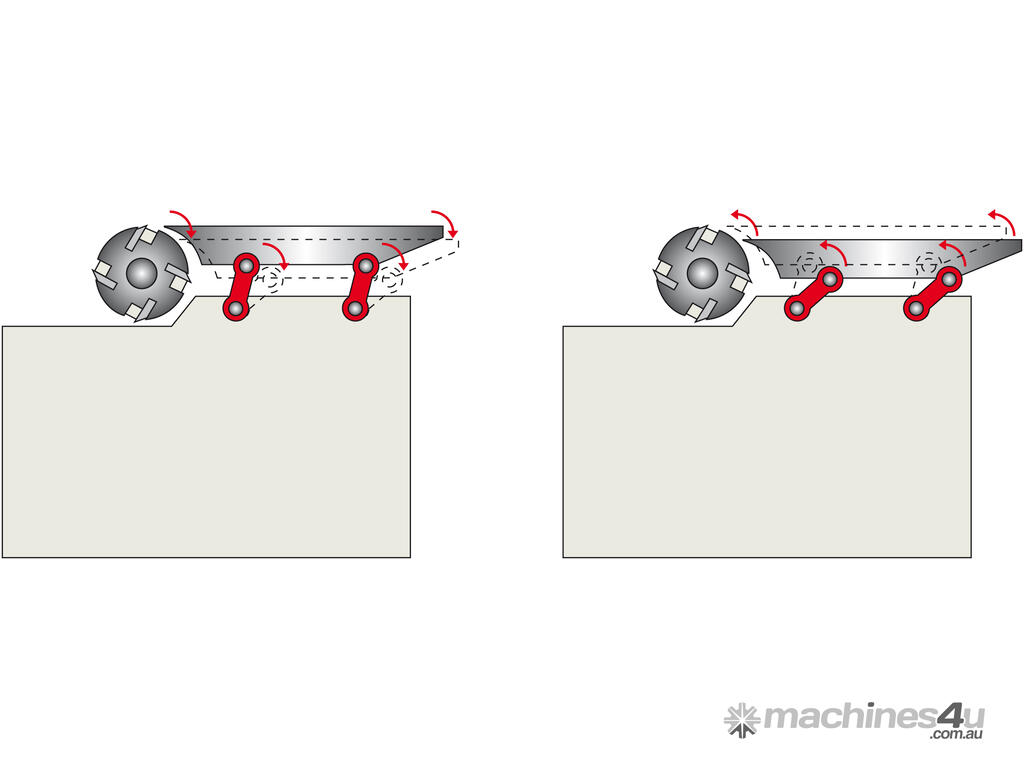

Precision that lasts a lifetime without noise with the system on connecting rods. The system guarantees the maximum movement fluidity and avoids deformations of the work table. This guarantees maximum stability, reliability and ergonomics.

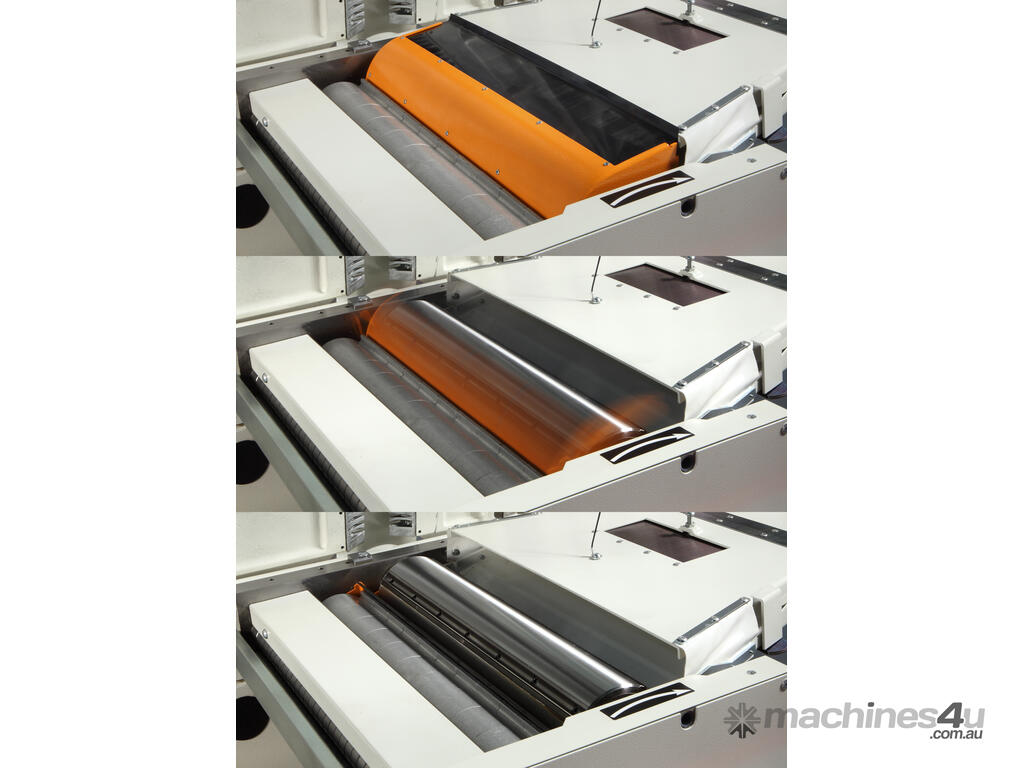

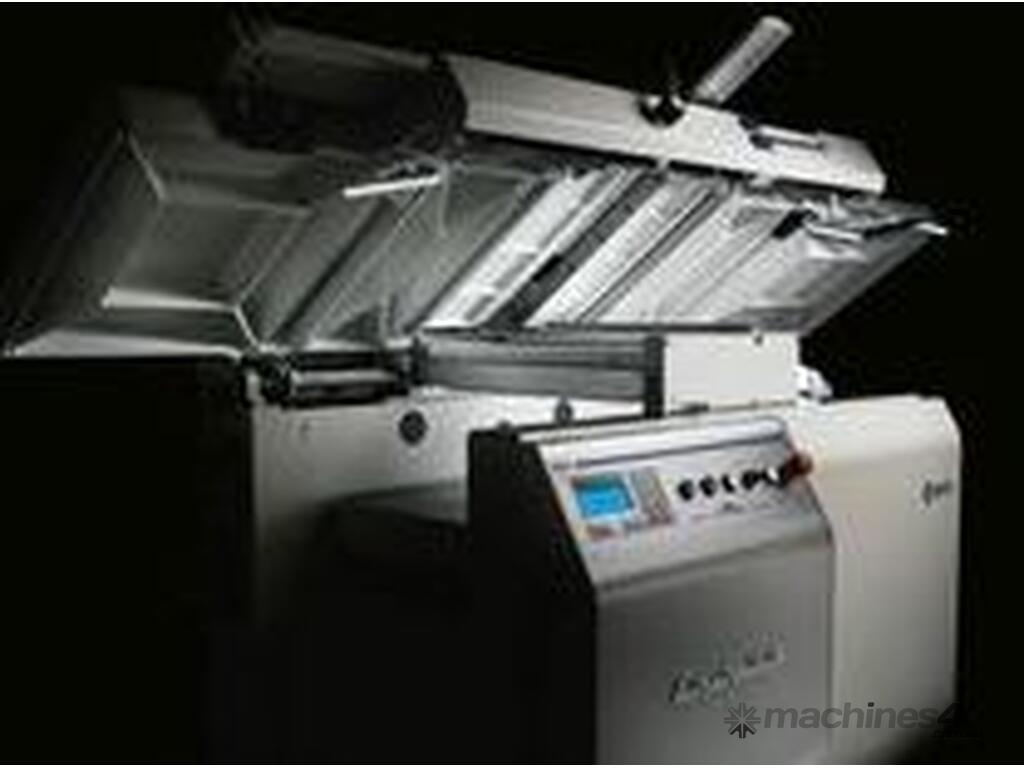

Changing the process from surfacing to thicknessing is now easy, safe and effortless with the servo-system for the opening of the tables by means of two buttons located on the front of the machine.

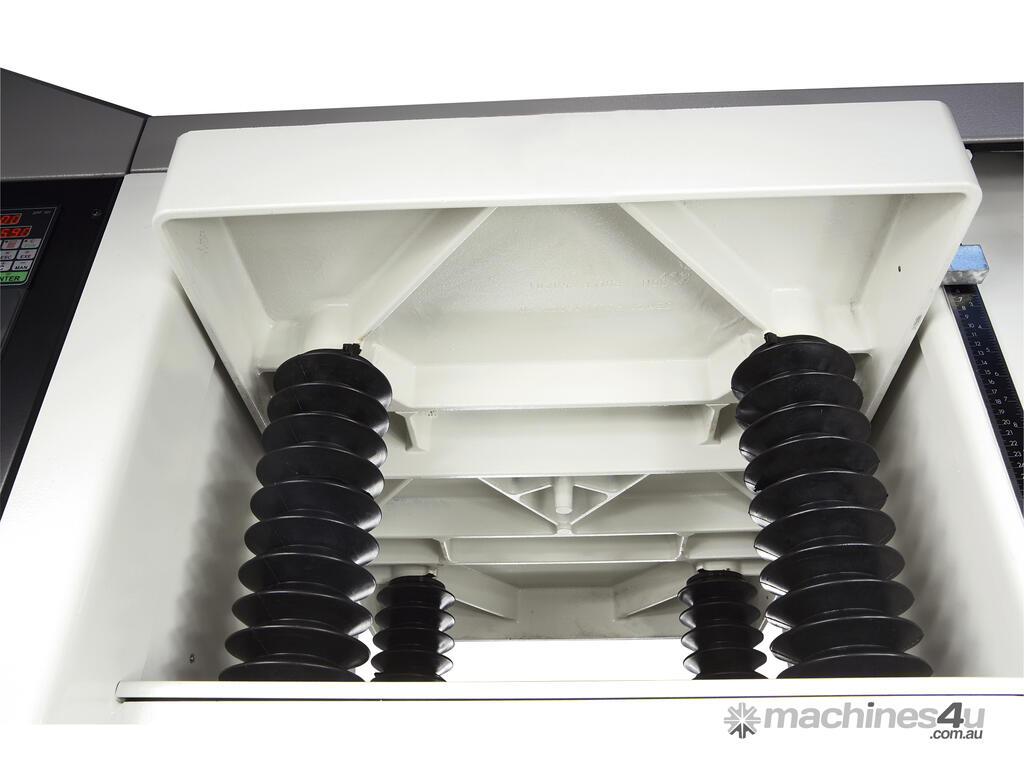

Simultaneous raising of the work tables: a guarantee of perfect planarity. The system allows the changeover from planer to thicknesser with a single movement ensuring working rapidity and precision.

Technical data:
L'invincibile fs 7
Working width mm 520
Cutterblock diameter (n. of knives) mm 120 (4)
Motor power kW (HP) 9 (12)
Surface planer
Total worktable lenght mm 2300
Surface fence dimensions mm 1200x190
Surface fence tilting from 90° to -45°
Thicknessing planer
Working height (min./max.) mm 3/250
Feed speed m/min -18
