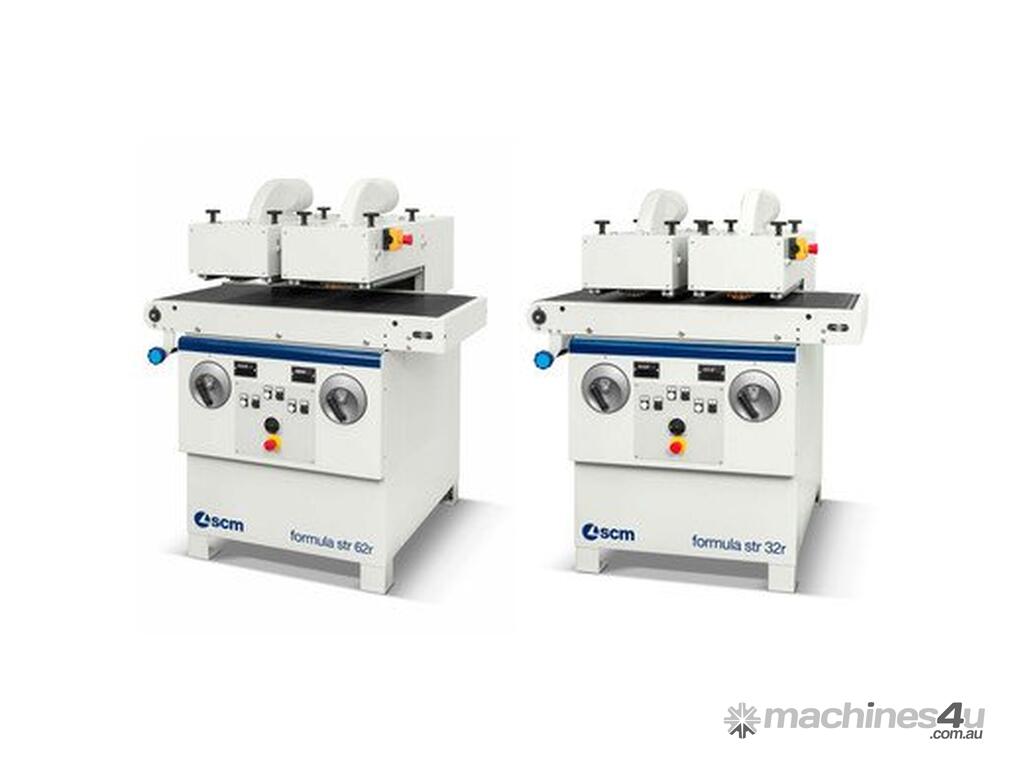

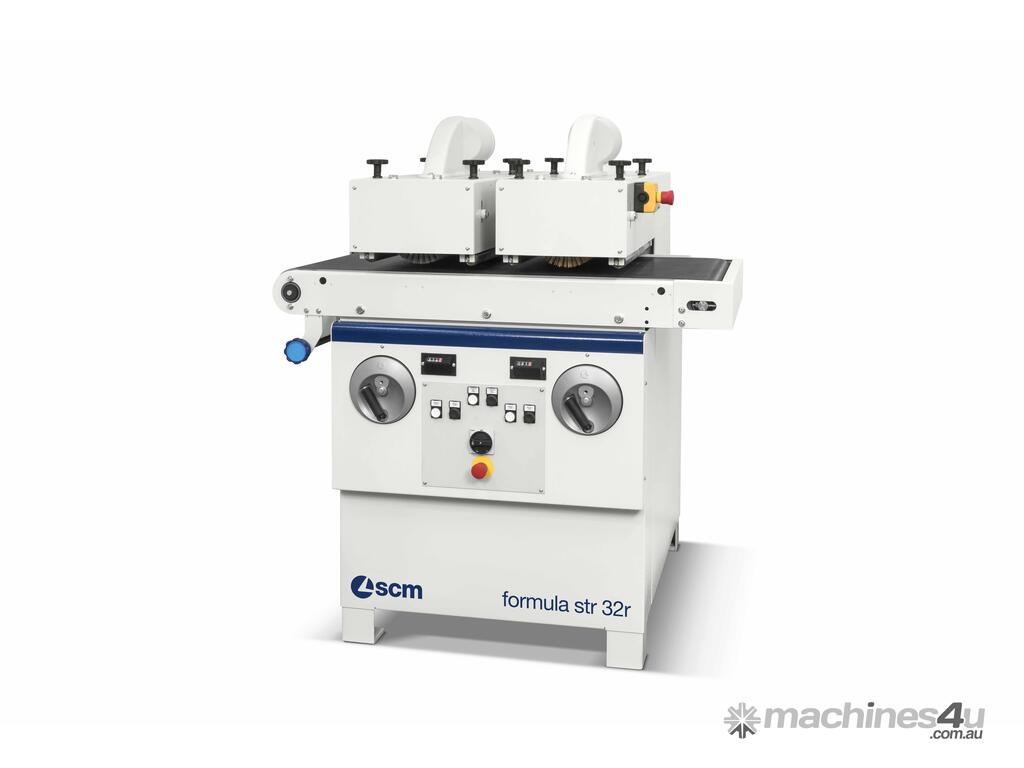

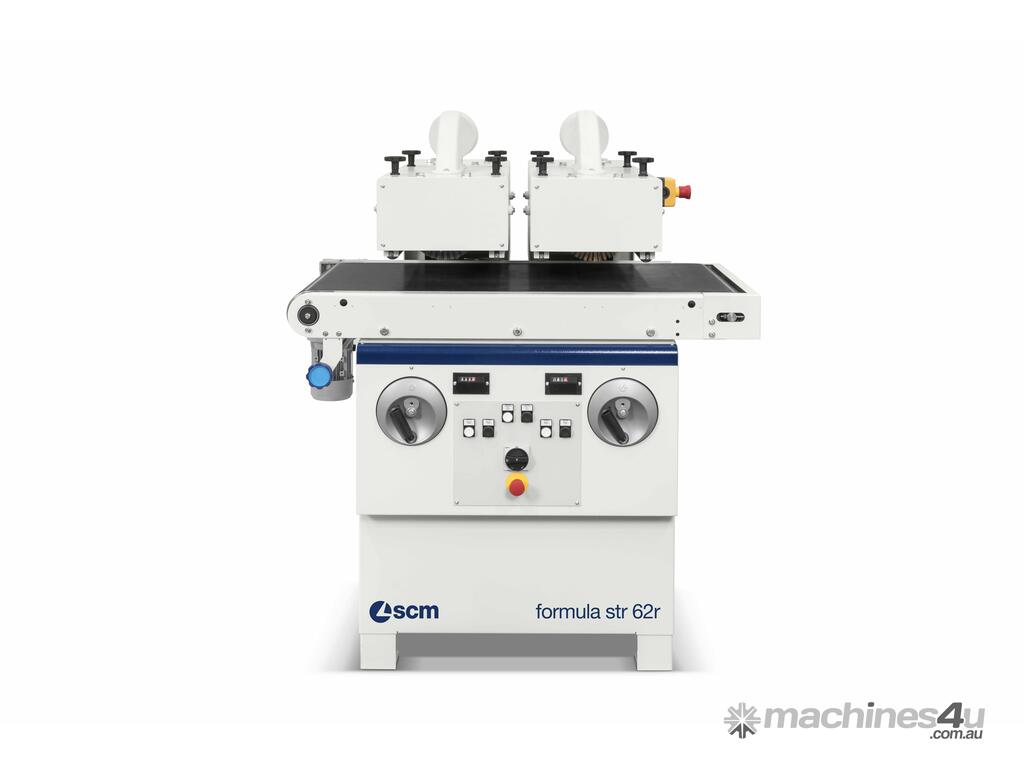

SCM Formula Structure Brushing Machine

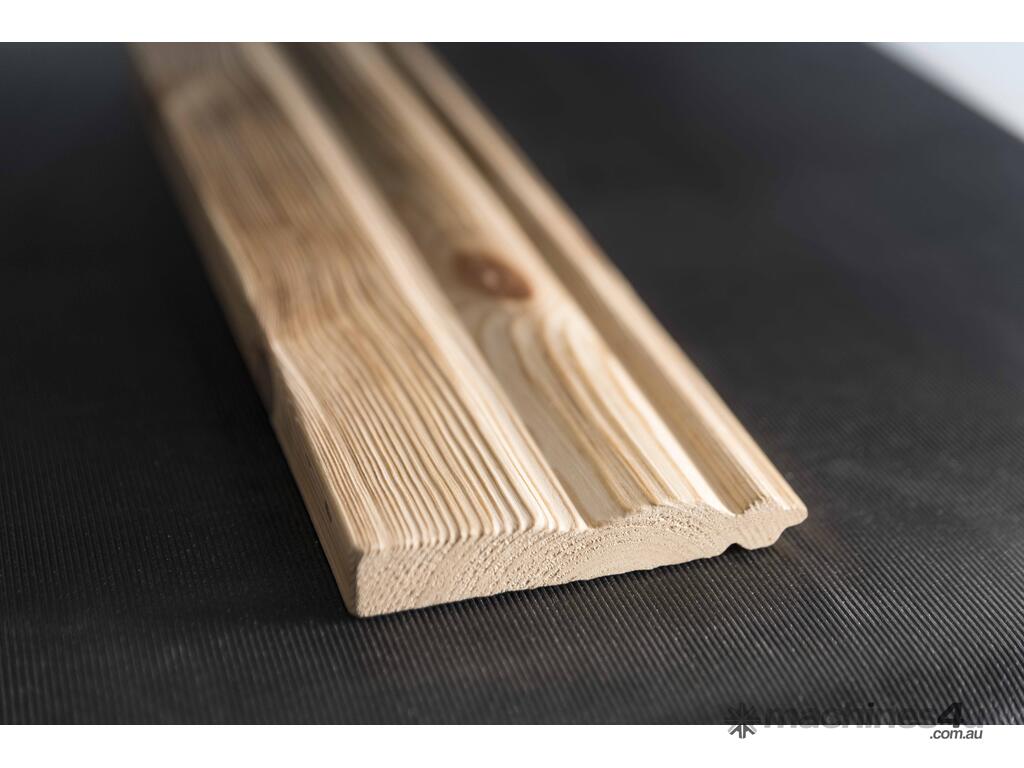

The SCM Groups Formula rustication units/brushing machines are the ideal solution for rustication processing that highlight the hardwood vein or to sand the surfaces of cupboard doors/details in solid wood and veneered or MDF panels.

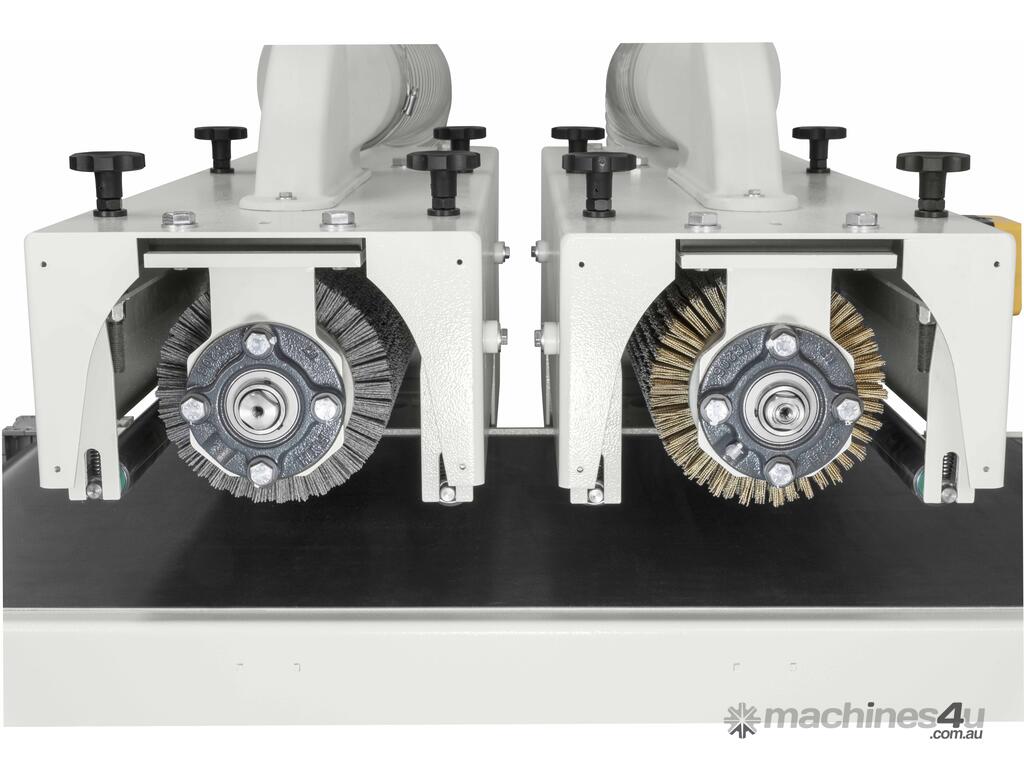

They are available in "r" versions with steel and Tynex® brushes, dedicated to the rustication of solid wood or in "I" versions standard fitted with abrasive insert brushes and inverter controlled motors for surface sanding.

Advantages

Perfect finish

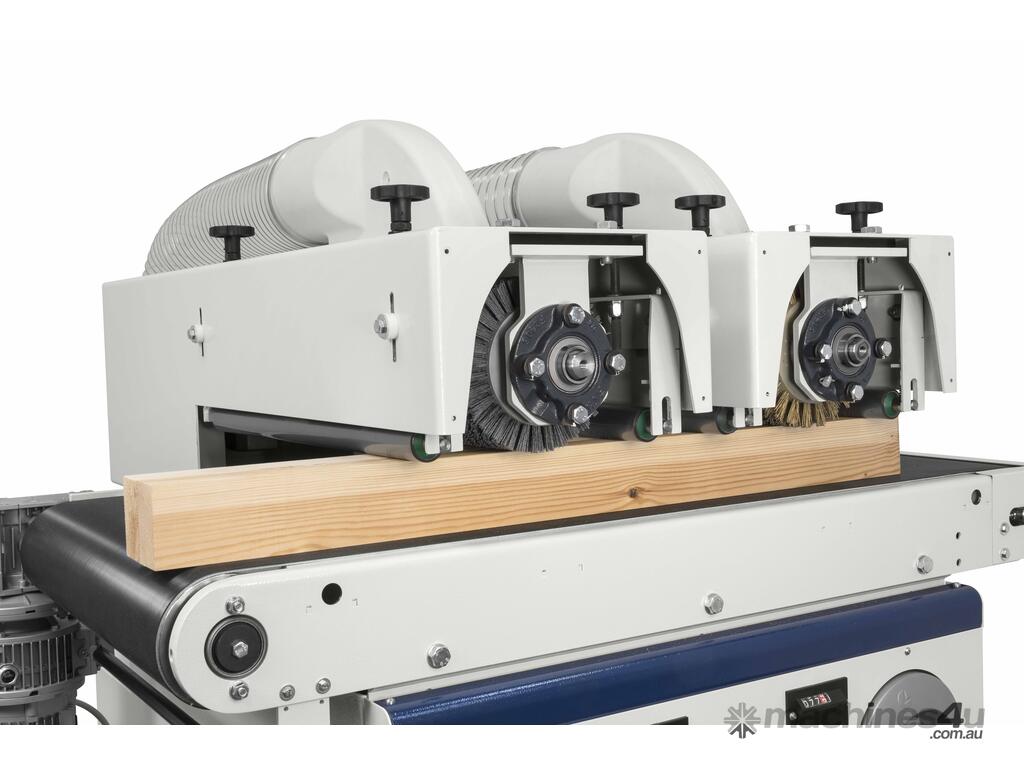

The double operating unit allows to obtain the request finish in a single passage.

Effective extraction system

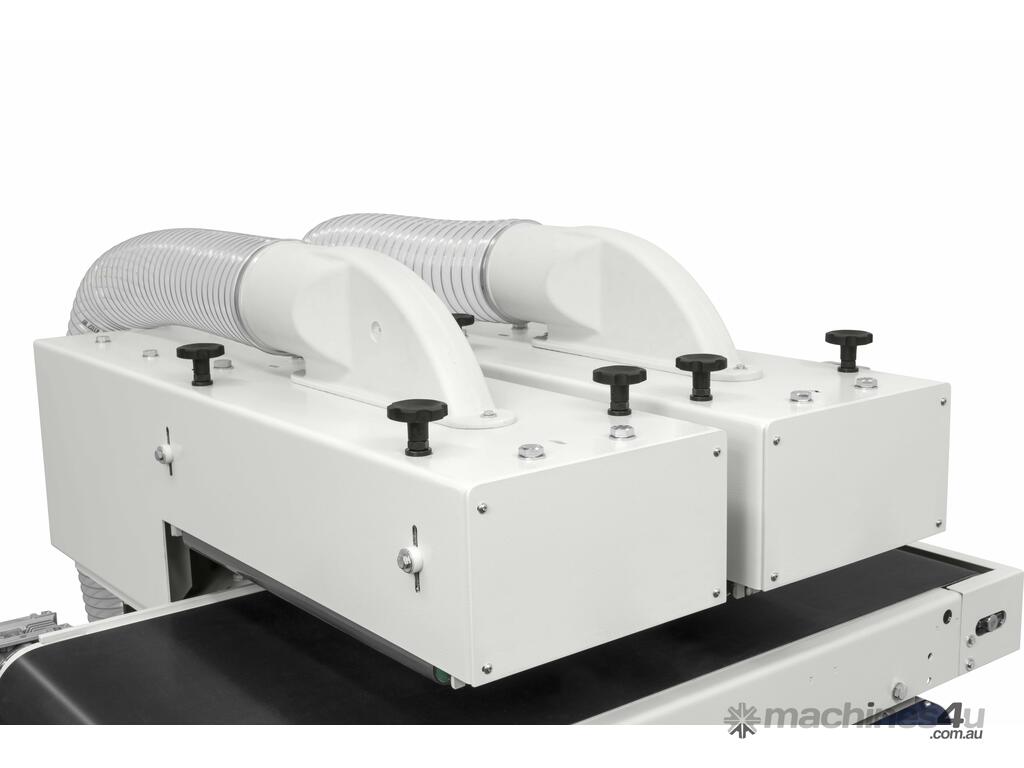

The large diameter exhaust hoods grants an optimal dust extraction.

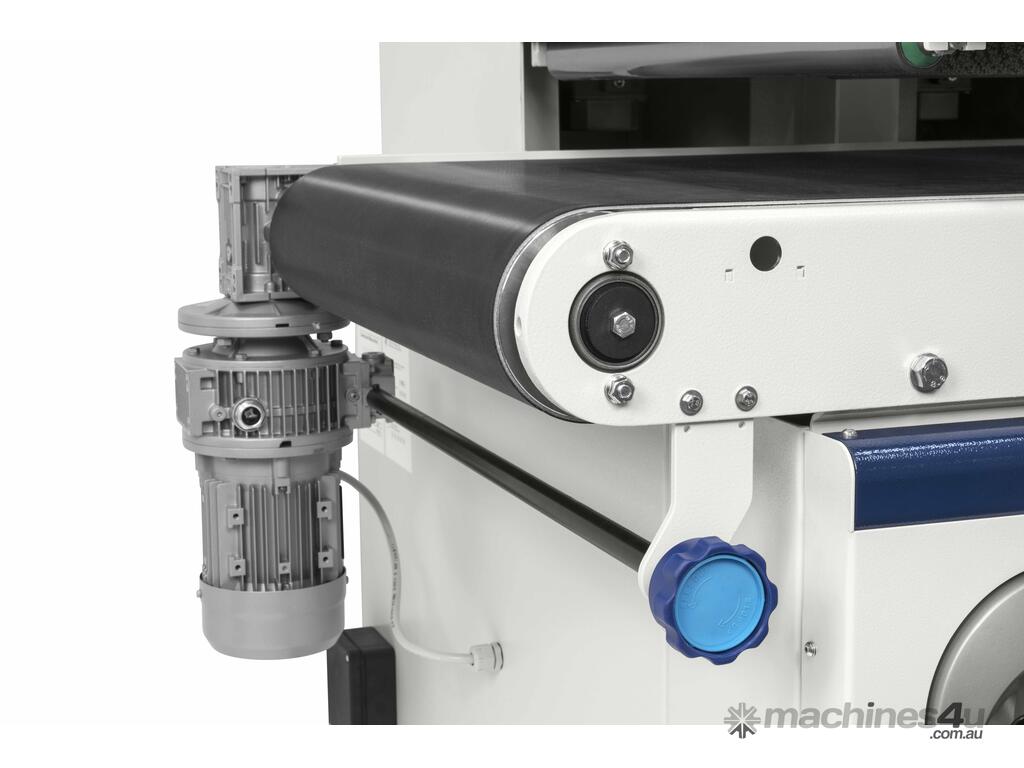

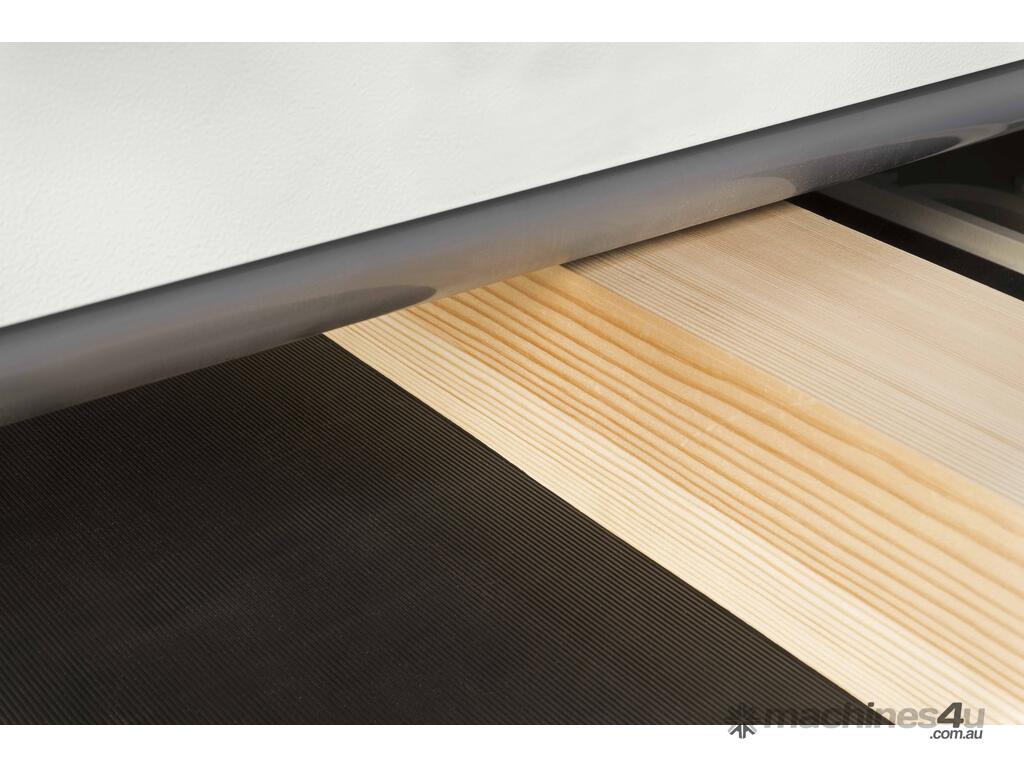

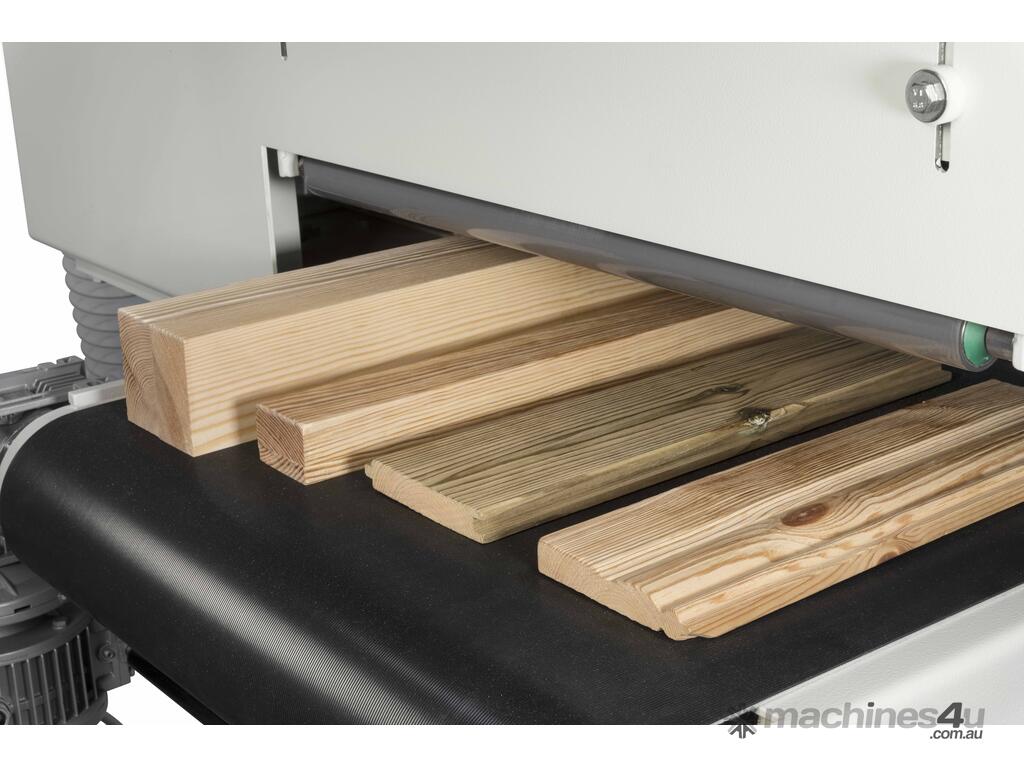

The best feeding grip thanks to the rubber belt with vertical grooves.

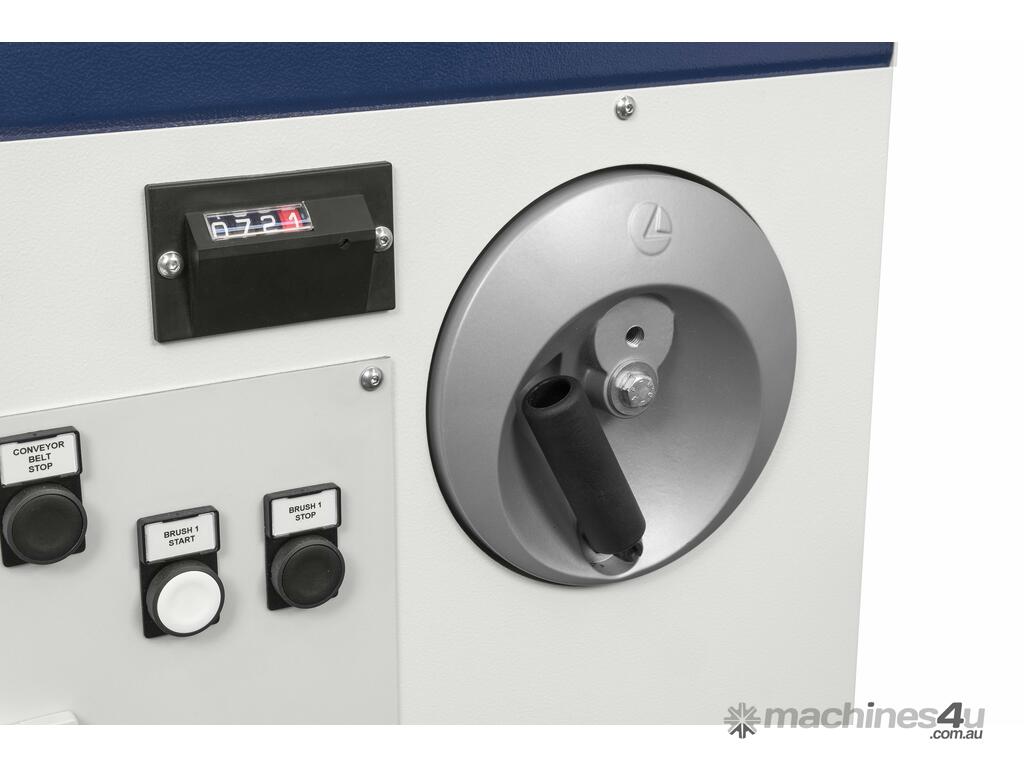

Operating units lifting by means of hand wheels and numerical readout.

Technical data
Technical details STR 32R STR 32L STR 62R STR 62L
Working units 2 2 2 2
Working width mm 300 300 600 600
Maximum working height mm 300 300 300 300
Units motor power 50 Hz kW 3 3 4 4
Feed belt motor power 50 Hz kW 0,22 0,22 0,37 0,37
Dust extraction hoods mm 2 x 150 2 x 150 2 x 150 2 x 150
Brush speed g / min 1500 100 ÷ ÷ 1500
Feed speed m / min 3 ÷ 20 3 ÷ 20 3 ÷ 20 3 ÷ 20
Brush diameter mm 190 / 190 230 / 230 190 / 190 230 / 230
Net weight kg 440 440 750 750
