SCM Group - Action E Furniture Cabinet Press

The SCM Groups Action E Cabinet Press is Proudly Made in Italy.

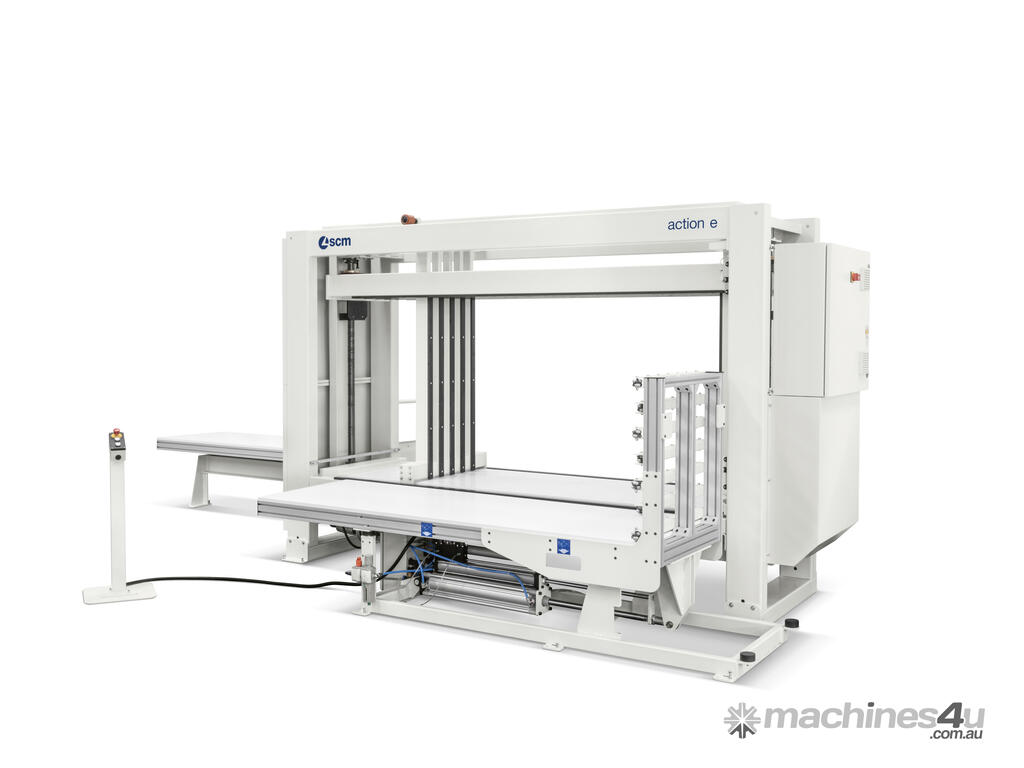

The electro mechanical cabinet clamp action e is the solution for the assembly of cabinets.
Intuitive and easy to use.
This semiautomatic machine is suitable for all cabinet manufacturers, with low productive volumes (up to 30 cabinets/shift).

Advantages

Better quality with an effective pressing on the entire surface (comb system).

Maximum ease of use by means of buttons.

Preassembly worktable with manual sliding movement, a significant assistance to the operator.

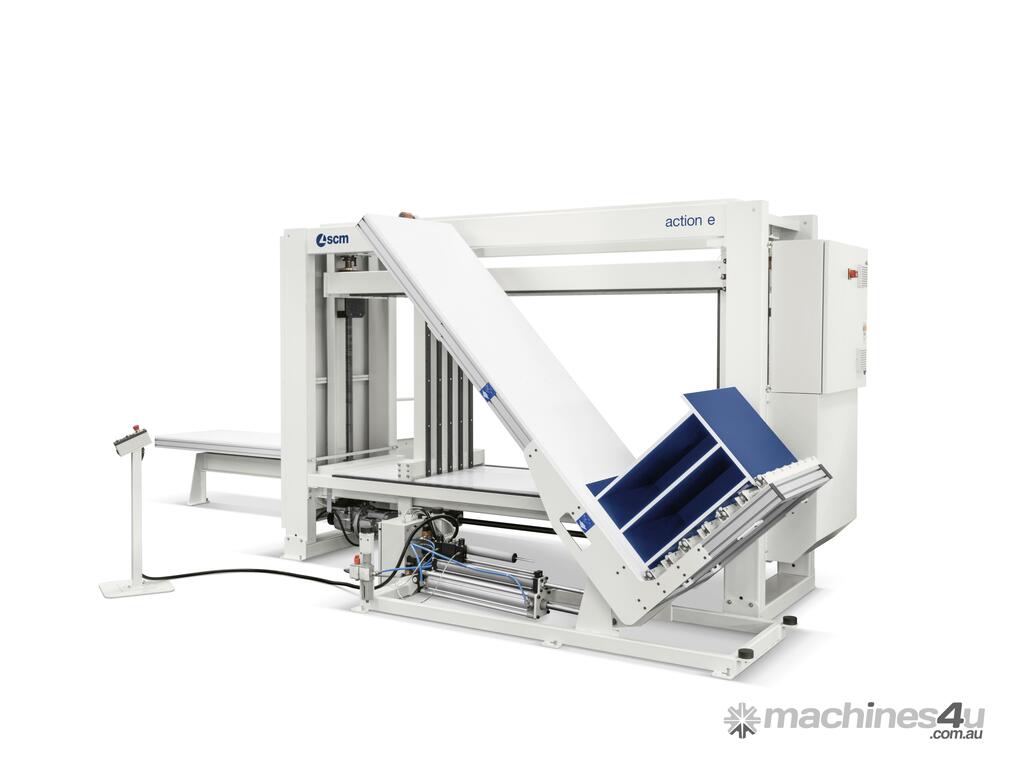

Unloading worktable with 90° tilting movement by means of push button: it helps the operator to place the assembled cabinet in a vertical position and to move it to the following working area.

Technical data
Action E
Cabinet length mm 250 ÷ 2400
Cabinet depth mm 250 ÷ 700
Cabinet height mm 270 ÷ 1100
Pressure power kN 15
Working height mm 600
Weight ton 2,2
Vertical pressure beam positioning speed (max) mm/s 50
Horizontal pressure beam positioning speed (max.) mm/s 45
