SCM Groups ME25 Hot Melt Edgebander

The SCM Groups ME25 Hot Melt Edge Bander is Proudly Made in Italy.


Description

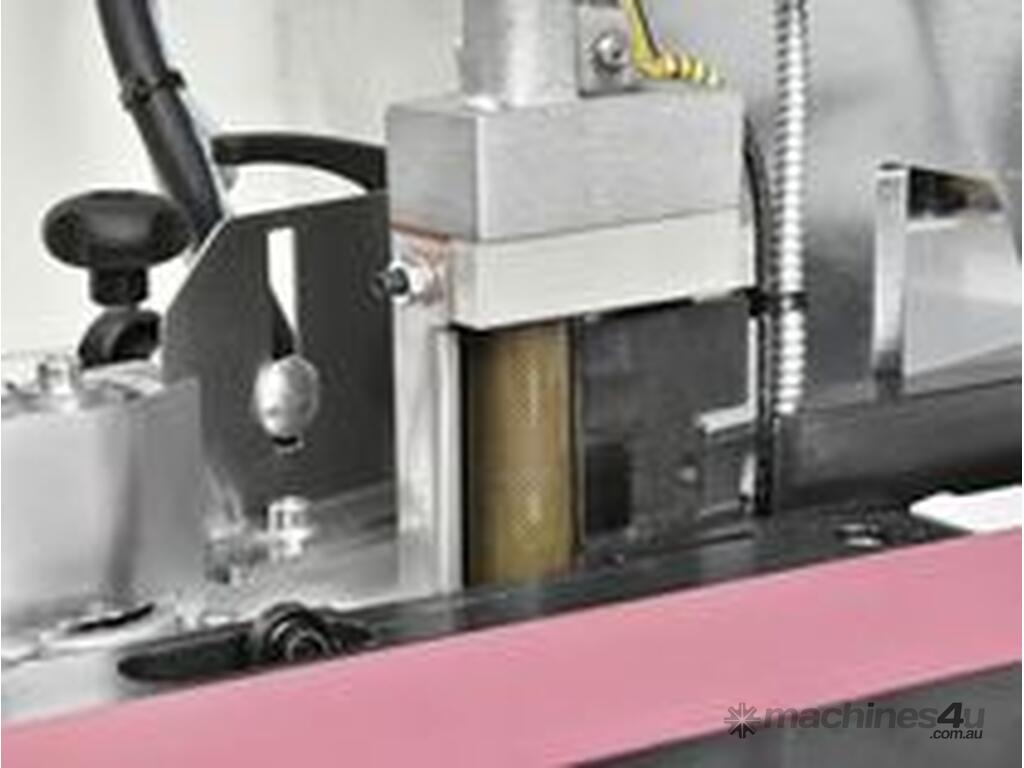

This automatic edge bander with Teflon Coated glue pot to edge band, has great flexibility, to edge melamine edges, PVC and ABS up to 3 mm and wooden strips up to 5 mm. Machine for professional craftsmen and joineries.
Advantages

Designed for a perfect finish

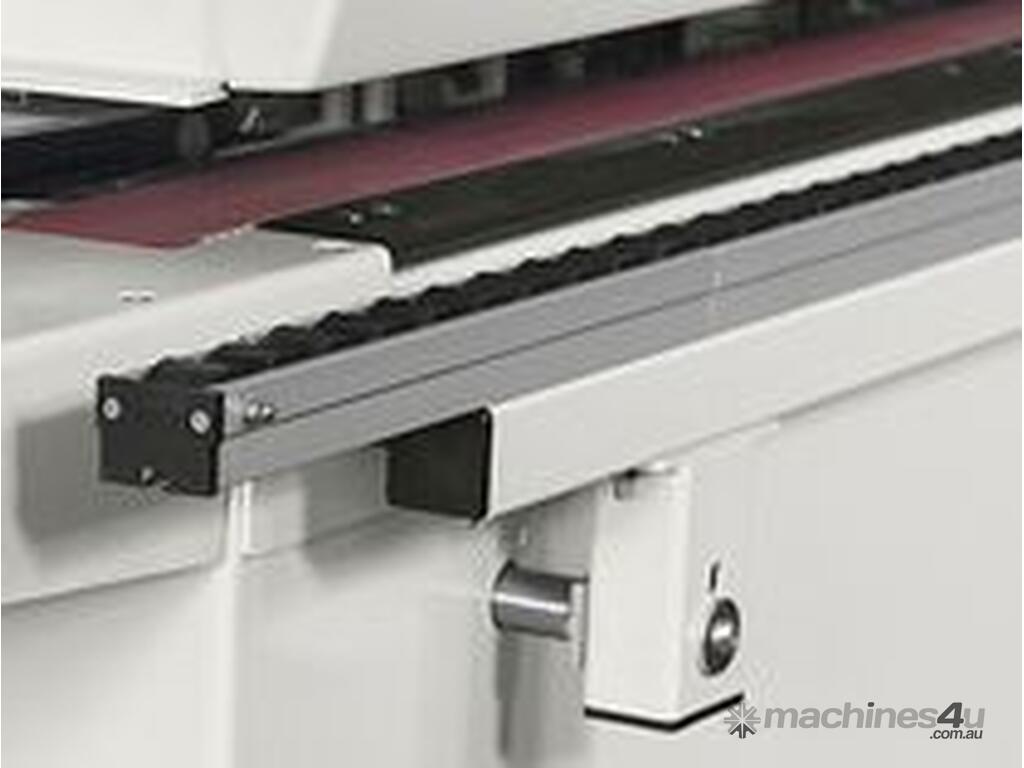

The very best finishing of the panel edge is also guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generated by the pinion of a traditional feed track and ensures a smooth and linear panel movement.


Always precise when cutting
Absolute precision offered by the unit, with a cutter and an independent asynchronous.


Simple and intuitive

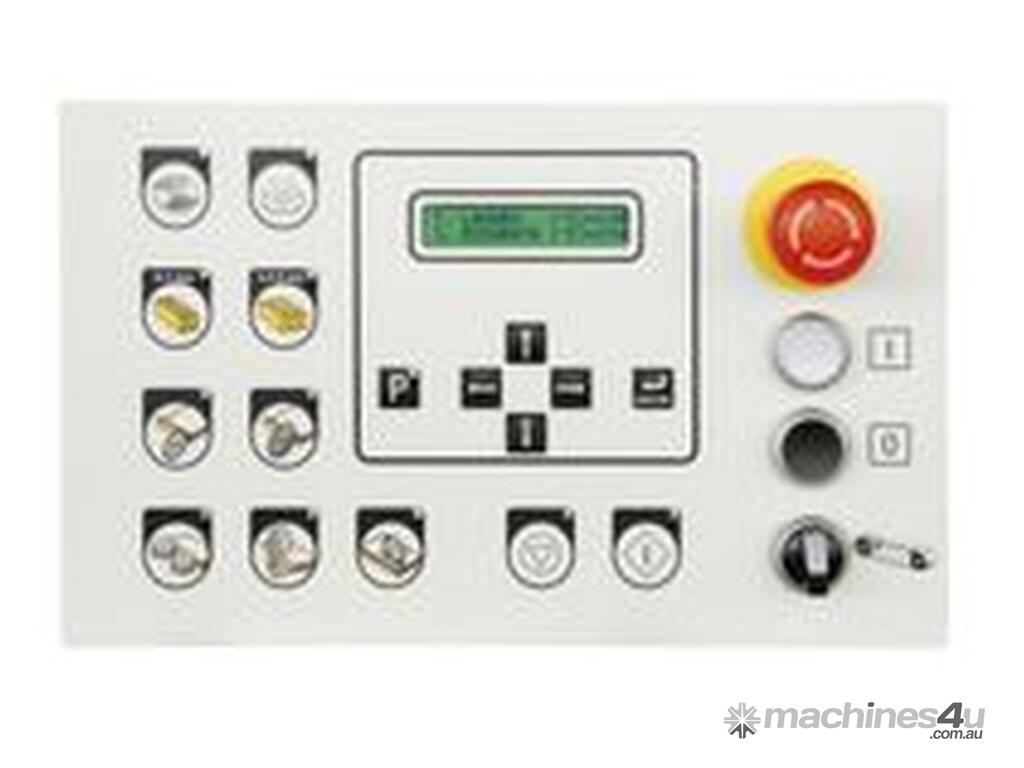

Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.


Perfect radius on pvc/abs edges
High finishing quality of plastic material edges thanks to the radius knives that ensure the complete elimination of any marks left from the rimming unit tools, all equipped with front and vertical copiers and a user-friendly device for exclusion of the unit when it is not in use.

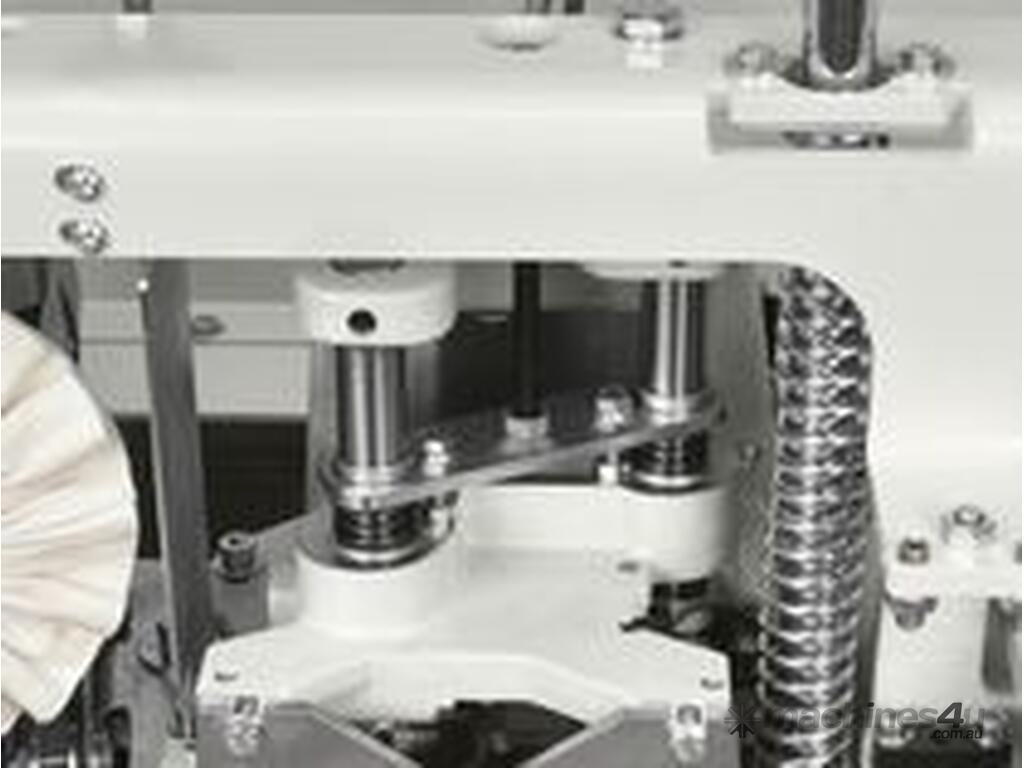

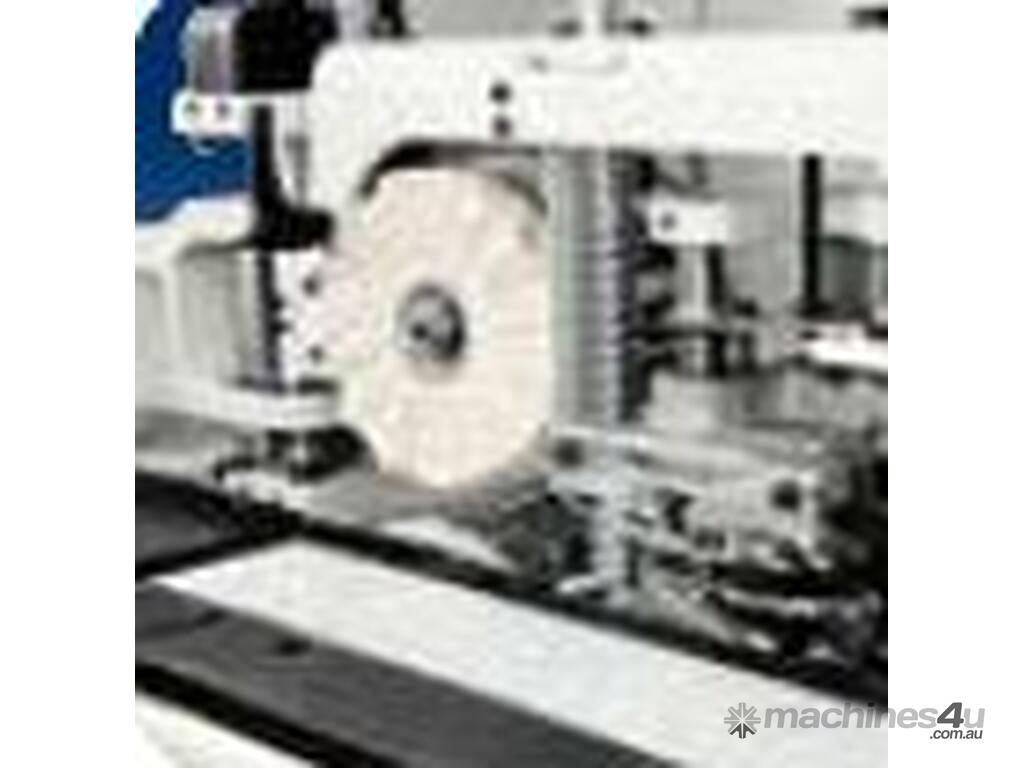

Machine is equipped with end cut off saw, top and bottom trimmers, and can have Radius Scrapers, Glue Scrapers and Buffers.

Technical data
me 25
Work table dimensions mm 2600 x 530
Min. ÷ max. thickness of rolled edges mm 0,4 ÷ 3
Max. thickness of edges in strips mm 5
Min. ÷ max. panel height mm 12 ÷ 50
Min. panel length/width mm 190/65
Feed speed m/min 7
