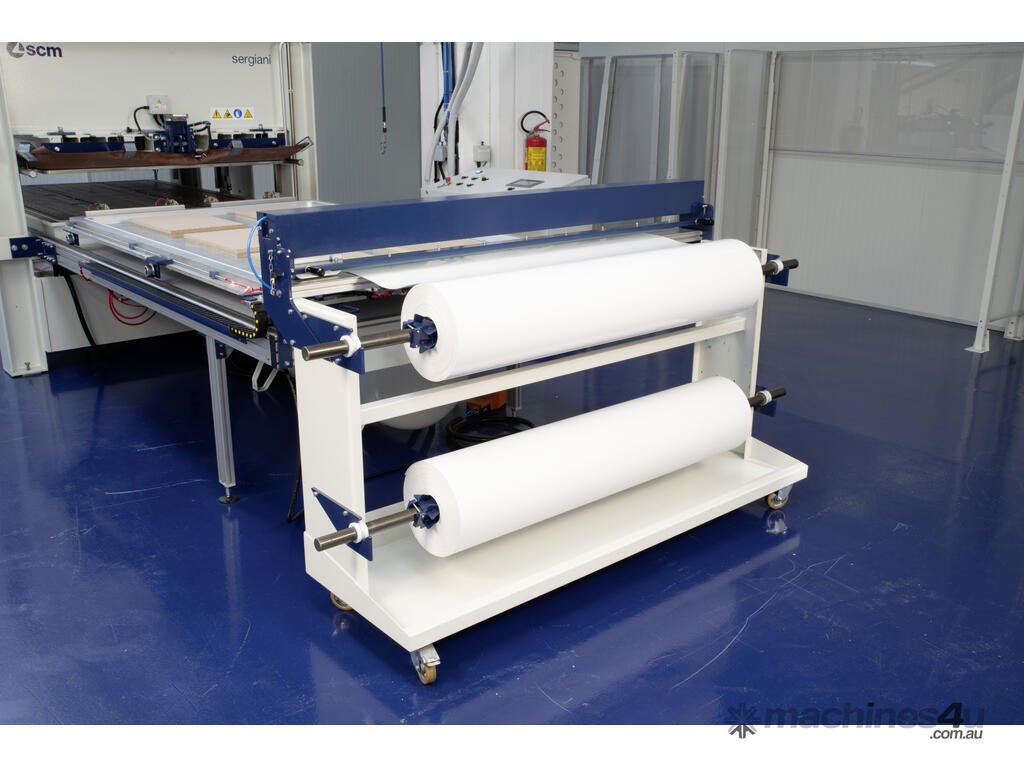

SCM Groups Sergiani Membrane Press

The SCM Groups Range of Sergiani Industrial Presses are proudly Made In Italy.
Press for 3D panels laminating, both with veneer and pvc or abs. Membrane or membrane-less working cycle, with coupled operation of the depressure/pressure cycles depending on the product to press.

Advantages

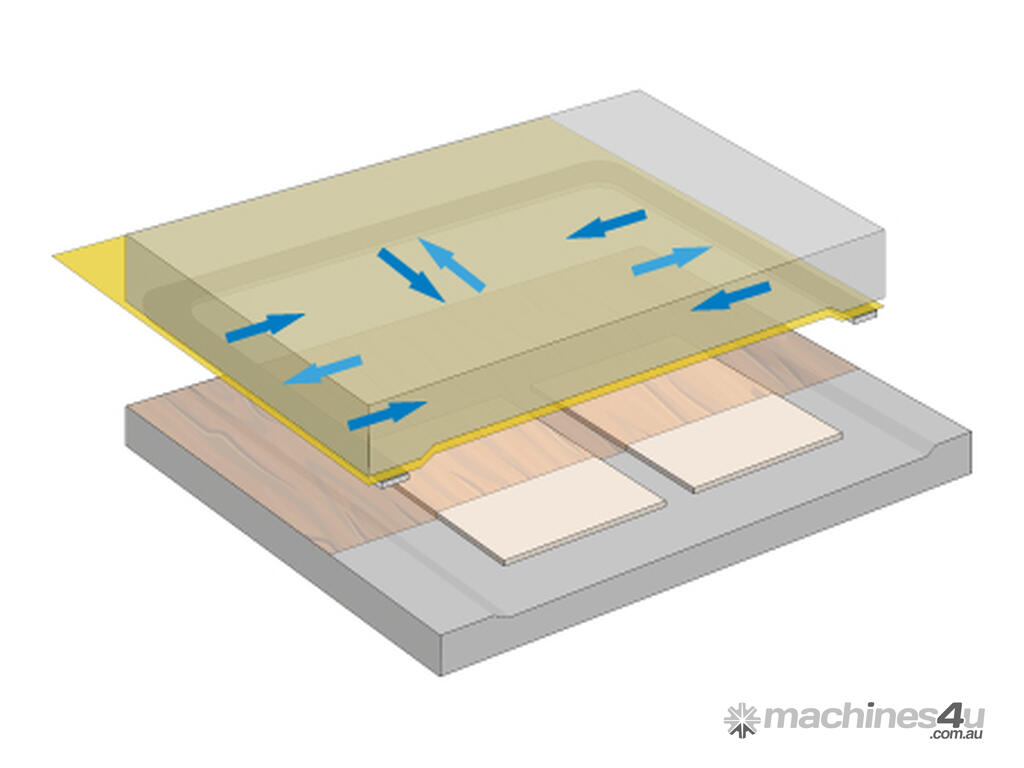

INTERMEDIATE FLANGE
High definition even with complex shapes due to the vacuum circuit and the air under pressure in the intermediate flange. The vacuum cycle brings the membrane into contact with the coating reducing the risk of creasing and improving the uniformity of the PVC heating. Moreover, thanks to the second pressing cycle, which introduces air under pressure from the flange, it is possible to obtain a better definition even with particularly complex shapes.


MANUAL PIN
They are placed on a magnetic net that eases and reduces the platen composition time. This system avoides the support panels stocking that are used as counter-shapes and consequently the related management and maintenance costs.


PLC CONTROL PANEL
The control panel is equipped with a software that allows total control of the machine and monitoring all machine parameters in each phase of the pressing cycle according to the type of material to be glued.

Technical data
3d form d form d form CA d form CA d form CA 32 - 14
Platens dimensions mm
2340x1340

2840x1340

2340x1340

2840x1340

3200x1340

Max. panel dimensions mm
2240x1240

2740x1240

2240x1240

2740x1240

3100x1240

Thrust ton
200

500
Working chamber height mm 60 60
Pressure kg/cm

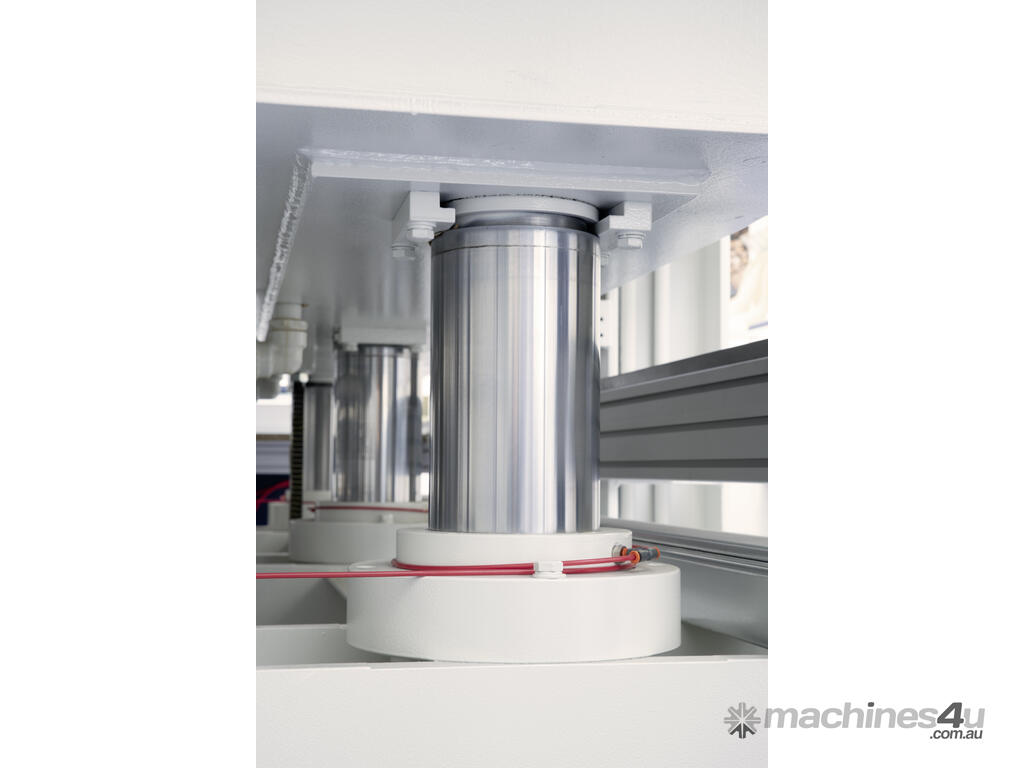

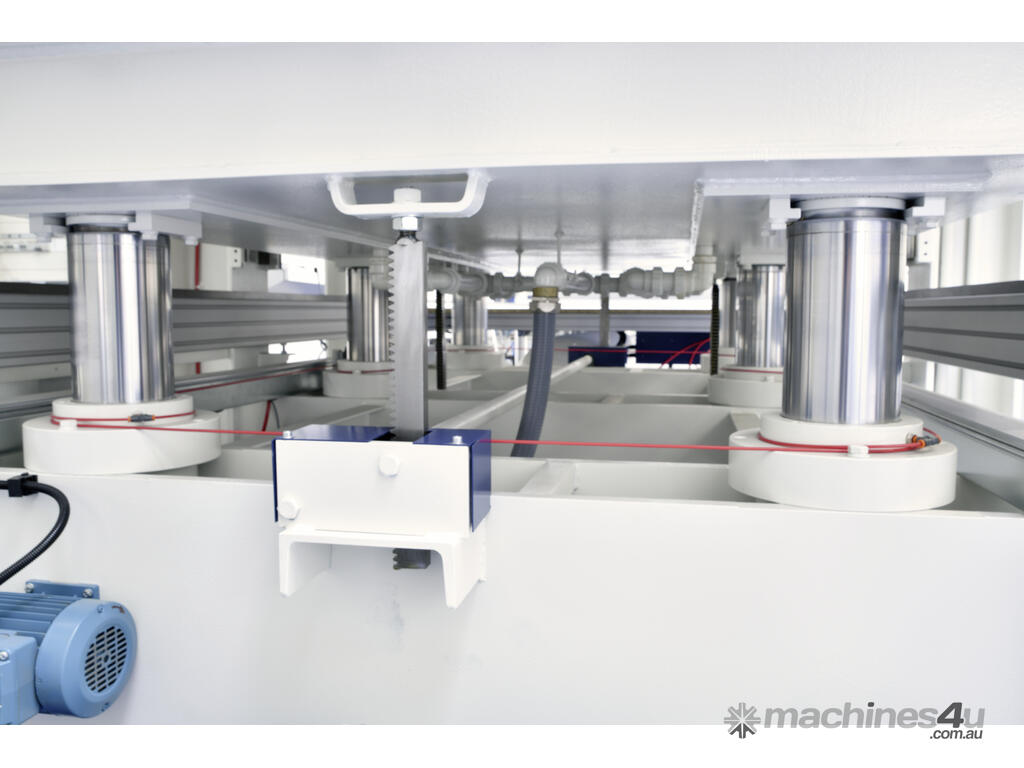

Pistons - -140
