SCM Minimax FS 30G X1 Genius Combination

Experience the precision of the minimax fs 30 genius, a compact surfacer/thicknesser combination. With its large surfacer and oversized fence, it effortlessly straightens and dresses large workpieces. The 300mm cutter block, 1200mm surfacing table, and powerful 2.5hp motor deliver exceptional performance. From hardwoods to softwoods, the FS30 Genius handles it all with ease.

-Surfacer working width: 300m wide capability
-Surfacing tables: 1200mm length or width for material placement
-Thickness table dimensions: 300 x 450mm for adjusting material thickness
-Feed speed: 6m/min for rapid material movement
-Max thickness capacity: Up to 200mm thickness accommodated
-Min thickness capacity: Minimum 3mm thickness suitable
-Single-phase motor 1,8kW (2,5hp) 50Hz

Fully equipped

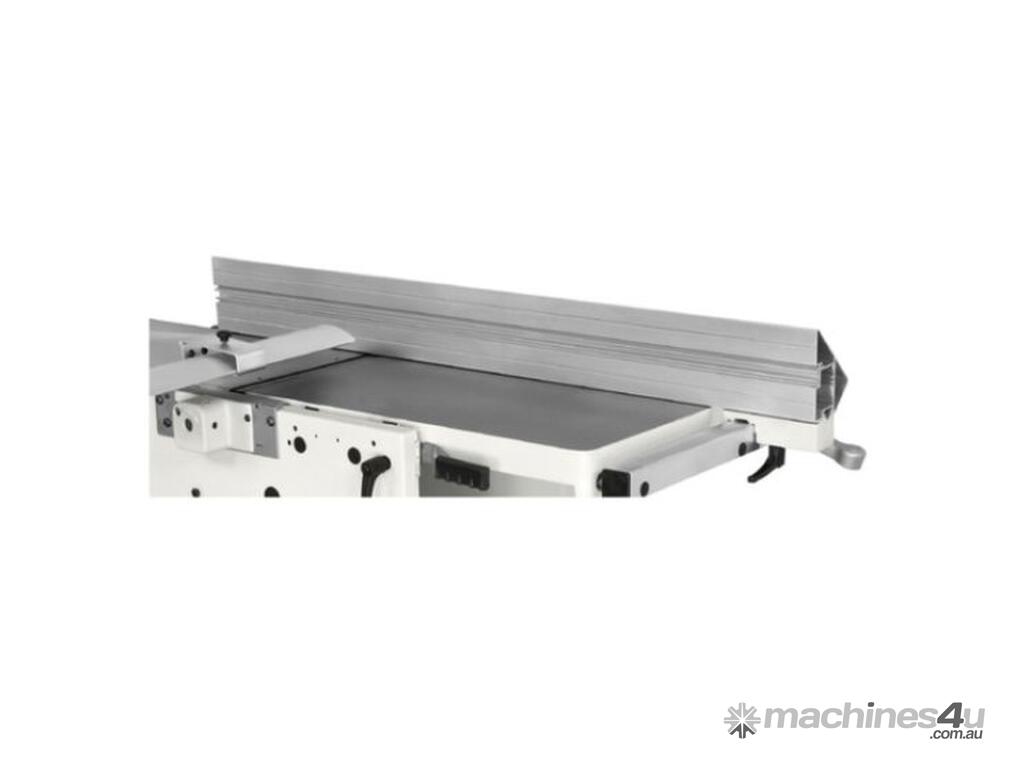

The planer unit has a cutter block with 2 re-usable knives. Genius machines also have saw-planer fences with an anodized aluminum extrusion and a support with clamp for fast positioning.

Practical and ergonomic
To keep the machine compact and make machining easier, the surfacing table opens towards the inside of the machine. Thanks to an efficient feed system, the thicknessing unit can process wood up to 200 mm thick.

“Xylent” spiralknife cutter block with 3 series of knives
The 3 spiralknives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

TECHNICAL DATA
Working width mm 300
Cutterblock diameter / no. of standard knives mm / no. 62/2
Dimension of standard knives mm 300 x 25 x 3
Max. stock removal mm 3
Surfacing tables total length mm 1200
Thicknessing table dimensions mm 300 x 450
Feed speed on thicknesser m/min 6
Min. ÷ max. working height on thicknesser mm 3 ÷ 200
