SCM Minimax FS52ES Planer Thicknesser

The SCM Minimax FS52ES is a Planer-Thicknessing machine made in SCM's Factory in Italy.
It's a professional machine, nice and compact with a wide capacity , for a high-flexible production; ideal for the demanding craftsman and carpentry.

Advantages

Perfect finish

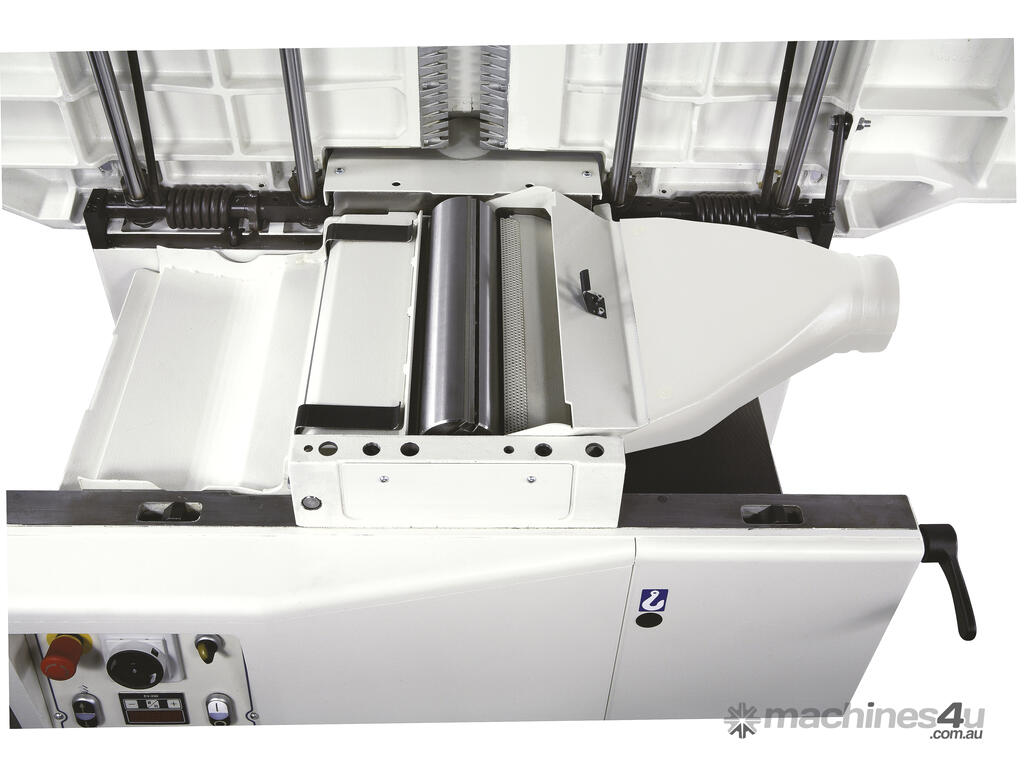

An optimal planing with minimal effort, thanks to the 95 mm diameter cutter block. For an impeccable finish the pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the outfeed roller in sandblasted steel maintains the perfect post-processing finishing.


Stability over time

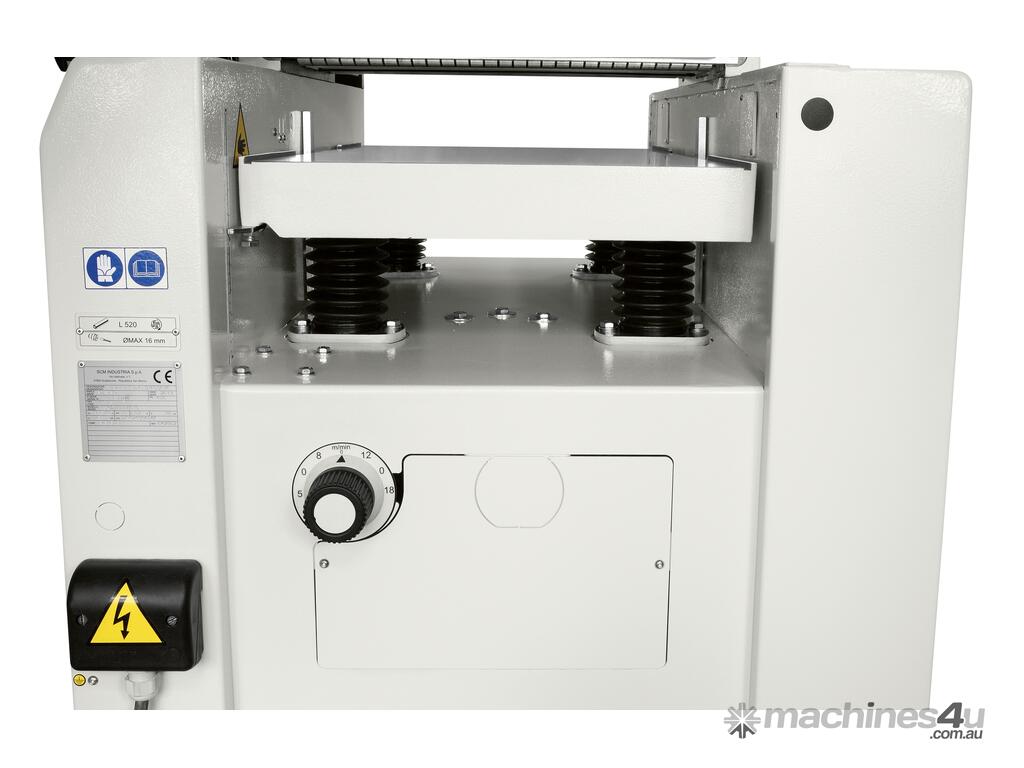

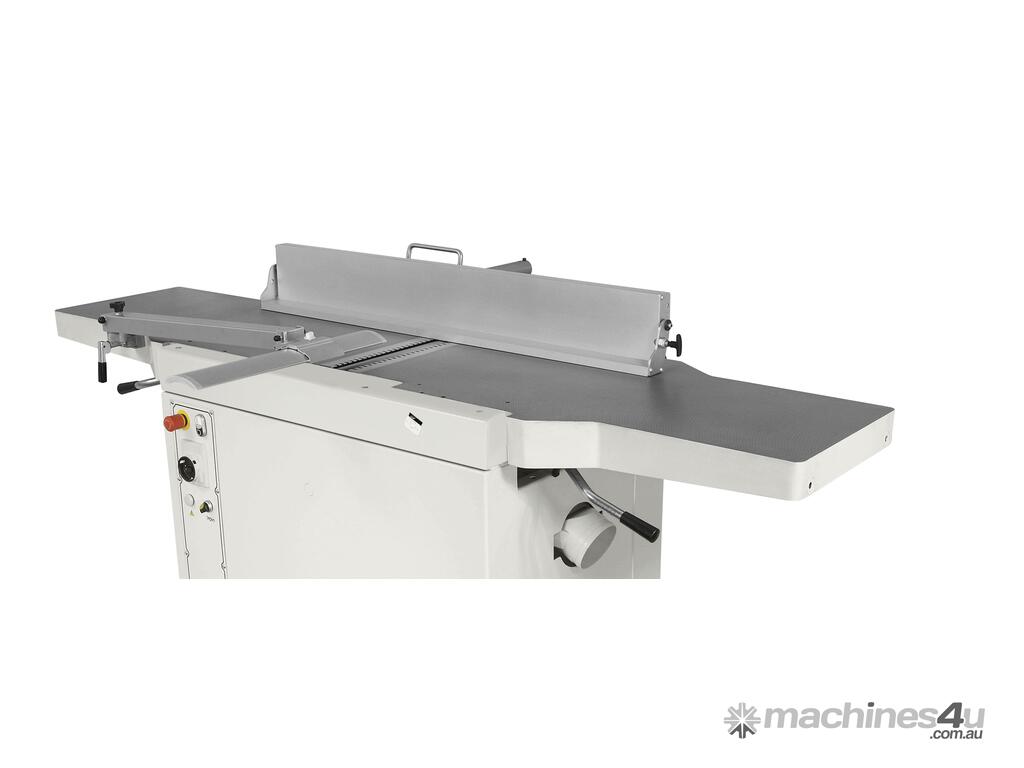

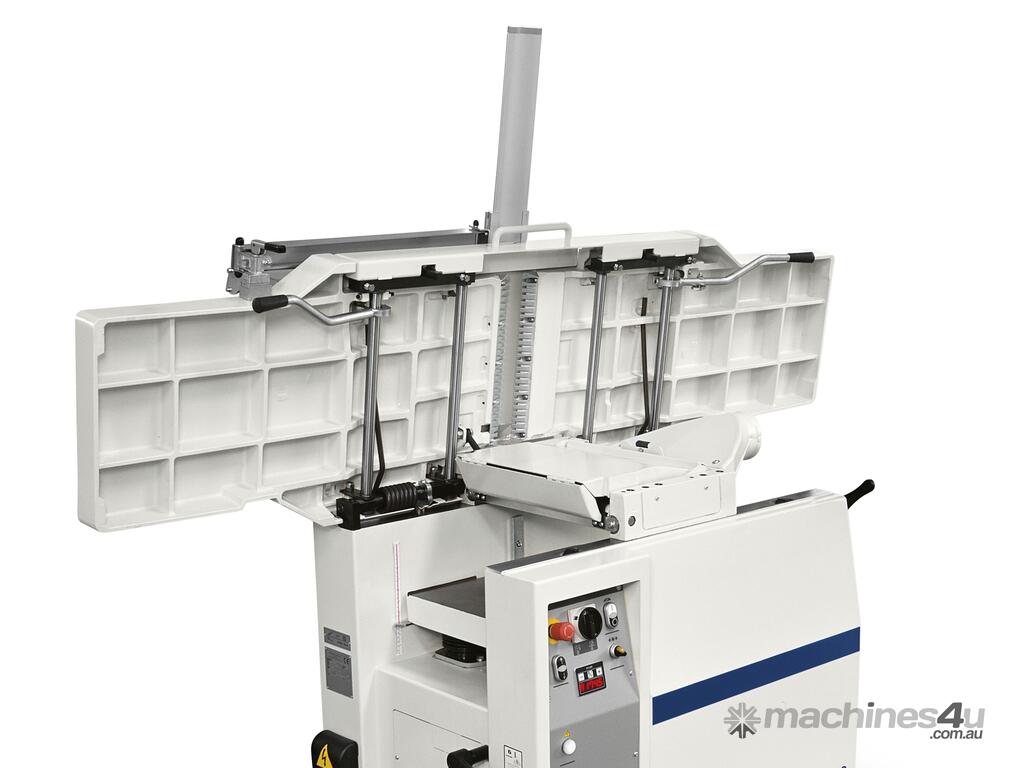

Comfortable and precise planing. The Elite S series adopt ergonomic solutions like the 2200 mm surfacing tables, in ribbed cast iron, with simultaneous opening towards the inside of the machine with a 90° angle. For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threads dust protected.


High rigidity

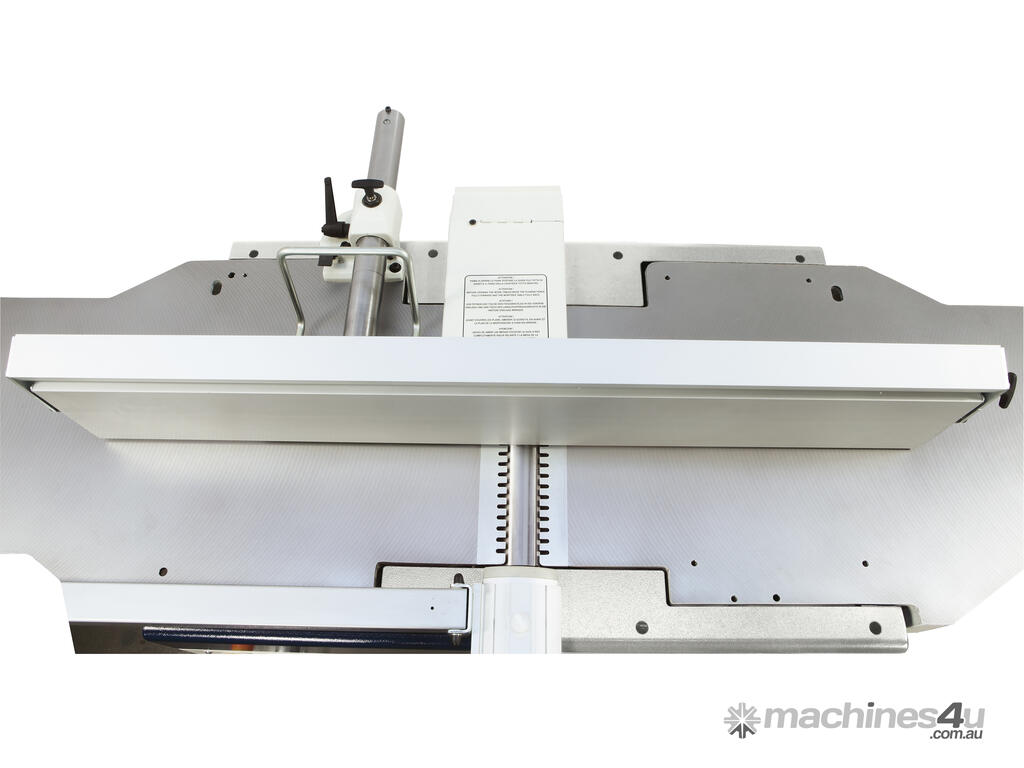

High rigid fence with a smooth movement thanks to the central locking on round bar.

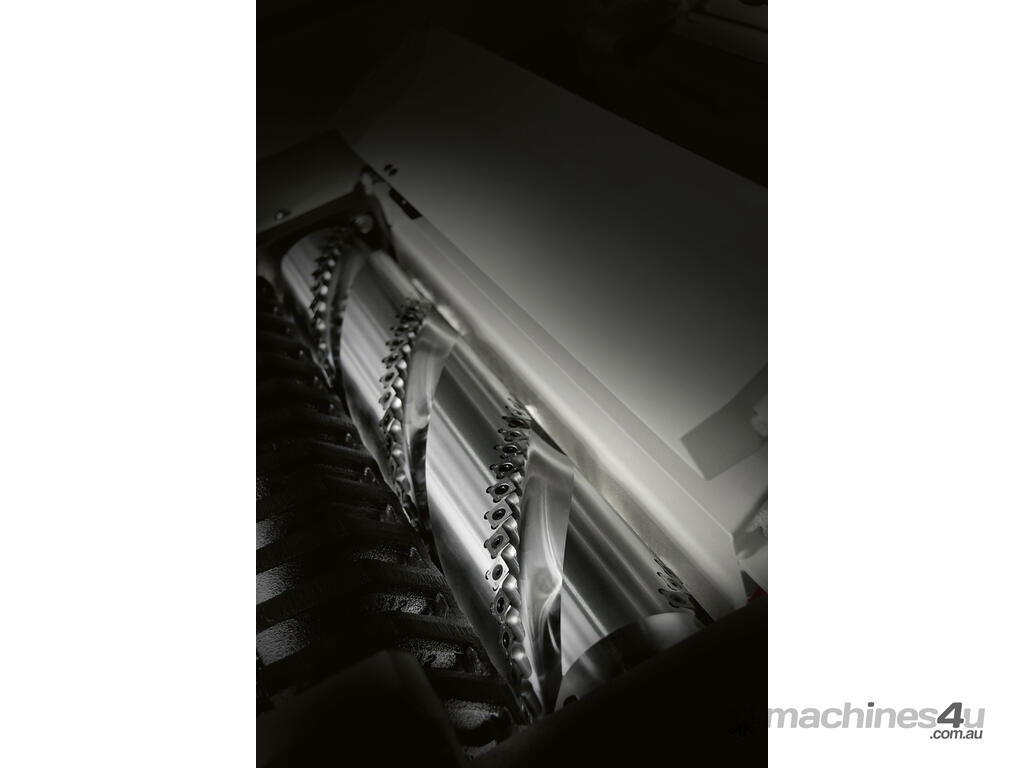

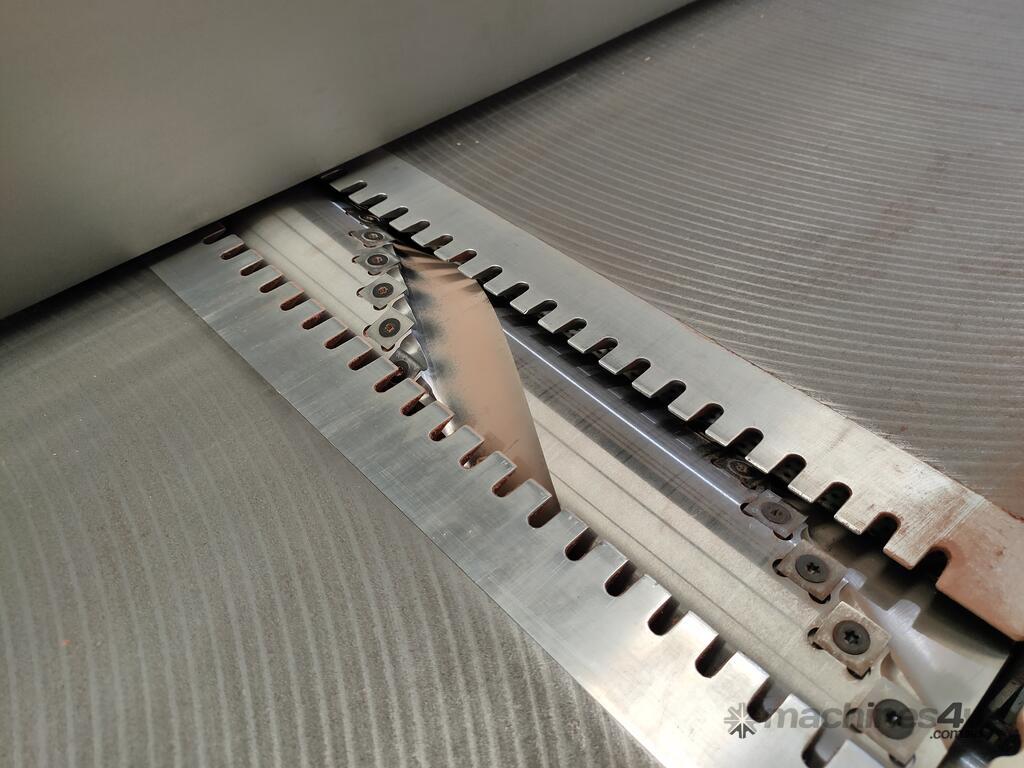

“Xylent” spiral knife cutter block with 3 rows of knives
The 3 spiral knives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Technical data
fs 52es
Working width mm 520
Cutterblock diameter / no. of standard knives mm 120 / 4
Dimension of standard knives mm 520 x 30 x 3
Max. stock removal mm 5
Surfacing tables total length mm 2250
Thicknessing table dimensions mm 520 x 775
Feed speed on thicknesser m/min 5 / 8 / 12 / 18
Min. ÷ max. working height on thicknesser mm 3 ÷ 240
Three-phase motors starting from kW/Hz 7 (9) / 50 (60)
