SCM Minimax Me22 Hot Melt Edge Bander

The SCM Groups Minimax ME22 is Proudly Made in Italy.

This automatic edge bander has a Teflon coated glue pot to edge band, with great flexibility, for use with with melamine edges, PVC and ABS up to 2 mm and wooden strips up to 5 mm. Machine for professional craftsmen and joineries.

Advantages

Designed for a perfect finish

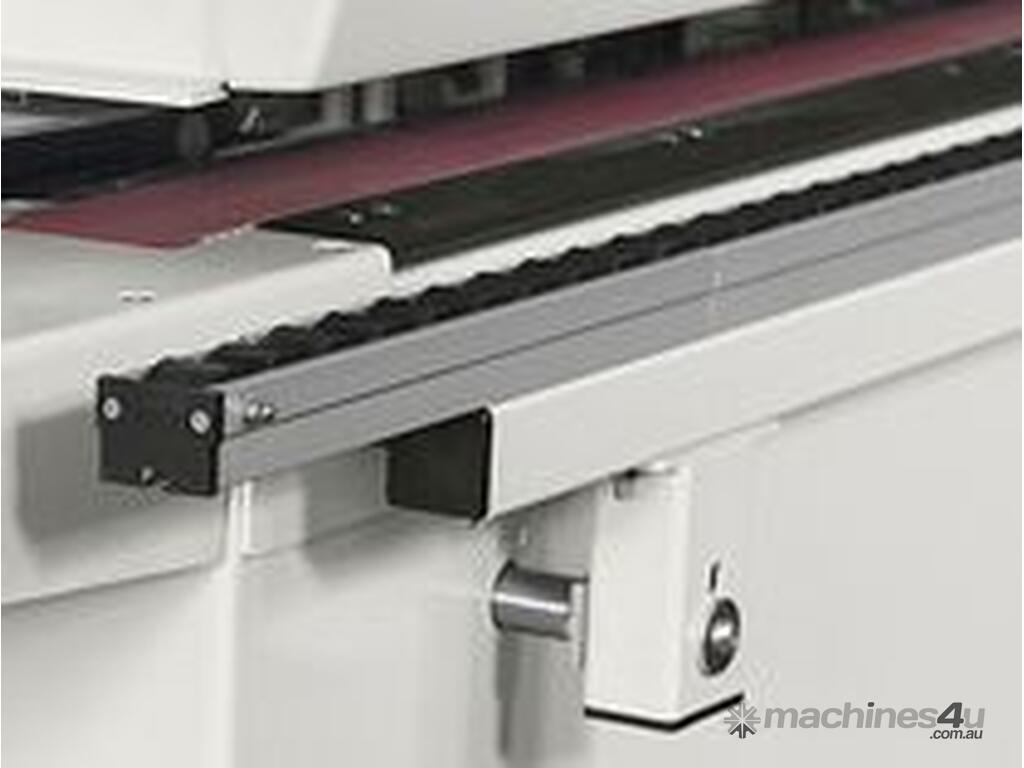

The very best finishing of the panel edge is also guaranteed by the panel conveying track (exclusive solution), which prevents the panel having the feed affected by the typical pulses generated by the pinion of a traditional feed track and ensures a smooth and linear panel movement.


Simple and intuitive

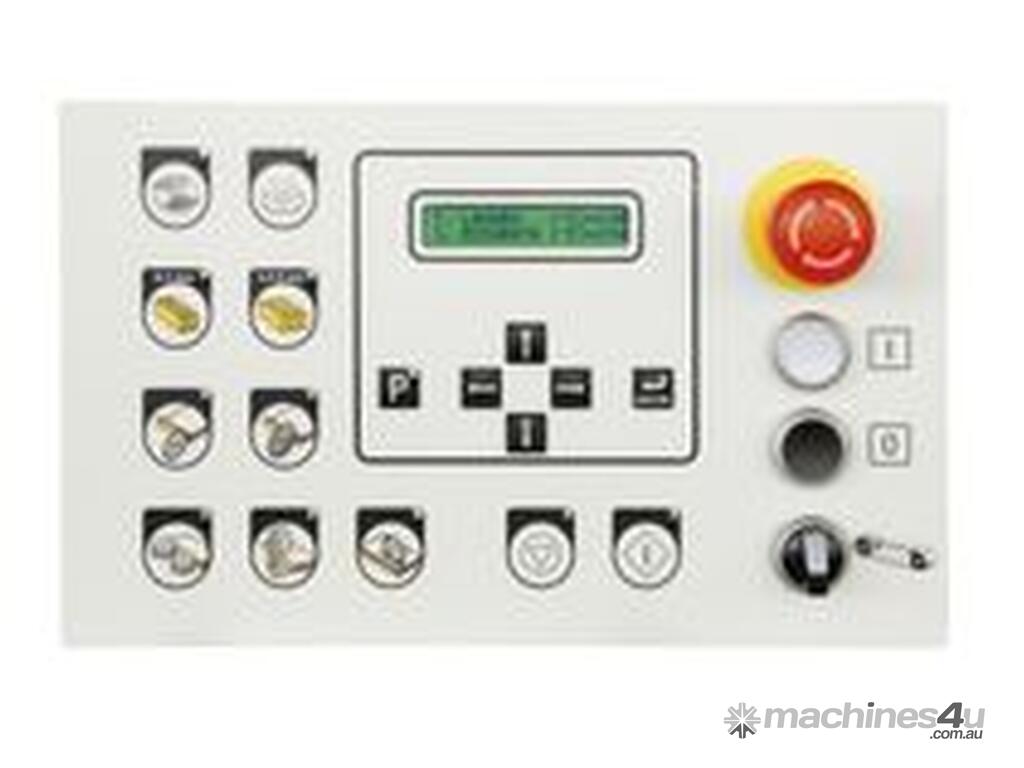

Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.


Ideal edge application

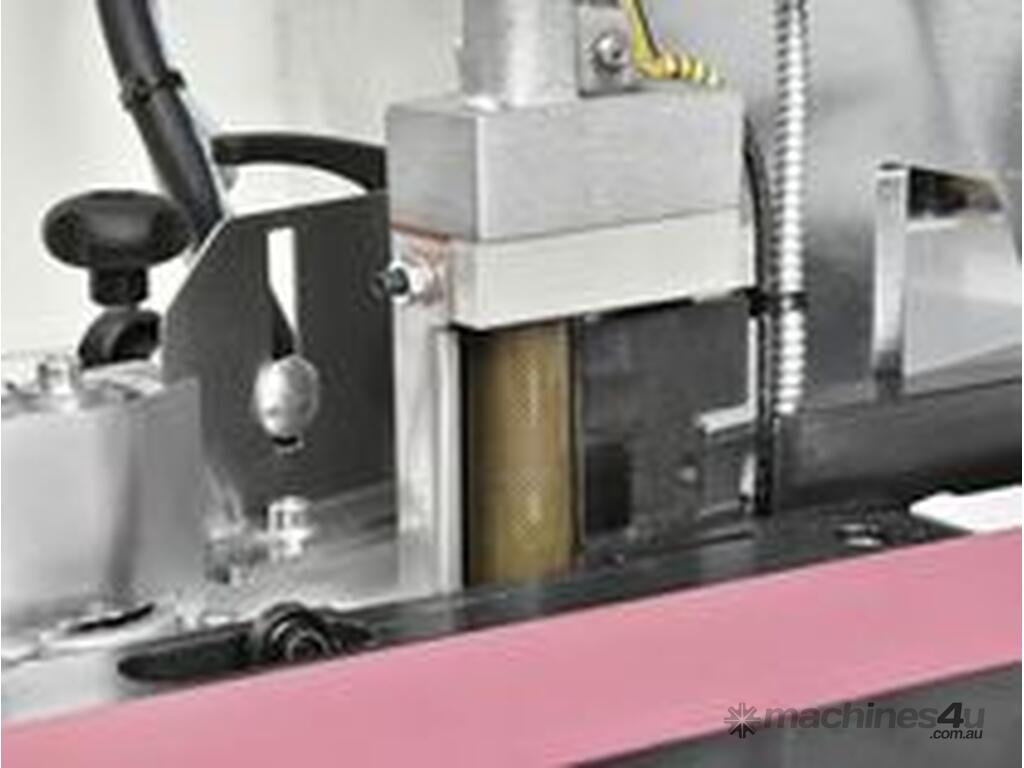

The glue is heated rapidly and evenly by the resistances. The automatic lowering of the glue temperature after a temporary halt in production when using the machine avoids burning of the glue. A new innovative system of self-lubrication of the glue pot, allows a more extensive use of the edge banding machine without the necessity of lubrication. Two rollers press the edge banding evenly and efficiently on to the panel edge. The glue spreading roller with electrical resistance inside provides a uniform glue spread and always at the maximum working temperature even on panels at the maximum working height.


Quality finishing and versatility

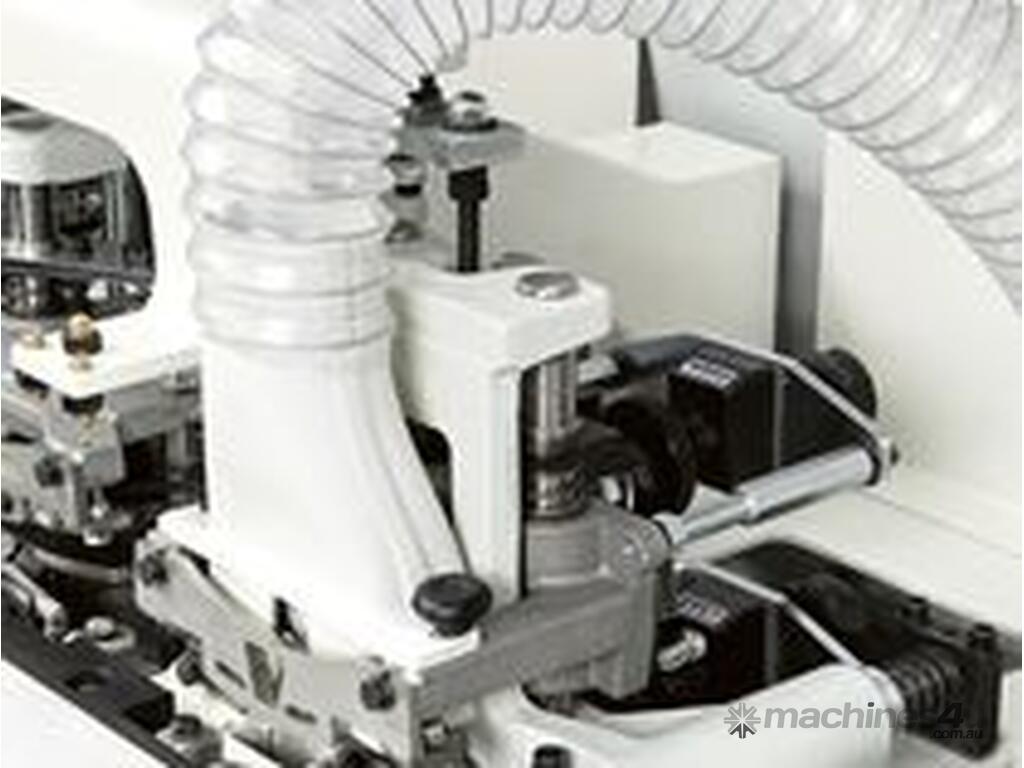

The unit functions with slide copying pads to align perfectly to the work piece. These cutters are designed for straight or radius trimming of any type of edge, whether it is thick or thin, made of PVC, ABS, melamine, laminate or wood. The edge thickness is easily set by means of two numerical readouts.

Machine can be fitted with units such as Radius Scrapers, Glue Scrapers and Buffers.

Technical data
me 22
Work table dimensions mm 2600 x 530
Min. ÷ max. thickness of rolled edges mm 0,4 ÷ 2
Max. thickness of edges in strips mm 5
Min. ÷ max. panel height mm 12 ÷ 50
Min. panel length/width mm 190/65
Feed speed m/min 7
