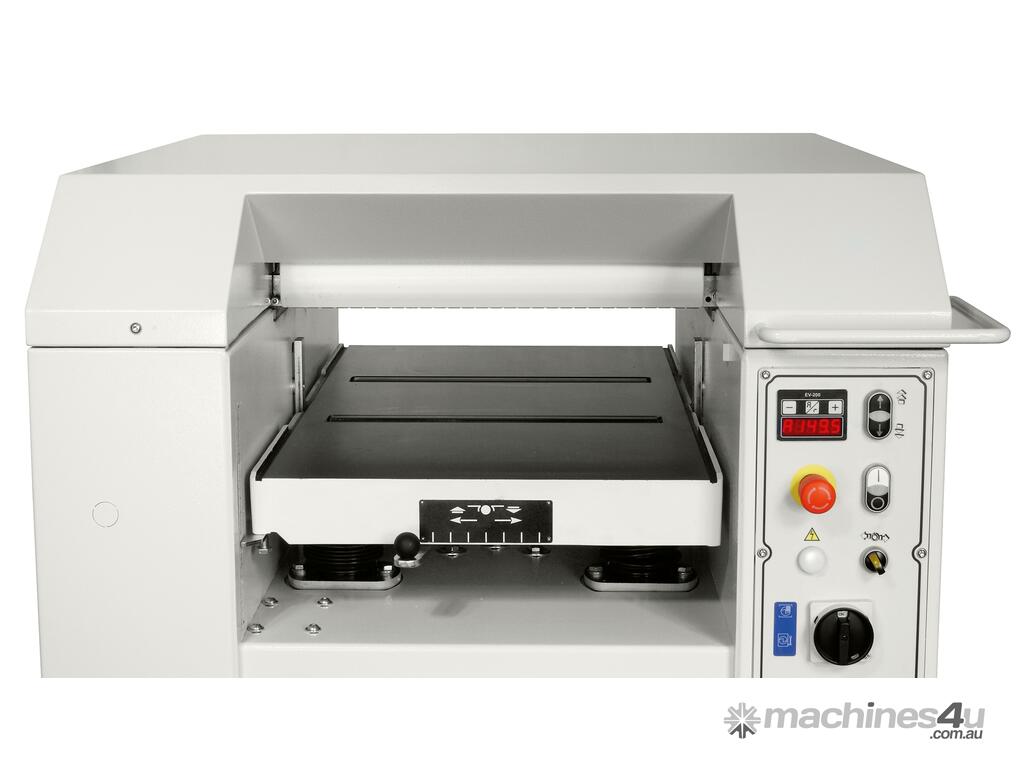

SCM Minimax S52EliteS Thicknesser

The SCM Groups Minimax S52EliteS thicknesser is Proudly made in Italy !

The Minimax S52eliteS thicknessing planer with 520 mm working width, is professional machine that's ideal for the demanding craftsman and carpentry.

Advantages

Perfect finish
An optimal planing with minimal effort, thanks to the 120 mm diameter cutter block SCM's Spiral Xylent cutter head gives an impeccable finish. The pressure of the thicknesser feed rollers can be adjusted according to the type of wood machined. The roller infeed has a helicoidal profile to guarantee firm and constant work piece feed, while the out feed roller in sandblasted steel or Rubber maintains the perfect post-processing finishing.


Stability over time

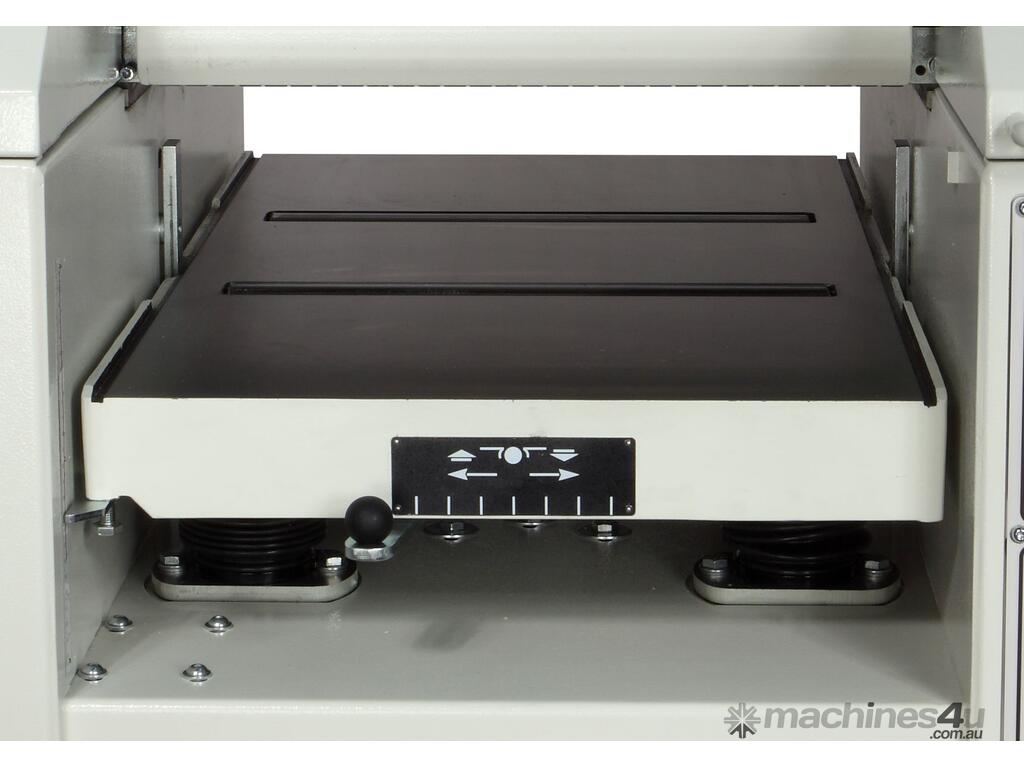

For a maximum long lasting stability the cast iron thicknessing table lifts on 4 spindles with trapezoidal threads which are dust protected.
The bed also includes 2 excludable table rollers built in.

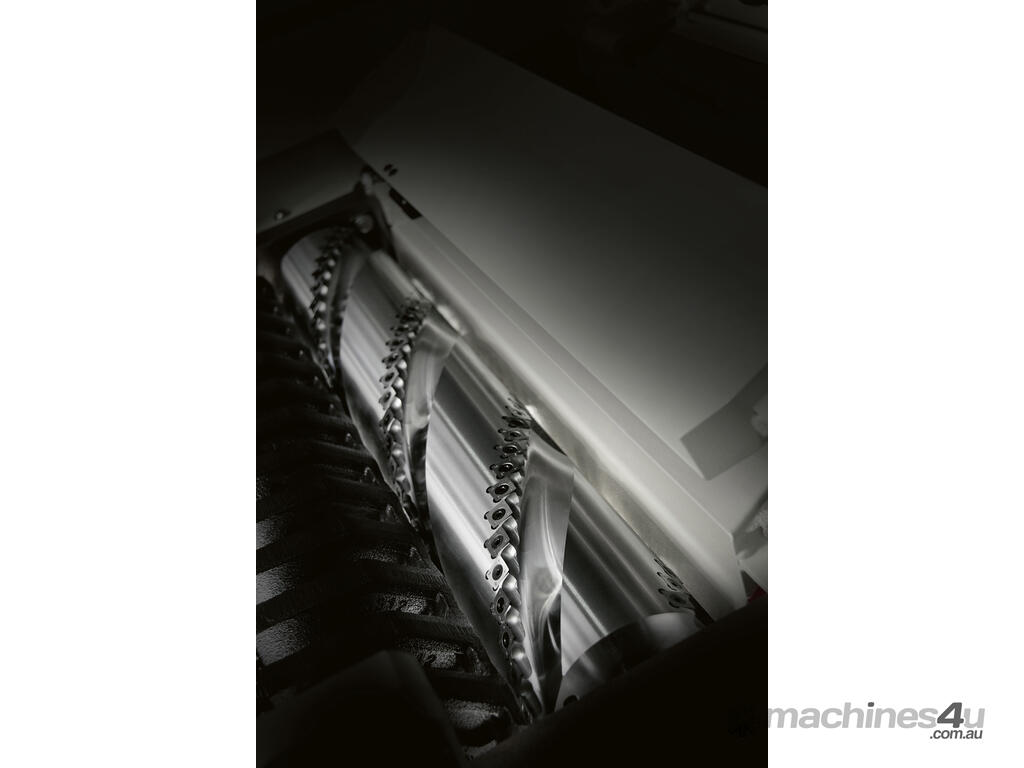

“Xylent” spiral knife cutter block with 3 rows of knives
The 3 spiral knives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.

Technical data
s 52es
Working width mm 520
Cutterblock diameter / no. of standard knives mm/n. 120 / 4
Dimension of standard knives mm 520 x 30 x 3
Max. stock removal mm 5
Thicknessing table dimensions mm 520 x 775
Feed speed on thicknesser m/min 5 / 8 / 12 / 18
Min. ÷ max. working height on thicknesser mm 3 ÷ 240
Three-phase motors starting from kW 7 (9.5hp)
