SCM Minimax ST3C Saw Spindle Combination

The SCM Groups Minimax ST3C Saw and Spindle Combination is proudly made in Italy.

Available in Single Phase or Three Phase power.

The saw-spindle moulder for D.I.Y. woodworkers and craftsmen workshops essential, practical and with the best price/performances ratio.

Advantages
Performance without limits

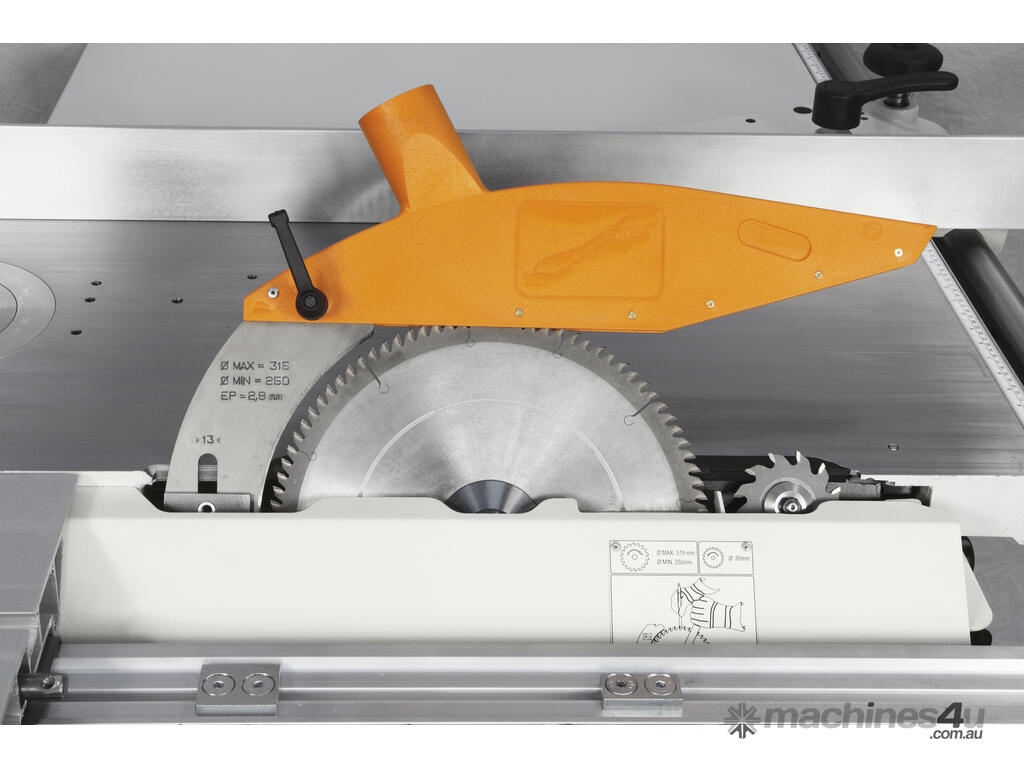

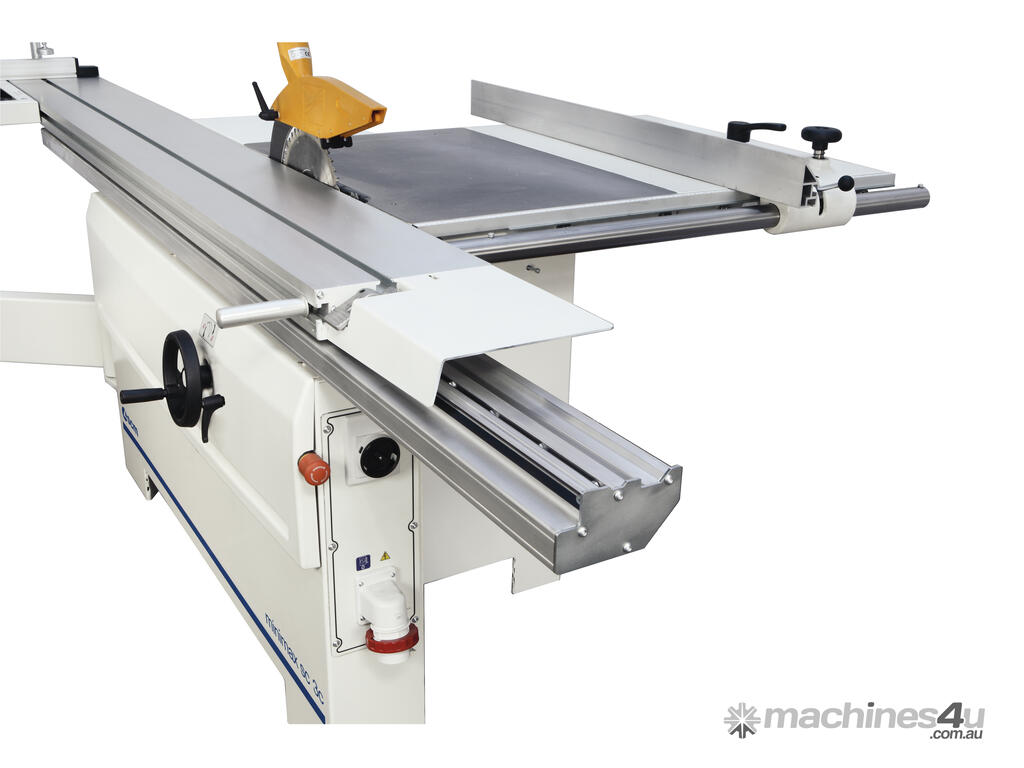

Incredible cutting of both very thick solid wood and panels, even those veneered, thanks to the new saw unit with a blade that has a maximum diameter of 315 mm that grants a 100 mm cutting height with the scoring blade installed.

Exclusive

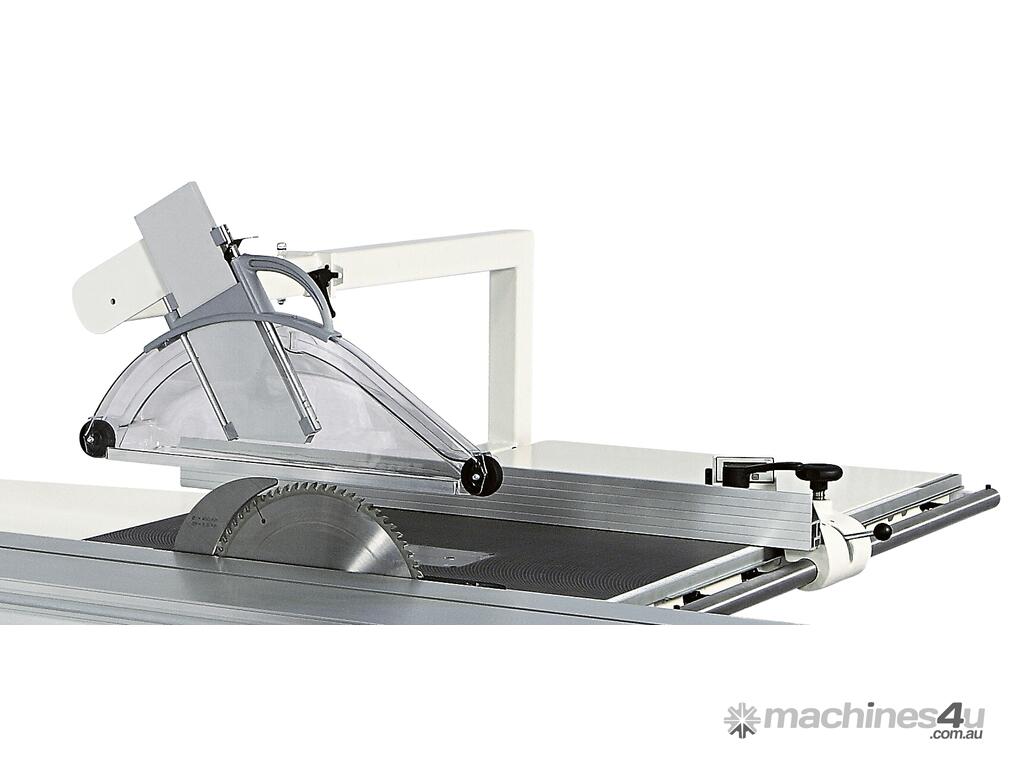

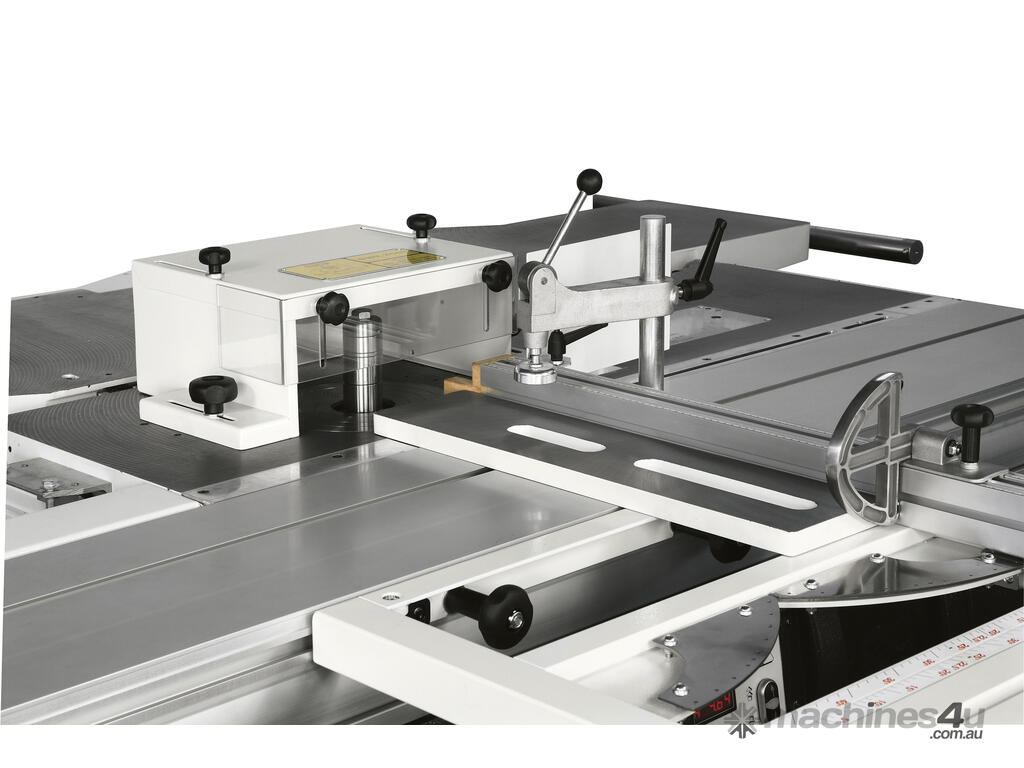

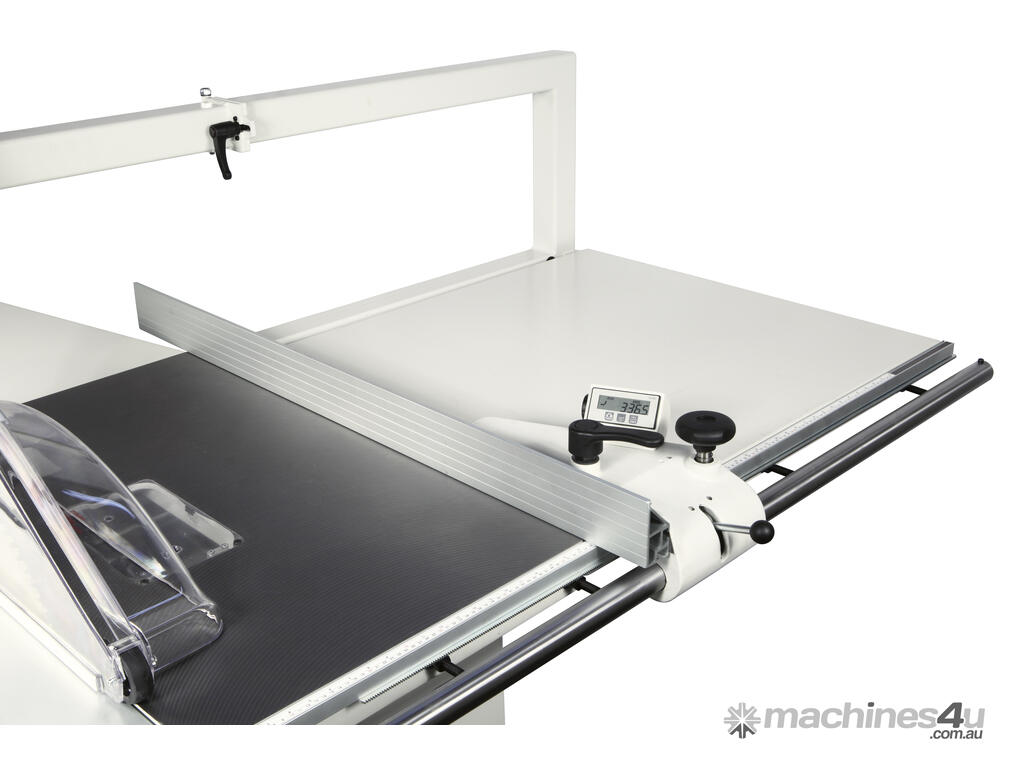

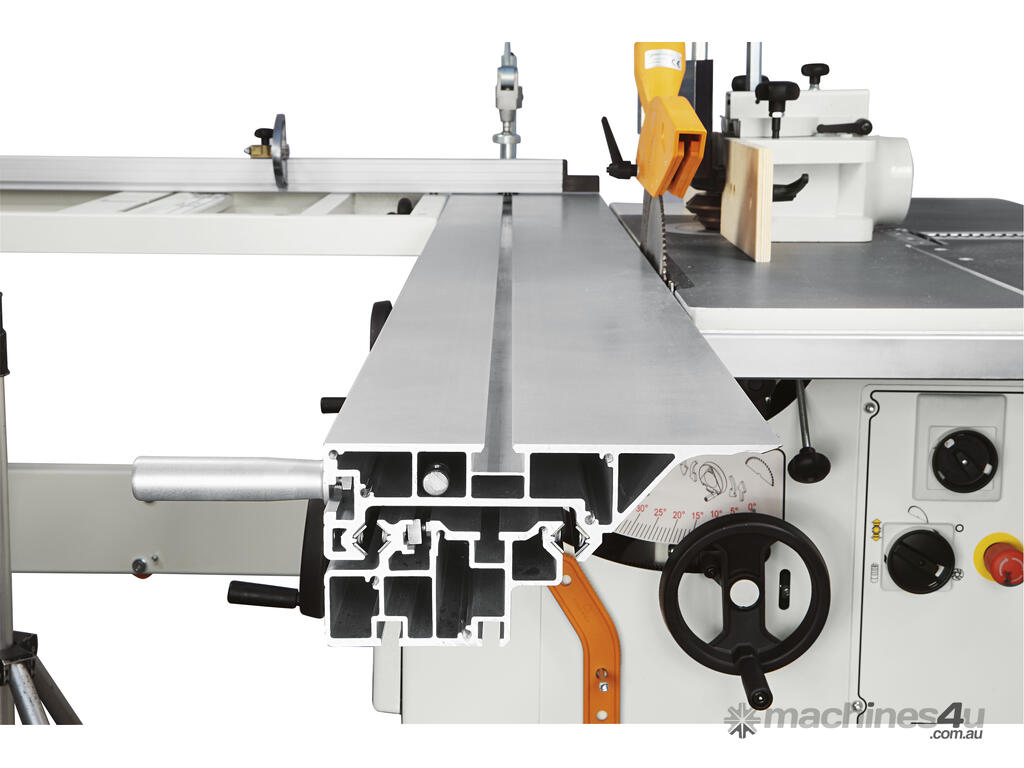

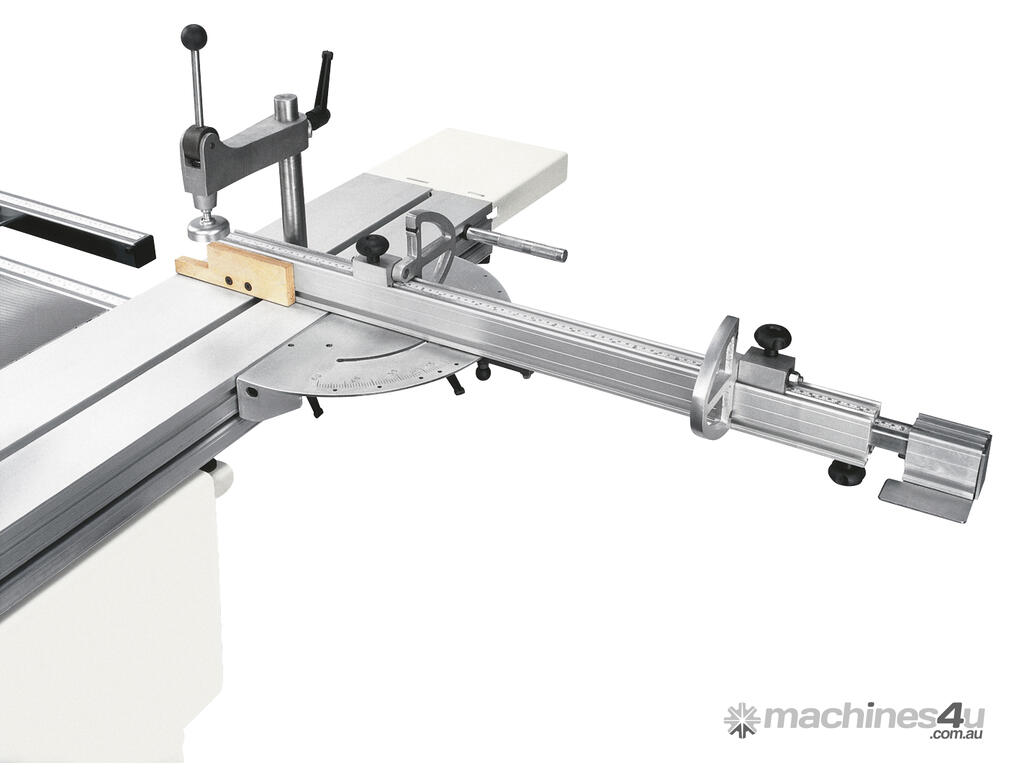

Easier and more precise cutting is possible due to a perfectly stabile support that is guaranteed, even for large work pieces, bu the wide sliding table and the large squaring frame fence provided as st+W30andard. Top quality precision, smooth and silent action, self-cleaning dustproof system, long lsting accuracy, no adjustment required.

Professional and very sturdy

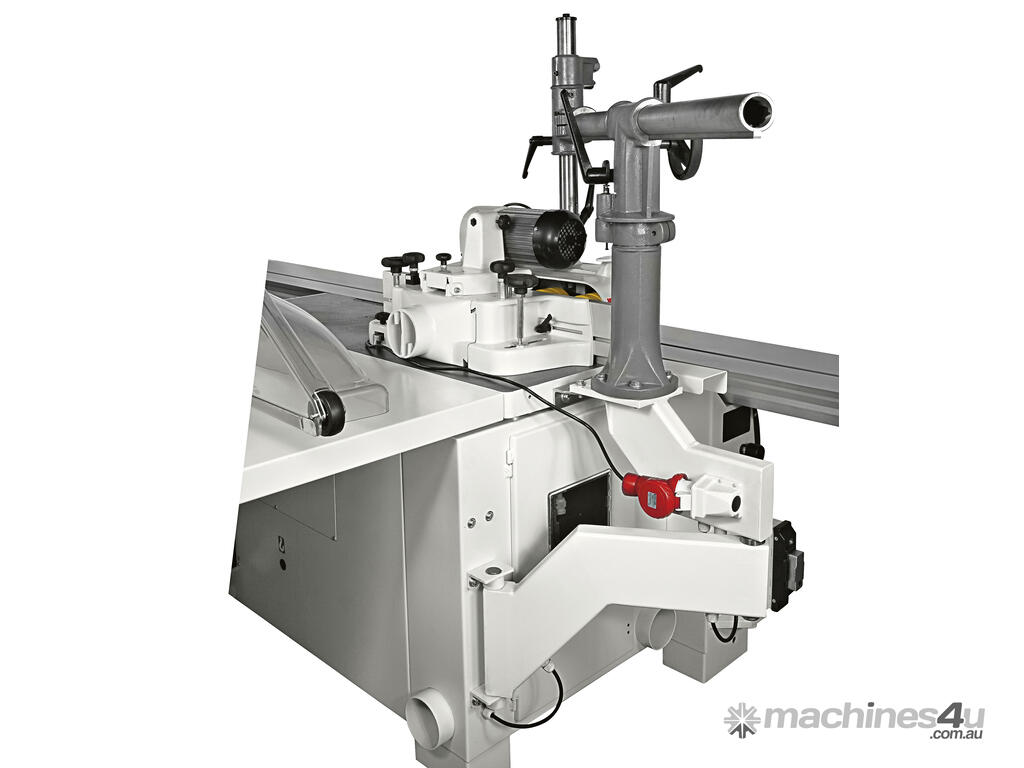

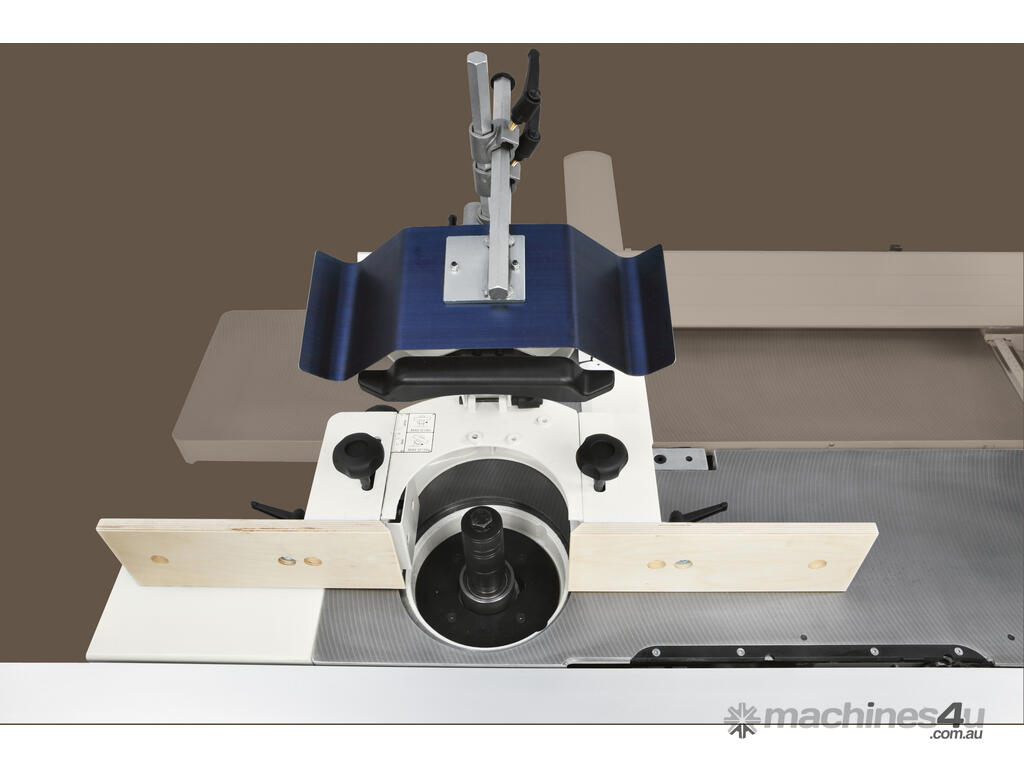

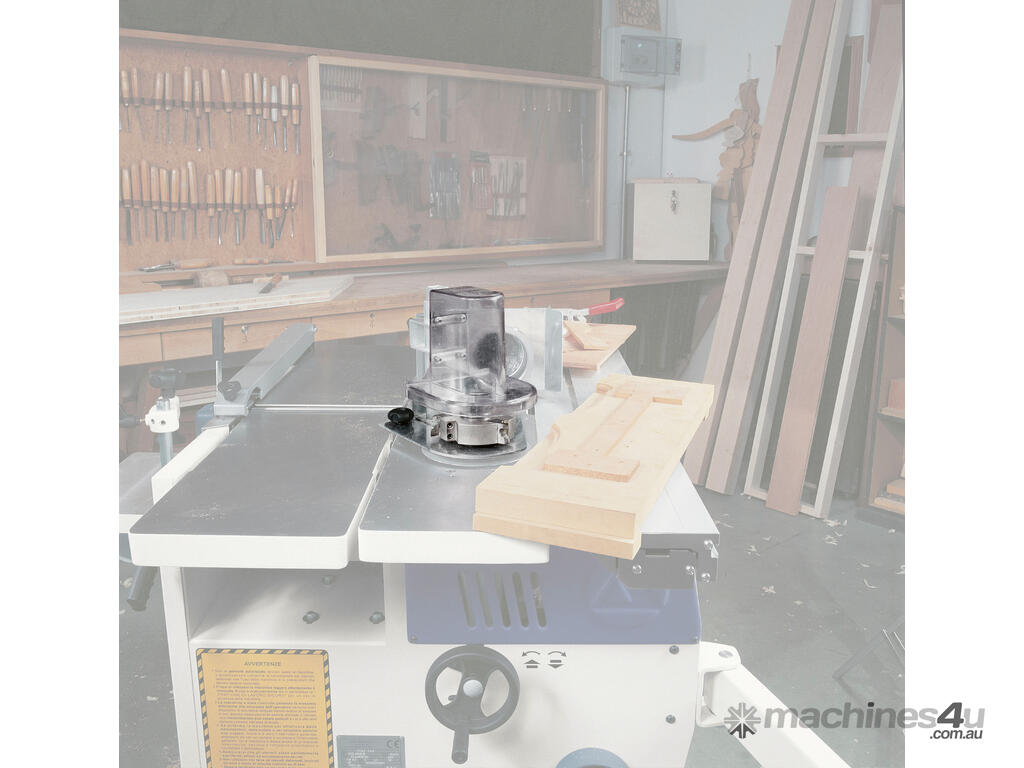

The unit has a cast iron structure. It is closed off by a cast iron “cup” to protect mechanical components inside the machine from sawdust, shavings and dirt. Precise and safe machining with the spindle moulder fence with micrometric adjustment complete with vertical and horizontal pressers.

Technical data
st 3c
Max. sawblade diameter with scoring blade installed mm 315
Max. sawblade projection from table at 90°/45° mm 100/78
Cutting width on parallel fence mm 900 ÷ 1270
Squaring stroke mm 1660 ÷ 2660

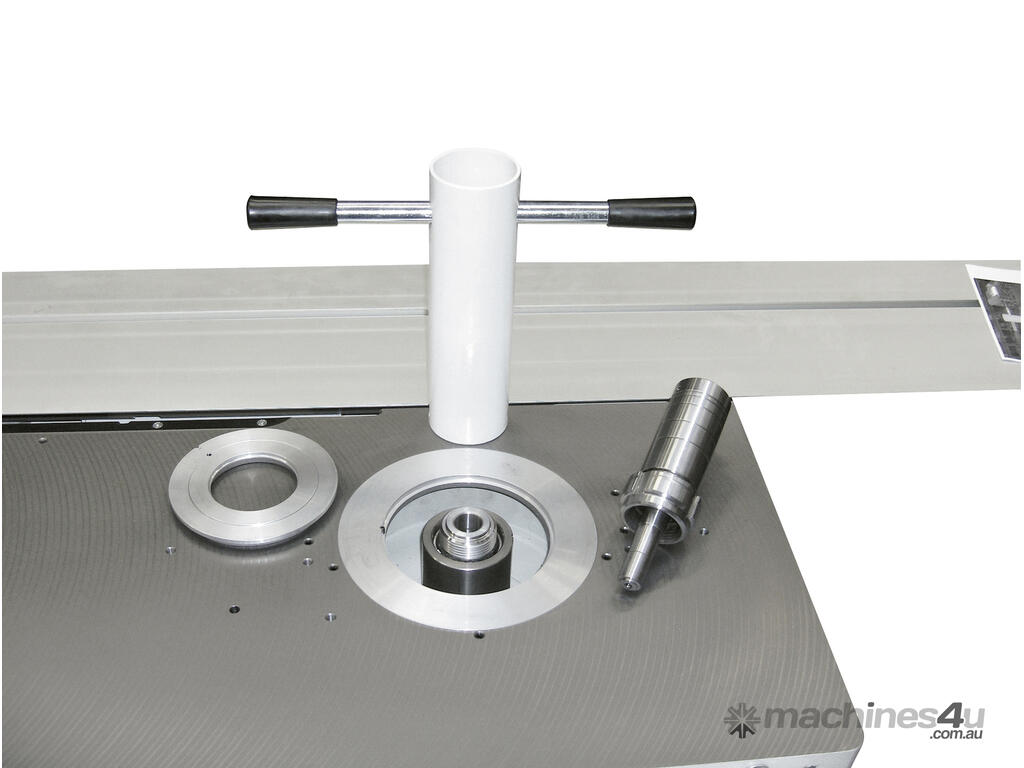

Max. useful spindle length mm 100
Spindle moulder speed (a 50 Hz) rpm 3500/7000/10.000
Max. tool diameter when profiling mm 210
Max. tool diameter lowered under the table at 90° mm 180
Max. tool diameter when tenoning mm 275
Three-phase motors starting from kW/Hz 5 (6) / 50 (60)
Single Phase Available
