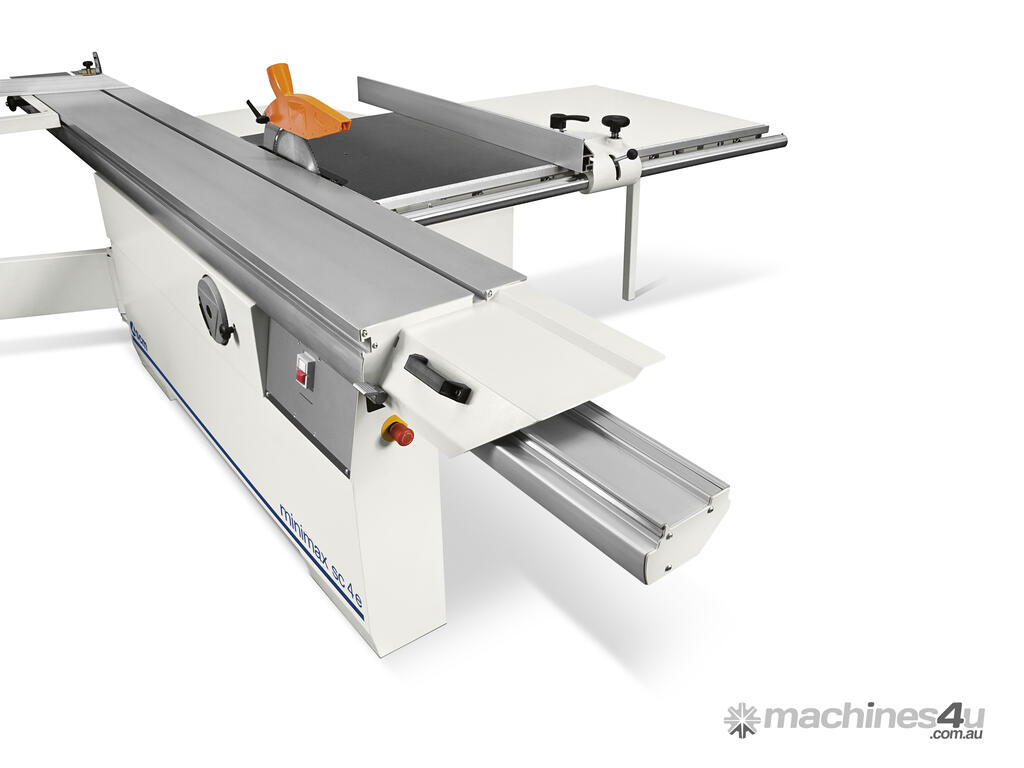

SCM Minimax ST4E Saw Spindle Combination

The SCM Groups Minimax ST4E is Proudly Made in Italy.

The Saw-spindle moulder machine is for the demanding craftsmen and carpentries looking for flexibility and an “elite” quality finishing.
Production-level performance. 2600mm or 3200mm sliding table, double-hung cast iron saw unit with scoring, rearward tilting shaper spindle for use with power feeder, digital-mechanical readouts, and many other key features.

Advantages

Stability and rigidity

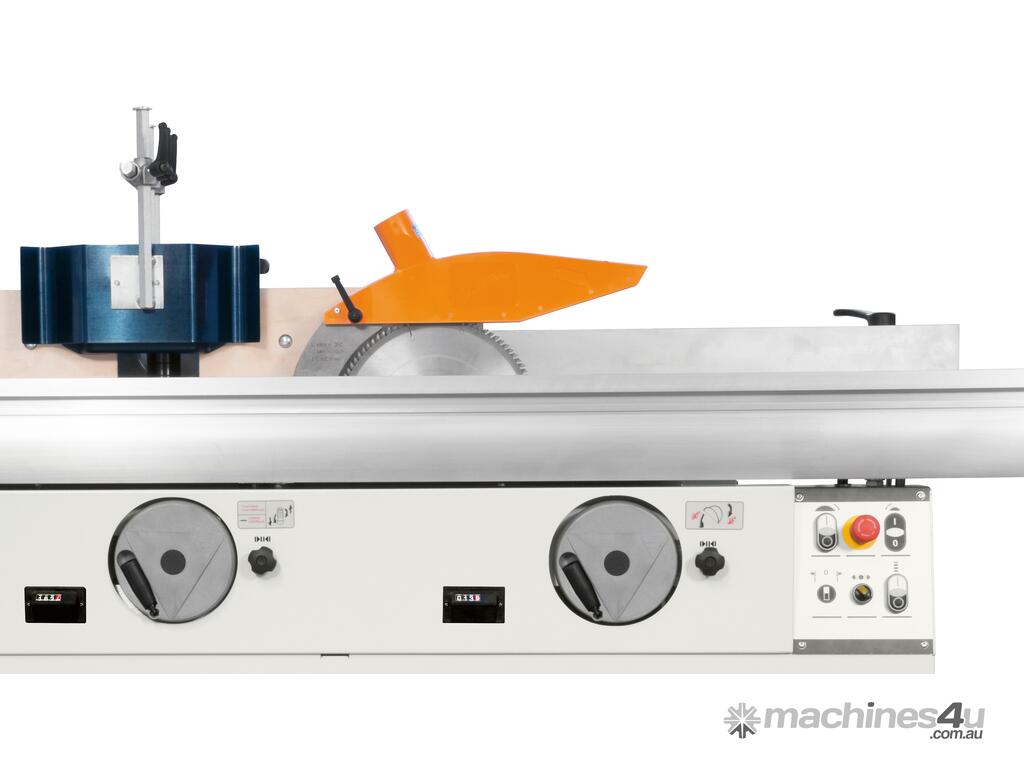

The new saw unit closed loop structure is made of a heavy cast iron and is supported firmly under the table by two lateral supports in a crescent shape. These solutions give strength and rigidity, guaranteeing perfect cutting results. The saw unit can be equipped, on request, with scoring blade for perfect cutting even on veneered panels. The scoring blade is an optional available in two versions: with belt transmission from the main motor and with an independent motor 0.75 HP (0.55 kW). The maximum diameter allowed for the main saw is 315 mm with scoring blade mounted.

Precise and silent
Optimal support also to larger pieces, with the sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.

Versatility

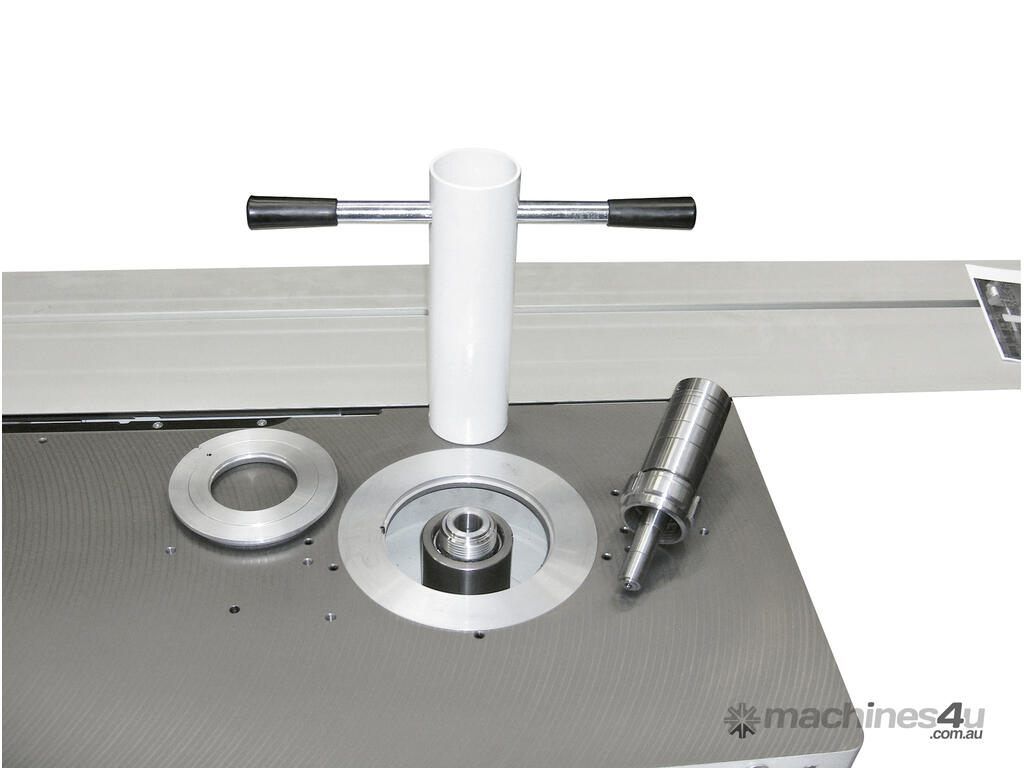

Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools up to 275 mm of diameter. The spindle is surrounded by a cast iron “cup” to protect the internal mechanical components from shavings and sawdust.

High-tech accessories

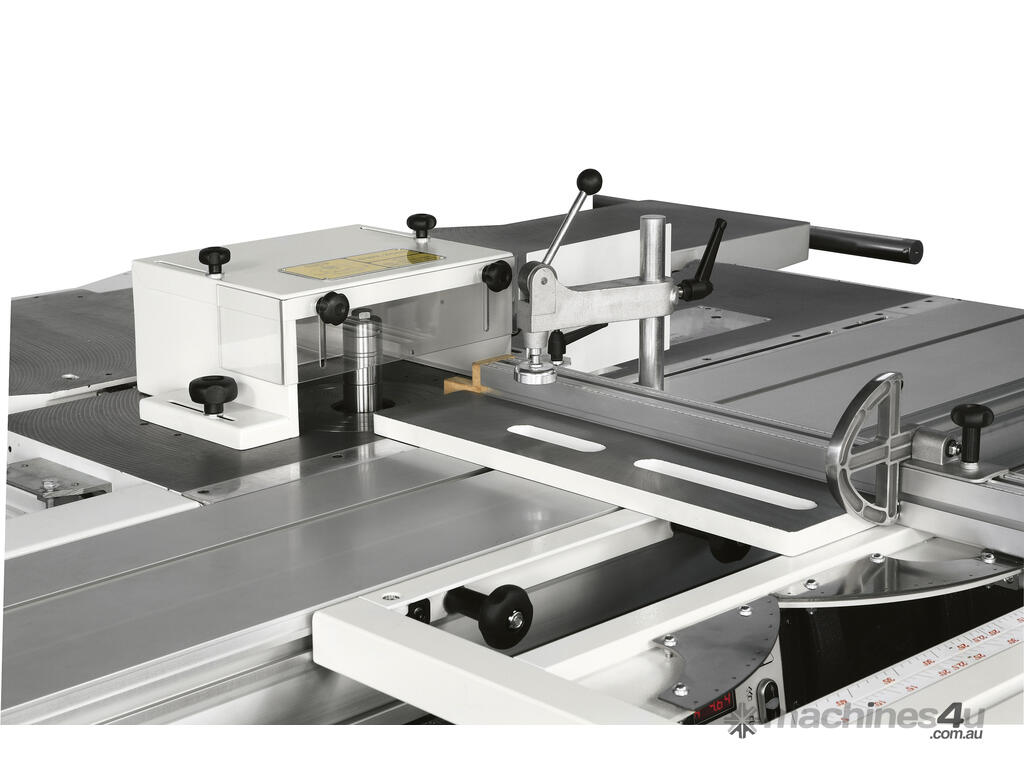

As option it is available the spindle moulder hood that uses a system for adjusting the guides with a rack and it is fitted with a mechanical digital readout. Thanks to the system of memories the hood can be removed and repositioned without losing the machining position. The maximum tool diameter during moulding operations is 240 mm.

Technical data
st 4e
Max. sawblade diameter with scoring blade installed mm / inches 315 / 12
Max. sawblade projection from table at 90°/45° mm / inches 100/70 3.94/2.75

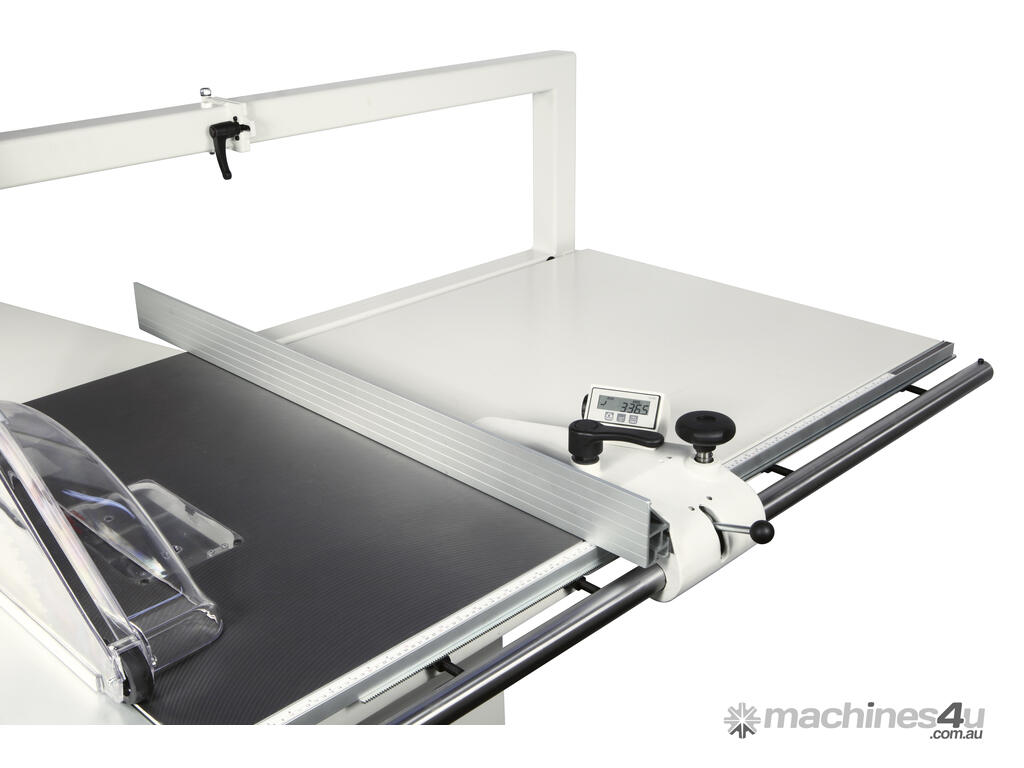

Cutting width on parallel fence (Rip capacity) mm / inches 1270 / 50
Max squaring stroke of sliding table saw mm 2600 or 3200
Max. useful spindle length mm / inches 125 / 3.5
Spindle moulder speed rpm 1700/4000/7000/9000
Max. tool diameter when profiling mm / inches 210 - 240 / 8.26 - 9.45
Max. tool diameter lowered under the table at 90° mm / inches 240 / 9.45
Max. tool diameter when tenoning mm / inches 275 / 10.82
Single-phase or Three Phase available
