SCM Minimax St5ES Saw Spindle Combination

The SCM Minimax ST5ES Panel Saw with Spindle Moulder is Proudly Made in Italy.

This is a saw-spindle moulding machine with professional technical solutions adopted to give it unrivalled performance and reliability.

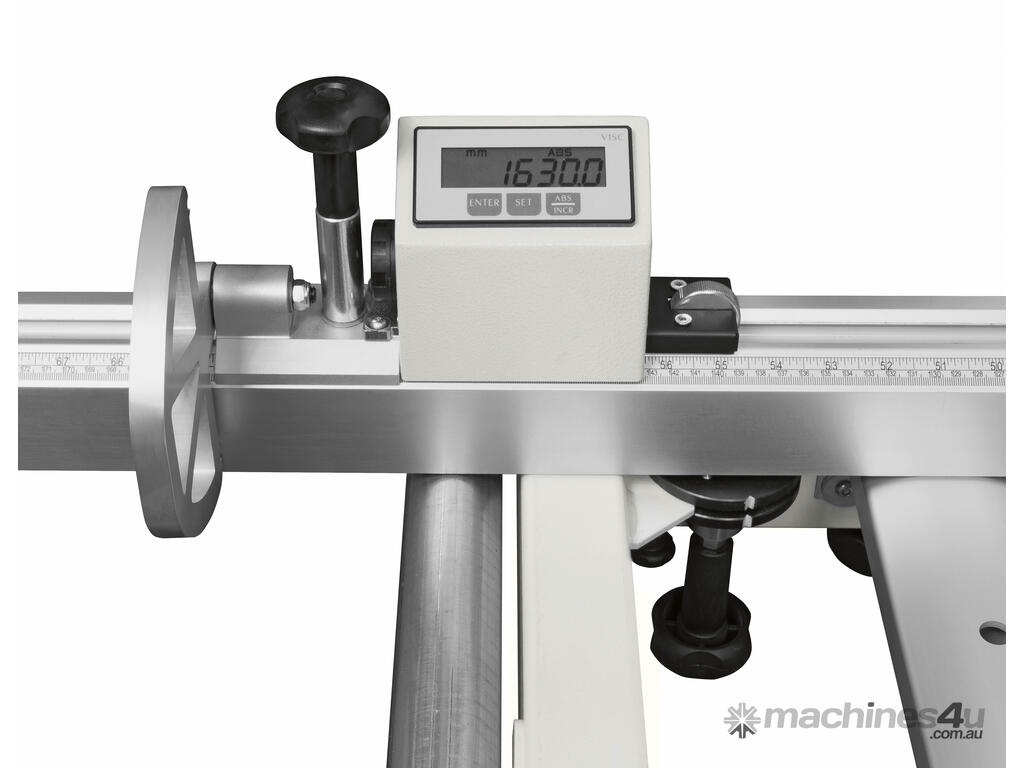

Top-tier performance. Sliding tables of 2250 /2600 or 3200mm in length, multi-speed saw unit, integrated power feeder mount, digital-mechanical or LED readouts with powered movements (in three-phase configuration). The most advanced saw/shaper on the market.

Advantages

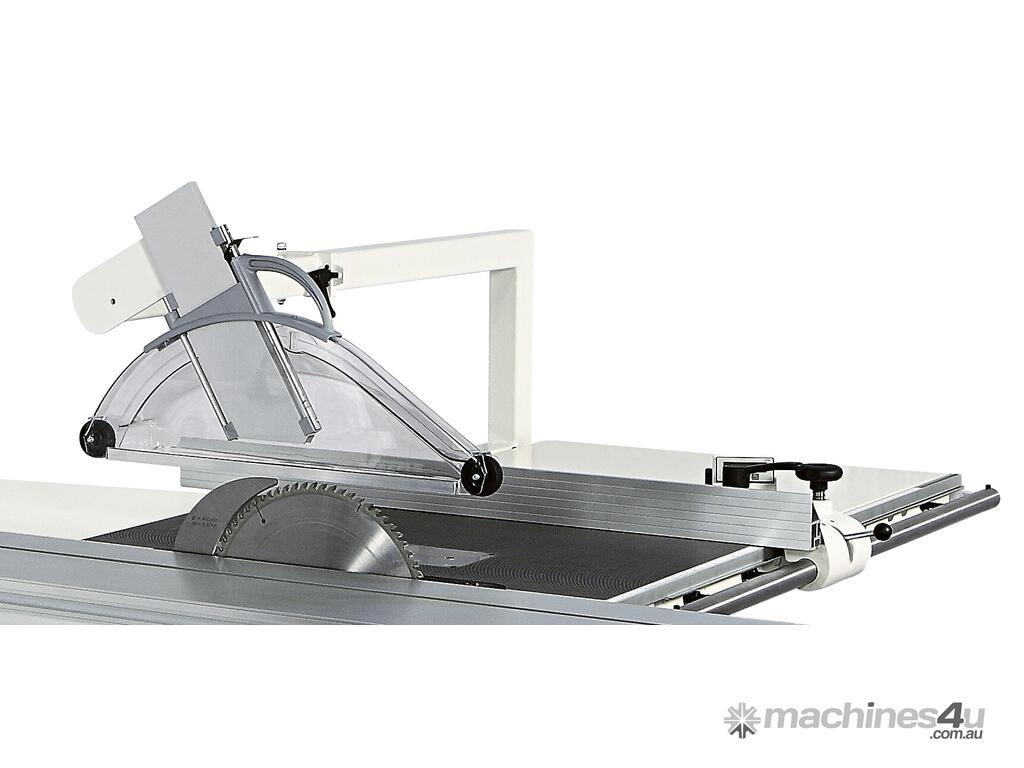

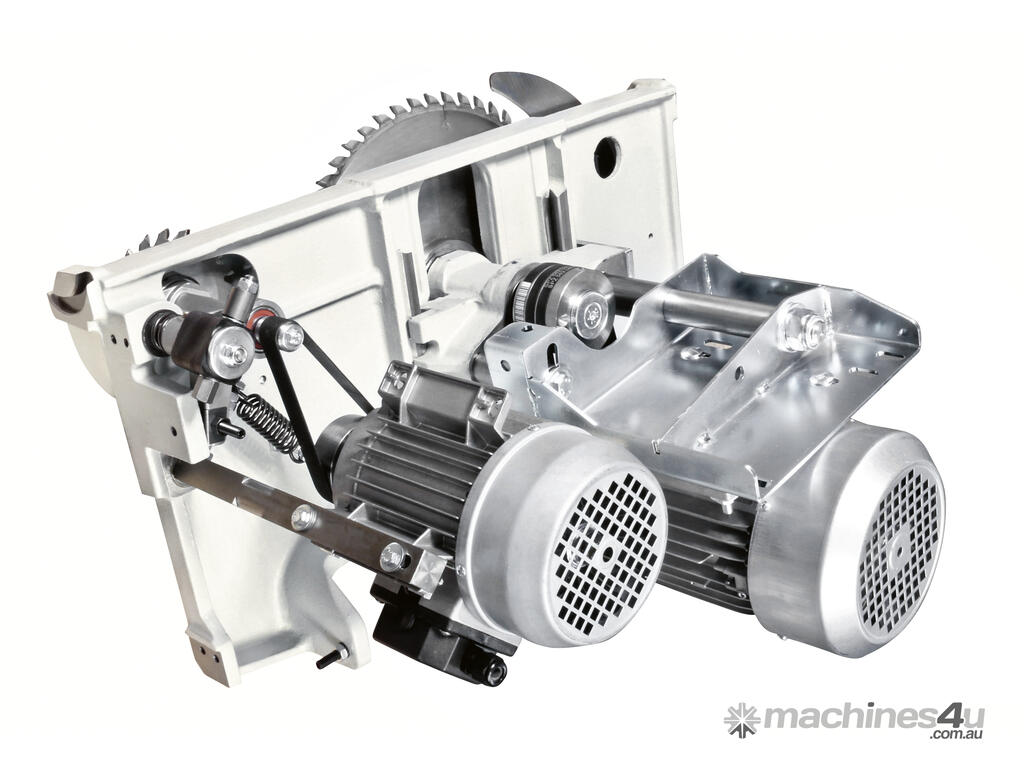

Unique in the world in its category! The cast iron saw unit with a rigid closed loop structure can accommodate a blade of max. 400 mm diameter (for si 400es and Nova si 40) with the scoring blade mounted, ensuring perfect and easy cutting of veneer panels and thick solid wood material. The saw blade uses 100% of the motor power, thanks to the scoring blade with an independent motor as standard. The rotation fulcrums of the saw unit have a 120 mm diameter and stand on steady crescent shaped rests that separate it from the base: a rigid reliable solution.

Unrivalled cutting finishing
Optimal support also to larger pieces, with the sliding table 360 mm wide. Exceptional precision and smoothness: to secure the guides it is not used glue, since the thickness could affect sliding. They are secured with a procedure of aluminum riveting.

Unsurpassed moulding

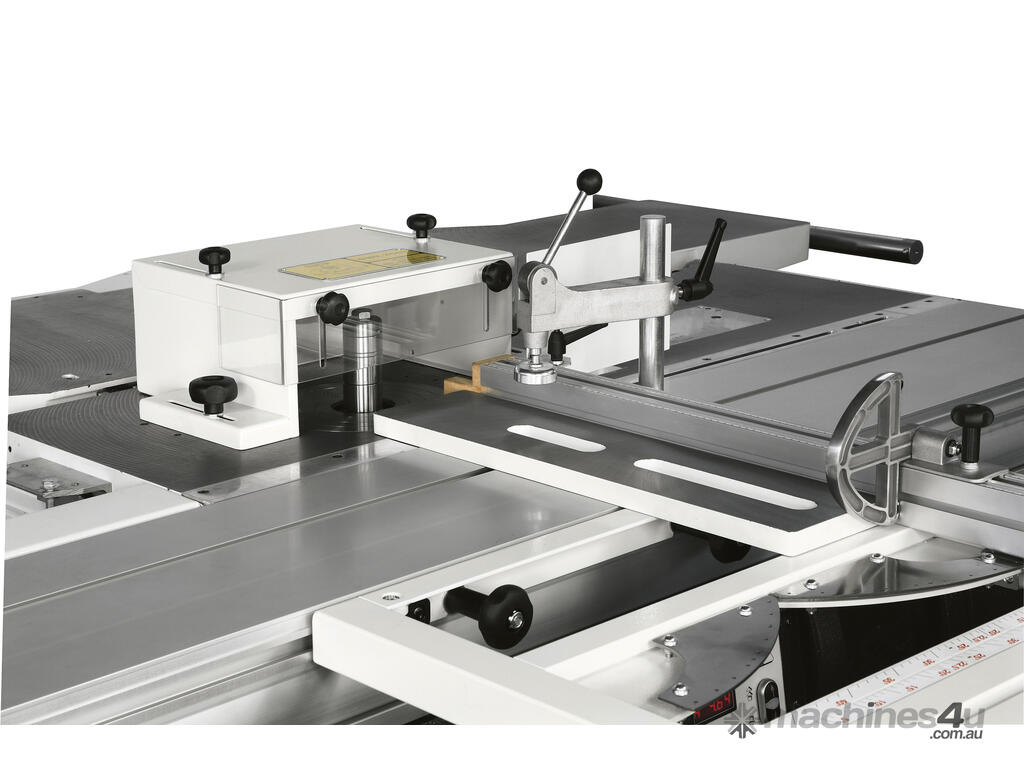

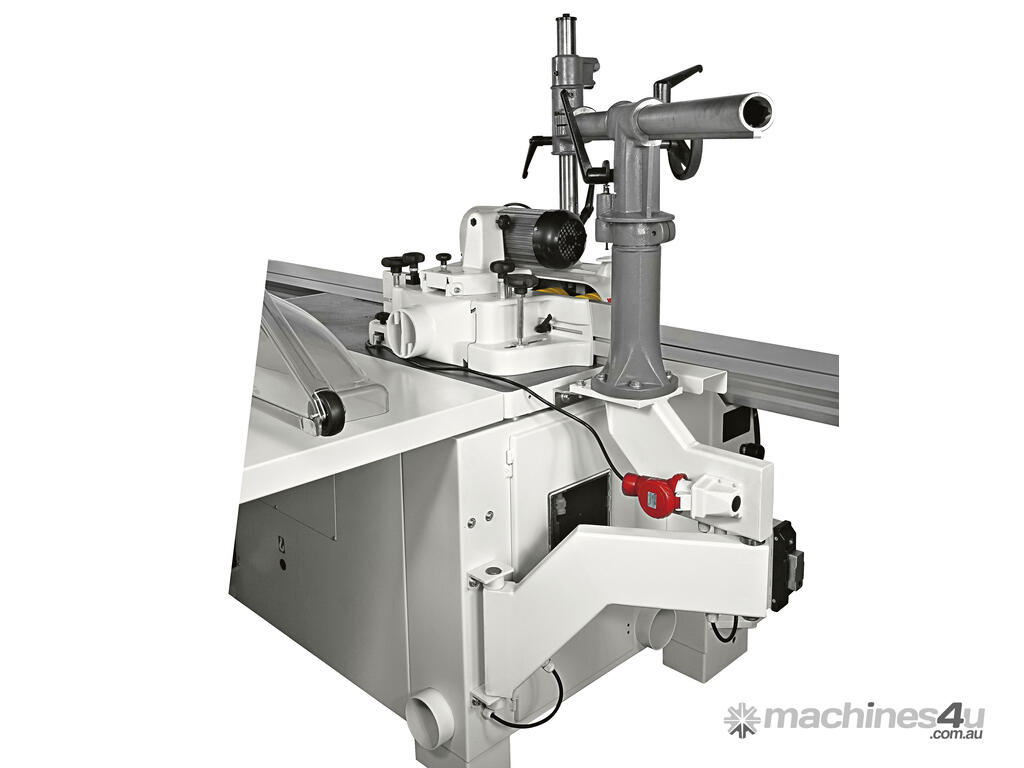

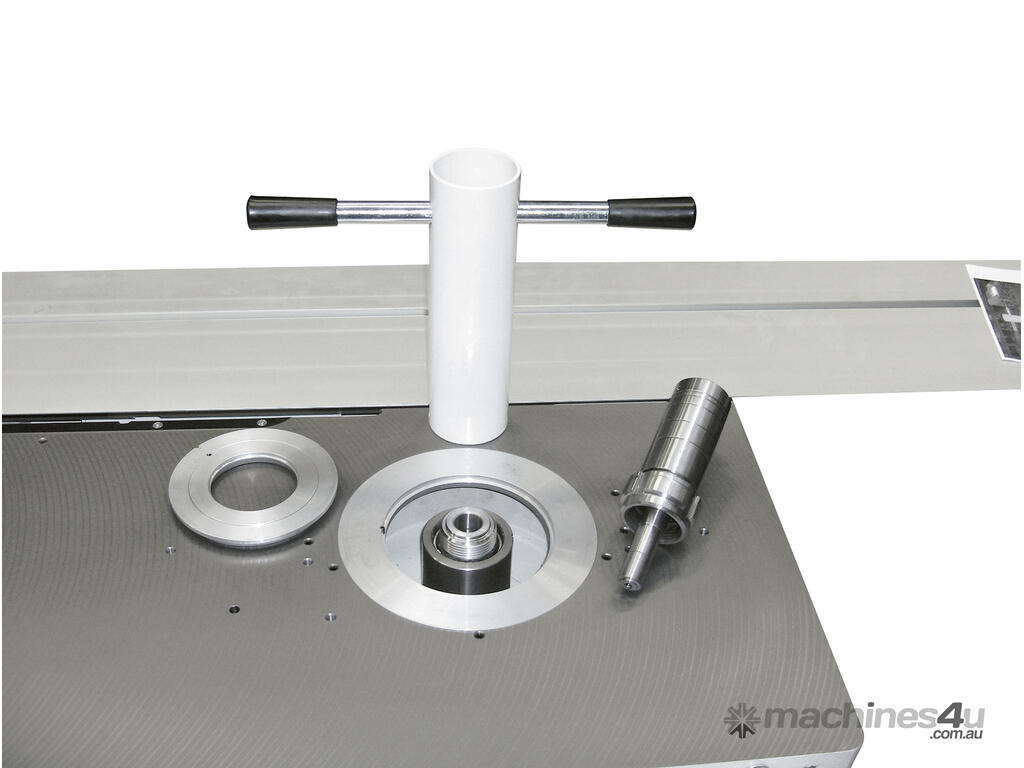

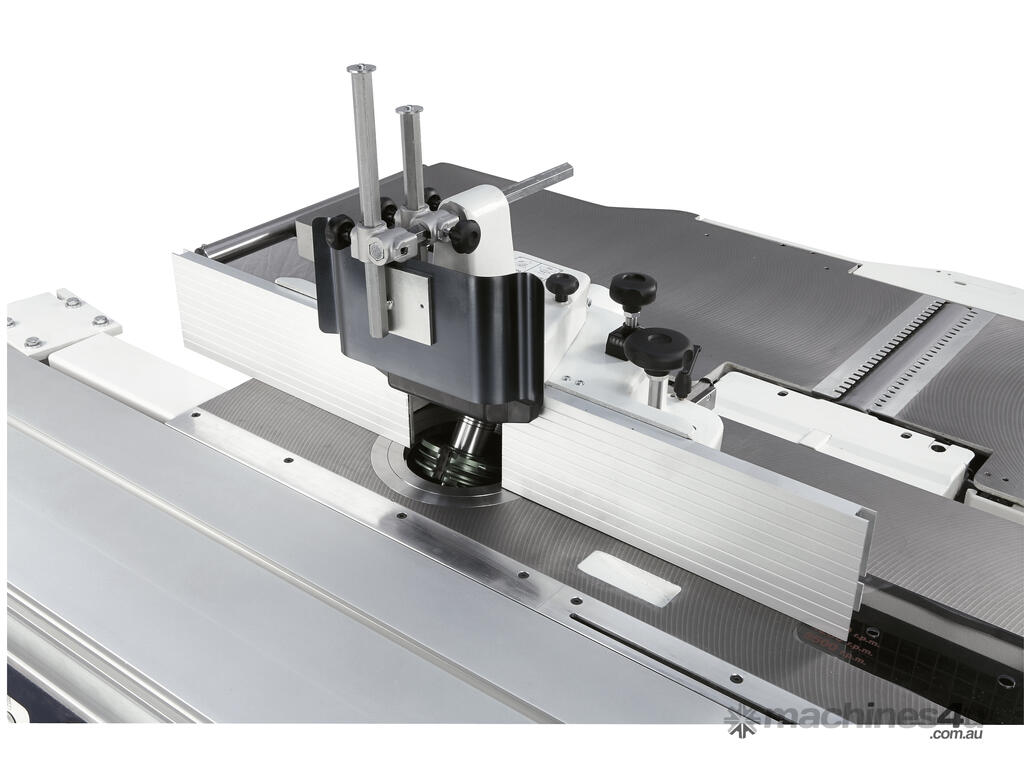

Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit tools u to 320 mm of diameter (300 mm no CE).

Immediate control

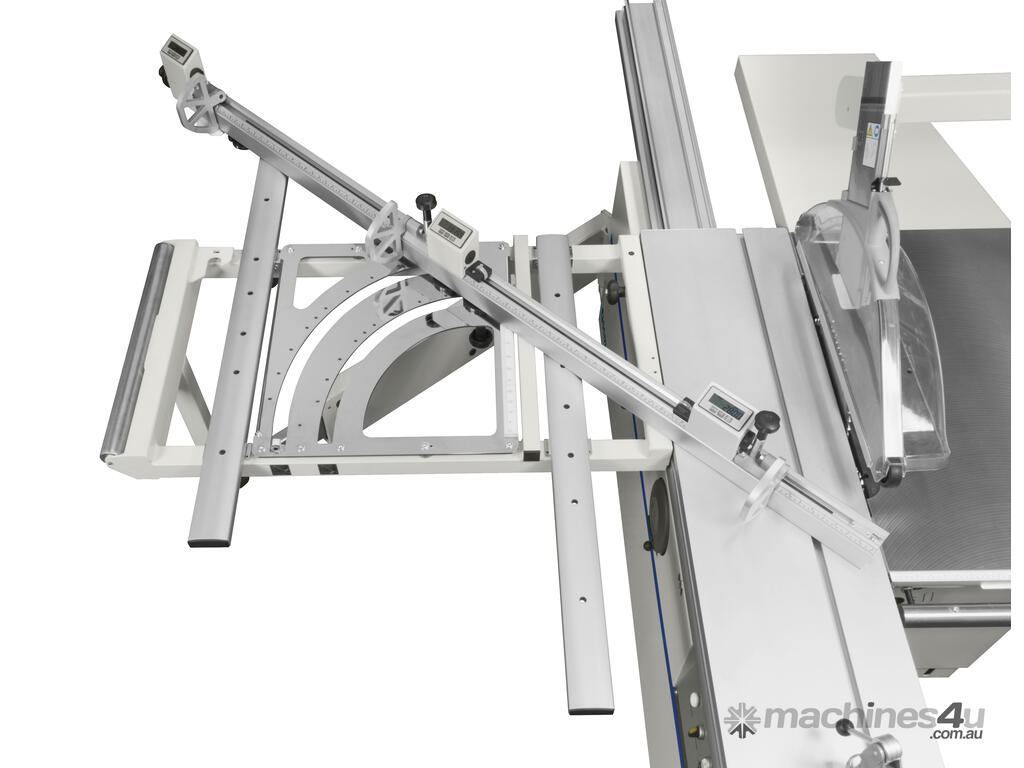

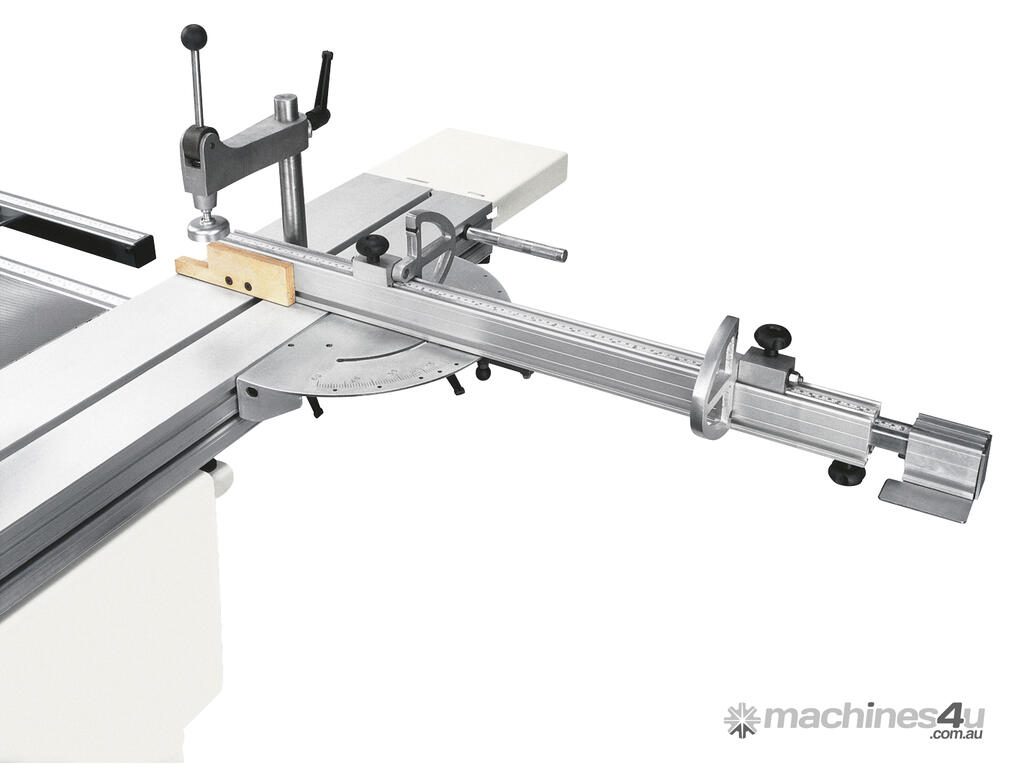

Panel loading is easy on the large squaring frame with an idle roller at the end. The telescopic squaring fence with the inclined metric scale and two reversible stops can be used to square panels measuring 3200 x 3200 mm and for miter cuts at up to 45° on both sides of the frame.

Technical data
st 5es
Max. sawblade diameter with scoring blade installed mm 350
Max. sawblade projection from table at 90°/45° mm 118/84

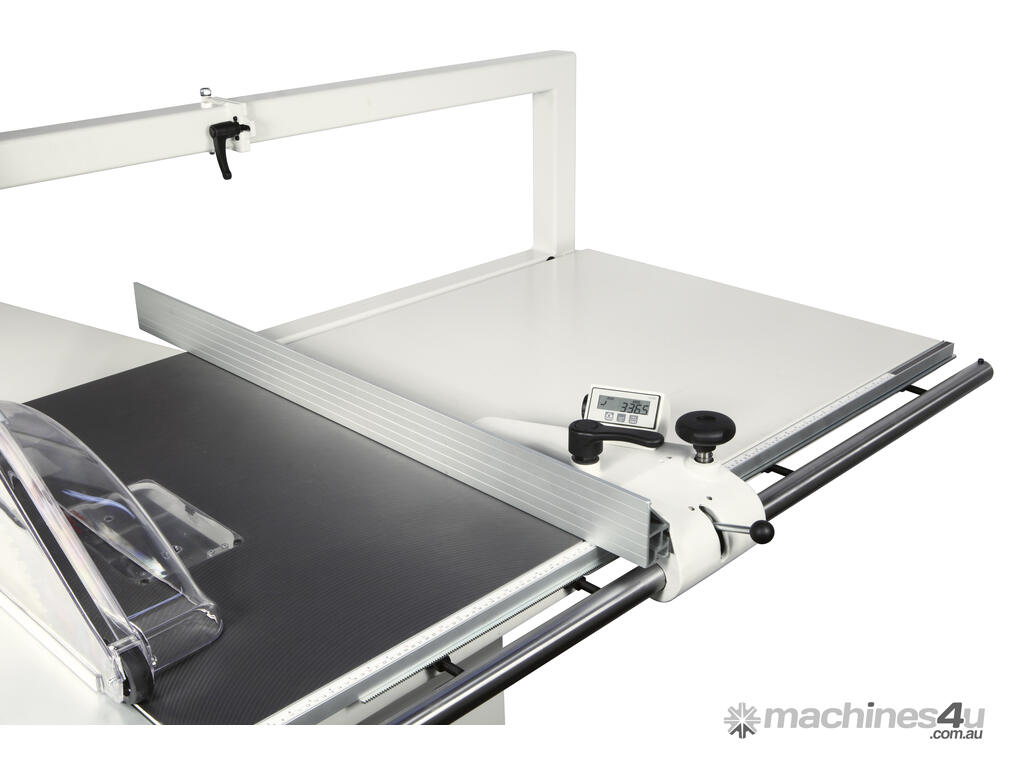

Cutting width on parallel fence mm 900 ÷ 1270
Squaring stroke mm 2250 ÷ 3200
Max. useful spindle length mm 125
Spindle moulder speed (a 50 Hz) rpm 3500/6000/8000/10.000
Max. tool diameter when profiling mm 240
Max. tool diameter lowered under the table at 90° mm 240
Max. tool diameter when tenoning mm 320 (300 no CE)
Three-phase motors starting from kW/Hz 5 (6) / 50 (60)
