SCM Minimax f 52 elite s Surface Planer / Jointer

SCM Italian Made Minimax F52 Elite S is designed to give you the benefits of a 520mm planer without breaking the Bank!

The new Elite S surfacing planer with 520 mm working width, professional, massive and compact, for a high-flexible production; ideal for the demanding craftsman and carpentry.

Discover the SCM Patented "Xylent" Spiral cutter head, on this machine.

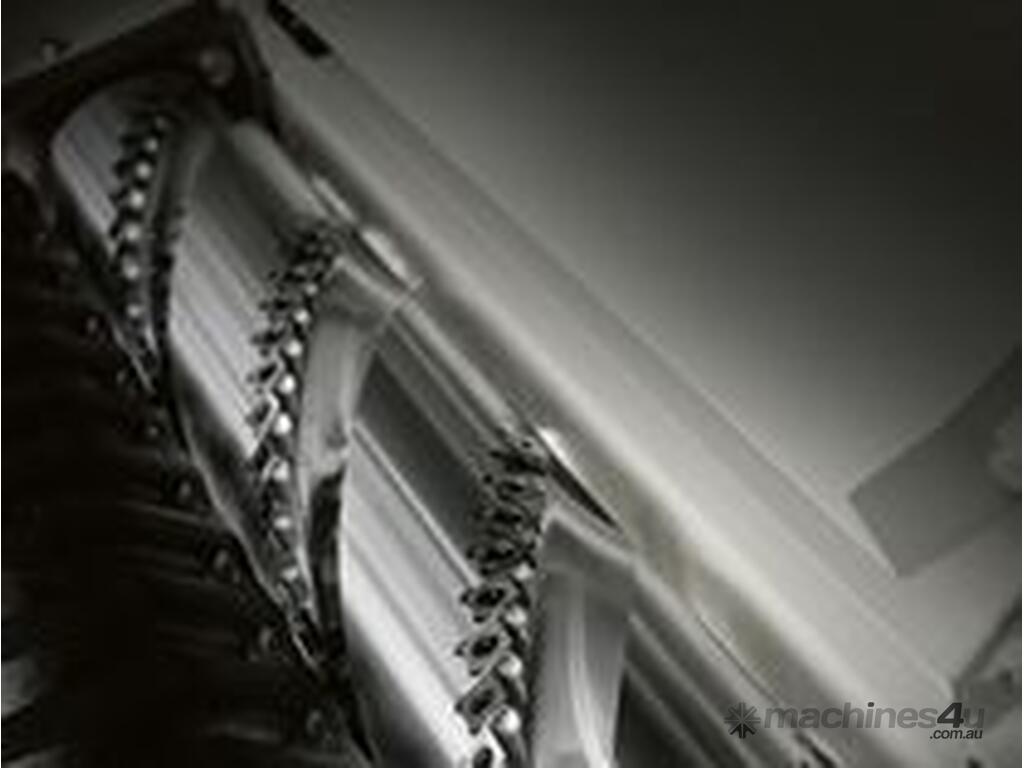

“Xylent” spiralknife cutter block with 3 rows of knives
The 3 spiral knives give an exceptional finish. Reduced noise during machining provides a more comfortable working environment. It also improves the dust extraction due to the production of very small chips. Each cutter has 4 tips which can be rotated into the cutting position when worn. Therefore increasing the production life of the cutter block before knives require replacement.
Advantages:
Optimal planning with minimum effort, with the 120 mm spindle diameter and 4 knives.

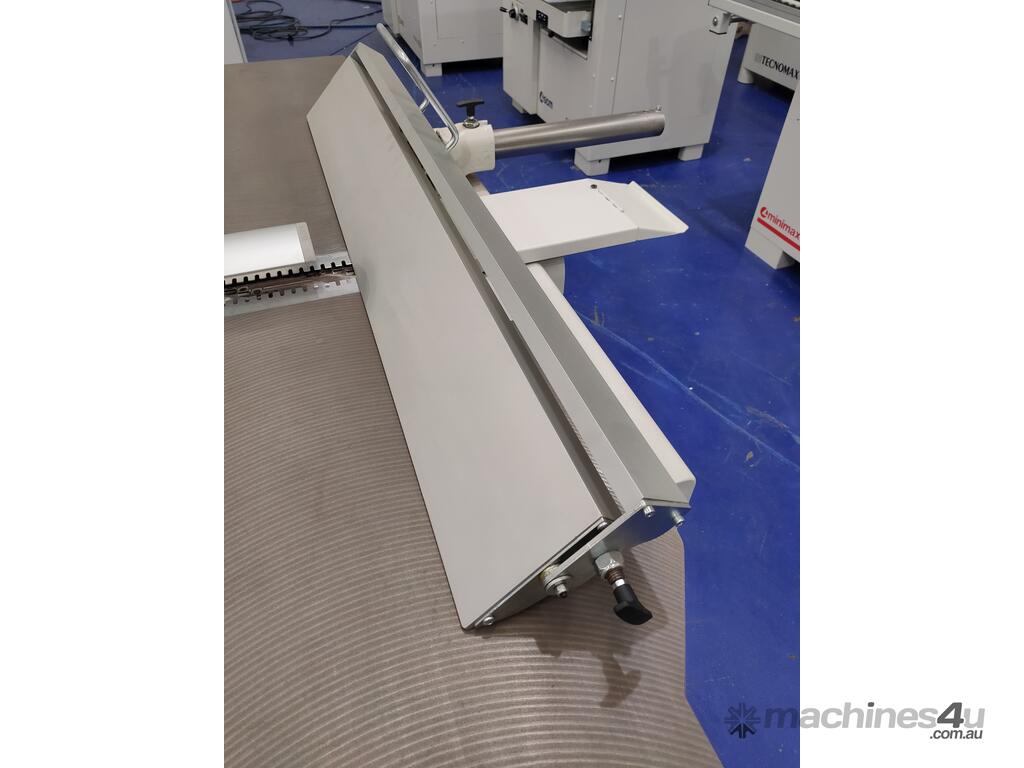

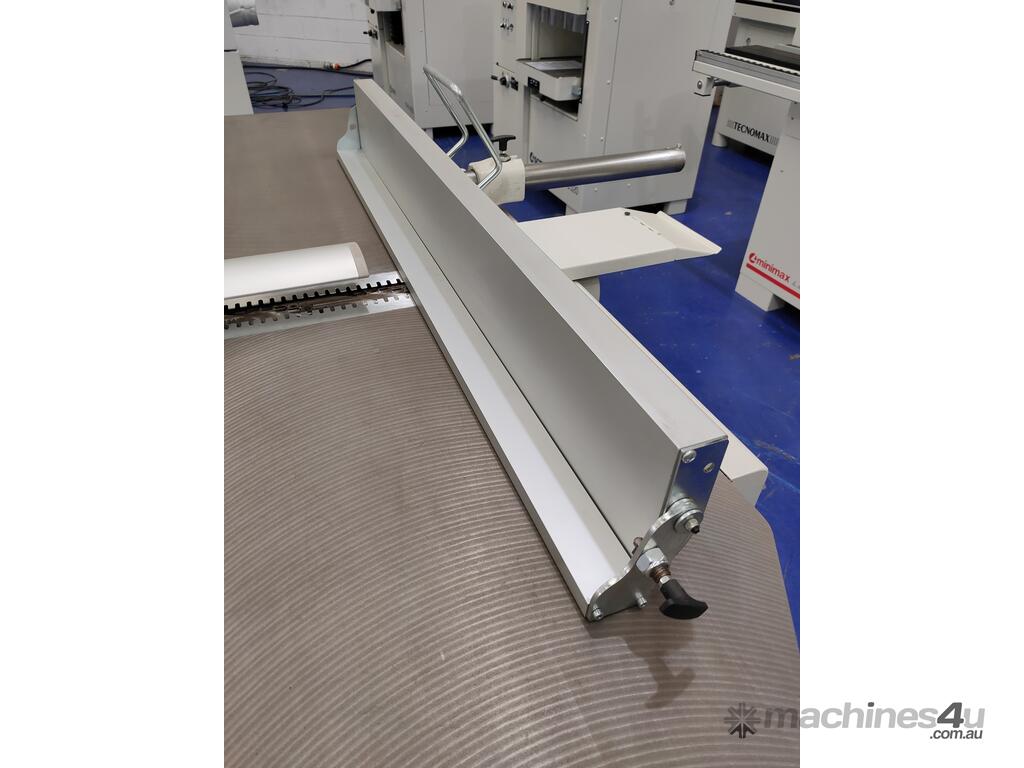

Total safety and control, high rigidity fence with a smooth movement due to the central locking on round bar.

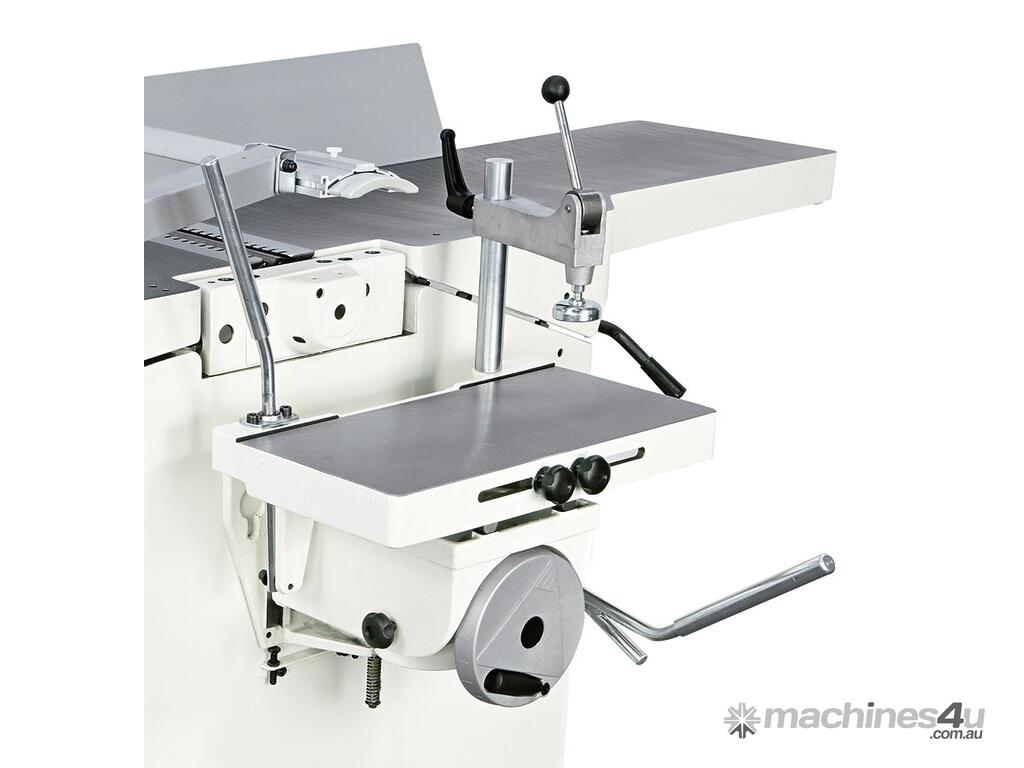

More versatile with the practical mortiser (option).

Technical data:
f 52 elite s
Working width 520 mm
Cutter block diameter / standard knives 120 mm
Max. stock removal 8 mm
Surfacing tables total length 2250 m/min
Three-phase motor starting from 5kW (6,6hp) 50Hz
