New SCM Borer Doweler for sale - SCM Multitech Plus

Semi-automatic multi-spindle 3-head boring machine

Heads with 21 spindles.
Version with two vertical spindles for shelves boring and one horizontal spindle.

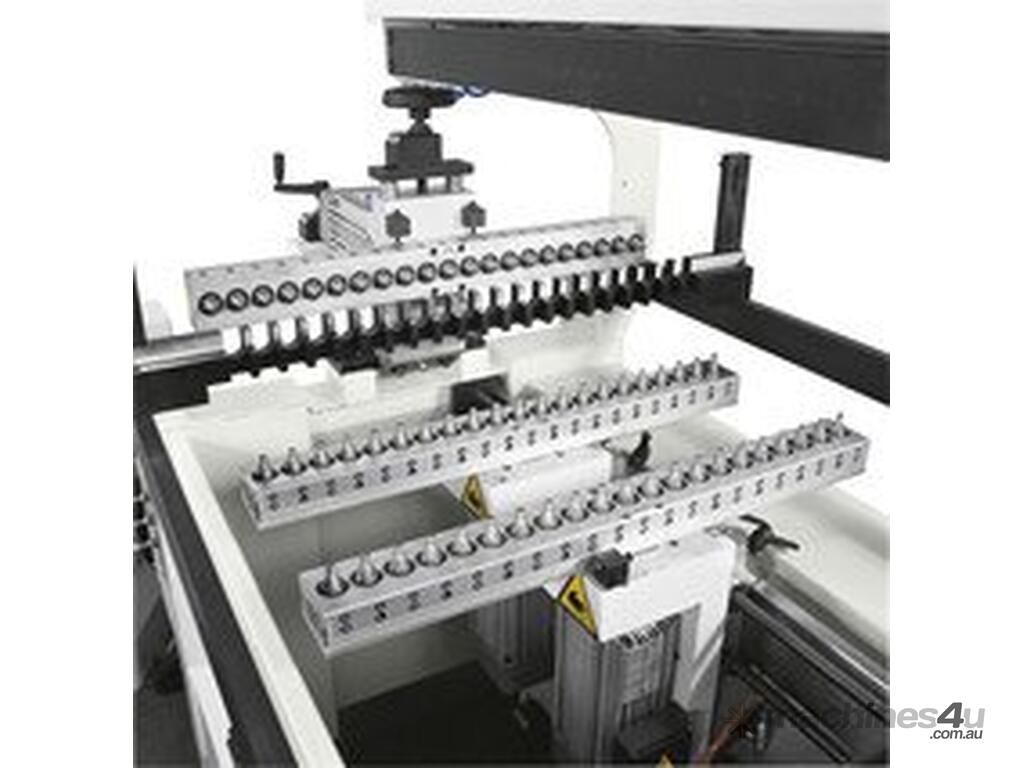

This is a semi-automatic easy to use multi-boring machine with TWO rotating vertical heads. These heads rotate from 0-90° in addition to ONE horizontal head with 21 spindles for quick attachment. This machine is capable of carrying out all of your drilling and boring needs with its sturdy solid steel structure. With quick attachments included, this machine will speed up your setup and running your applications, making you more productive and more money!

Base and working table
Sturdy steel structure with top rotating pressure shoes (0-90°).

Operating unit
independent boring units that can be positioned by means of endless screws with bronze bushes with the handwheel and mechanical numerical readout 4+4+4 drilling bit holder bushes for quick attachment

Workpiece and operating unit movement
Boring depth adjustment of vertical units from 0 to 90 mm with mechanical numerical readout
Boring vertical excursion of horizontal unit from 0 to 40 mm, with mechanical numerical readout
Aluminium fence 3000 mm length equipped with four (4) pneumatic stops with manual control

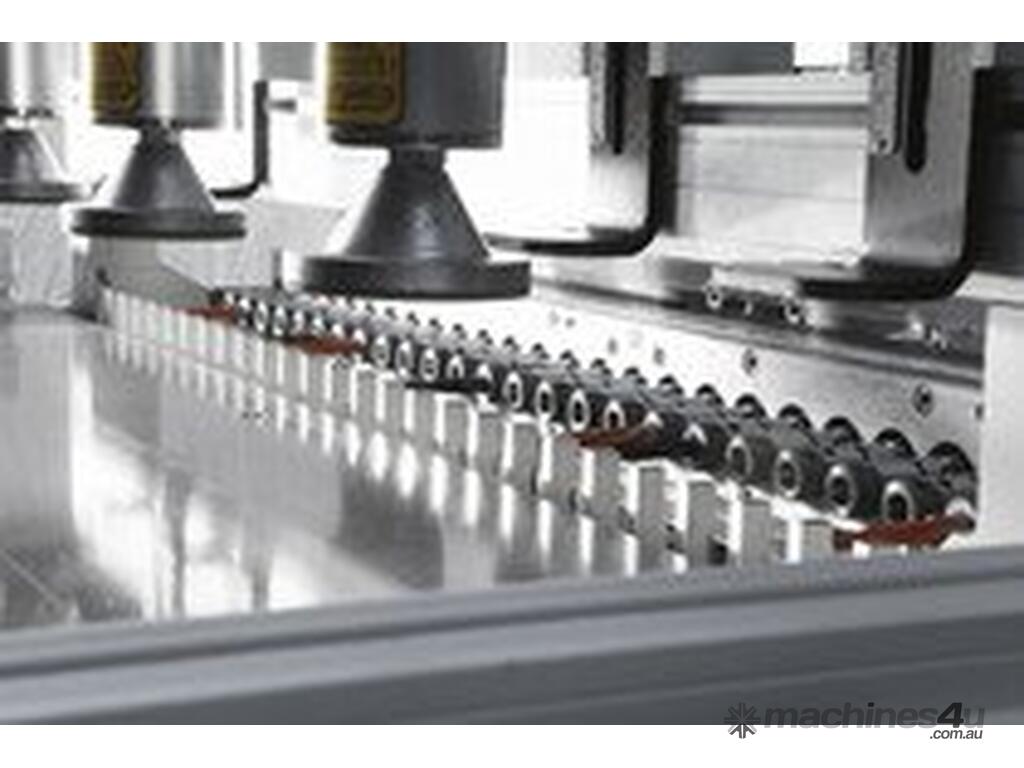

Panel locking thanks to two (2) top rotating pressure shoes (0-90 degrees)

Control panel
From the control panel it is possible:
-to work with both heads
-to exclude one or more boring heads
-to change the feed speed of the multiple boring units
-select manually the pneumatic panel positioning stops
-to start cycle by means of control pedal

Additional Features
12 additional drilling bit holder bushings with 10mm diameter quick attachment feature
Supplementary pneumatic stop (whcih can be installed on the lateral workpiece)
Quick Attachment: 10mm diameter
-Minimum Diameter 4mm
-Maximum Diameter 22mm (*35mm outside of the rack)
-Minimum Length 30mm
-Maximum Length 70mm

Advantages:
Quick attachments for easy setting up. This solution enables a quick tool replacement, essential to move smoothly from one job to another, eliminating downtime.

Very high flexibility thanks to the possibility of rotating the heads at 90°.

The “maximum”... available as standard. Reference guides with 3 metre total length with 4 pneumatic stops.

Technical data:
multitech 3 plus
Spindles n. 21+21+21
Distance between the spindles mm 32
Spindle speed g/min 2800
Max. boring unit stroke mm 90
Max. panel width under the table mm 1200
Motor power kW (HP) 1,1 (1,5)
Pneumatic system operating pressure bars 6-8
Air consumption Nl/cycle 450
Hydraulic brake stroke mm 50
Worktable height mm 910
Net weight kg 750
Overall dimensions mm 2000x1200x1300
