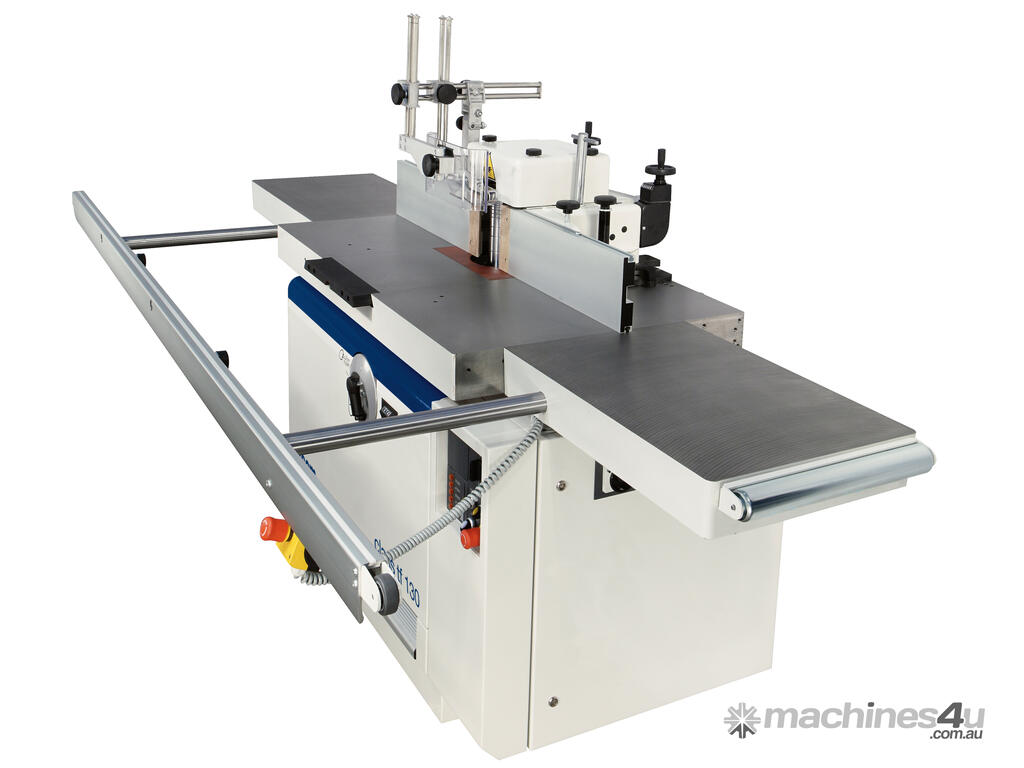

SCM Nova TF110 Spindle Moulder

The SCM Nova TF110 is a precise spindle that is Made in Italy.

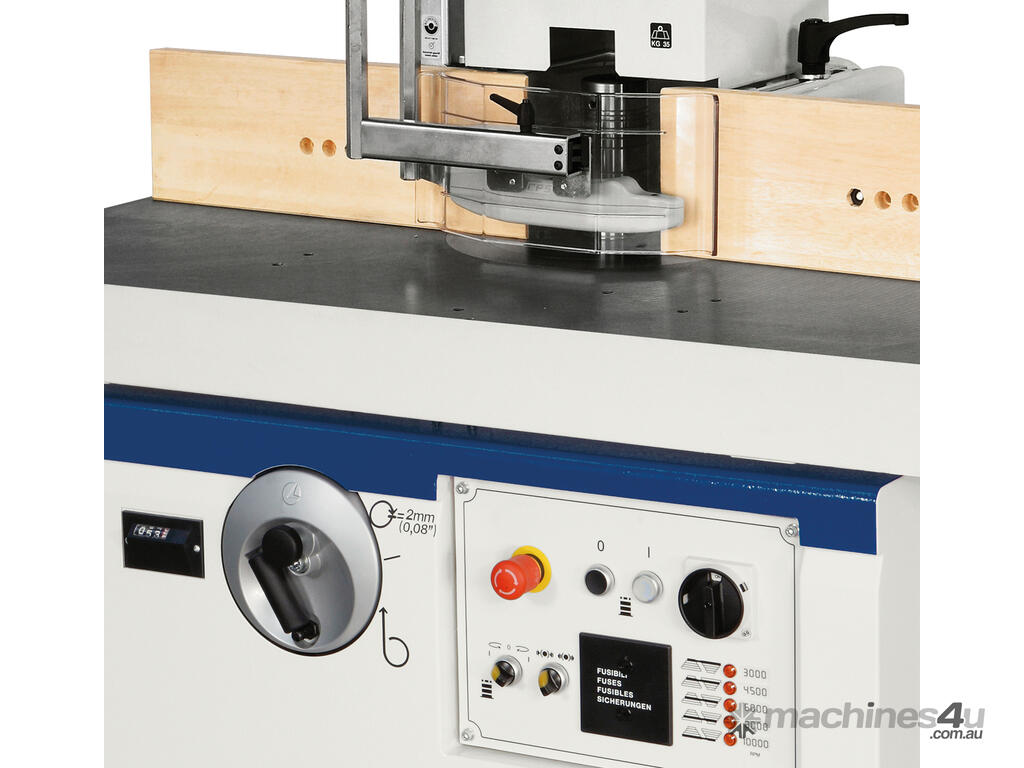

The operator easily adjusts all movements by hand wheel with mechanical decimal readouts located on the front of the machine, this gives them set up precision and reliability.

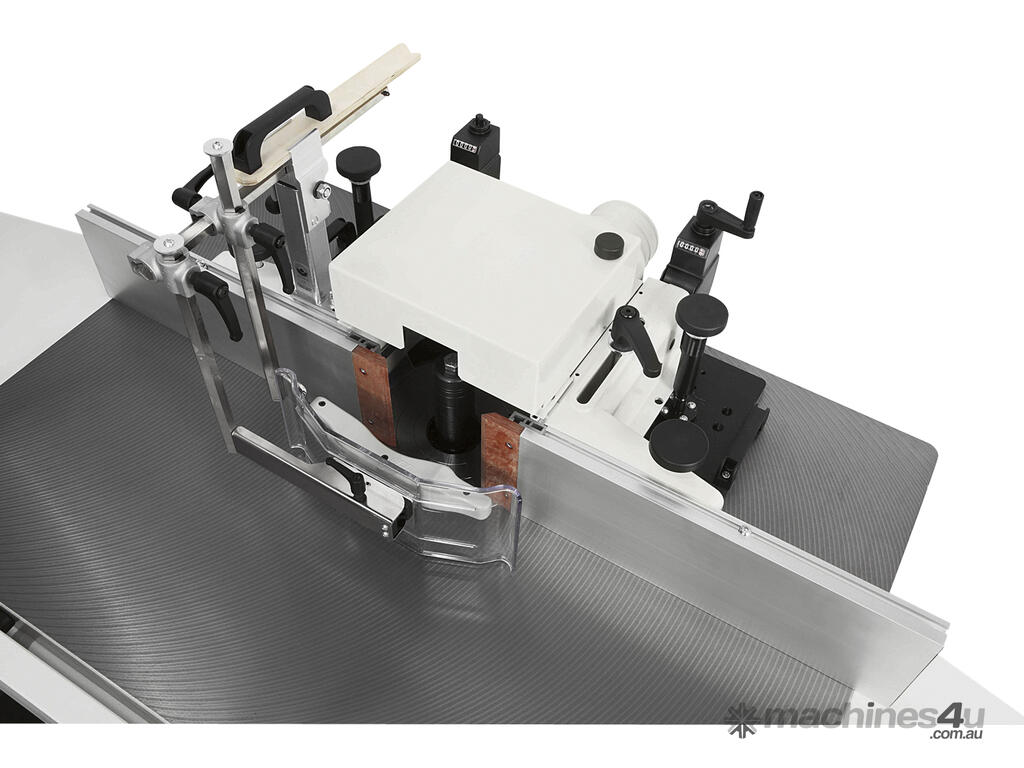

The spindle moulder fence with mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.


Many Configurations on offer

Technical data
Nova tf 110
Max. useful spindle length mm / inches 140 / 5.5
Spindle speed (at 50 Hz) rpm 3000/4500/6000/7000/10000
Max. diameter of the profiling tool mm / inches 250 / 9.8
Max. tool diameter retractable under the table at 90° mm / inches 320 / 12.6
Max. diameter of the tenoning tool with spindle diam. 30-35 (40-50) mm / inches 300 / 11.8
Three-phase motor Hp 10
