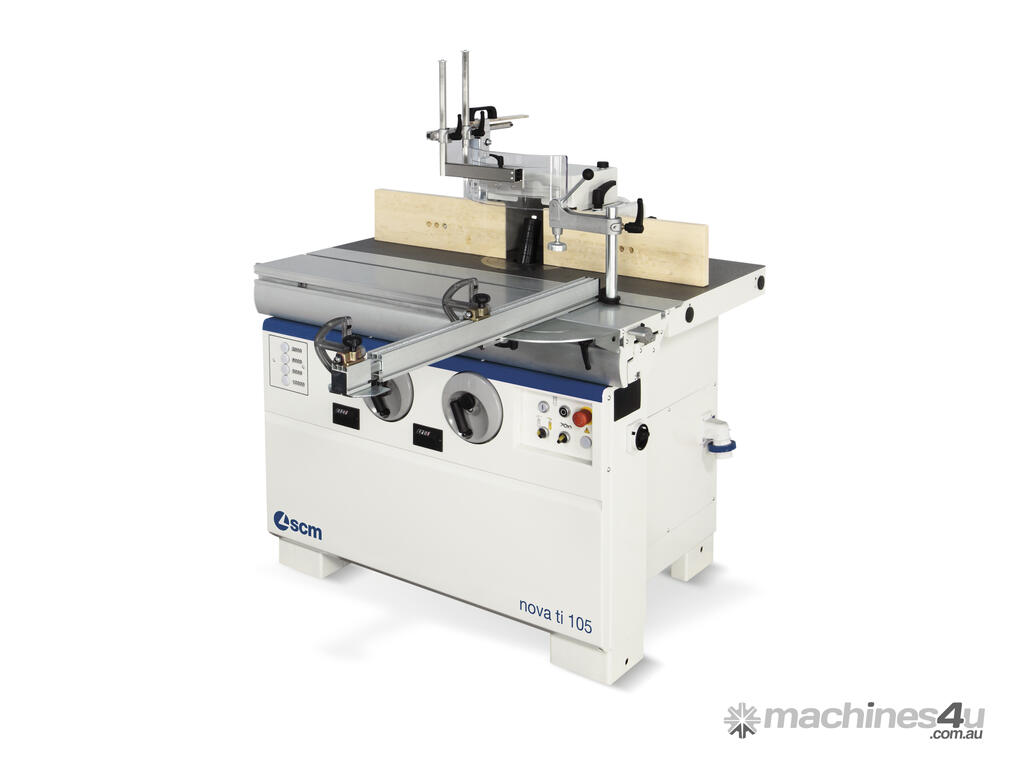

SCM Nova Ti105 Spindle Moulder

The SCM Groups Nova Ti105 Tilting Spindle moulder is proudly Made in Italy.

** Note Video does not show exact model the way its imported into Australia**

It comes with Guaranteed quality at your finger tips.
Easy-to-use, great productivity, efficiency and flexibility are just some of the comments we get told about this piece of equipment.

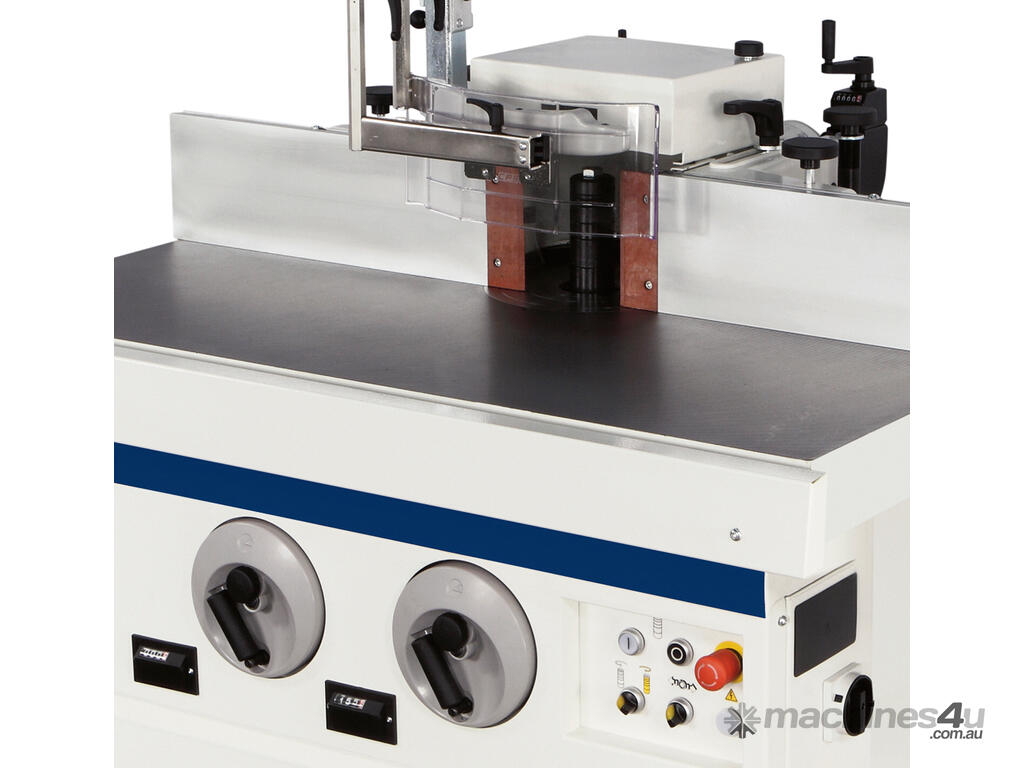

The operator easily adjusts all movements by hand wheels with mechanical decimal readouts located on the front of the machine.

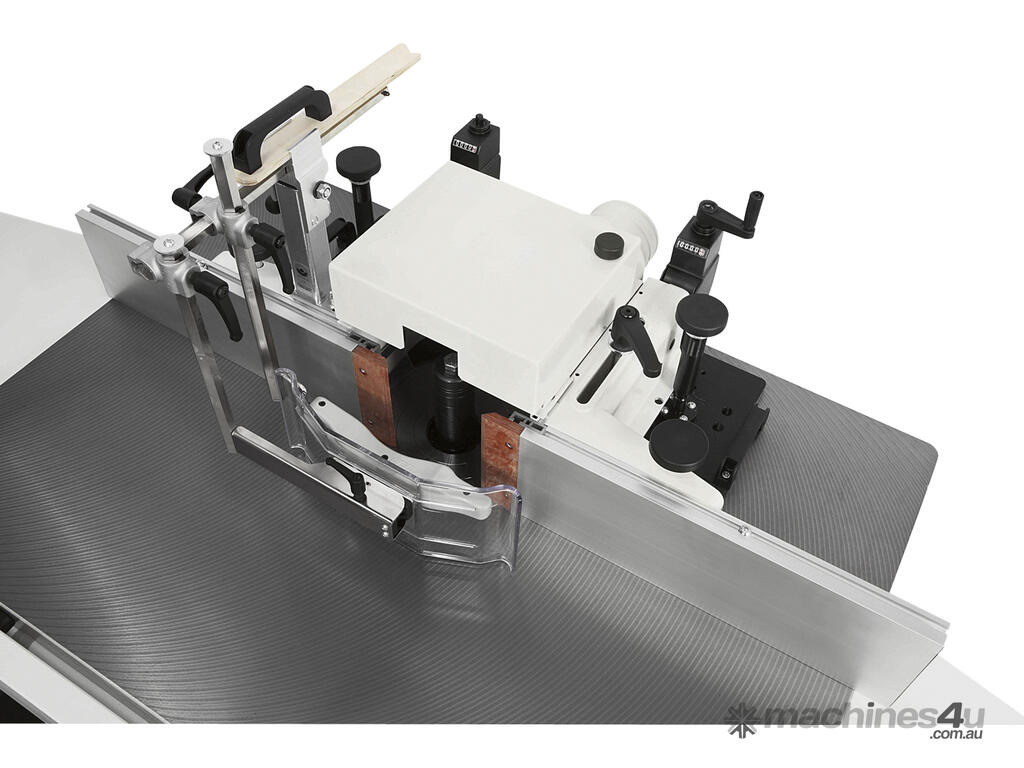

The Spindle moulder fences have mechanical programming: maximum set-up speed and ease-of-use. No more test runs due to digital readouts that ensure accuracy to a tenth of a millimetre in positioning the two worktables.

Maximum stability and rigidity in all working conditions, thanks to a large spindle moulder column made entirely of cast iron. The 4 standard speed are ideal for any type of machining, from moulding to routing and tenoning, with the possibility to fit large diameter tools.

Technical data
Nova ti 105
Max. useful spindle length mm 127
Spindle speed rpm 4000/7000/9000/12000
Max. diameter of the profiling tool mm 240
Max. tool diameter retractable under the table at 90° mm 240
Max. diameter of the tenoning tool CE mm 300
Three-phase motor Hp 11
Sliding Table
Tilting Spindle
