SCM Profiset 40 Planing Machine Moulding Machine

The SCM Profiset 40 is made by the SCM Group in Italy.

Profiset 40

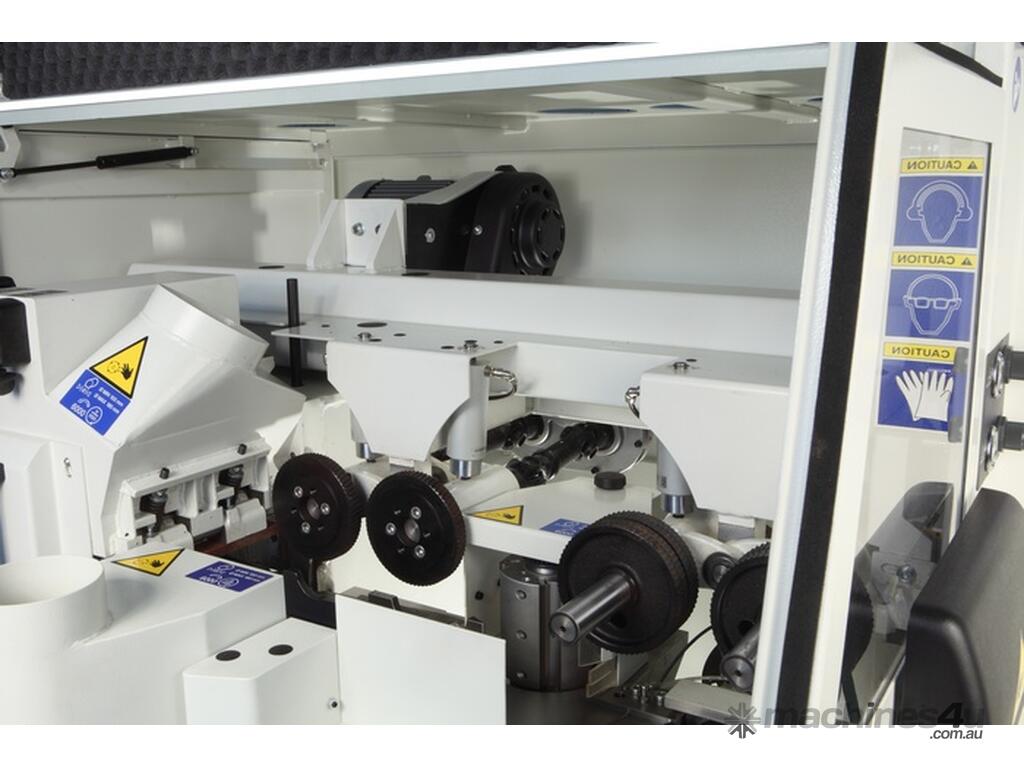

4-spindles automatic planer and through feed moulder with 10 mm profiling capacity by means of vertical spindles

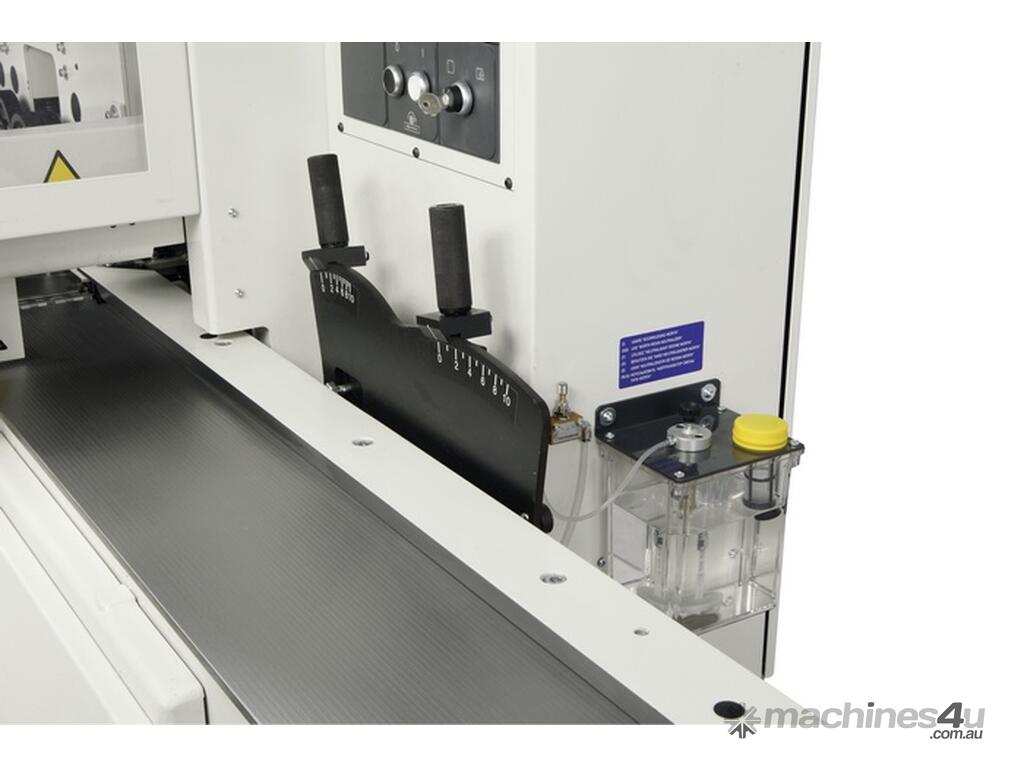

Ergonomics and safety. The operator easily manages every working operation due to all controls at your fingertips. The manual pump for the worktable lubrication positioned in the working area facilitates its use, assuring always the best smooth movement of the work piece.

Profiset 40ep: always ready to use. The Profiset 40ep automatically controls the working sections. The feed speed is equipped with only one push button for the sequential motors start.

Idle roller placed on the table: the best finishing. Improved feeding due to the idle roller placed on the outfeed table, typical feature of industrial level machines.

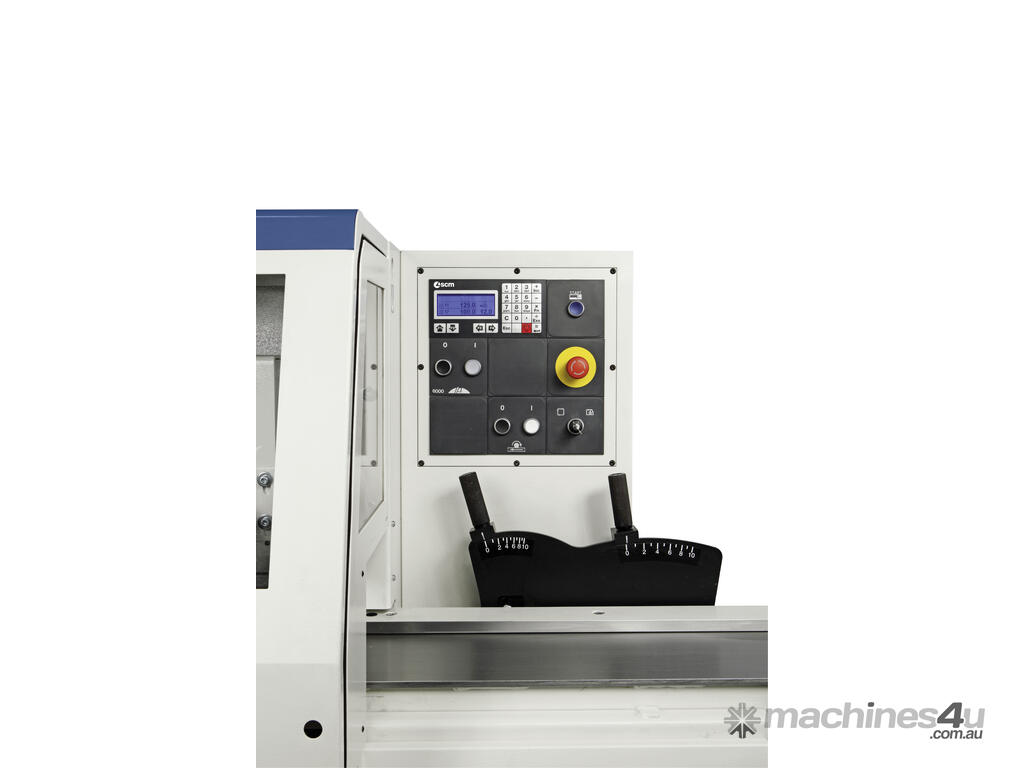

“Ready” electronic control: work programming becomes simple and effective.
• Automatic positioning control of left vertical spindle and top horizontal spindle
• Feed speed programming
• Mode: manual, semi-automatic and automatic with memory capacity up to 99 programs
• Additional functions: calculator and hour counter.

Technical data
profiset 40
Min./max. working width (finished section) mm 23/180
Min./max. working height (finished section) mm 6/105
Feed speed m/min - 6 - 12
Feed speed (variable with inverter) m/min 5/25 -
Spindles speed rpm 6000
Axial adjustment of spindles with respect
to the worktable mm 40 -
