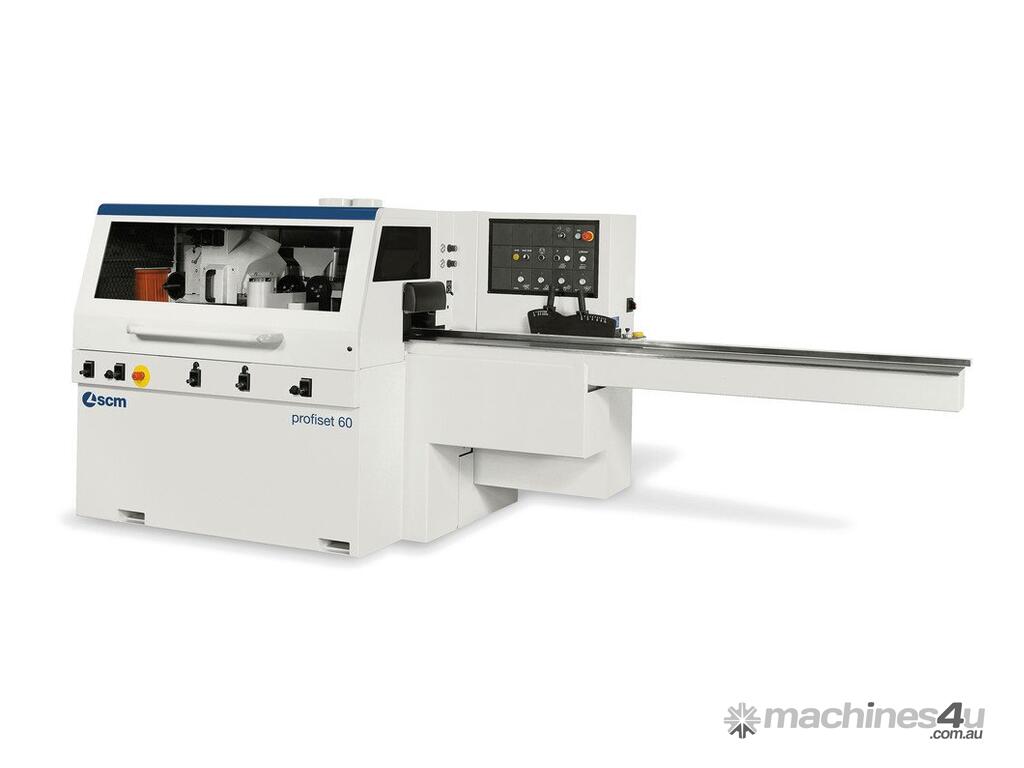

SCM - Profiset 60 Moulding Machine

The SCM Profiset Range of Moulders and 4 Siders are proudly made in Italy.

The Profiset 60 is an automatic planer and through feed moulder up to 6 spindles, available in four compositions with possibility to pre-set the profiling on the top horizontal spindle (option)

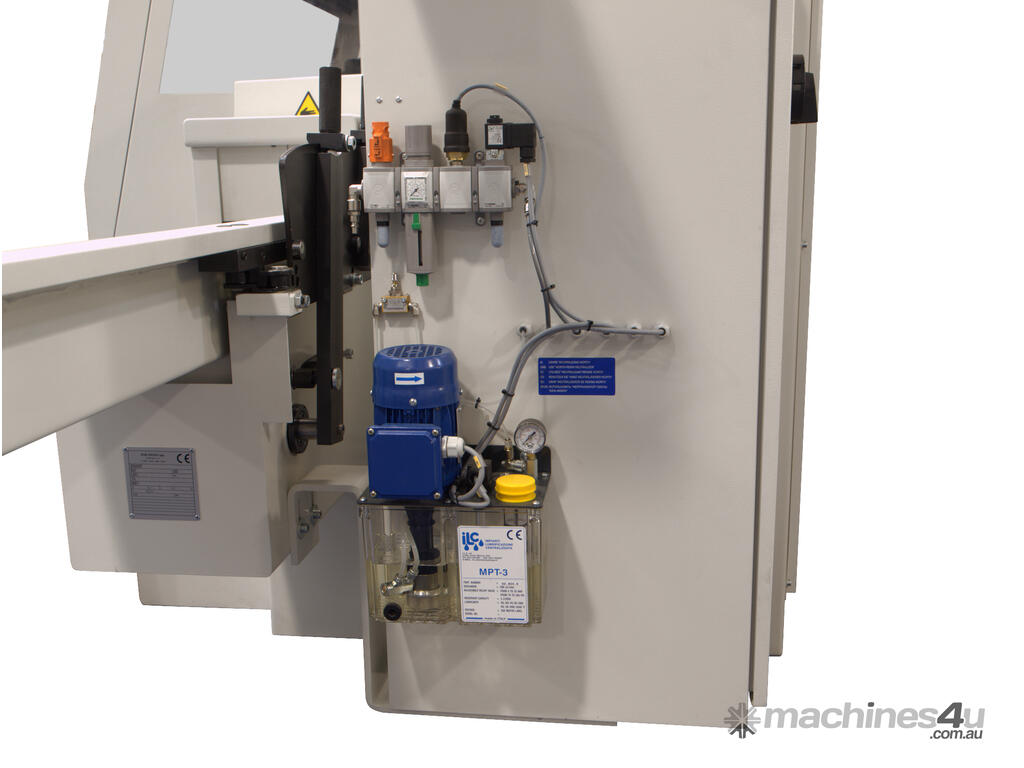

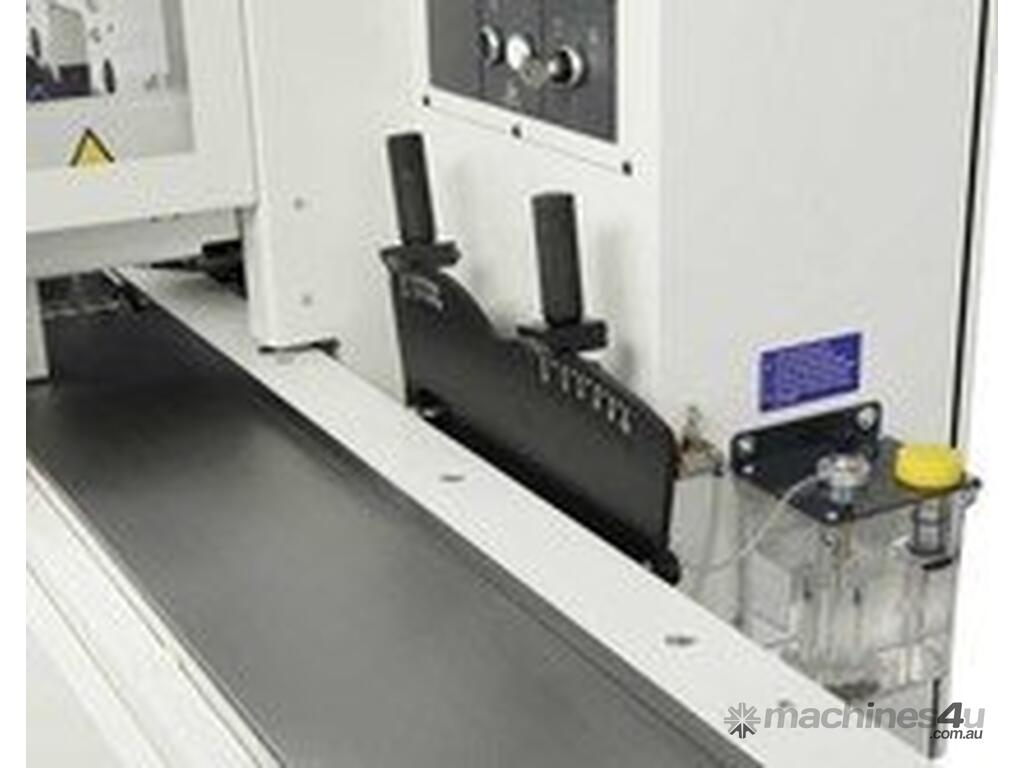

Ergonomics and safety. The operator easily manages every working operation due to all controls at your fingertips. The manual pump for the worktable lubrication positioned in the working area facilitates its use, assuring always the best smooth movement of the work piece.

The optimum feeding: more productivity and improved finishing.

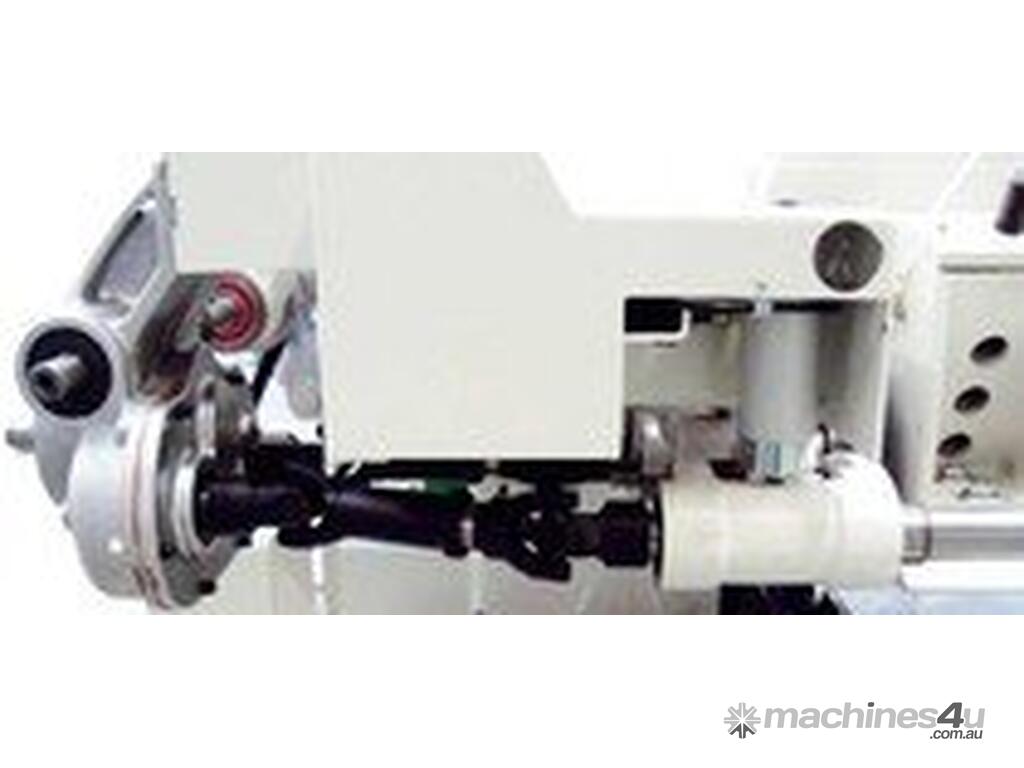

• Gears box drive and cardan joints

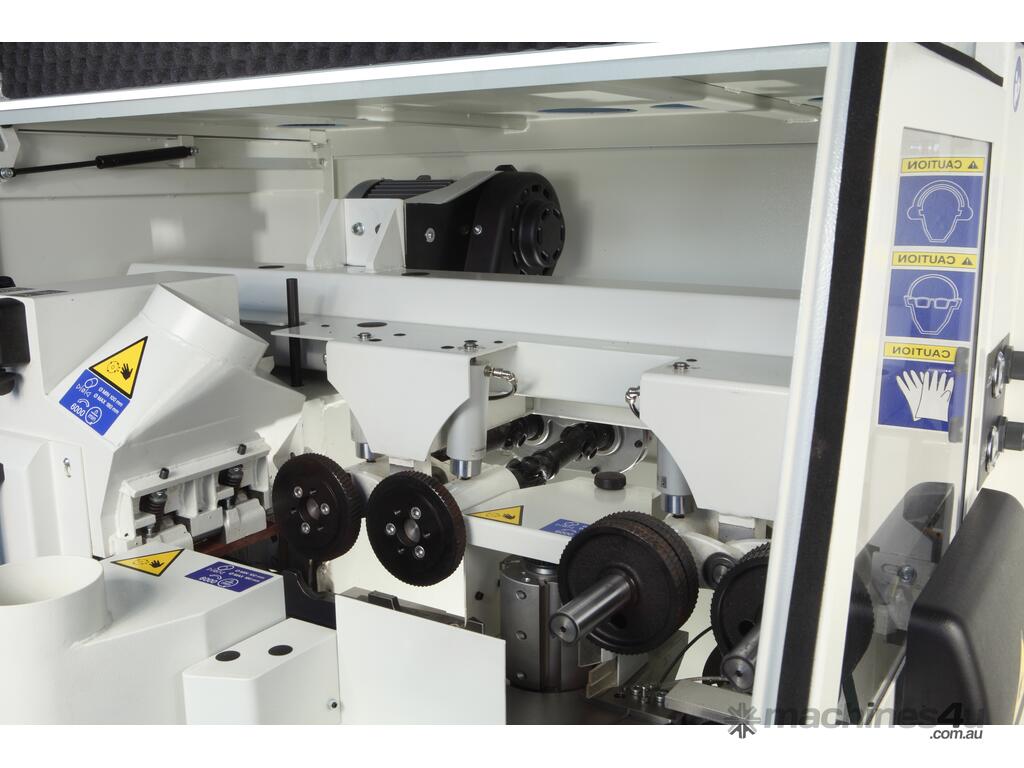

• Pneumatic working pressure on the feed rollers
• Inverter for the step less speed adjustment from 5 to 25 m/min.

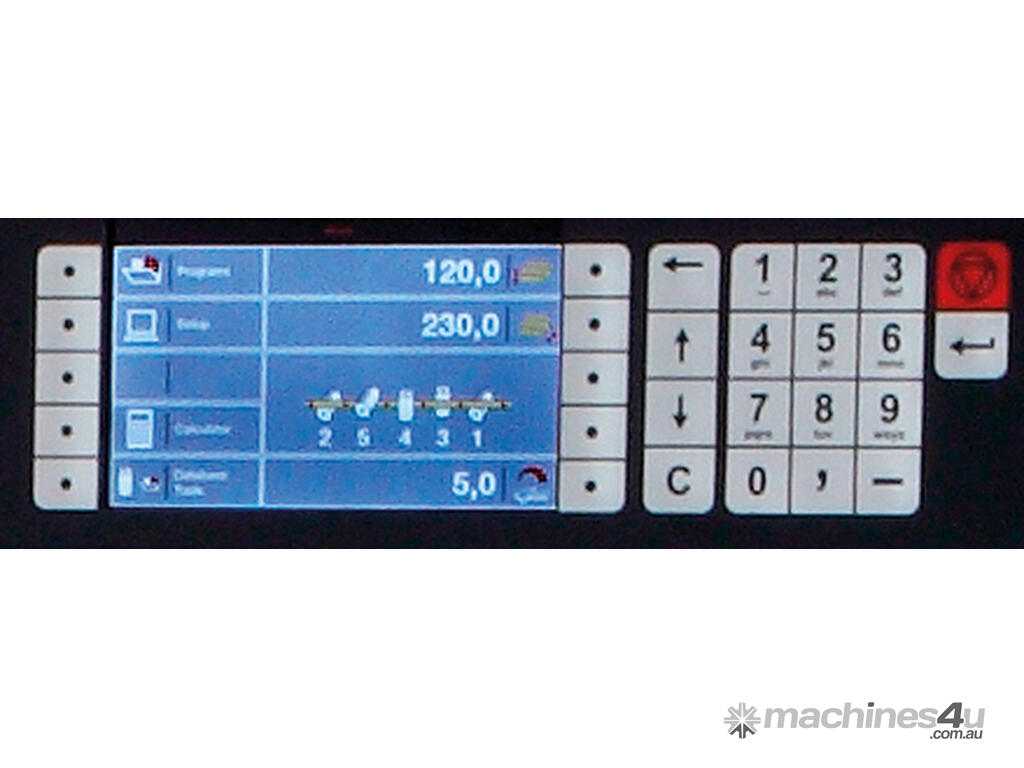

EASY PLUS: the operating advantage for easy assistance. Maximum reliability due to the function pushbuttons and easy-to-use with the electronic control of up to 5 axes with the 7” LCD display, 16:9 format. Integrated and fast control of all dedicated functions. These features translate into immediate improvements in productivity and guarantees the capability of the full potential of the machine.

“T-SET” rapid tool locking device: maximum degree of safety without any efforts. It ensures the locking/unlocking of tools simply through a gun with compressed air.



Technical data:
Profiset 60
Min./max. working width (finished section) mm 25 (15 opt.)/230
Min./max. working height (finished section) mm 6/120
Feed speed m/min - 6 - 12
Feed speed (variable with inverter) m/min 5/25
Spindles speed rpm 6000 6000
Axial adjustment of spindles with respect
to the worktable mm 40
