SCM Sergiani GS-A Flow Through Press

The SCM Groups Sergiani Press's are Proudly Made in Italy.

Press with electronic control and automatic loading/unloading for the coating of panels: the best surface and gluing quality of the pressed product thanks to special technical and construction solutions and the utmost precision of the mechanical machining operations.

Advantages

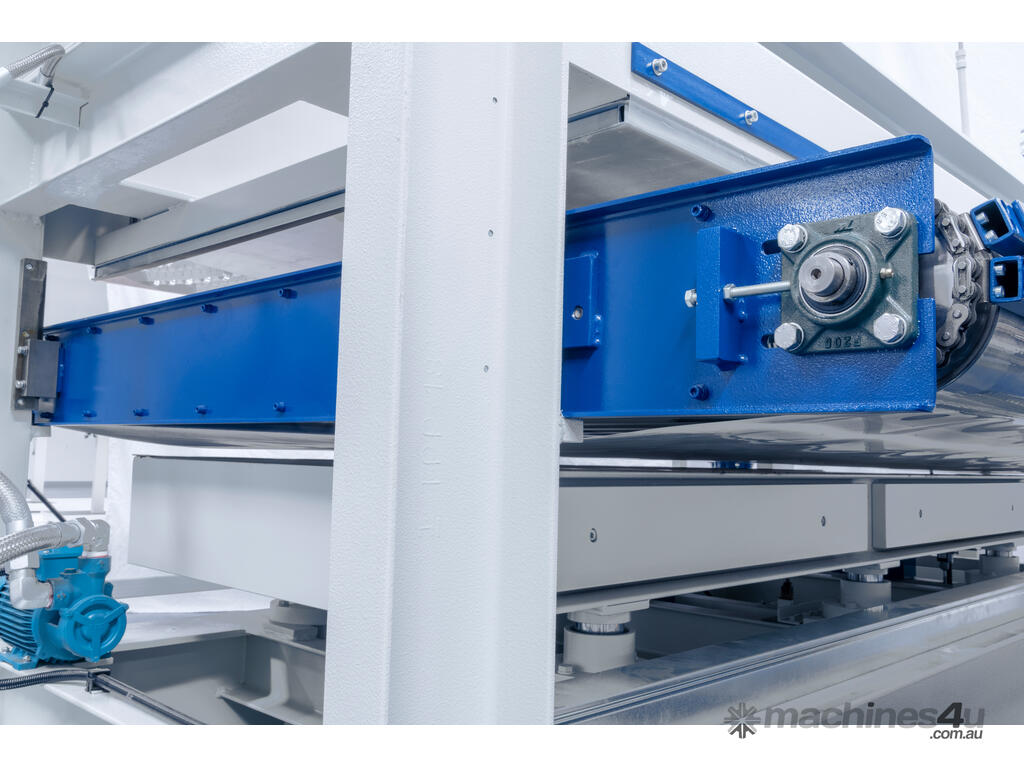

Reliable and high-performance loading belt, thanks to the continuous Mylar belt movement system.

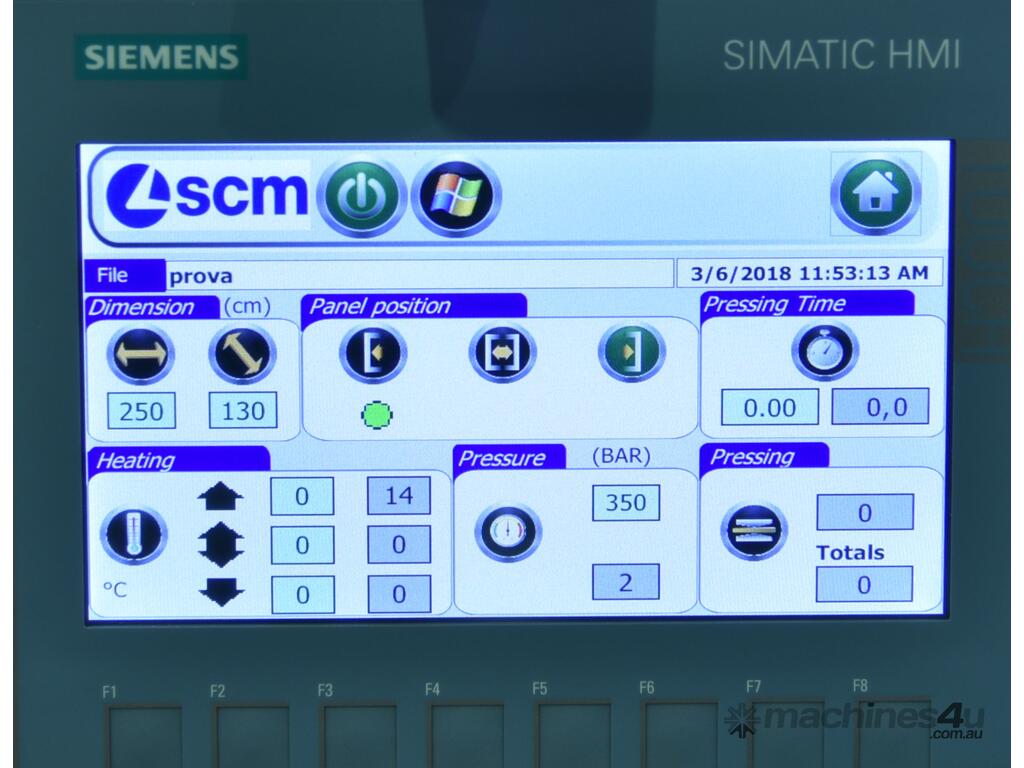

Electronic control of all machine functions via digital control panel with Siemens touch screen.


High versatility thanks to the cross panel loading and the available production line solutions to be configured according to customer requirements.

Technical data
Model Platens dimension (mm) Thrust (Ton)
gs-a 6 / 90 2500 x 1300 90
gs-a 6 / 120 2500 x 1300 120
gs-a 6 / 120 2500 x 1600 120
gs-a 6 / 90 3000 x 1300 90
gs-a 6 / 120 3000 x 1300 120
gs-a 6 / 120 3100 x 1300 120
gs-a 6 / 120 3000 x 1400 120
gs-a 6 / 120 3100 x 1600 120
gs-a 6 / 90 3500 x 1300 90
gs-a 6 / 120 3500 x 1300 120
gs-a 8 / 160 3000 x 1300 160
gs-a 8 / 160 3100 x 1300 160
gs-a 8 / 160 3100 x 1600 160
gs-a 8 / 110 3500 x 1300 110
gs-a 8 / 160 3500 x 1300 160
gs-a 8 / 160 3800 x 1600 160
gs-a 10/ 200 3500 x 1300 200
gs-a 10/ 200 3800 x 1600 200
