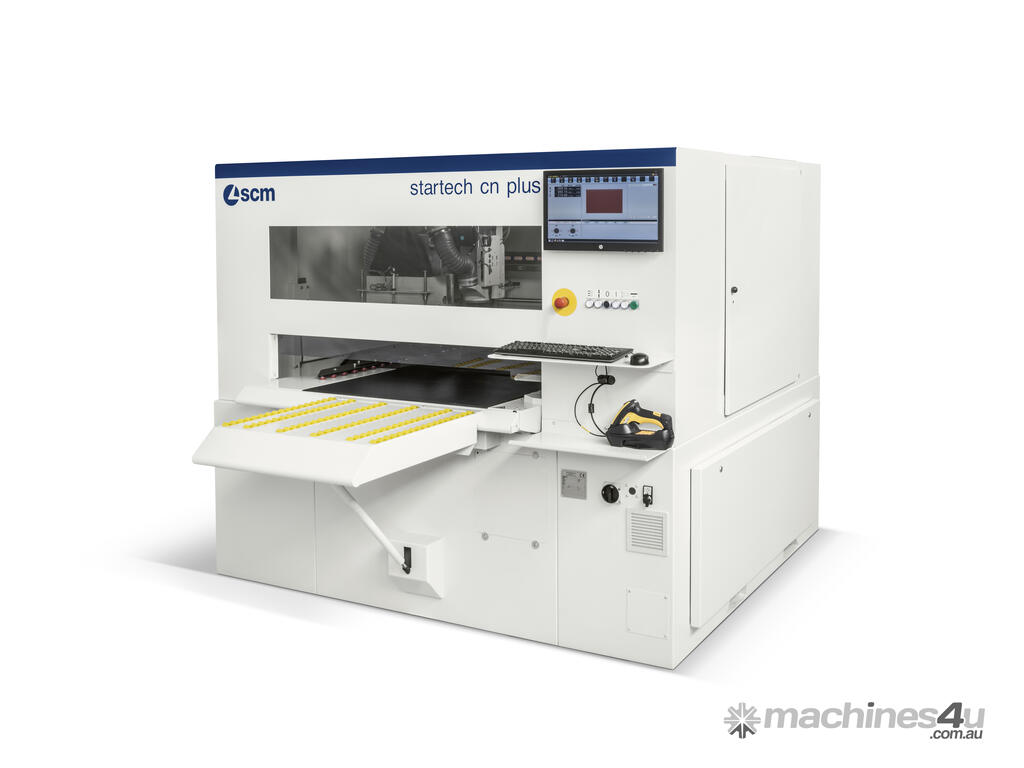

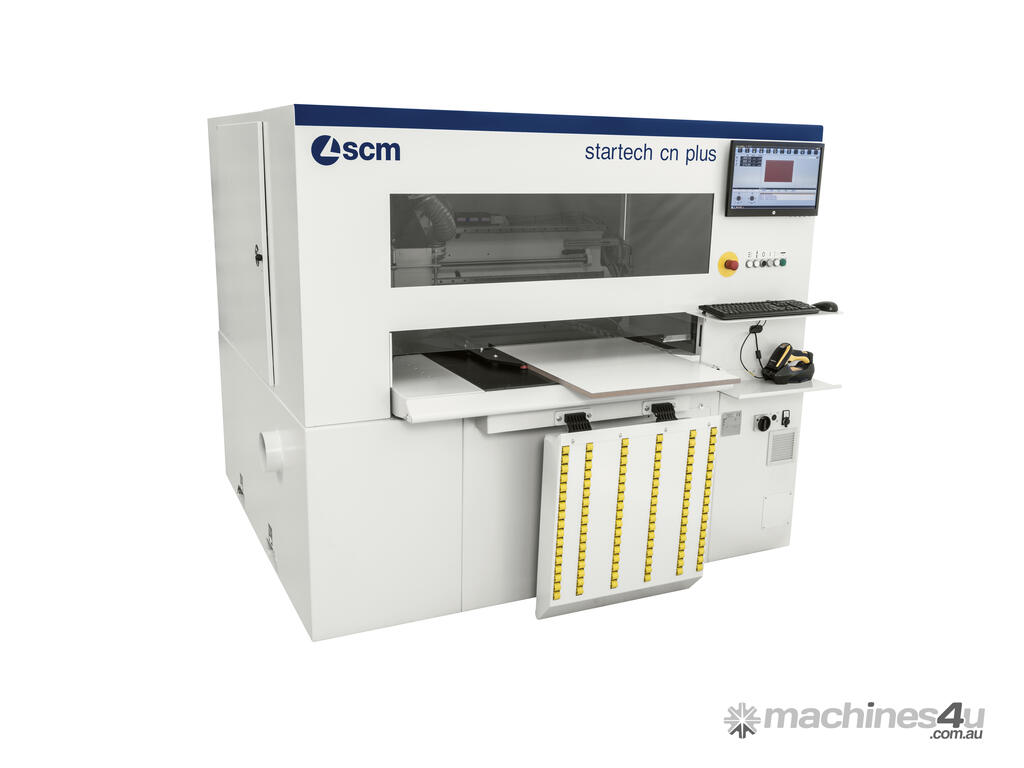

SCM Startech CN Plus CNC Drilling Routing and Grooving Machine

The New SCM Startech CN Plus is Proudly Made in Italy.

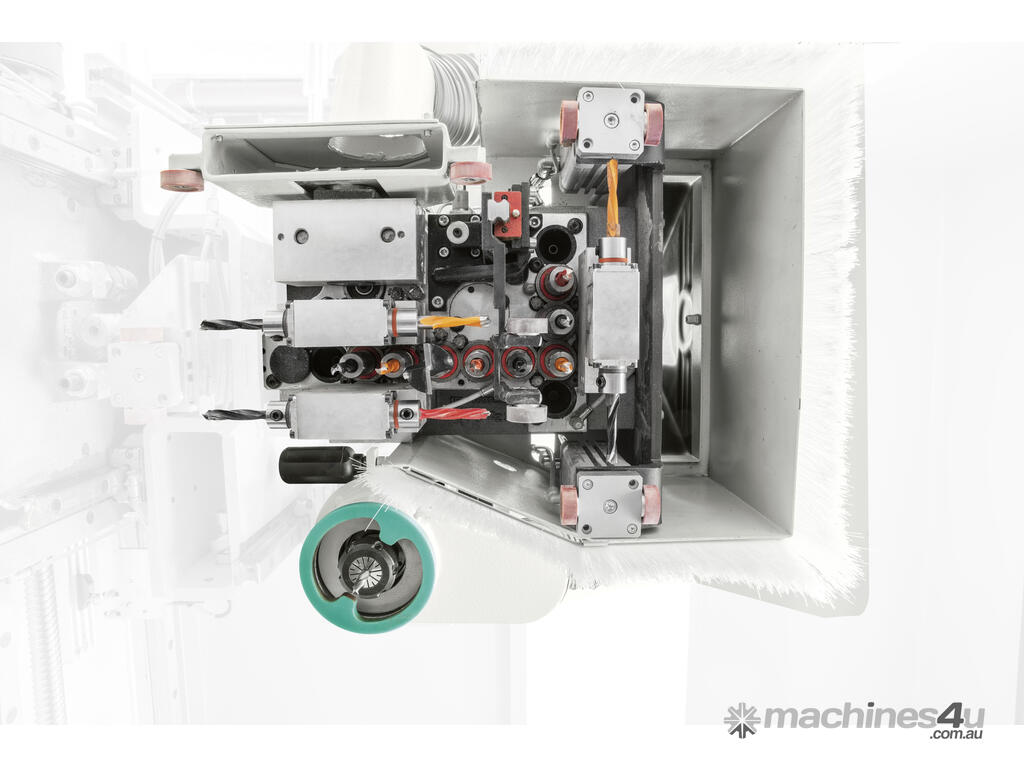

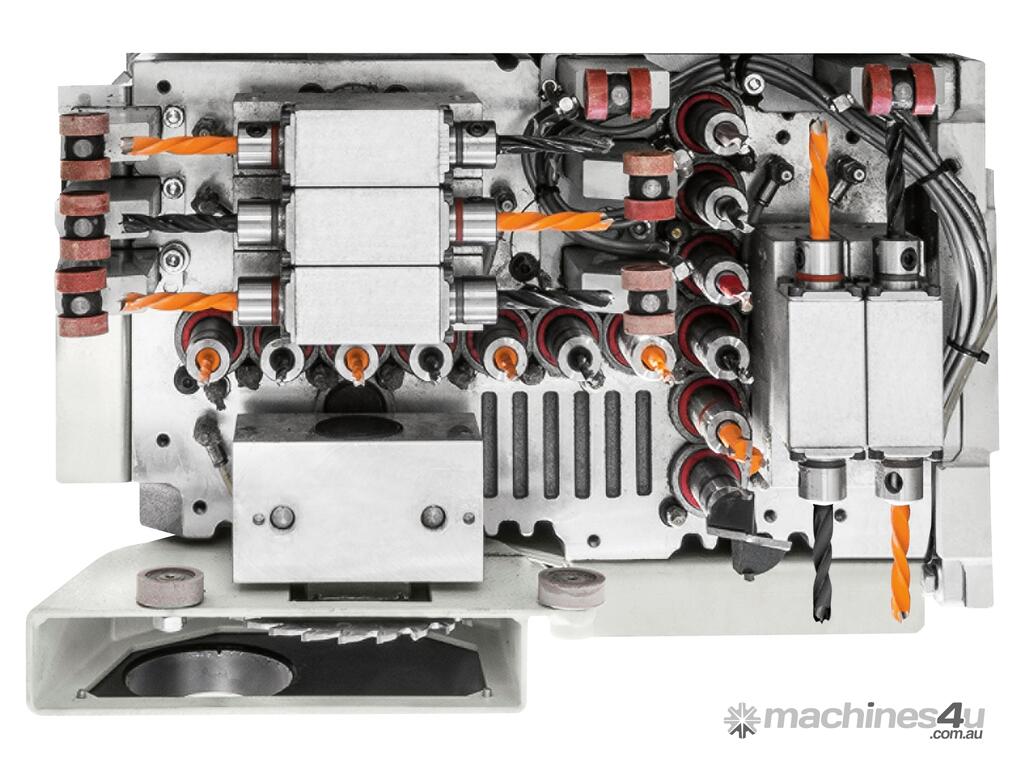

The Startech CN Plus has been designed for the small-medium woodworking workshops but also for larger companies that produce customised products, with in house prototype development departments. Thanks to the 8 independent vertical spindles, the 6 horizontal spindles, the blade in "X" . There is a machine version with router.

FLEXIBLE: IDEAL SOLUTION FOR TAILORED PRODUCTIONS
No operator's intervention for the worktable and machine set-up according to the panel dimensions.

PERFORMING: TOP PERFORMANCE
Tooling and machining operations reduced to the minimum, with 40 m/min axes speed.

COMPACT: VERY REDUCED MACHINE OVERALL DIMENSIONS
With its 5 m2 overall dimensions, it can be installed in reduced spaces.

SIMPLE: AT EVERYBODY'S REACH
Easy-to-use machine and for every investment capability.

Advantages

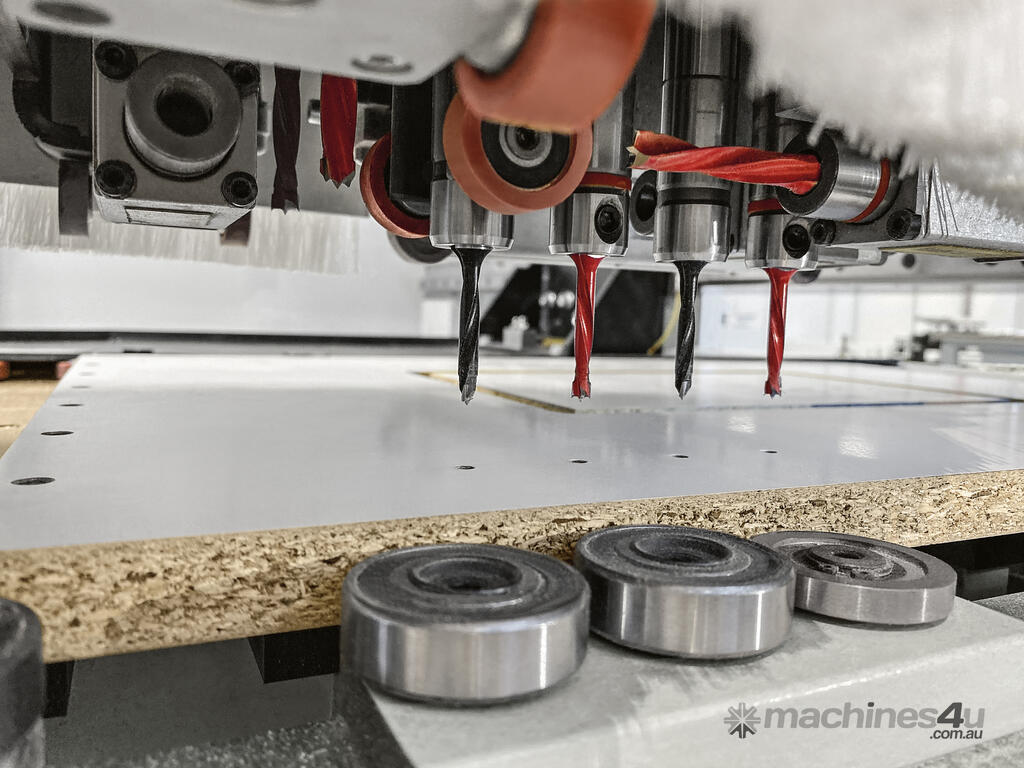

Effective: The operating unit above the panel allows a very precise and cleaned working. Furthermore any panel thickness imperfection is hidden inside the furniture (part not in sight).

Maximum versatility: The machine version with routing unit with electro-spindle 5.5 kW motor power is suitable for all machining.

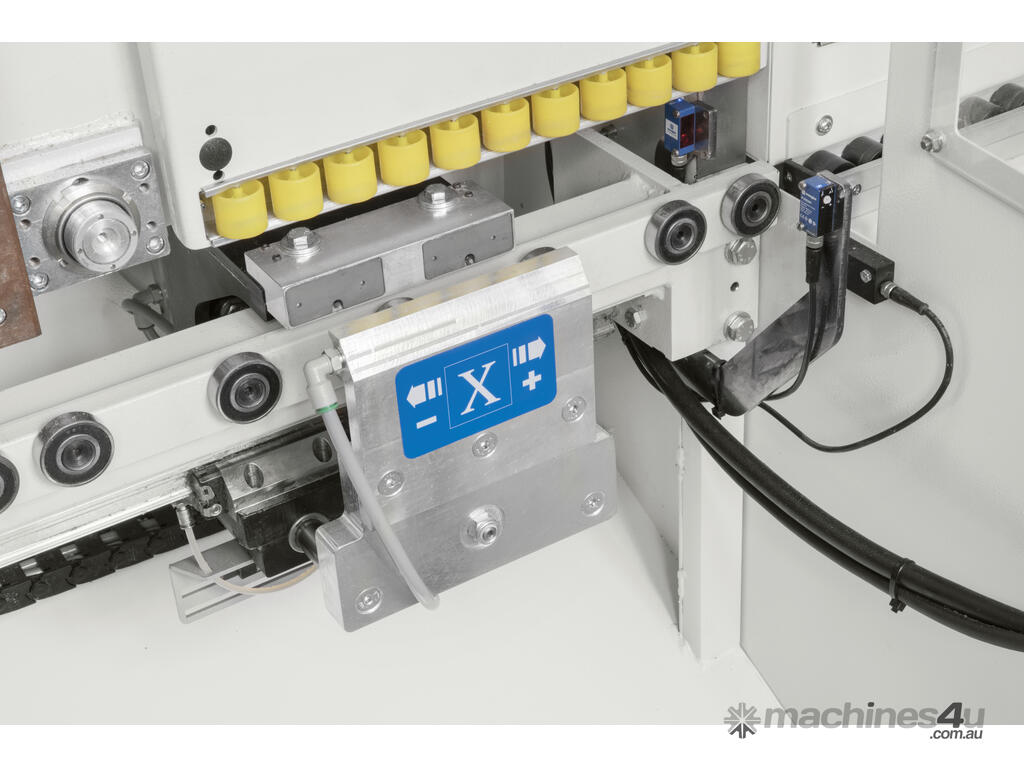

Totally automatic: thanks to the automatic side alignment device the panel is loaded, into the machine and recovered at the end of the boring-milling program, without any other intervention required by the operator.

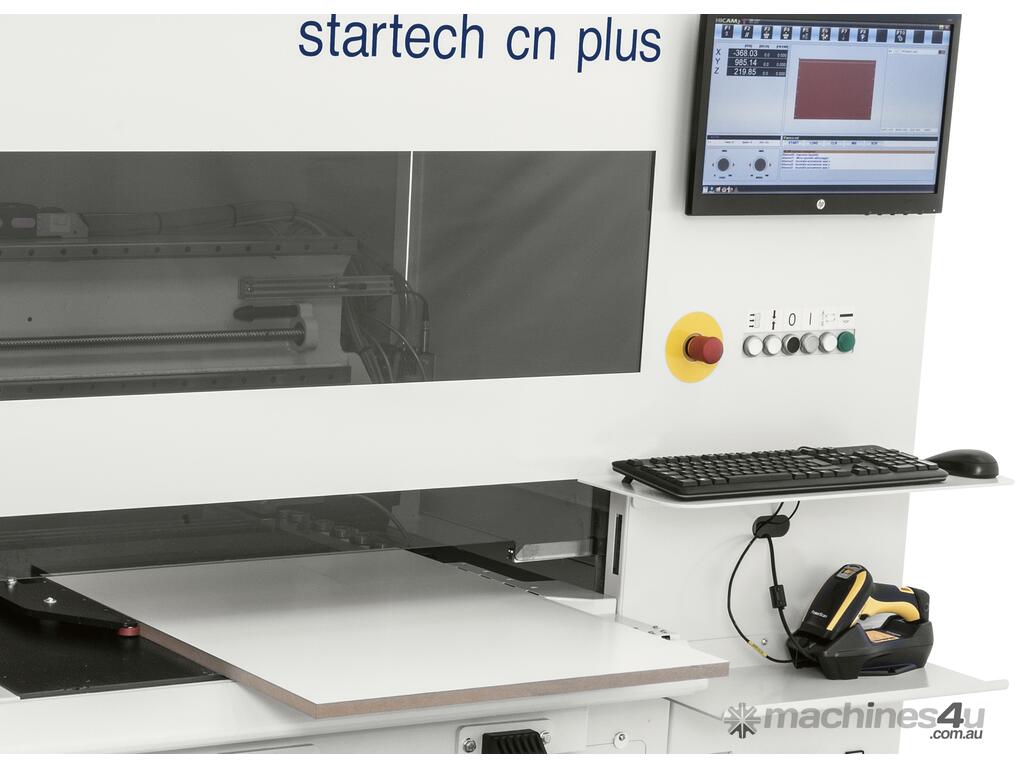

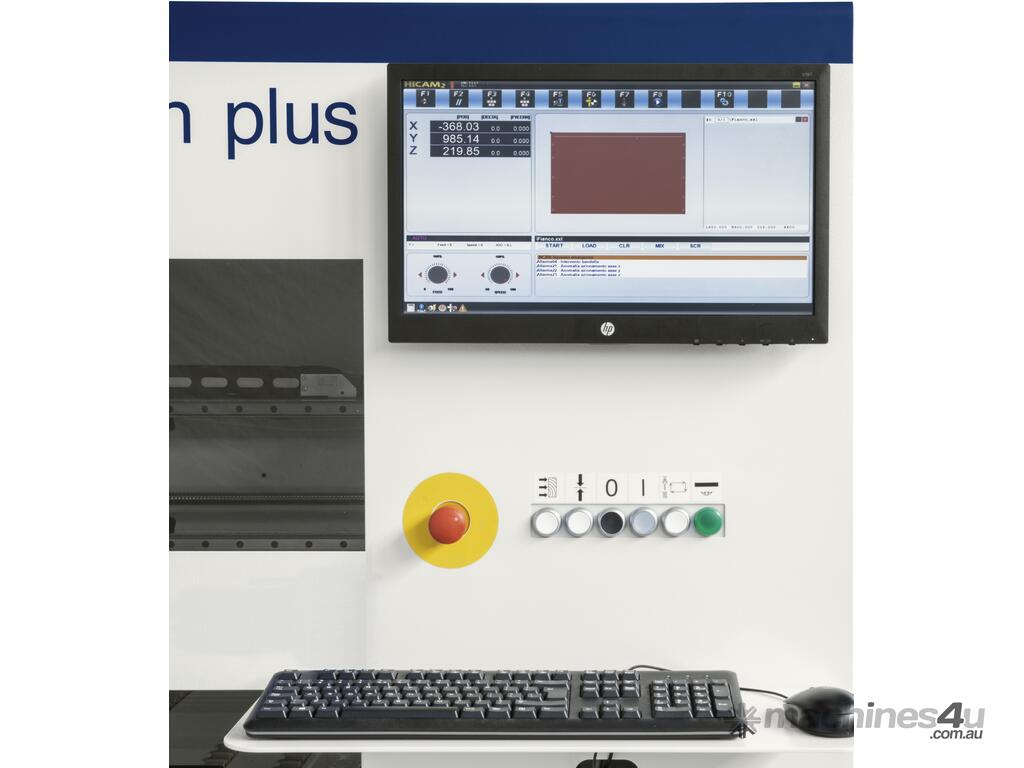

A "Maestro" at your disposal: 19" PC with integrated software. The SCM "Maestro cnc" software allows to create projects and geometrical drawings to be automatically converted in drilling-routing programs for the machine.

Technical data
Max./min. panel dimensions in X-Y-Z mm 3050x900x60 / 200x80x10
Drilling/grooving working area m/min 40/40/10
Vertical spindles no. 8 (5X-3Y)
Horizontal spindles no. 6 (2+2X-2Y)
Blade, diameter/thicknesser mm 125/6
Spindles/blade rotating speed g/min 4200/5500
Electro-spindle rotating speed g/min 18.000
Power KVA 15,2 (20,7 with electro-spindle)
