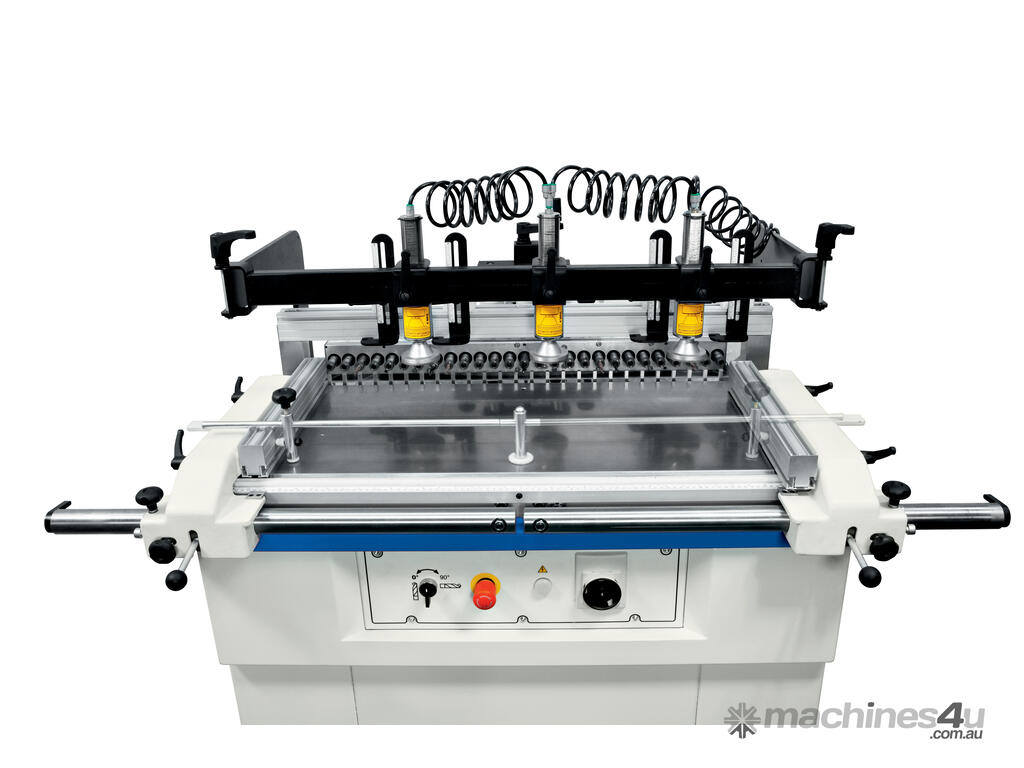

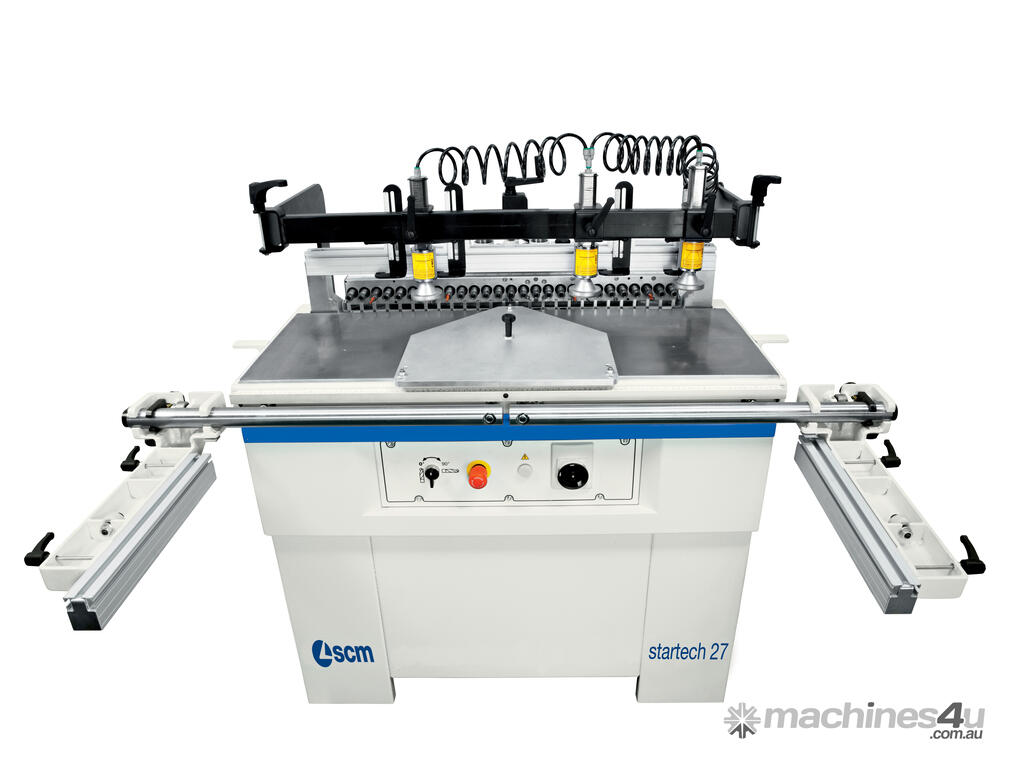

SCM Startech Semi Automatic Boring Machine

The SCM Groups Startech Range of Semi Automatic Boring machines are Proudly Made in Italy.

Ideal for boring operations on panel.
New models with 27 and 21 spindles.

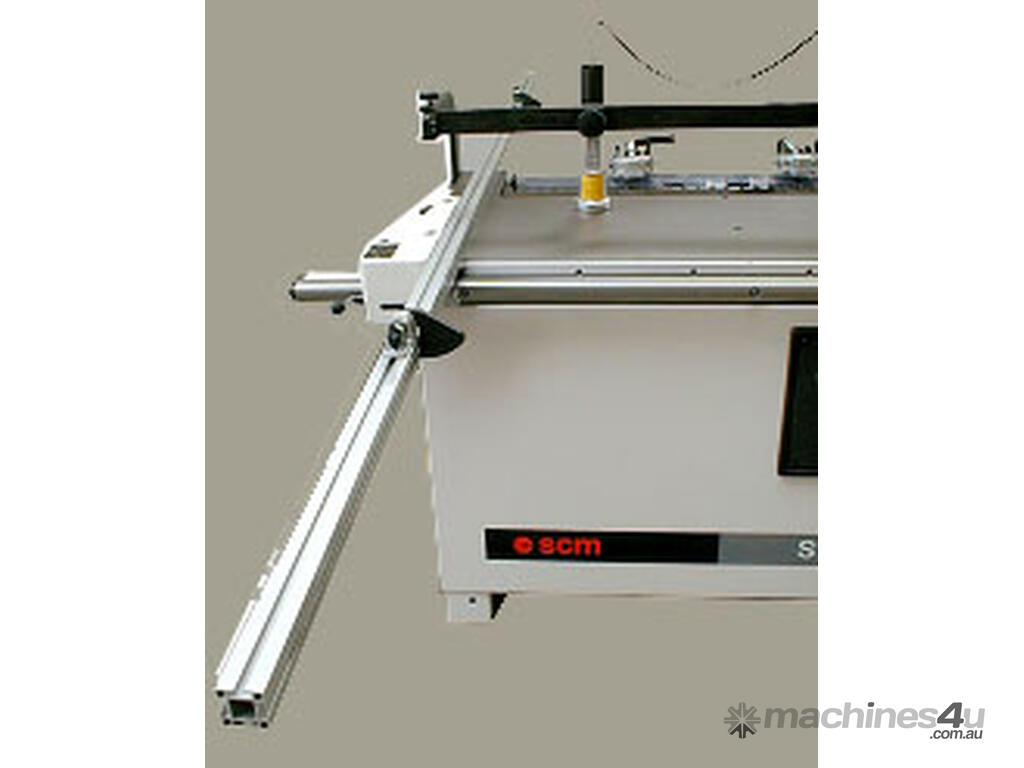

Rich basic equipment: it is complete with all accessories such as pnematic head adjustment, spindles with quick attachment, lateral guides L=3mm with reference stops for panel positioning.

Advantages

Convenient selector, as standard, for the 0°- 45°- 90° automatic pneumatic head rotation

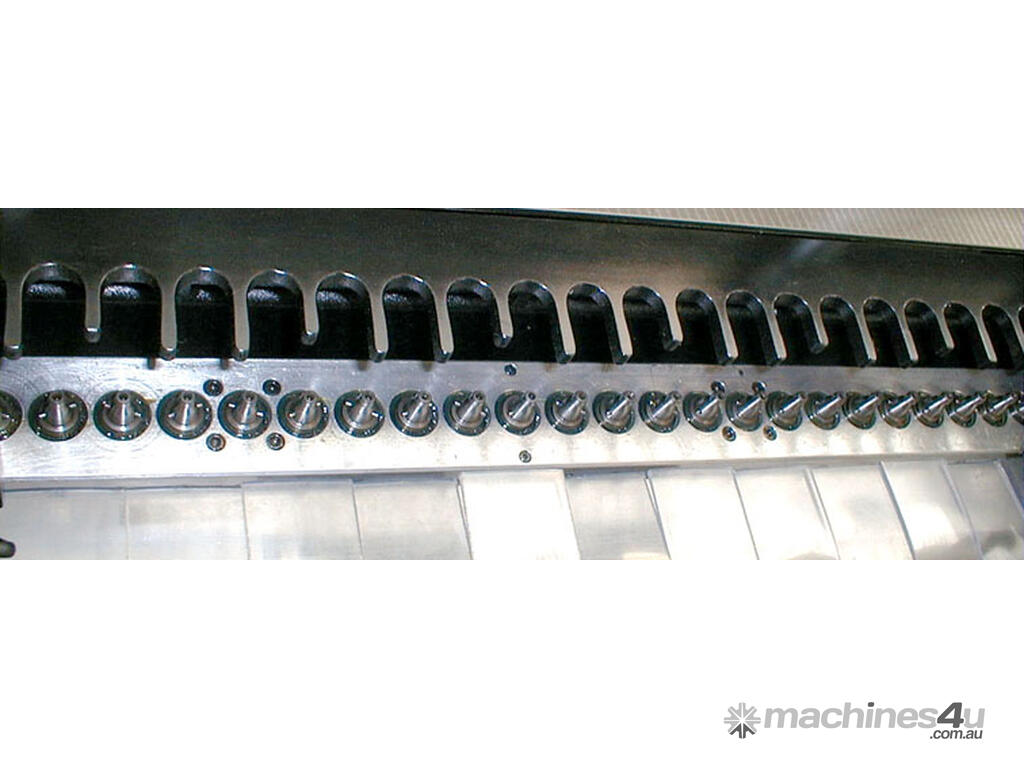

Rapid set up due to the 21/27 spindles with quick-release fittings.

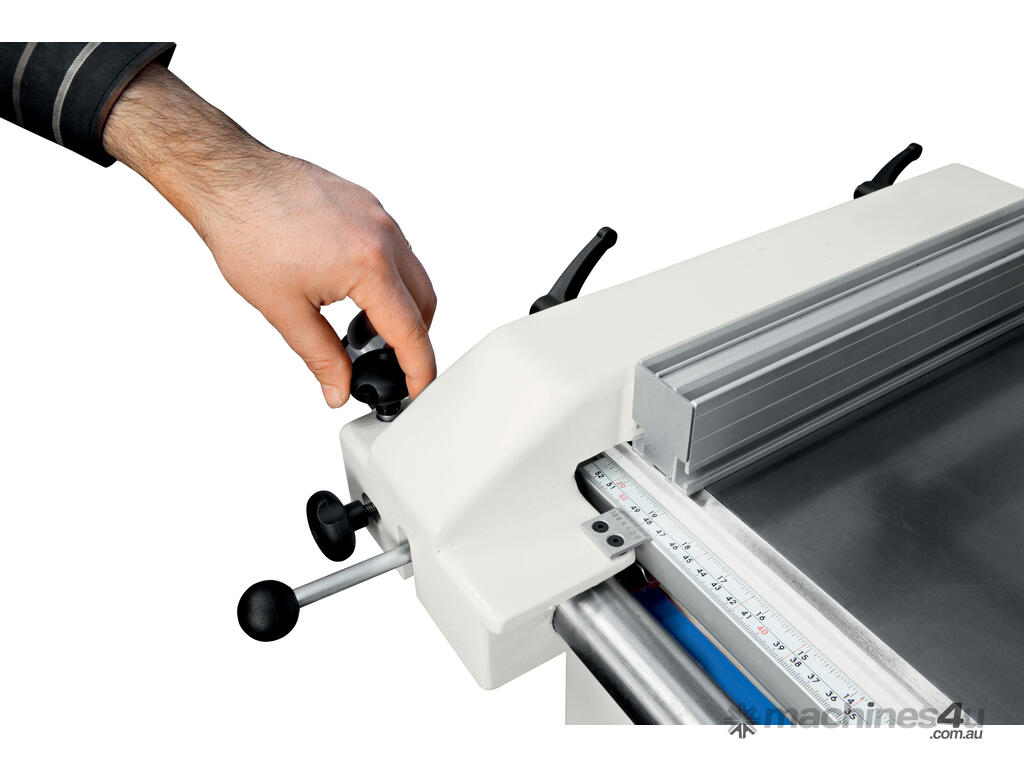

Precise and practical with the nonius decimal scale and micrometric guides travel.

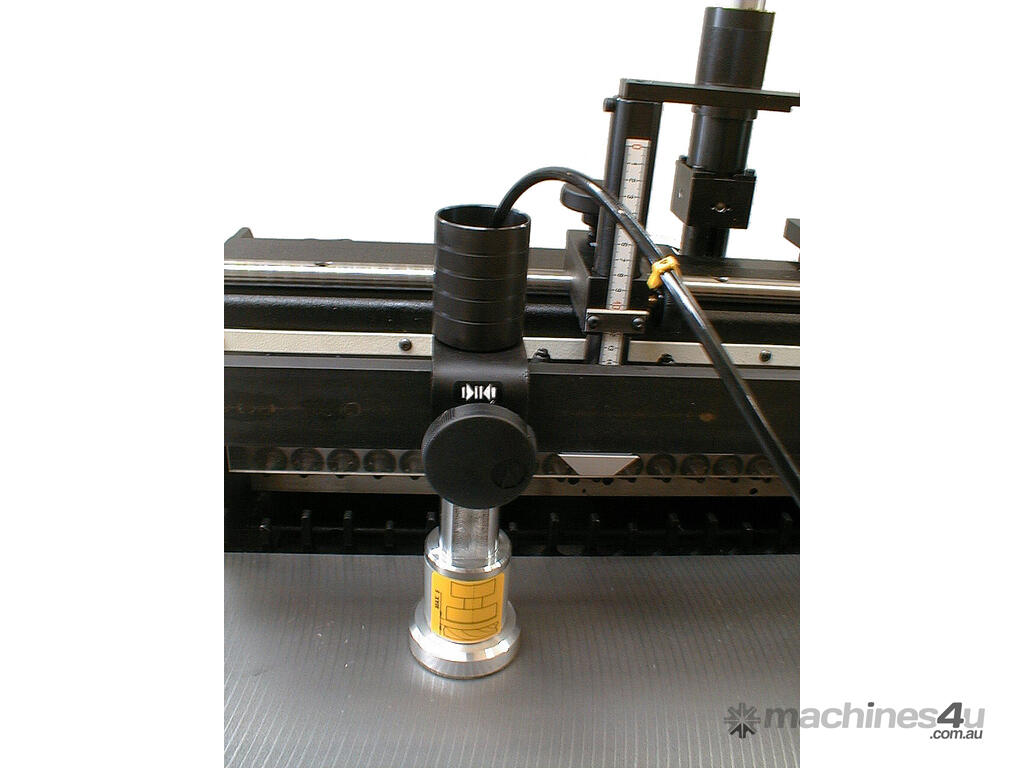

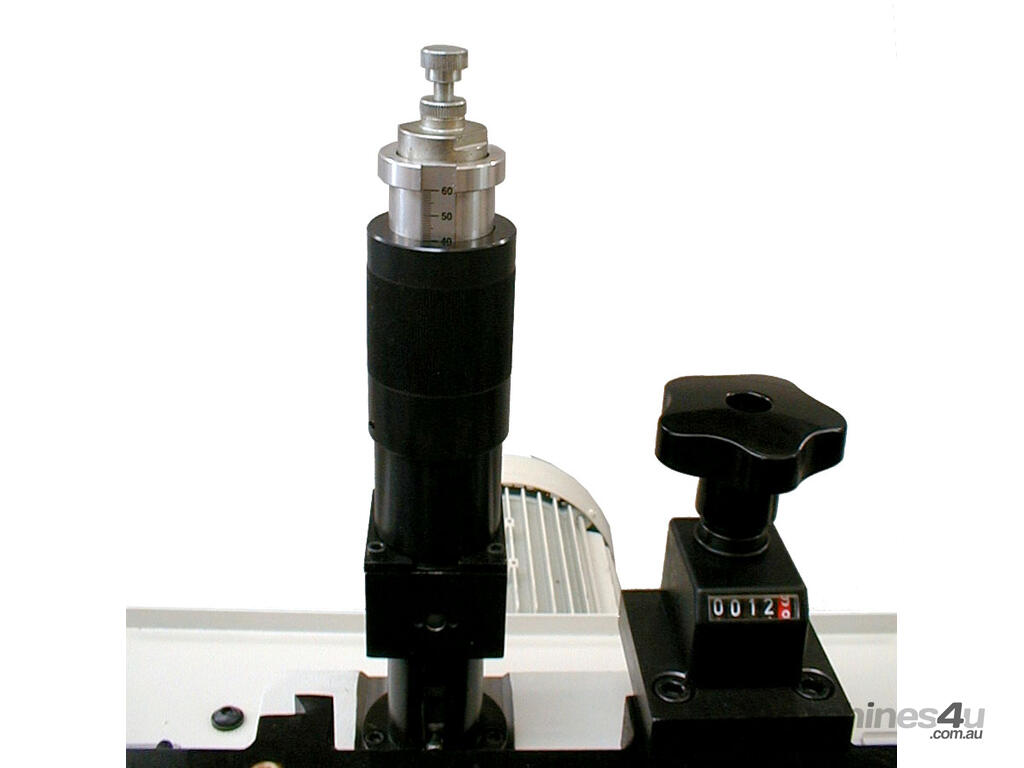

5 position revolving turret for always setting the correct depth.

Technical data
Startech 27 21
Number of spindles n. 27 21
Centre distance between spindles mm 32 32
Spindles rotating speed rpm 3000 2800
Spindles motor power Hp 2 2.4
