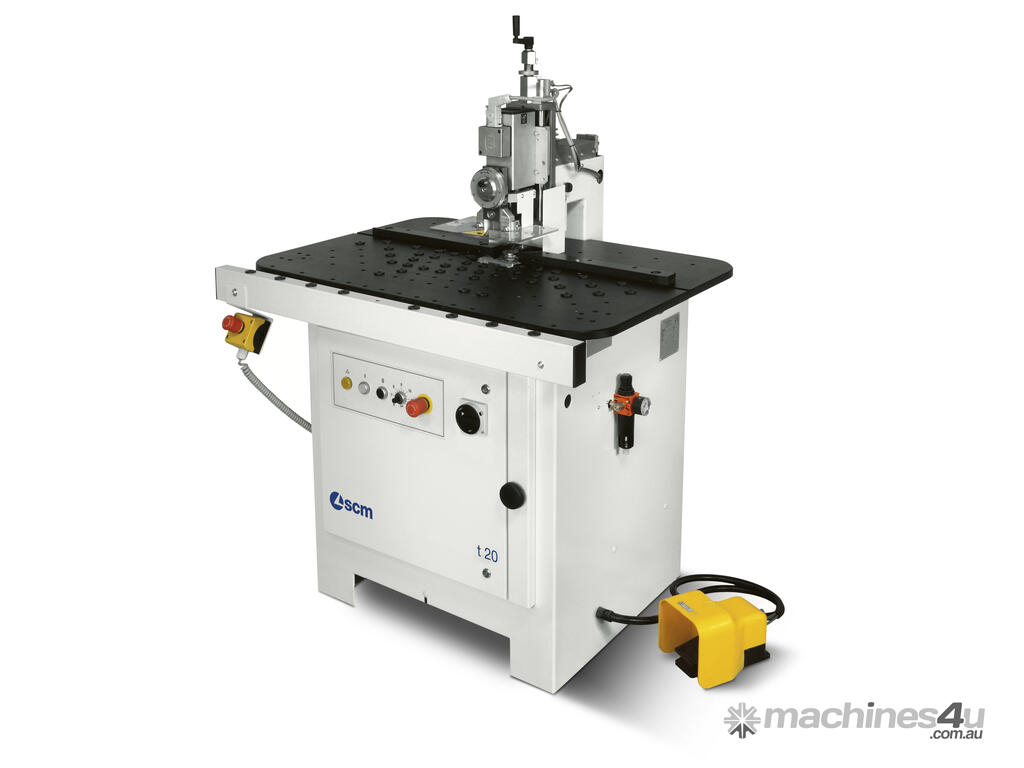

SCM T20 Shaped 90-45 Degree Edgebanding Panel Trimmer Shark Nose Trimmer

The SCM T20 is a True Production "Shaped Trimming Machine" and is Proudly Made in Italy.
It has the Possibility to work panels with tilted edge up to 45°.
Simple intelligent and versatile. Designed with exclusive solutions, this trimming machine allows a set up facility without comparison.
Simple and precise setting up of the trimming group. The trimming adjustment is carried out in few seconds and without errors by means of the SCM exclusive device which provides a pivoting ring with a decimal dial which allows the adjustment of the vertical copier without using any tool.

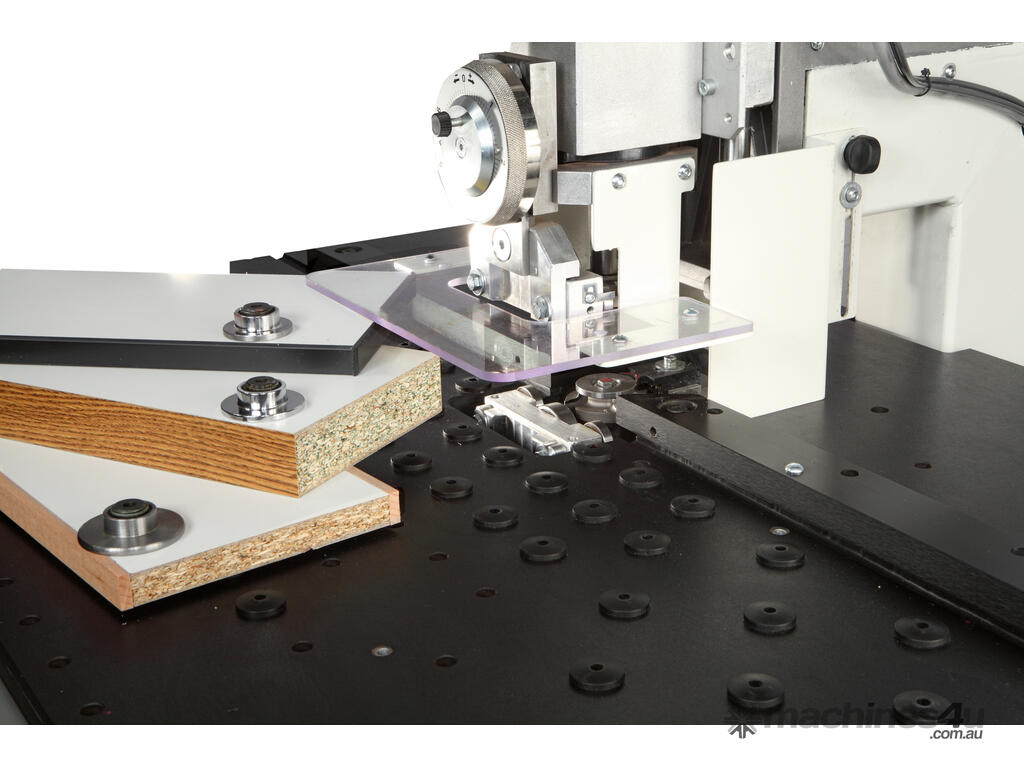

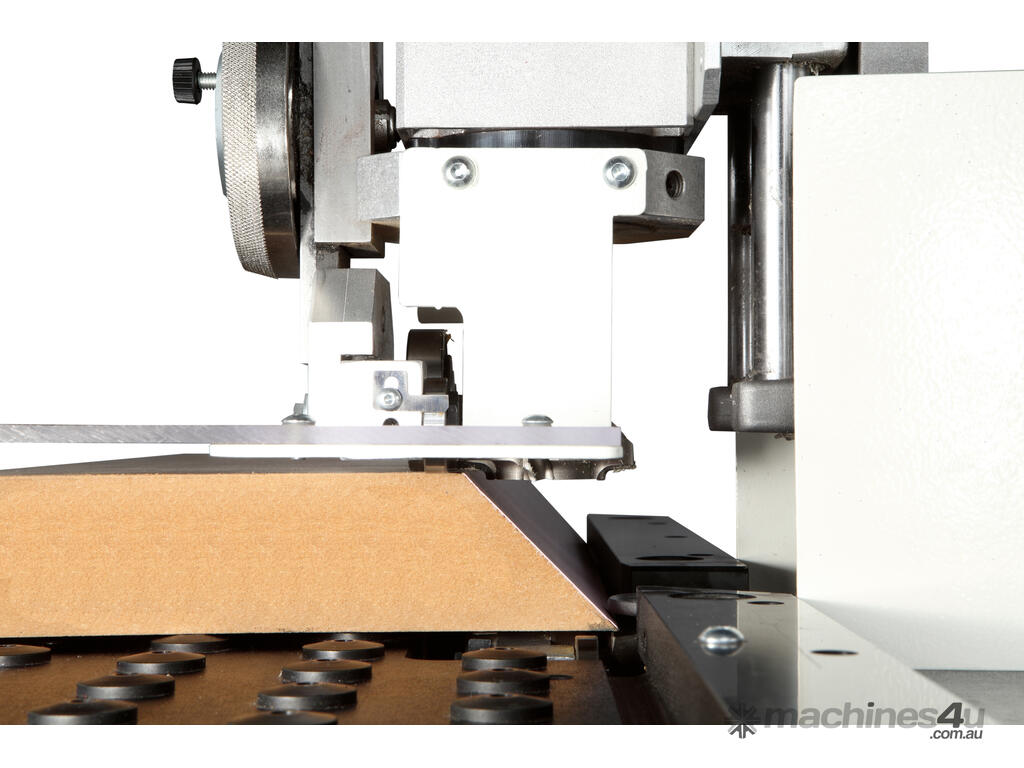

Possibility to work panels with tilted edge up to 45°.

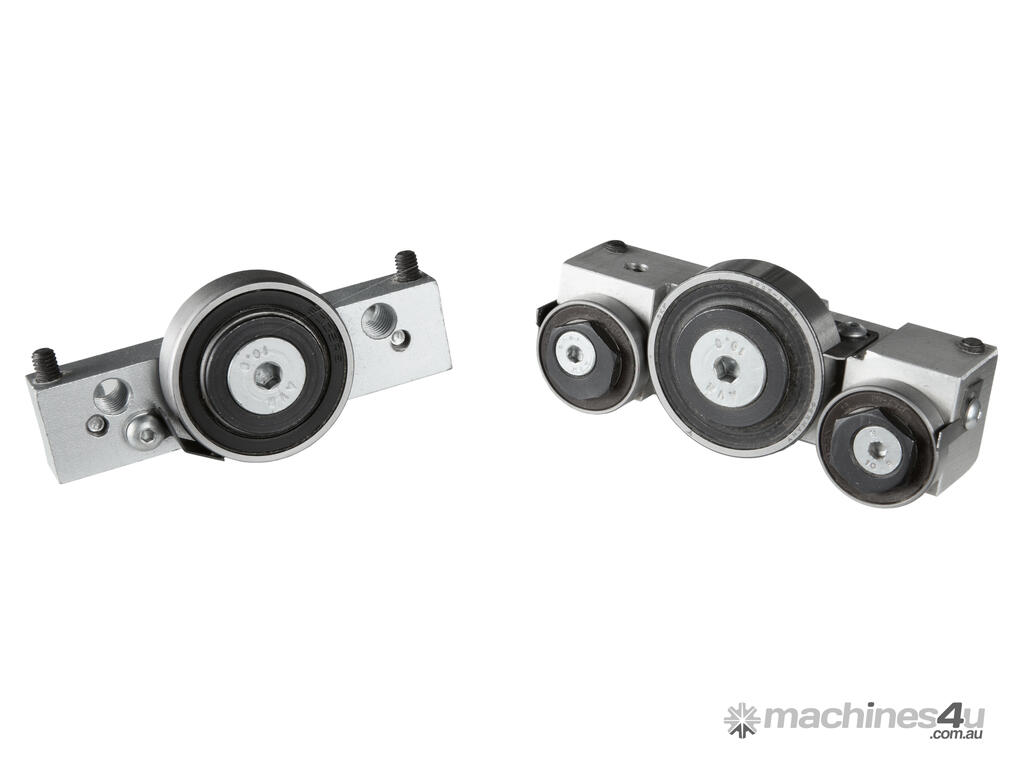

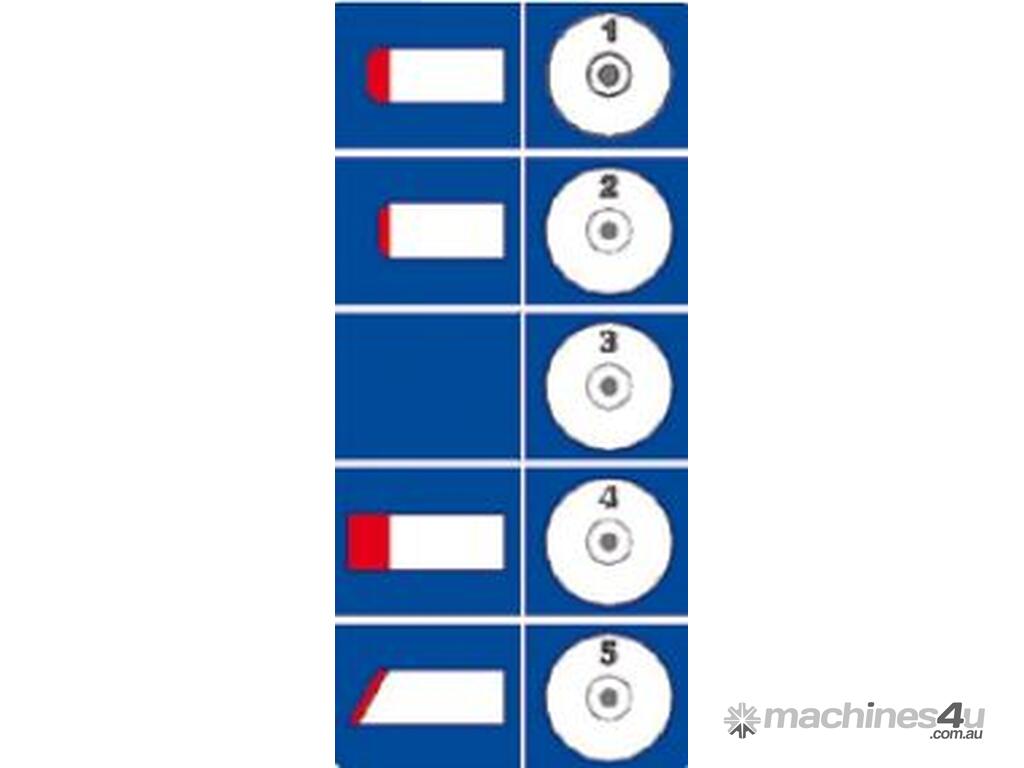

Interchangeable copying devices for a rapid and precise set up during machining changeover, eliminating the horizontal adjustment.
Max. edgebanding thickness 4mm
Min. - max. panel height 14-80 mm
Min. panel length/width 200/160 mm
Minimum internal radius 25 mm
Variable cutters speed 9000 - 15000 rpm
