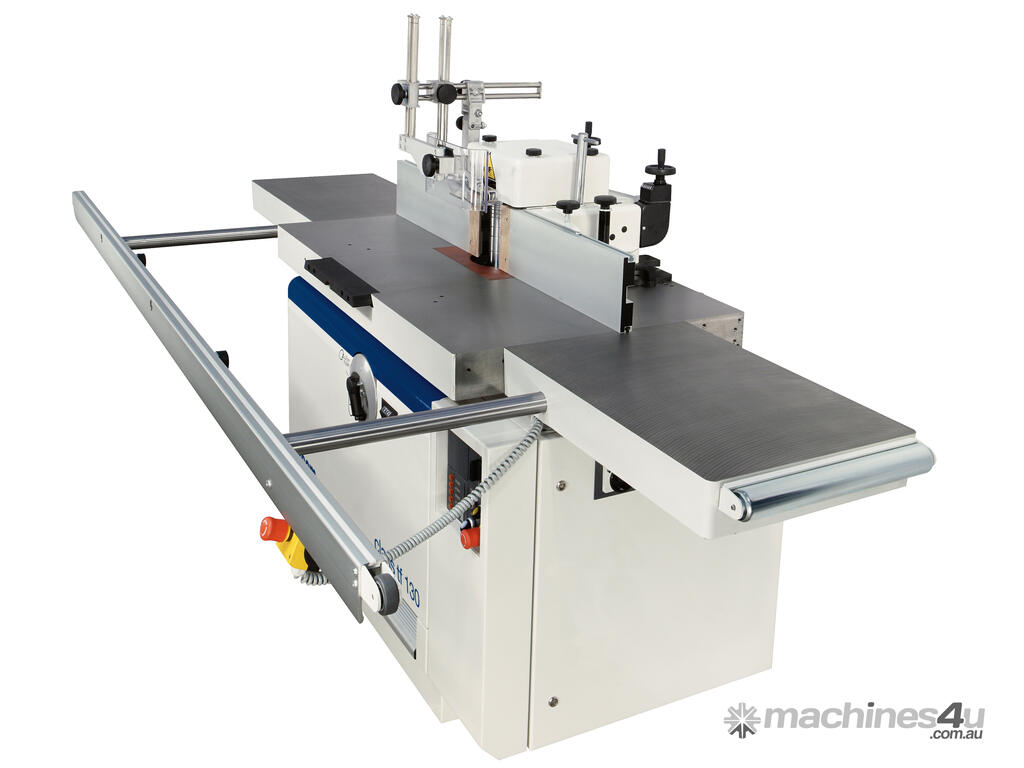

SCM - TI 145EP Class Spindle Moulder

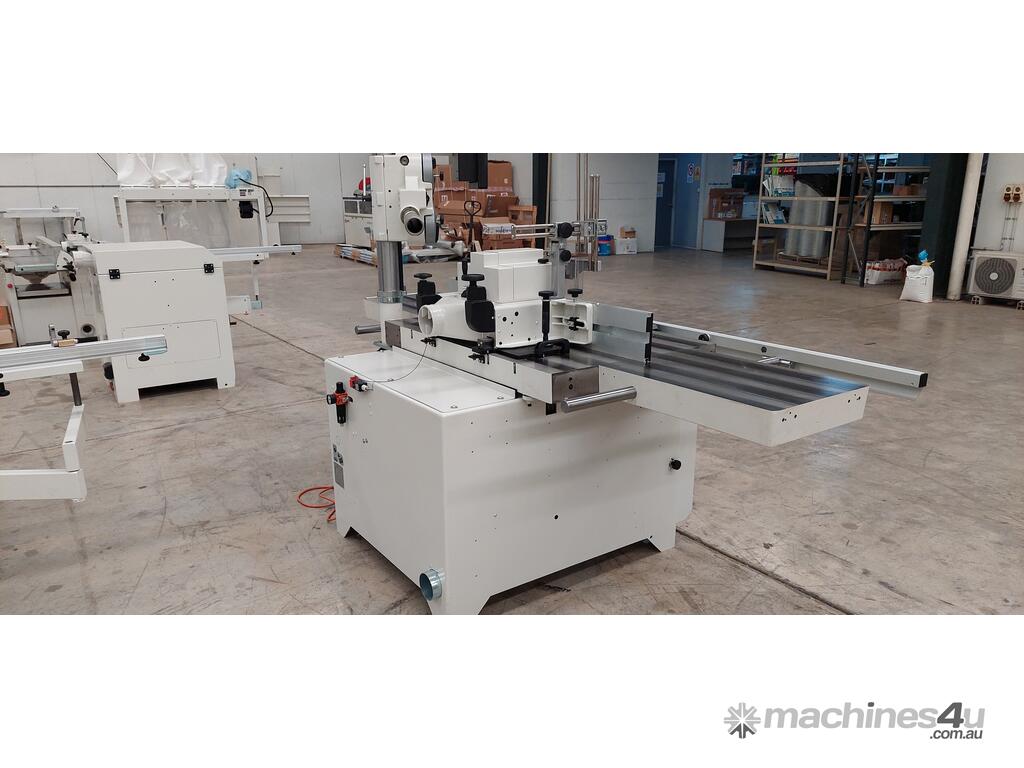

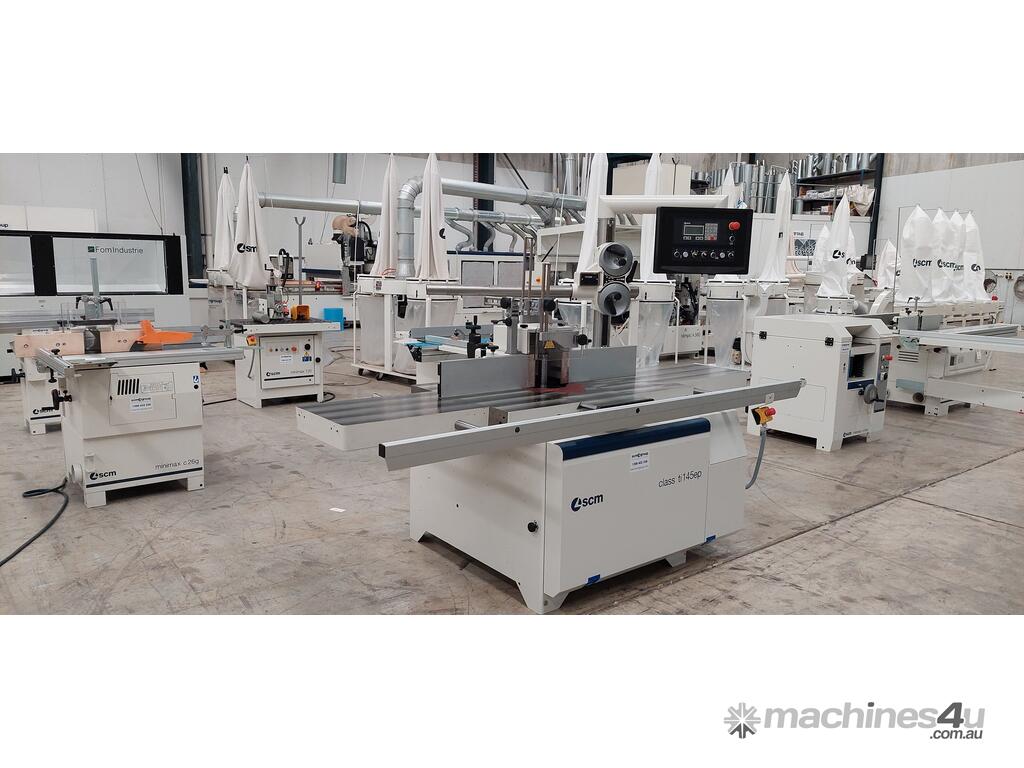

One Only Showroom Demonstrator Machine Available for Sale
NSW Showroom Only.
First in Best Dressed


The SCM Class Ti145EP Spindle Moulder is Proudly Made in Italy.

It is the the best solution for every application.

Precision and reliability with the technological devices that guarantee reduced machine set up times, greater safety and ease-of use.

Advantages:

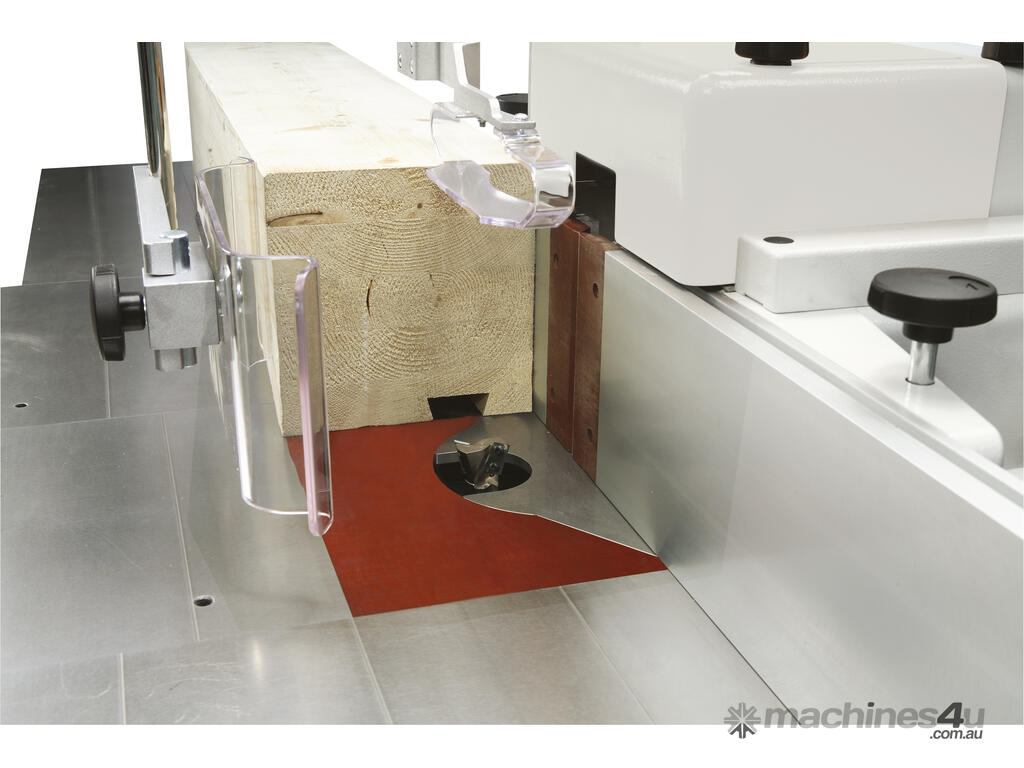

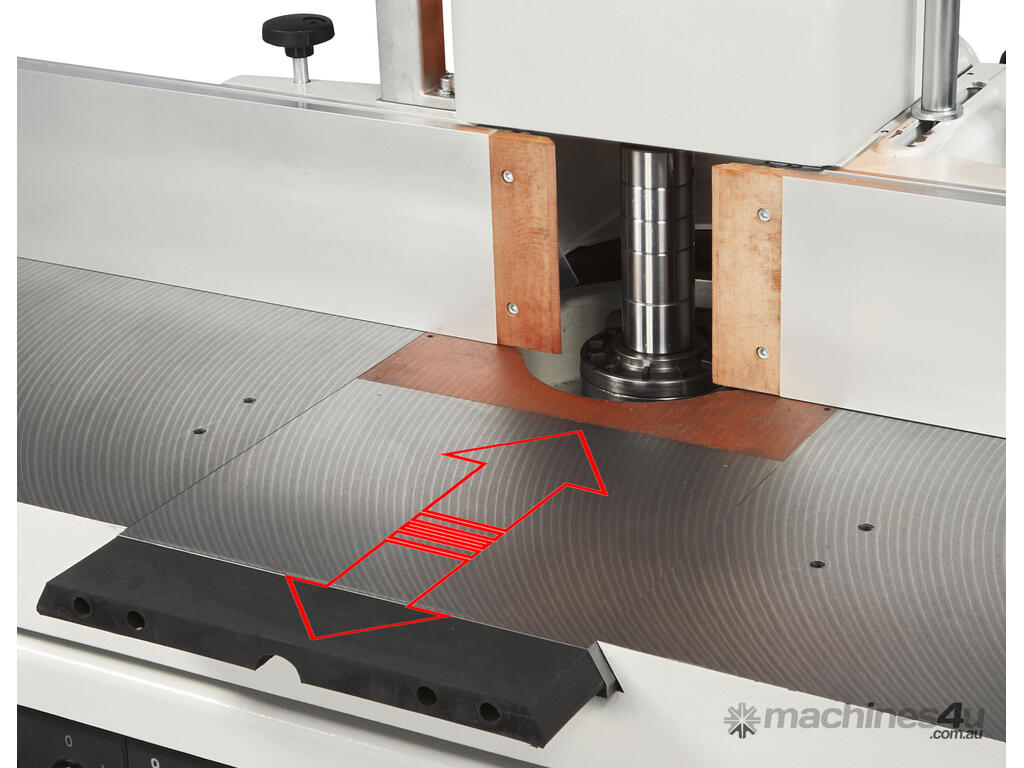

"FAST" sectional worktable: the best support for the work piece. Provides support for the work piece being machined as it is close to the tool, allowing the adjustment with mounted tools.

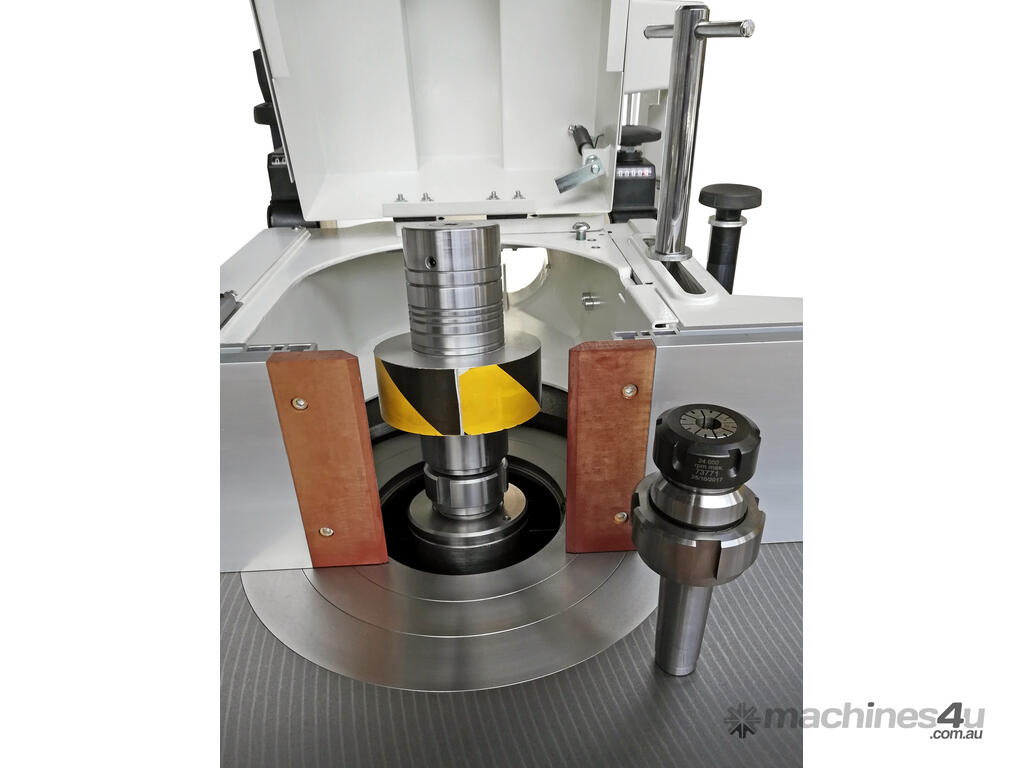

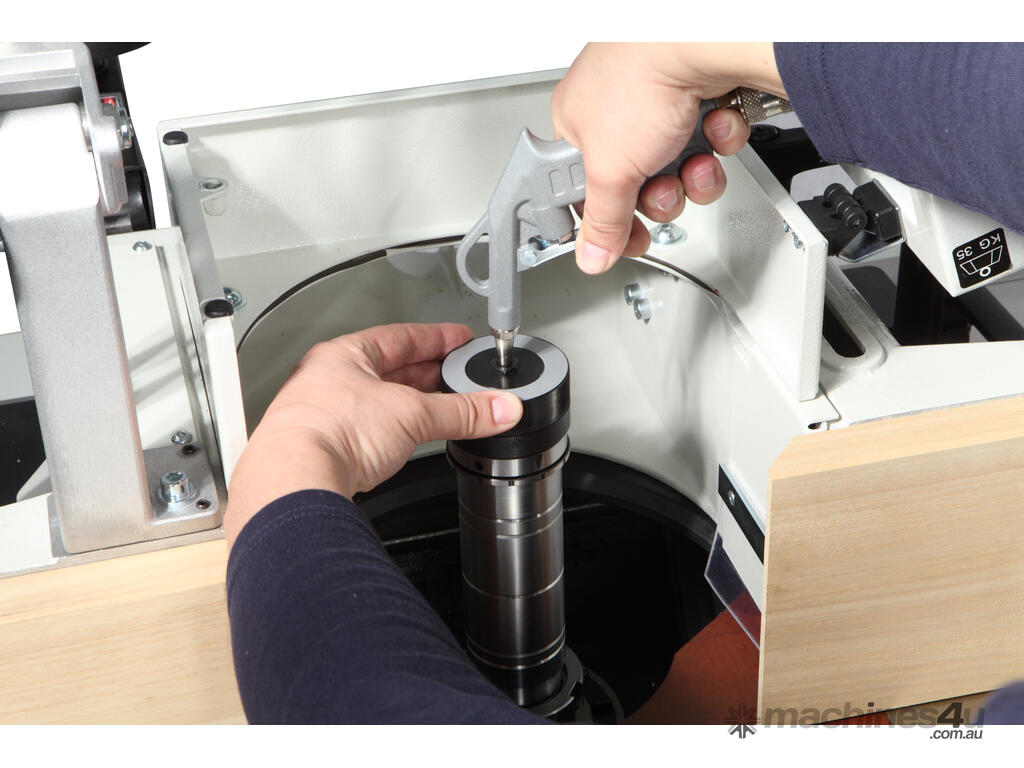

"T-SET" rapid tool locking system: maximum degree of safety without any efforts. No more keys for machine tooling with the new device that ensures the fast locking/unlocking of tools simply through a gun with compressed air.

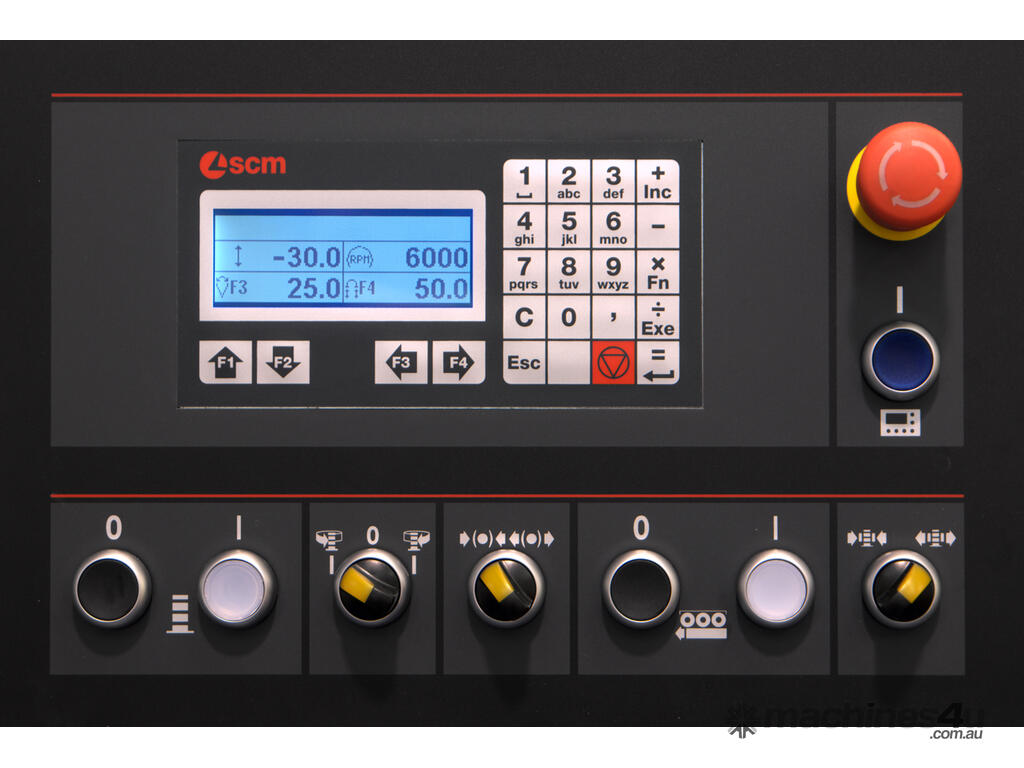

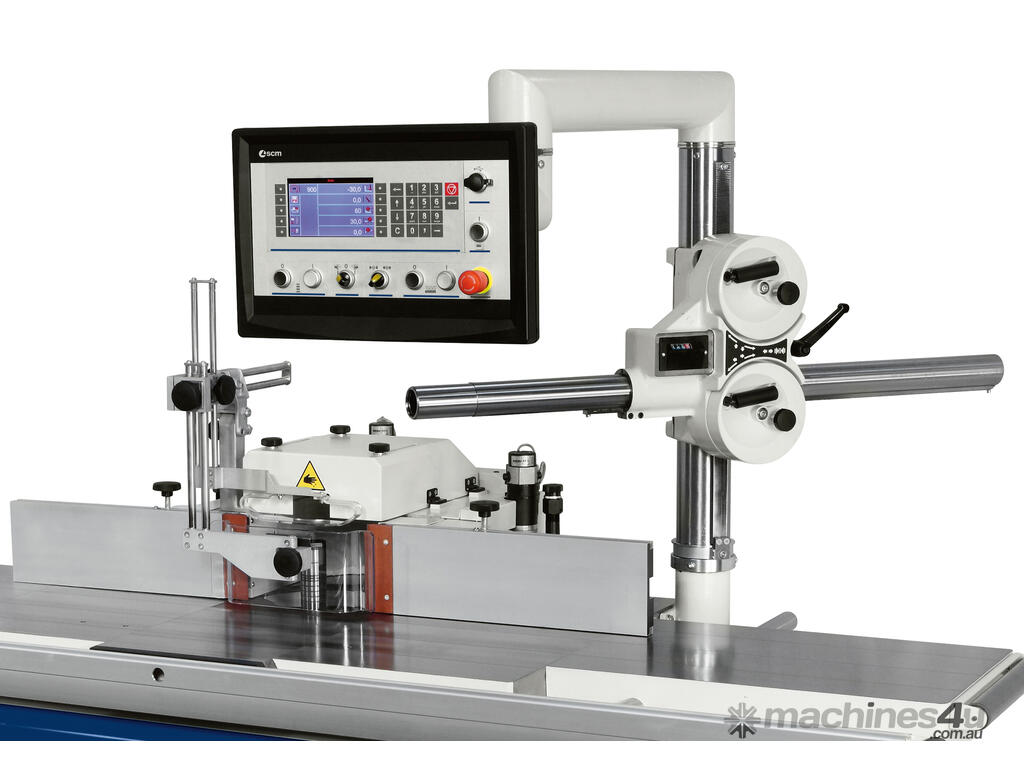

Work programming becomes simple and effective with the "Ready" last generation electronic control for managing of spindle lifting and tilting, spindle moulder fence positioning, display of spindle speed, counting and calculator.

Technical data:
class ti 145 ep
Machine version electronic
Worktable dimension mm 1200x780
Spindle tilting mm +/-45,50°
30-35 Ø spindle height (40 -50 Ø) mm 140 (180)
Spindle base projection from the table mm 50
Max. tool diameter retractable under table mm 300x80
