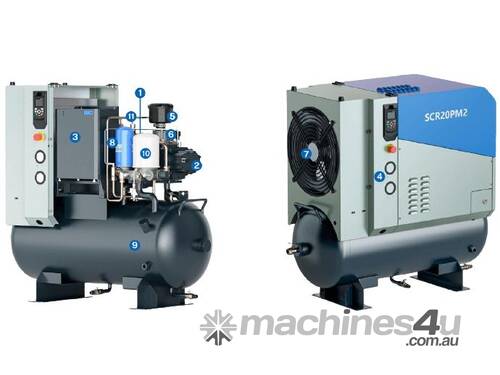

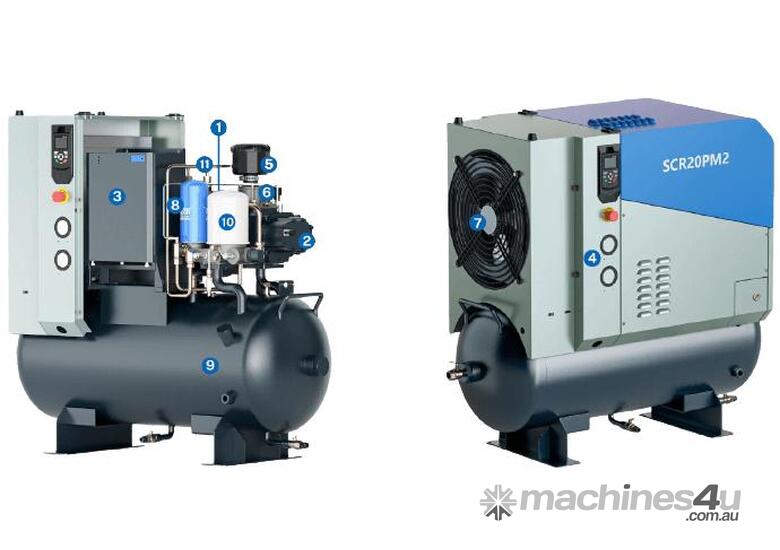

SCR10PM2-T-10 PM2 Series Energy Saving Compressors

Permanent Magnet Variable Speed Drive (7.5kW-15kW)
The PM2 series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR PM2’s goal is to keep the compressor continually on load and avoid running time offload. PM2 compressors have a wide variable range of 40-100%, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions.

PURE SOFT-START SYSTEM AS STANDARD
Soft-start system reduces the electric current during start-up

On start-up, traditional fixed-speed compressors, with direct online or star-delta starters, can draw up to 3.5 times their full load current. The soft-start technology on the PM2 variable speed ensures that the starting current never exceeds the rated value.

PATENT DESIGN INTEGRATED AIR RECEIVER & AIR/OIL SEPARTOR TANK
The new labyrinth structure integrates the oil/air separator tank with the main air receiver.
Patented design dramatically reduces the compressor size, saving you valuable floor space.

FLIP-TOP EASY MAINTENACE
A simple flip-top design means that all components are accessible for maintenance.
-Service times are kept to a minimum
-Spin-on separator and oil filter
-No hoses to replace
-Neat rigid pipework layout
-No belts or coupling to change
