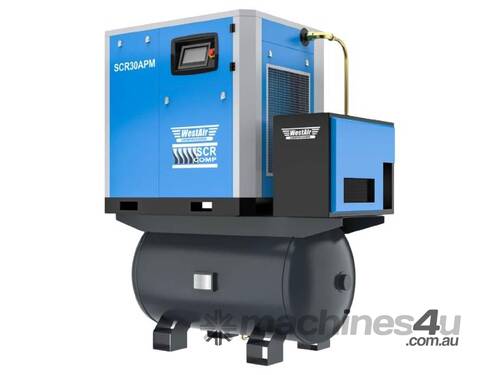

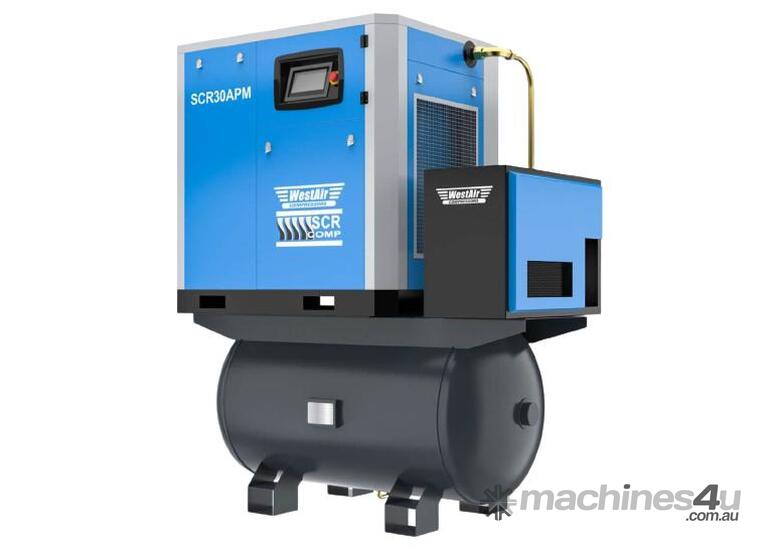

SCR20APM-TD-8 SERIES Energy Saving Compressors

Permanent Magnet Variable Speed Direct Drive Series (7.5kW-75kW)
The APM series works by ramping up and down to coincide with your air demands, supplying only the amount of air and constant pressure needed. Unlike fixed-speed compressors, the SCR APM’s goal is to keep the compressor continually on load and avoid running time offload. APM compressors have a wide variable range, making them suitable for multiple applications, resulting in significant energy savings and minimising CO2 emissions.

DUAL VSD ENERGY-SAVING TECHNOLOGY
The Inovance VSD operates both the main permanent magnet motor and the fan motor for optimal energy savings. Setting a constant temperature with the fan motor inverter control ensures the best lubrication performance and prevents high-temperature trips.

PURE SOFT-START SYSTEM AS STANDARD
Soft-start system reduces the electric current during start-up
On start-up, traditional fixed-speed compressors, with direct online or star-delta starters, can draw up to 3.5 times their full load current. The soft-start technology on the APM variable speed ensures that the starting current never exceeds the rated value.

INOVANCE STATE-OF-THE-ART TOUCH DISPLAYER
Seven-inch full-colour LCD touch screen
Real-time operation/maintenance/ running data
Alarm information and fault logging
Graphical flow diagram
4 energy-saving function modes
Service alarm and history
Interface connection: RS485/ RS422/SD card/USB/Ethernet
Pressure/temperature/overload/ overcurrent/phase loss/unbalance protection
Pre-alarm system to avoid sudden failure
Remote monitoring capability
Programmable start/stop schedules
Stop/start remote
Fault history
Motor jogging/inching function

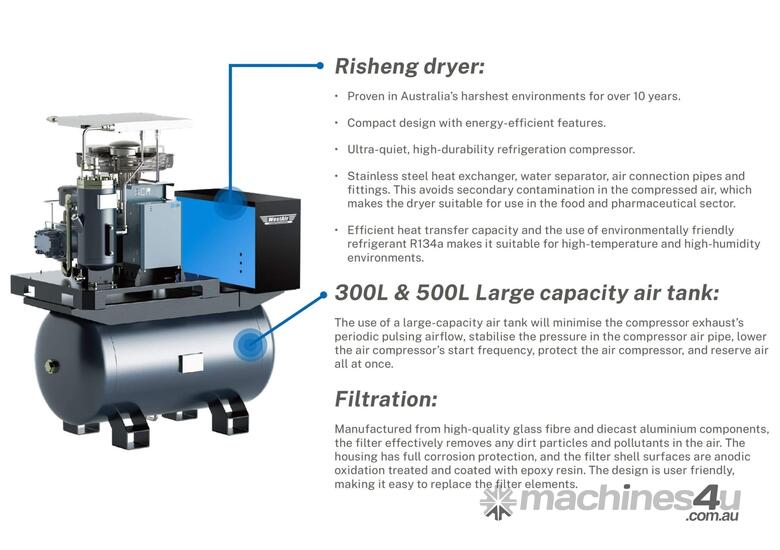

SPACE SAVER
The unique flip-top design minimises the space required around the compressor.

LARGE-CAPACITY AIR TANK
– SCR10APM = 300
L- SCR15/20/25/30APM = 500L
REFRIGERATION AIR DRYER
keeps the dew point down to 3-6ºC, removing moisture from the compressed air.
PRE & POST FILTRATION
of particles down to 0.01 micron and oil removal.
COMPACT FOOTPRINT
for more efficient usage of your valuable floor space.
