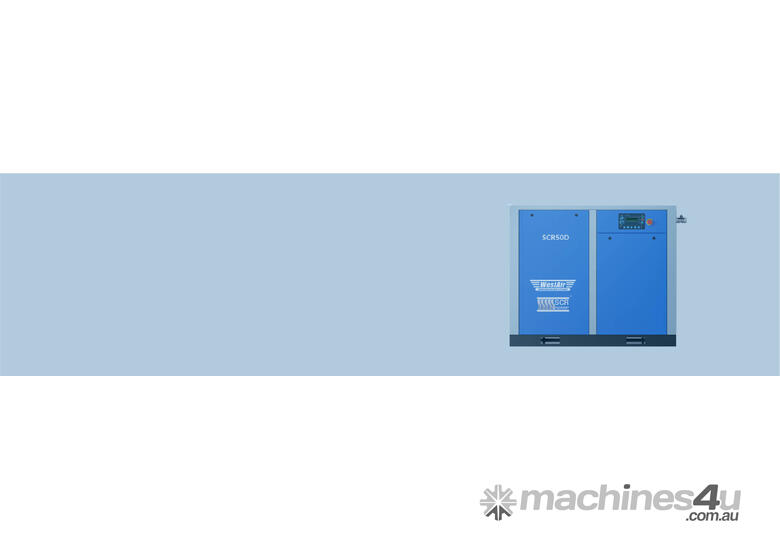

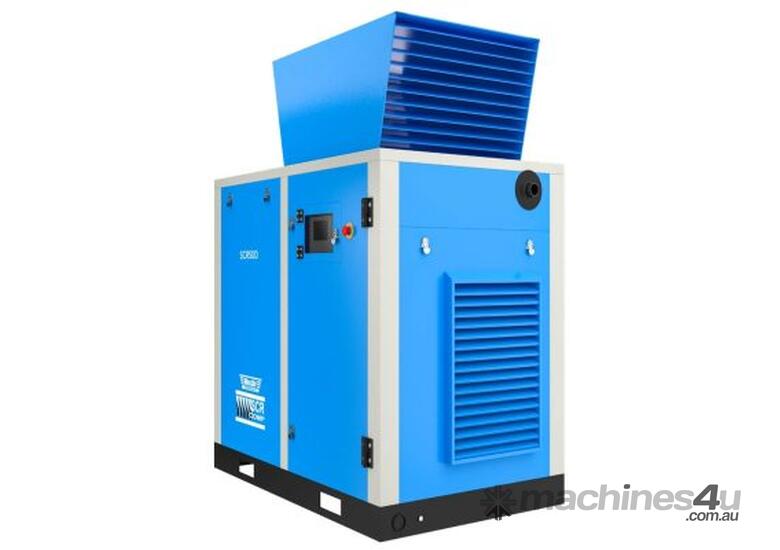

SCR340D-8 Rotary Screw Direct Drive Compressor

RELIABLE / ROBUST / PROVEN
10 years of operation in Australia’s harshest conditions

As the sole distributor of SCR Compressors in Australia, Westair are pleased to introduce their range of Direct Drive Rotary Screw Compressors. The SCR Direct Drive range are of robust design with low speed, oversized airends and uncomplicated 1:1 ratio drive, resulting in strong, reliable and long life machines.

FEATURES:

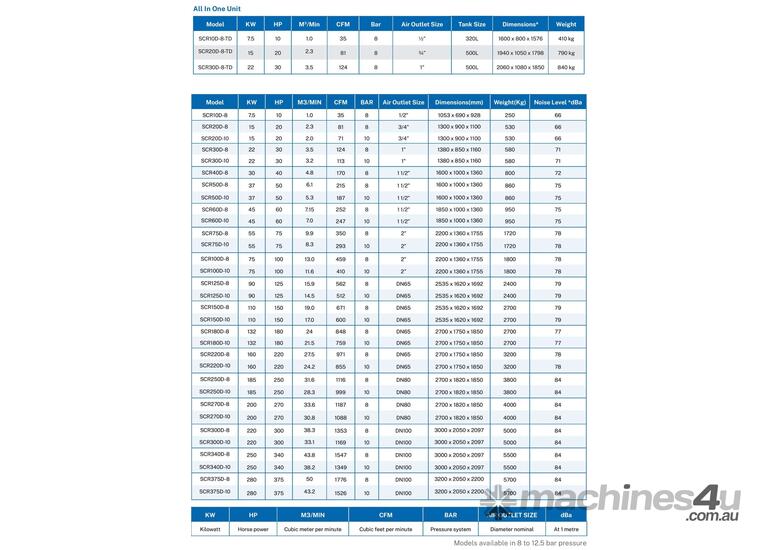

7.5 kW to 280 kW units available
Pressure ranging from 8 bar to 12.5 bar
Intelligent Micro Controller for more energy efficient control
Major components of European design and manufacture
Long term warranty on complete packages
Maintenance friendly with large removable and lockable panels

DIRECT DRIVE ADVANTAGES

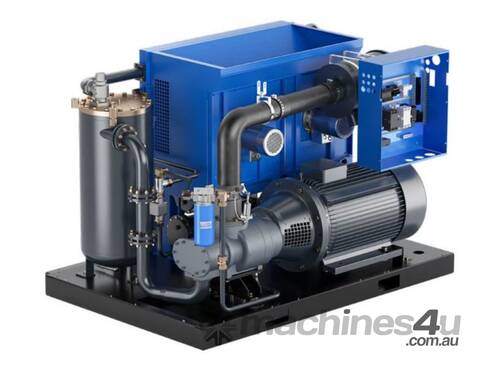

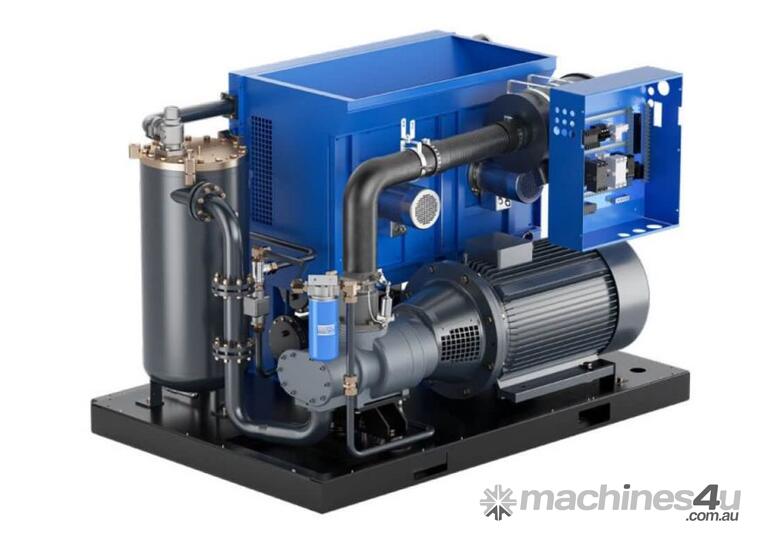

With many advantages, the SCR Direct Drive compressor would be an excellent choice in value. SCR use oversized airends and a 1:1 ratio drive. The 1:1 ratio means the motor is coupled to the airend via a maintenance free coupling that eliminates transmission loss and reduces noise dramatically. Compared to other compressors using belt drive or small high speed gear driven airends, the SCR Direct Drive delivers outstanding performance and significant energy savings.

Designed for harsh environments
Lower power consumption
Energy efficient
Low noise
Reduces maintenance cost and down time
No power transmission loss
Eliminates the use of belts

MINING FEATURES AVAILABLE
Weather proof
Stainless steel door, frame and base option available for erosive environments
Heavy duty air filtration
Electrical cabinet upgrades to suit mine site specifications
Industrial external filter mats
24v control voltage
Ingress protection (IP) upgrade on drive and fan motor

INTELLIGENT MICRO CONTROLLER
The intelligent patented micro plc controller is user-friendly. It has signals for pressure, temperature and current, which monitor the running of the compressor. With a secured code, setting up or changing parameters in the system can be easily achieved using the buttons on the display.

The display has readings for
Running amps
Service intervals
Pressure
Temperature
Current
On load and off load hours
Reverse anti-rotation alarm
Date and time
Fault history
Plus up to 13 different monitoring alarms
Controller options:
Remote stop/start
Power outage start up
Master slave operation
RS485 Connection
Modbus RTU
